AK Models MIG-29 Fulcrum Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
AK Models

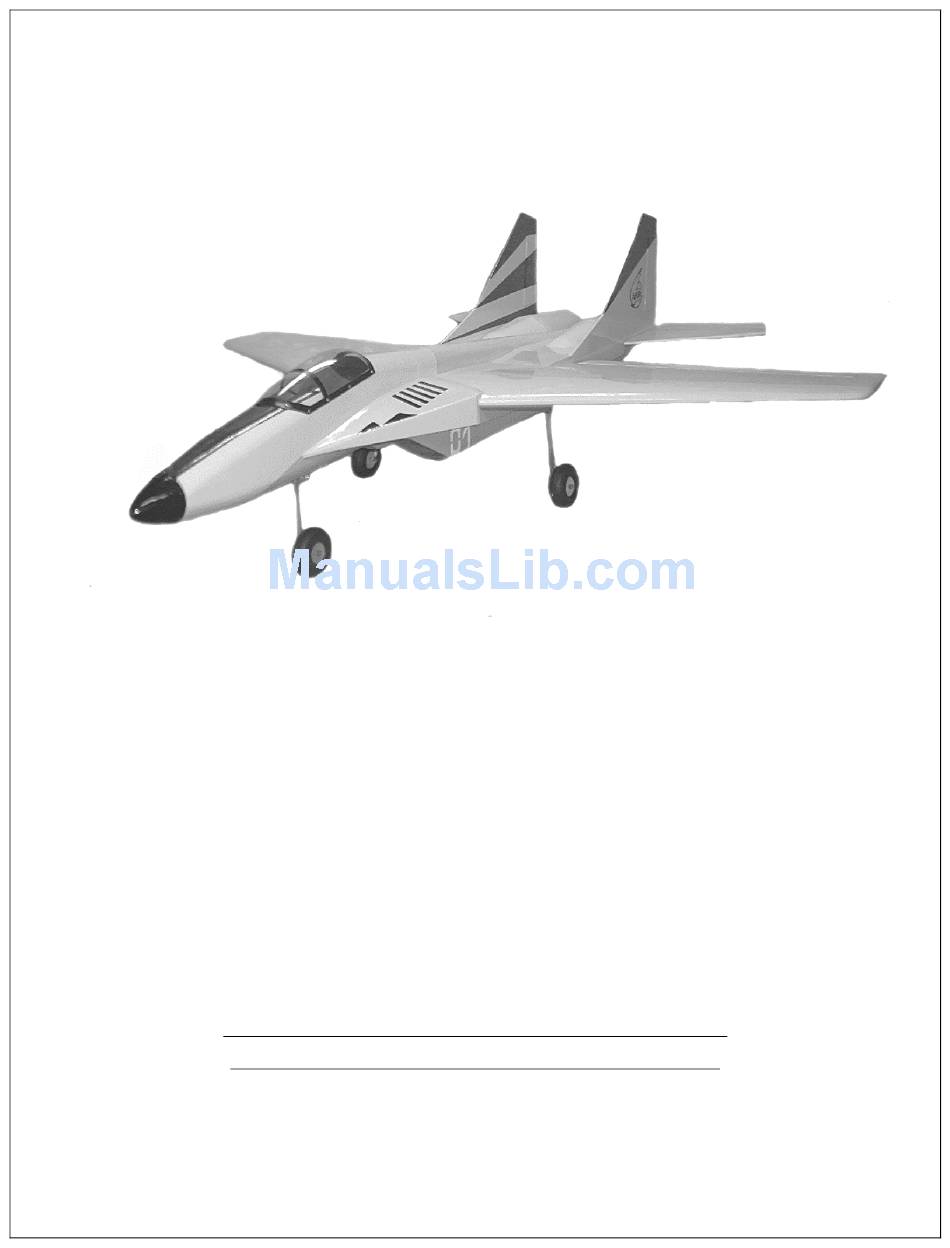

Legendary MIG-29 Fulcrum.
A High Performance Jet-Like Model that Flies like a sport plane.
This booklet divides the construction into sub-assemblies: fuselage, wing, etc. Read each section carefully and identify all of
the parts before starting on particular sub-assembly. There is a complete description of all kit parts under "Kit Contents".
Please check to be sure that your kit is complete; that it is not missing any parts. If you do find that parts are missing, or if you
are having trouble identifying parts please let us know. The pictures in this manual clarify and detail many of the assemblies
shown on the plan, and the two should be used together during construction.
Should you experience a problem with this kit feel free to call or write:
Thank you for choosing AK Models.
Good luck to you and have fun building and flying
MIG-29 Fulcrum.
AK Models
1635 Hemingway Lane,
Iowa City, IA 52240
(319) 358-1399
akm@ak-models.com
This product is sold with exclusion of all warranty expressed or
implied, statutory or otherwise. Buyer assumes all risk of use.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the MIG-29 Fulcrum and is the answer not in the manual?

Questions and answers

Summary of Contents for AK Models MIG-29 Fulcrum

  • Page 1 Should you experience a problem with this kit feel free to call or write: Thank you for choosing AK Models. Good luck to you and have fun building and flying MIG-29 Fulcrum.
  • Page 2 DO NOT AD LIGHTNING HOLES TO ANY PARTS! IT WILL JEOPARDIZE STRUCTURAL STRENGTH AND MAKE BALANCING MODEL DIFFICULT. To build MIG-29 Fulcrum you will also need: • Engine 2-Stroke .60 - .75 • Engine mount w. hardware (Dave Brown 60FS-6004) •...
  • Page 3 MIG-29 FULCRUM by AK Models. PREPARE TO BUILD. • Remove all puzzle tabbed parts from their sheets. Keep all other parts in their sheets until needed. Fuselage sides (2) Fuselage bottom (1) Engine sides (inside and outside) (2) of each...
  • Page 4 MIG-29 FULCRUM by AK Models. FUSELAGE. • Go back and permanently glue all formers and sides • Cover plans and pin down fuselage bottom. Draw former together using thin CA on formers and Med. CA on fuse lines over fuselage bottom. Place fuselage sides vertical to sides and bottom.
  • Page 5 MIG-29 FULCRUM by AK Models. • Pin fuse back to plans. Draw vertical and thrust line for • Slide Fuselage outside-bottom starting at F4. Align it at F2 and F3 on the side of the fuselage. Mark thrust line on rear of F8, wing saddle and lines on the plan.
  • Page 6 MIG-29 FULCRUM by AK Models. • Glue in vertical fins, keeping them vertical to BB and • Pin 3/8x1X36 stick (that will be used as a Leading edge tight to formers. Glue 1/2 triangles where indicated on the for the wing) to the top of F4, F6 and F8. Put pins so they plan.
  • Page 7 MIG-29 FULCRUM by AK Models. • • Place inside engine side in a position. Align with formers Epoxy wing bolt plates making sure they placed on to corners and glue first to formers and then to center section former below at one end.
  • Page 8 MIG-29 FULCRUM by AK Models. • It is recommended to use some kind of Airplane stand for • Glue 2” long 1/2 triangles to bottom and sides of the next steps, as it will require plenty of sending. fuselage to support wing bolt plates. In addition, install 1/2 triangles to all joint indicated on the plans.
  • Page 9 MIG-29 FULCRUM by AK Models. • Cut opening (1/2” high by 1” long) for servo wires in inboard sides only. See picture above. • Cut four 7 1/2” long 1/8x1 balsa, trim end contacting F8 and glue to F8 first and then to F9. Make a relief cut once again.
  • Page 10 MIG-29 FULCRUM by AK Models. • While epoxy is curing, take a ruler and mark a straight line to help locate positioning of the torque-rod assembly. • Glue 2” long 1/4x3/8 hatch rail to F8 (let hatch stick out a •...
  • Page 11 MIG-29 FULCRUM by AK Models. • Using plans make fuselage transition from 1x1x7 balsa • Once all strips are in place, sand first and run Thin CA at block. Make them by diagonally cutting block in halves. seems. Sand once again and trim ends of strips at F9.

  • Page 12: Wing Construction

    MIG-29 FULCRUM by AK Models. • • Remove engine glue 1/8 scrap wood to right side of F0 Hinge and install rudders as per plans. Sand L.E. as well and install 3/16 corners on the right side. Trim corners to as round L.E.
  • Page 13 MIG-29 FULCRUM by AK Models. • Cover plans with wax paper and pin bottom spar to BB. Using a straight edge assemble a wing jig from laser parts. Pin down wing jig with wider end at W1 rib. Place all ribs and pin down. Place top Spar in place. Adjust all ribs (except W1) so they vertical to BB and glue to bottom spar first and then to top spar.
  • Page 14 MIG-29 FULCRUM by AK Models. • From 3/32x4x36 cut center sheeting starting from rear • From 3/32, make L.E. sheeting and glue in place as you sheeting going forward. Use scrap 3/32 from L.E. did before. Glue 3/32x1 sheeting in place. Epoxy vertical sheeting to finish front part.
  • Page 15 MIG-29 FULCRUM by AK Models. • Pin it back to plans and glue 1/8x1/4 L.E. to aileron base. • Use long sending bar, to sand slightly rear sheeting and Cut all ribs from scrap wood as per plan and glue in place.
  • Page 16 MIG-29 FULCRUM by AK Models. placing wing right side up and flat on BB. • Measure and draw Cutoff line on both wings, top and bottom. Use razor saw to cut 1/8 in front of drawn line • Flip wing over and trim bottom part of the front brace half way through the wing.
  • Page 17 MIG-29 FULCRUM by AK Models. • Push blind nuts back in place and screw bolts until bolt hits bottom sheeting of fuselage from the top to determine where to drill holes in bottom wing bolt plates. • Center the mark on fuselage bottom (side to side). Drill using 3/16 bit at this marks.
  • Page 18 MIG-29 FULCRUM by AK Models. • Use 3/32x4” wide scrap from wing’s front sheeting, fit in • Position wing back to fuselage with wax paper at front place and bevel 3/4” at bottom side. Glue in pace. and rear of the wing and round corners to match front and rear of fuselage.
  • Page 19 MIG-29 FULCRUM by AK Models. • Glue 1/4x1/8x4 rails along bottom of humps; trim them so they would lay flat on the sheeting. It will help gluing • Measure 5/16 from inboard end of L.G. mount and drill humps to the fuselage sheeting. Do not glue them in place 5/32 in to vertically positioned bass wood block.

  • Page 20: Hardware Installation

    MIG-29 FULCRUM by AK Models. servo arms off) leaving one that closer to tail pipe sheeting. • Glue support rails flush to insides of cockpit area and sheet with 3/32 scrap wood keeping grain crossways. • Basic construction is complete at this point. Go back and •...

  • Page 21: Covering Your Model

    MIG-29 FULCRUM by AK Models. • and its flying characteristics. Once flown to know it well, Throttle: Full range of carburetor. you could move CG forward to make model more • Use thin CA to harden screw holes on all hatches.
  • Page 22 MIG-29 FULCRUM by AK Models.
  • Page 23 MIG-29 FULCRUM by AK Models.
  • Page 24 MIG-29 FULCRUM by AK Models.

  • Page 25: Kit Content

    MIG-29 FULCRUM by AK Models. KIT CONTENT (9) Balsa Sheet 3/32x4x36 Wing sheeting, cockpit floor, aileron ribs. (1) Balsa Sheet 1/16x3x36 Sheer web. (8) Balsa Sheet 3/16x2x36 Corners. (1) Balsa Sheet 1/8x2x36 Fuselage top sheeting. (2) Balsa Sheet 1/8x1x36 Tail Cone Bottom sheeting.
