Summary of Contents for Atak DVD3315

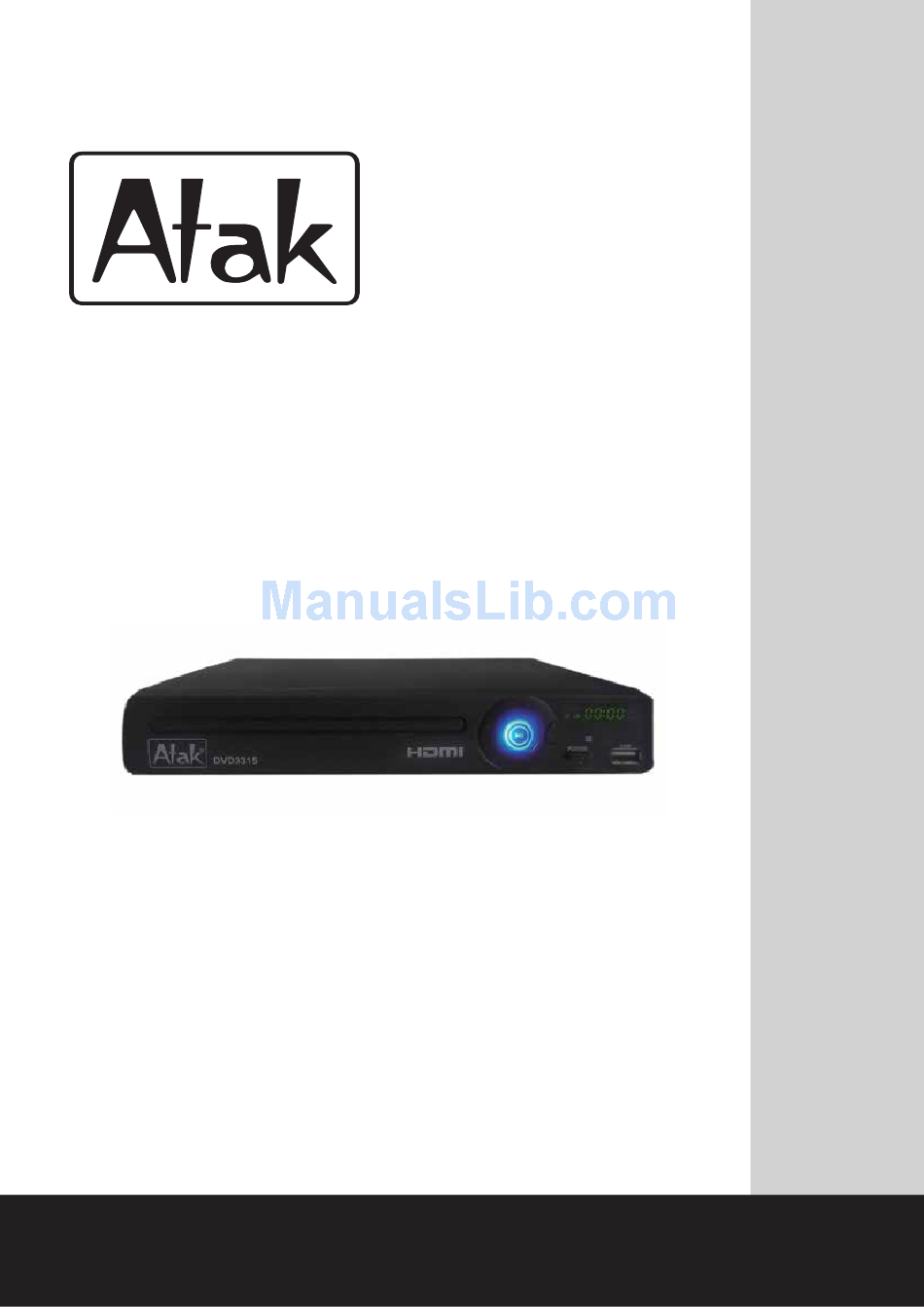

- Page 1 DVD3315 Upconverting DVD Player D V D 3300 INSTRUCTION MANUAL For technical assistance or troubleshooting please call 1-855-994-2825 or visit www.sibrandssupport.com...
-
Page 2: Fcc Warnings
WARNINGS To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. • To reduce the risk of electric shock, do not open the cabinet. No user serviceable parts are inside. Refer servicing to •... - Page 4 IMPORTANT NOTICE Front and Back Panels..................1 Front Panel....................1 Back Panel....................1 Remote Control....................2 Operating the Remote Control................. 3 Functions....................4-7 System Setup................... 8-10 MP3 Function ....................10 JPEG Files....................11 Troubleshooting...
- Page 5 1. POWER 3. LED DISPLAY 5. OPEN / CLOSE 7. PLAY/PAUSE 2. DISC DOOR 4. USB 6. STOP 1. HDMI Output 2. AUDIO Output- connect both Right (Red) and Left (White) channels 3. VIDEO output COAXIAL output HDMI CABLE AV CABLE...
- Page 6 16:9 / 4:3...
- Page 7 Notes: BATTERY INSTALLATION Do not direct the remote sensor toward any light source, such as direct sunlight or strong 1. Push down and out on the battery fluorescent light as it may cause the unit not to compartment cover to remove it. operate correctly.
-
Page 8: Front Panel
Note: TO PLAY A DVD: It is possible to damage a disc if it is not placed correctly on the guides in the disc tray. This may Turn on the TV set and select the A/V mode. also cause the DVD player to malfunction. Do not force or place anything other than a 5"... - Page 9 SCREEN DISPLAY BACKWARD X2 R E V While a disc is playing, the status of various functions may be checked, such as the title, track number, and several time categories. 1. Press the DISPLAY button once and the title appears along with the chapter and how much time has played.
- Page 10 The DVD player has the capability to play movies in one of three languages English, French or Spanish. 1. Press the LANGUAGE button. The language menu will appear. Select the desired language by continuing to press the LANGUAGE button until the desired language is shown.
-
Page 11: Functions
CD TITLE PLAY ZOOM A picture may be enlarged up to four times during With the PBC function ON, choosing a song on a CD can only be done when at the main either playback or slow motion through the unit's zoom menu. -
Page 12: System Setup
SYSTEM SETUP TV TYPE: There are two kinds of Aspect Ratios for TVs, Press the setup button to save the setting and 4:3 & 16:9 which can be selected according This option is used to setup exit this function to the disc format & TV Type. the following format and functions: TV screen format,... -
Page 13: Speaker Setup
AUDIO SETUP SPEAKER SETUP AUDIO OUT DOWNMIX Includes the setup of the digital audio signal Includes the setup of the audio signal for 2.0 and Dolby Digital compatible audio systems. channel audio systems. SPDIF/OFF: Use this setting if you are using LT / RT: Use this setting if you are using a 2.0 TV speakers only for your sound. -
Page 14: System Setup
DVD / USB PARENTAL CONTROL This DVD player supports playback of MP3 & To restrict the viewing of certain movie ratings, WMA audio files, AVI Video files and JPEG Parental Controls can be accessed on this menu. photos from a USB drive. In order to set or change these settings, the password must first be entered. -
Page 15: Jpeg Files
TROUBLESHOOTING JPEG is the most efficient image compression This handy trouble-shooting guide is provided format and is widely used for photo / picture to save you time if you experience any problems with this DVD player. If the problem is not listed storage. - Page 16 USB or other memory devices are not covered nor is the cost incurred in shipping the unit for warranty repair or exchange. Under no circumstances shall ATAK be liable for any loss (direct, indirect, incidental, foreseen, unforeseen, special or consequential) or for any damage arising out of, or in connection with, the use of this product.
- Page 17 Schoenfeld International Inc and ATAK 5001 American Boulevard West Suite 275 Bloomington, MN 55437 ©Schoenfeld International Inc, 2015 PN: DVD3315 Rev 1.0V June, 2015...
