Summary of Contents for Muscle Beach CMB-2

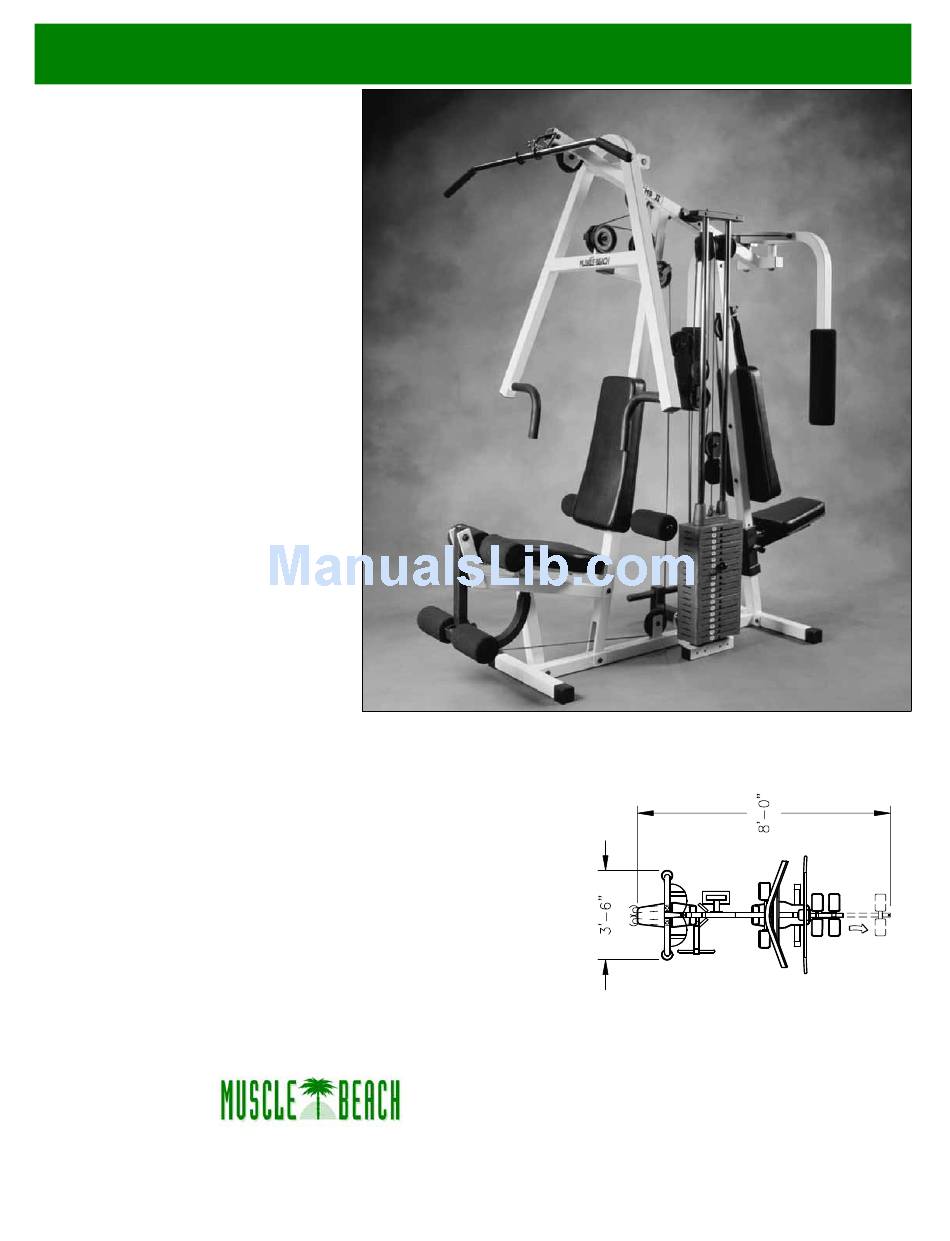

- Page 1 A S S E M B L Y I N S T R U C T I O N M A N U A L Revision Date 9-98 CMB-2 Muscle Beach Home Gym Shown at Full Extension L 8’-0” W 3’-6” H 7’-0”...
- Page 2 Congratulations on your new purchase of the Muscle 1) Lubrication of all moving parts is essential to the longevity Beach Home Gym (CMB-2). This gym is capable of a and optimal performance of your Muscle Beach Home Gym. variety of different exercises, as well as, smooth and user- Initial lubrication of some parts of your gym have been done friendly adjustment features.
- Page 3 Plastic Insert Caps 2” X 3” (#91) into the pulley bracket the axle on the Low Row Swivel Pulley Bracket (#83) housing on the Low Row Foot Support (#81). lubricated with grease prior to assembly. CMB-2 Muscle Beach Home Gym...
- Page 4 Hex Head Cap Screw 3/8-16 X 2 3/4 (#55), two Flat Washers SAE 3/8 (#73) and one Nylon Insert Jam Lock Nut 3/8-16 (#69). Note: Do not tighten this hardware assembly at this time. CMB-2 Muscle Beach Home Gym...
- Page 5 Guide Rods (#23) in numerical order, Note: Lubricate the Guide Rods (#23) with a silicone or Teflon beginning with the number 200 at the bottom, 190 next, and so lubricant at this time. CMB-2 Muscle Beach Home Gym...
- Page 6 Press Arm (#2). Then insert the Rubber Stopper Cap 2” Sq (#84), as shown on Front Upright (#11). Note: It is recommend that you you grease the Pivot Axle 1 X 11 3/4 prior to assembly. CMB-2 Muscle Beach Home Gym...
- Page 7 Washer SAE 3/8 (#73). Note: Do not over-tighten this bolt as (#74) into the groove. Note: Be careful not to distort the Foot Roll Bracket (#51) should be allowed to swivel Retaining Snap Ring (#74) or bend it. freely. CMB-2 Muscle Beach Home Gym...
- Page 8 Plastic Insert Caps 1” Rd (#75) onto the tube-ends of the shown above. Bench Press Adj Seat Tube (#9). Note: Pull the Push-Pull Pin 1/2” (#23) to allow the Bench Press Adj Seat Tube (#9) adjust up and down. CMB-2 Muscle Beach Home Gym...
- Page 9 Front Upright (#11) and secure using two Hex Head Cap 16 X 2 3/4 (#55) and two Flat Washers SAE 3/8 (#73). Screws 3/8-16 x 2 3/4 (#55) and two Flat Washers SAE 3/8 (#73). CMB-2 Muscle Beach Home Gym...
- Page 10 Nylon Pulley 4 1/2 Rd. (#48) and into the tube of the Top Pulley Assembly (#3). Use Fig. I on page 15 and Fig. B on page 16 for further detailed illustration cable routing. CMB-2 Muscle Beach Home Gym...
- Page 11 Washers SAE 3/8 (#73) and one Nylon Insert Jam Lock Nut 3/8-16 (#69). Route the Lat Cable (#44) through the Nylon Pulley 4 1/2 Rd. (#48), as shown in Fig. I on page 15 and Fig. B on page 16. CMB-2 Muscle Beach Home Gym...
- Page 12 (#73) and one Nylon Insert Jam Lock Nut 3/8-16 (#69). Route hardware assembly is securely fastened. Lat Cable (#44) through the Top Plate Swivel Bracket (#14), as shown above. Use Fig. I on page 15 for further detailed illustration of cable routing. CMB-2 Muscle Beach Home Gym...
- Page 13 Repeat the same procedure in Fig. 41 and Fig. 42 to complete the routing of the Pec Dec Cable (#45) to the Pec Dec Arm Rt (#5). Also see Fig. A on page 16 for further clarification of this assembly. CMB-2 Muscle Beach Home Gym...
- Page 14 3/8 (#73) and one Nylon Insert Jam Lock Nut 3/8-16 (#69). Next, route the Leg Extension Cable (#43) through the Nylon Pulley 4 1/2 Rd (#48), as shown above. See Fig. I on page 15 for further clarification of this routing. CMB-2 Muscle Beach Home Gym...
- Page 15 See Fig. I on page 15 for further mounting hardware described in Fig. 47 on page 13 to fasten clarification. the pulley and cable into place. See Fig. I on page 15 for further clarification. CMB-2 Muscle Beach Home Gym...
- Page 16 (#73), two Nylon Spacers 3/8 x 3/8 (#47) and one Nylon Insert Jam Lock Nut 3/8-16 (#69). Note: This completes the assembly of the CMB-2. It is recommended that you check and secure all the hardware assemblies and inspect the complete cable routing of all cables.
- Page 17 Owners’ Manual: Assembly Instructions FIG. B FIG. A Note: Some Parts Have Been Cut Away For Clarity. FIG. E FIG. C FIG. D FIG. F FIG. G FIG. H Leg Press Configuration CMB-2 Muscle Beach Home Gym...
- Page 18 HEX HEAD CAP SCREW 3/8-16 X 4 1/2 BNH0284 LAT CABLE CMB2-44-00 1 PUSH PULL PIN 1/2" BNH0515 PEC DEC CABLE CMB2-45-00 1 VELCRO ANKLE STRAP 20000-VNAS 1 PLASTIC INSERT CAP 2" X 3" BNH0052 CMB-2 Muscle Beach Home Gym...
- Page 19 Owners’ Manual: Assembly Instructions CMB-2 Muscle Beach Home Gym...
- Page 20 D O N O T D I S C A R D T H I S M A N U A L 1325 E. Franklin Ave., Pomona, CA 91766 Ph: 909-629-1600 Fax: 909-629-4967 E-mail: taskind@aol.com Net: www.tuffstuff.com...
