Summary of Contents for Adastra DT50
- Page 1 DT50 Desktop PA Item ref: 952.400UK User Manual Version 3.0...
- Page 2 Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty 952.400 User Manual...

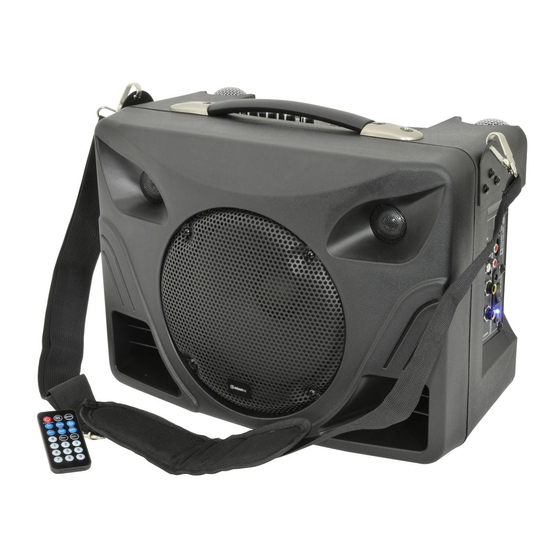

- Page 3 Introduction Thank you for choosing the DT50 desktop PA unit. Please read this manual prior to use to avoid damage to the item. This versatile portable PA unit is packed with features in a compact, manageable enclosure and is suitable for a wide array of applications ranging from public address for presentations to outdoor karaoke.
- Page 4 Controls SD card slot USB input Media player LCD display Record indicator Play indicator Delay time control of echo effect Microphone Echo level control Treble EQ control Bass EQ control 10) Music volume control 11) Media player mode control 12) Media player transport/record controls 13) VCV activation switch 14) Wired microphones volume control 15) Radio Frequency indicator (channel A)
- Page 5 Take care to observe the correct polarity when installing the batteries. With the VHF VOL control turned down, press the VHF ON/OFF button on the DT50 so that the VHF POWER LED lights. Switch on each wireless mic in turn – the RF LEDs on the DT50 unit should light as a result If the LED on the handset does not light or stays on dimly lit, change the battery Gradually increase VHF VOL control, testing each microphone in turn for output through the speaker.
- Page 6 Internal USB/SD/FM player Insert a USB memory stick or an SD card with compressed audio media stored on it into the relevant slot on the top panel. If the LCD display reads “LINE IN”, press the MODE button and check that the LCD display shows that media is being read from the USB or SD device.
-
Page 7: Charging The Battery
USB/SD “Pause” Menu Pressing MODE for 2 seconds whilst USB/SD is paused opens the USB/SD “Pause” Menu Use VOL- and VOL+ buttons to navigate through the menu and Play/Pause button to select File Browser uses VOL-/VOL+ to navigate and Play/Pause to select tracks on the media Delete File uses VOL-/VOL+ to select “YES/NO”... -
Page 8: Specifications
Specifications Power supply 110-240Vac, 50/60Hz, 12Vdc or internal battery Battery life Up to 8 hours HF driver 2 x 25mmØ balanced dome LF Driver 200mm (8“) reinforced paper cone Output power 50Wrms 85dB Construction Injection-moulded polypropylene Power supply : Handheld transmitters 9Vdc (PP3 battery) each Wireless microphone frequencies 174.1MHz + 175.0MHz...
