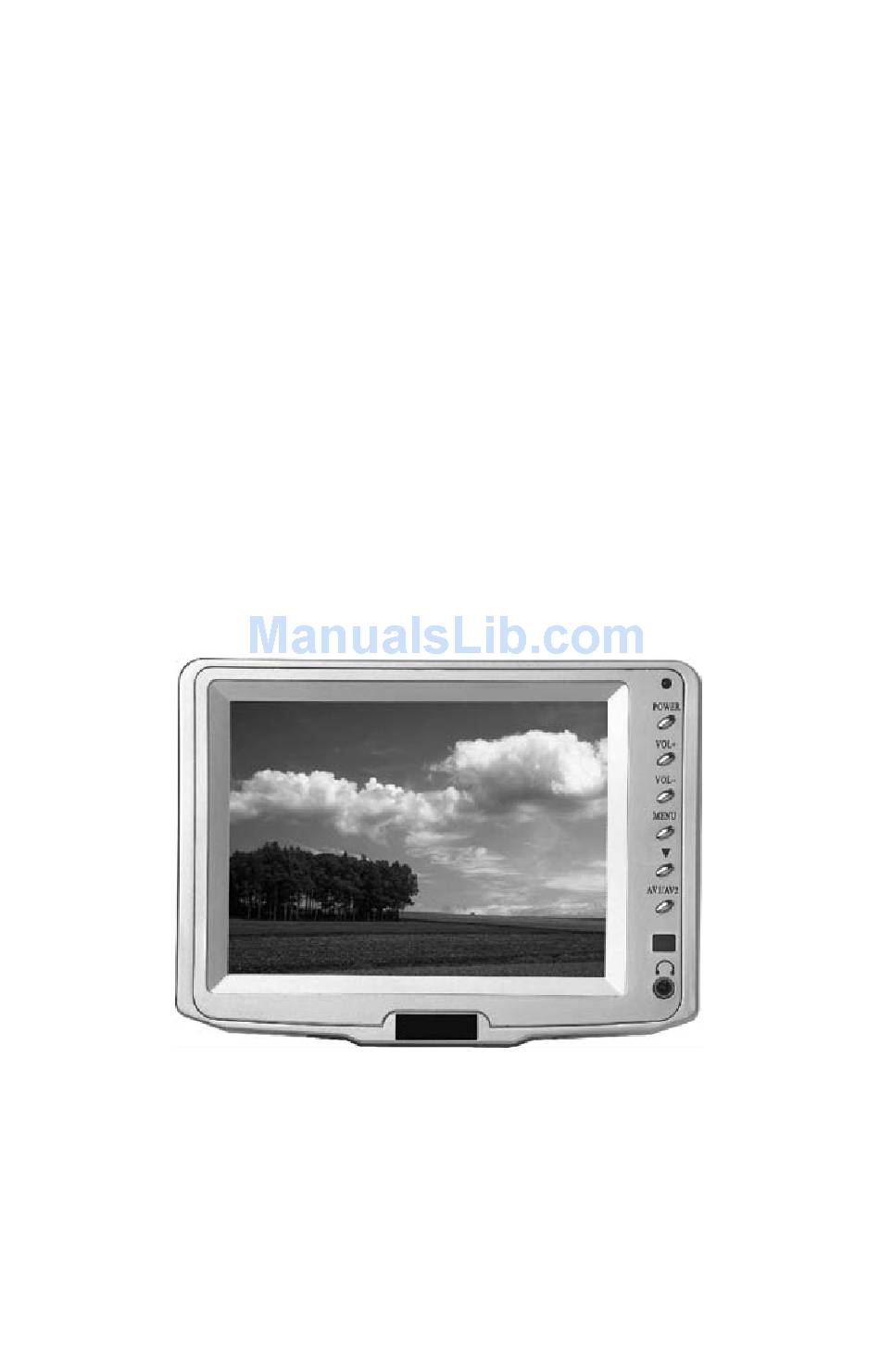

- Page 1 Operation Instructions LCD Color Monitor...
-
Page 2: Table Of Contents
Table of Contents 1. Precautions 2. Accessories 3. Appearance 4. Remote Control Operation 5. Basic Operation Methods 6. Menu Operation (1) Picture (2) System (3) Option (4) Clock 7. Before you request for repair 8. Technical Parameters... -
Page 3: Precautions
1. Precautions Storage 1. Keep this product away from extremely hot or cold places. The storage temperature ranges from -40 to 60 and the working temperature from -5 to 40 . 2. Do not use this product at damp environment like bathtubs, wash basins, kitchens, washtubs, as well as basements, swimming pools or similar places. -
Page 4: Accessories
2. Accessories 1. AV and power supply conversion line 2. Car adapter 3. Release slip 4. Remote control 5. AAA type batteries * Open the package and make sure all the accessories are included. -
Page 5: Appearance
3. Appearance 1.TFT-LCD screen 2.Power indicator 3.Standby/Exit game 4.Volume increase, analog quantity selection + 5.Volume decrease, analog quantity selection - 6.Menu 7.Option 8.AV1/AV2 shift 9.Remote receiving window 10.Earphone Jack 11.Loudspeaker 12.Audio / Video power supply connection terminal( Yellow line for Video 1 input line for Video 2 input White line for Audio input In-socket power supply... -
Page 6: Remote Control Operation
4. Remote Control Operation VOL - / + (Volume adjust): Press VOL - , the volume of Display decreases. Press VOL + , the volume of Display increases. MODE (Mode): Press this button, users can realize the five picture statuses of Standard, Soft, Vivid, light and Personal. -
Page 7: Basic Operation Methods
5. Basic Operation Methods Basic interface connection 5.1 Connection Method of AV Conversion Line Hold the AV conversion line, align the side of jack marked with on conversion line with the side of jack marked with on AV conversion line of the monitor ( Yellow line for Video 1 input Red line for Video 2 input... - Page 8 5.3 Releasing the display from headrest housing: Headrest housing Release 1) Insert the release slip into the slip space between the display and headrest housing, as illustrated. Display 2) Draw out the display following releasing direction.
-
Page 9: Menu Operation
6. Menu Operation Press MENU to display program as follows: PICTURE SYSTEM OPTION CLOCK 6.1 PICTURE CONTRAST, BRIGHT, COLOR, SHARP and TINT displays on the screen as illustrated below: Press CH+ or CH- to select the item Press VOL+ or VOL- to adjust Notes Only when displaying the picture of NTSC system, it will show the character of TINT in the Picture menu. -
Page 10: Clock
6.3.2. Press CH or CH to choose the item VERTICAL: Press VOL-/VOL+ can realize VERTICAL, and press again to resume the picture. 6.4 CLOCK TIME, ON TIME, OFF TIME and ATTENTION will display on the screen as illustrated below: Press VOL-/VOL+ to set up TIME. Upon setup of CLOCK, press CH or CH again to choose ON-TIME... -
Page 11: Before You Request For Repair
7. Before you request for repair Phenomena below are not necessary mean failure with Display. Please check off per following methods before you request for repair. Phenomena Possible Causes Improper connection with Automobile No picture, no sound adapter. Use of unauthorized power supply. Power Switch is on OFF position. -
Page 12: Technical Parameters
8. Technical Parameters Product: LCD Color Monitor Display Device: Color TFT-LCD Screen Size: 5 inches Audio Output: 200MW Loudspeaker: one 4.0cm round loudspeaker Connecting Terminal: Earphone jack, audio / video (AV) input jack, external power supply input jack, rear vision connector. Application Power Supply: Automobile storage battery (12V) Automobile adapter Power Consumption: about 8W... - Page 13 W a rn in g This operation instruction is only intended for reference. No further notice is available to any modification of all information contained therein. Color system and OSD menu language are optional item, please check before usage. W a rn in g No repairable components exist in the machine.
