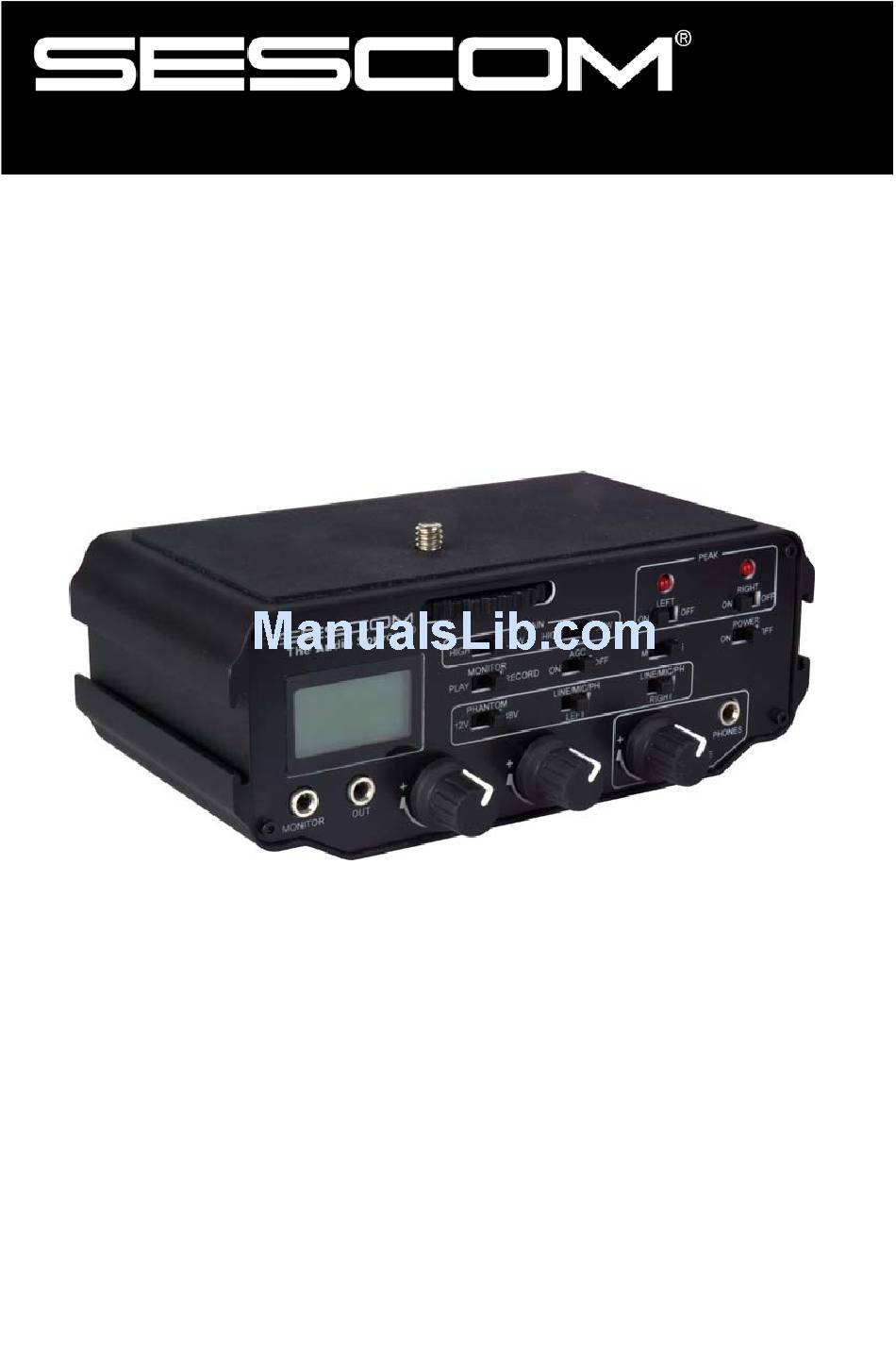

- Page 1 The Audio Source. USER MANUAL SES-DSLR-PROMIX 2 Channel XLR Audio Mixer with Preamplifiers, and Gain and Peak Controls for DSLR and Video Cameras SESCOM · PO Box 720 Mt. Marion, NY 12456 www.sescom.com...
- Page 2 SES-DSLR-PROMIX Audio Mixer The Sescom SES-DSLR-PROMIX audio mixer is designed to facilitate greater audio recording control and higher audio fidelity for DSLR cam- eras and camcorders. This mixer eliminates the need for post-edit sync- ing by recording directly to the camera. The built-in microphone jacks...
- Page 3 SES-DSLR-PROMIX Features XLR Inputs Balanced LEFT and RIGHT XLR inputs Battery Compartment Operates on one 9 –volt battery. Level Meter Indicates the sound level in dB for each channel Gain Switches Selects LOW for unity gain or HIGH for +20dB boost...
- Page 4 SES-DSLR-PROMIX Features M/S Switch Select mono or stereo output mode POWER Switch Main power switch PHANTOM 12V/48V Switch Select 12 or 48 volt for condenser microphones requiring phantom power LINE/MIC/PH Switches Select LINE or MIC or Phantom levels ...
- Page 5 Headphone jack to monitor the audio from microphones or camera 3/8" Female Screw 1/4" Female Screw SES-DSLR-PROMIX Set Up Read and follow all steps below before operating the device. NOTE: If your camera or camcorder has an Automatic Gain Control (AGC) function, turn it off.
- Page 6 SES-DSLR-PROMIX Set Up 5. To monitor audio from the camera during playback, connect the supplied AV cable to the MONITOR jack on the adapter. Attach the other end to the AV output of the camera. 6. Connect balanced XLR microphones, wireless mics or other audio sources to the LEFT and RIGHT XLR.
-
Page 7: Safety Precautions
10. There are no user-serviceable parts inside the unit. If the unit requires service contact your authorized dealer, or an authorized repair service company. SESCOM SES-DSLR-PROMIX Page 7... - Page 8 SESCOM PO Box 720 Mt. Marion, NY 12456 www.sescom.com The Audio Source. ...
