Summary of Contents for SUNRAY SOLFLO

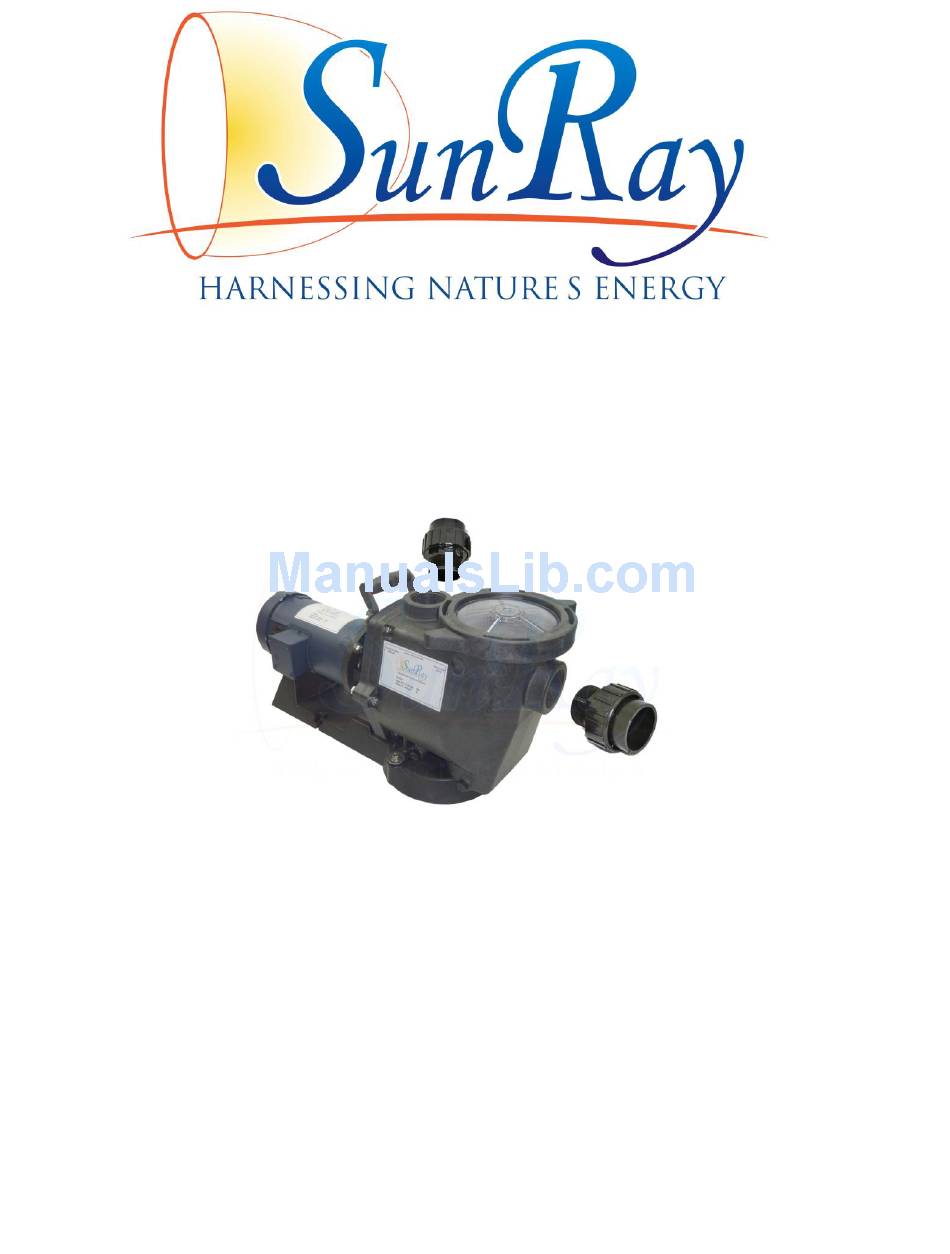

- Page 1 Assembly and Installation Manual SOLFLO Solar Pool Pumps Phone: (855) 372-8467 Email: Service@SunRayUS.com...
- Page 2 SOLFLO Pump Assembly Instructions 1. Remove pump base from shipping box and place on a flat surface. 2. Rest the pump end on the base and align the two feet over the two mounting holes. 3. Place the stainless steel flat washers over the base flanges on each side of the pump.
- Page 3 SOLFLO Pump Assembly Instructions Rotate the pump shaft adapter until the set screws are aligned to the center of the motor adapter slot. This will be about a 45 degree angle. Rotate the motor shaft until the key way is at the same 45 degree angle to align with the pump coupling set screws.
- Page 4 SOLFLO Pump Assembly Instructions 11. Now the impeller and the pre-load on the shaft seal needs to be adjusted. With a large flat point screw driver, pry the motor shaft coupling toward the motor until it stops. Then back it off about 1/8”.
- Page 5 PUMP CONNECTIONS The suction line from the pool skimmer and main drain must be connected to inlet on the hair and lint trap. It is recommended to have a minimum of 12” of straight pipe before hair and lint trap. The discharge line to pool (return lines) must be connected to outlet at top of pump.
-
Page 6: Trouble Shooting
8.) Avoid spilling or dripping liquid chemicals on or near motor. 9.) Avoid splashing water or hosing deck near motor. Water damage voids warranty. For replacement parts or repairs, contact SunRay 1-855-372-8467. WARNING – All electrical wiring of the motor installation must be done by a qualified electrician in accordance with applicable electrical codes. - Page 7 1.) Plumbing vibration 2.) Impeller turns freely and is properly adjusted 3.) Motor bearings 4.) For cavitation, due to obstruction in or undersized suction line. For information regarding this pump contact: SunRay Engineering LLC. www.SunRayUS.com Phone: (949) 636-4358 1-855-372-8467 Email: Sales@SunRayUS.com Service@SunRayUS.com...
