Related Manuals for ALcom Speakeasy
Summary of Contents for ALcom Speakeasy
-

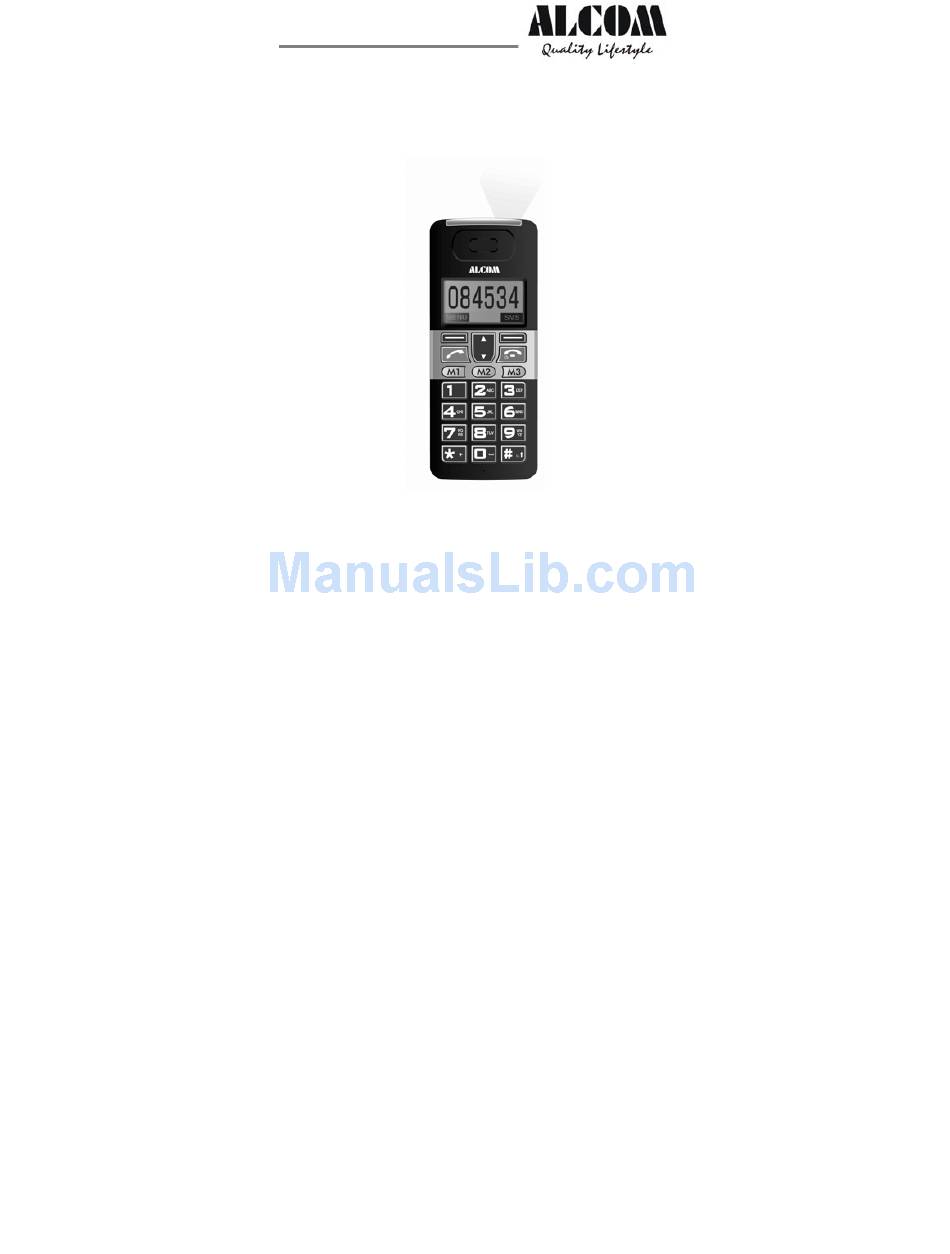

Page 1: User Guide
USER GUIDE Speakeasy GSM Before operating this set, please read these instructions carefully. - Page 2 You will need to insert a SIM card for the handset to work correctly. Network Services – The Speakeasy GSM is approved for use on the GSM900 and GSM1800 networks. Check with your mobile phone service provider to see if you can use the Dualband feature or other Network Services described in this guide.
-
Page 3: Table Of Contents
Contents Where to find it…………………..…………..………… Symbols on the display ………..………………….… Menu Operation …………….…..………………..…… Read these notes first……..……….………….…… Installation and setup………………………..….…… Switching On and Off …………………..……..…..… 10 Making & answering calls…………………………… 11 Using the Phone Book & Fast keys (M1-M3)…..… 12 Call log……………………………………………….…. -
Page 4: Where To Find It
Where to find it Torch beam Wrist strap holes Visual Ringer Up/Down buttons Press to adjust receiving Earpiece volume in talk and peakerphone modes. Select buttons Press to step through (Left/Right soft keys) names, phone numbers, menus and settings. Perform functions indicated by the Standby mode shortcuts: display text above... -
Page 5: Symbols On The Display
Symbols on the display The network name or logo in XXXXXX service (If display option set) 1 - The left selection key in the standby mode is Menu. 2 - The right selection key in the standby mode is SMS. The Soft keys change to different functions in other modes. -
Page 6: Menu Operation
Menu Operation Menu lists are used for set up and operation. The left and right soft keys initially are Menu and SMS. Press Menu ( ) and the display changes and the soft keys become Select and Back. Use Up or Down to move up or down menu lists, and Select or Back for the next or previous display. - Page 7 • CARE & CLEANING - Do not drop or knock the phone excessively, and keep it clean using a damp cloth if necessary - do not use chemicals, cleaning solvents, or strong detergents.
-
Page 8: Installation And Setup
Installation and setup Before operating the Speakeasy GSM a SIM card must be installed. Keep the SIM card out of small children’s reach. The SIM card and its contacts can be damaged easily by scratches or bending, so handle the card carefully. - Page 9 Charge the battery Warning! Use only batteries and chargers supplied with or approved by Alcom for this model. Use of others will invalidate approvals or warranty and may be dangerous. Do not charge the battery with the back cover removed.
- Page 10 When connecting a headset, including those approved by Alcom for use with this device, pay special attention to volume levels. Read its user guide for detailed safety instructions. Do not connect incompatible products. When correctly inserted the headset icon will show on the handset display.
-
Page 11: Switching On And Off
Switching On and Off To switch the phone on and off To switch off, press and hold End Call until the display clears. To switch back on, press and hold End Call until the display turns on. Warning! Do not switch on when mobile phone use is prohibited or it may cause interference or danger. -
Page 12: Making & Answering Calls
Making & Answering calls To make a call Ensure the phone is switched on and in service. Key in the telephone number including area code. (To add prefix "+" press the “*” key twice quickly) Press Talk to dial the number on the display. To end calls press the End Call button. -
Page 13: Using The Phone Book & Fast Keys (M1-M3)
To mute the microphone During a call, press Options & Down to go to Mute, & then Select the display shows To unmute, press Options and select Unmute. To make a conference call Conference call is a Network Service that lets up to four parties talk together. - Page 14 To add a new Phone Book entry Press Down to open the phonebook Select Options, New & select Save to SIM or Save to phone, then enter the letters for the Name Press Next & key in the digits for the Number Press Save to save the new contact.
-
Page 15: Call Log
Store a Phone Book entry to a fast key (M1– M3) Press Down to open the phonebook Press Up or Down to find the entry to save Select Options, Set to fast key Key in the Password (default is 0000) Select OK the display shows M1, M2, M3 Press Up or Down to choose the key to save to... -
Page 16: Sms Text Messaging
SMS text messaging Send & receive text messages. These are saved in the phone memory (max. 100) or on the SIM card. Received SMS are stored in the Inbox and the icon indicates new messages. Also “1 New message” displays until Select (to view) or Cancel (to clear) is pressed. - Page 17 Status report** – to request send delivery reports Select the option required and follow the menus. Message center - Your Speakeasy GSM reads the service number from the SIM card. If it has been accidentally changed, you’ll need to get the correct number and reprogram it.
-
Page 18: Settings
Settings Allows you to adjust various settings on the phone, and also to reset them to their factory default values. Press Menu, then press Down to go to Settings, and Select to display the list of settings available. Phone Settings Language –... -
Page 19: Call Settings
Call Settings – ( some network services may not be available) Auto redial – auto-dial up to 10 redial attempts Anykey answer – so any key press will answer a call Send own number – withhold your number Sound profiles –... -
Page 20: Troubleshooting
Troubleshooting “Call failed” appears Check dialled number is correct, with full area code SIM card fitted – only Some SIM cards are thinner than others. Lightly press the makes emergency call SIM card holder to ensure a proper contact is made. The mobile phone The phone is in energy saving mode and the display has display is blank... -
Page 21: Guarantee And Service Information
Please register your warranty online at - http://www.alcomonline.com/warranty.html Keep your sales receipt for verification when required. For more information on Warranty and Product Support in Singapore please call (65) 68412688 or Fax to (65) 68412628. Email: support@alcom.com.sg Website: www.alcomonline.com... -
Page 22: Battery Information
When the operating time becomes noticeably shorter than normal, it is time to buy a new battery. Use only batteries & chargers approved by Alcom and unplug the charger when not in use. Don’t leave the battery connected to a charger for more than 24hr - overcharging may shorten its life. - Page 23 Hearing aids Mobile phones may interfere with some hearing aids. In the event of interference, contact your hearing aid provider. Other medical devices Any radio transmitting equipment, including mobile phones, may interfere with inadequately protected medical devices. Consult a physician or the medical device supplier to check if it is shielded adequately from external RF energy.
- Page 24 Version 01, Oct, 2009...
