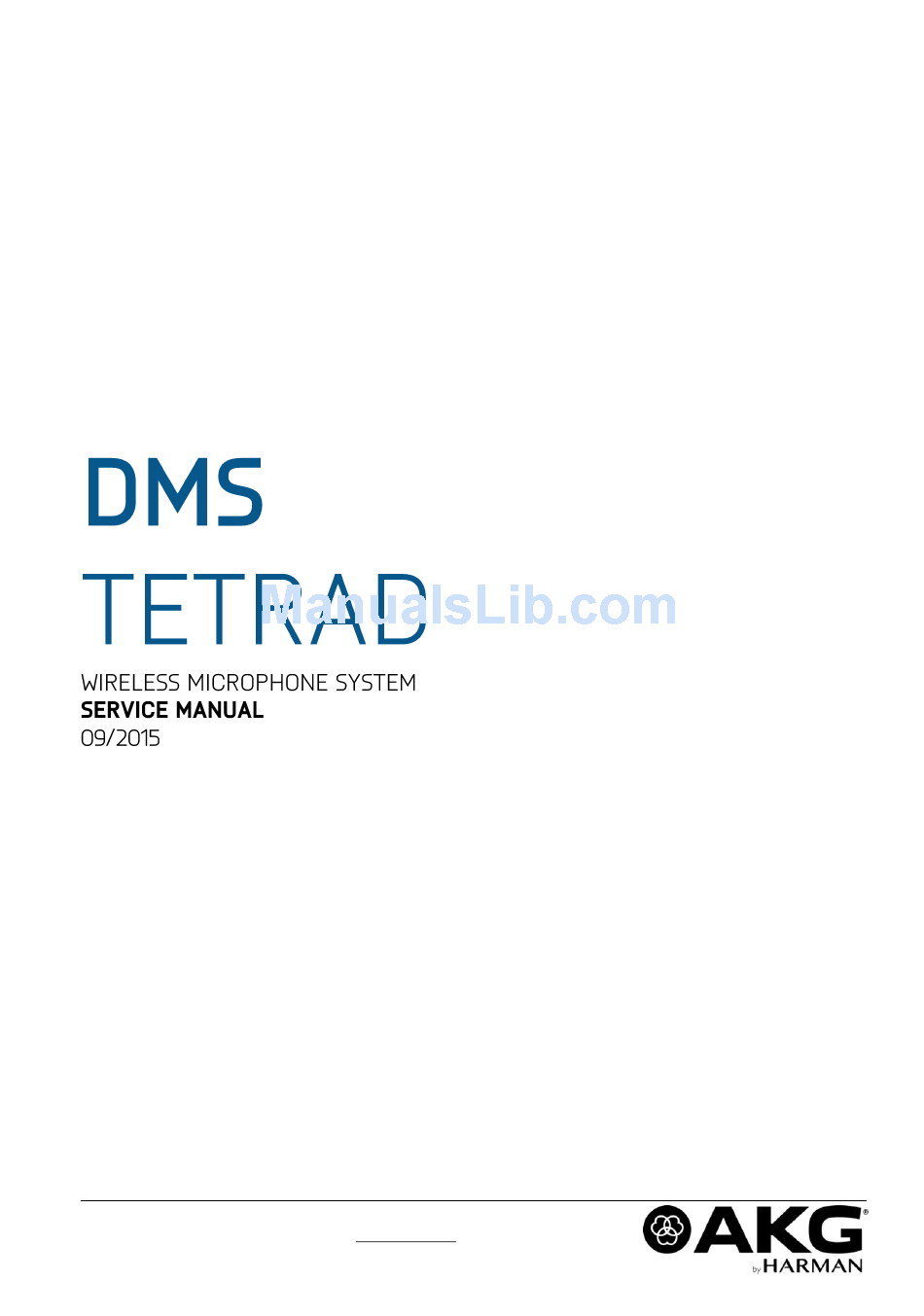

DMS Tetrad Service Manual

Wireless

Hide thumbs

Table Of Contents

Table of Contents

Available languages

Quick Links

Download this manual

AKG CUSTOMER SERVICE DEPARTMENT / Laxenburger Straße 254 / 1230 Vienna, Austria

TEL: +43 1 866 54-0 / FAX: +43 1 866 54-1514 / service@akg.com / www.akg.com

1/10

Table of Contents

Need help?

Do you have a question about the Tetrad and is the answer not in the manual?

Questions and answers

Summary of Contents for DMS Tetrad

Page 1 AKG CUSTOMER SERVICE DEPARTMENT / Laxenburger Straße 254 / 1230 Vienna, Austria TEL: +43 1 866 54-0 / FAX: +43 1 866 54-1514 / service@akg.com / www.akg.com 1/10...
Page 2 Table of contents: The complete DSM TETRAD family Die komplette DMS TETRAD Familie DHT TETRAD Digital handheld transmitter DHT TETRAD Digitaler Handsender DPT TETRAD Digital bodypack transmitter DPT TETRAD Digitaler Taschensender DSR TETRAD Digital stationary receiver DSR TETRAD Digital Empfänger...

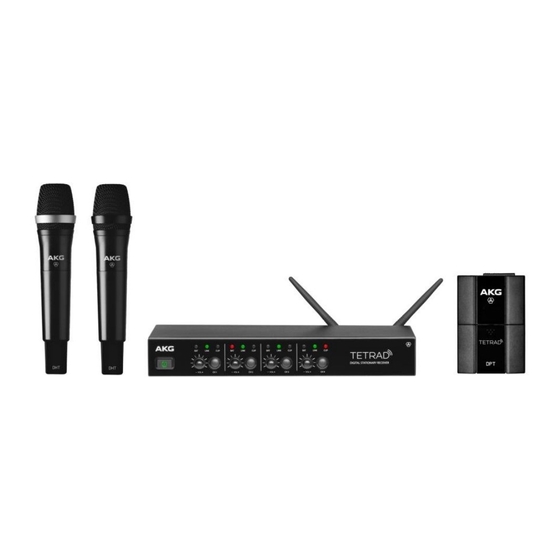

Page 3 DSR TETRAD Digital stationary receiver DHT TETRAD D5 DHT TETRAD P5 DPT TETRAD Digital handheld Digital handheld Digital bodypack transmitter transmitter transmitter Power supply : Frequency range, Mhz, SMPS 12VDC/500mA pn : 7801H00130 2,4Ghz Website links: AKG TETRAD Cut sheet...
Page 4 DHT TETRAD D5 2457X00020 DHT TETRAD P5 2457H00010 Capsule secured with Loctite 480 DHT70 wiring DHT TETRAD wiring D5 capsule P5 capsule 4/10...
Page 5 DHT TETRAD Parts list / Stückliste Quantity Part number Description Pos. Stück Bezeichnung Bestellnummer Mainboard 5048395 Print kompl. Cage bottom 3257Z01020 Käfig Unterteil Cage top 3257Z01030 Käfig Oberteil Spring D016D-1 9999N07840 Feder D016D-1 On/Off button 3257Z01040 On/Off Knopf Lightguide cage top 3257Z01050 Lichtleiter, Käfig Oberteil...
Page 6 To dismantle the DHT TETRAD proceed as follows: Remove battery sleeve (20), wire mesh cap (15), connect button (16), gain button (18), and device sticker (23); Open locking mechanism with small screw driver. Push inside cage out of the housing.
Page 7 DPT TETRAD 3456H00010 7/10...
Page 8 DPT TETRAD Parts list / Stückliste Part number Quantity Description Pos. Bezeichnung Bestellnummer Stück Housing top 3456Z10010 Gehäuse Oberteil Mini XLR 0016E18290 Mini XLR Buchse Nut groove 2781Z20020 Mutter Light guide 3256Z13010 Lichtleiter On/Off button 3256Z14010 On/Off Knopf Foam 3256Z31010...
Page 9 DSR TETRAD 3455H00020 9/10...
Page 10 DSR TETRAD Parts list / Stückliste Part number Quantity Description Pos. Bezeichnung Bestellnummer Stück Audio board 5048398 Audio Print RF board 5048400 HF Print DSP board 5048401 DSP Print Spacer 5043674 Abstandshülse RF connector cable 120 5043754 HF Kabel 120...
