Congratulations on your purchase of the Xmultiple
FlashPoint ShareDrive

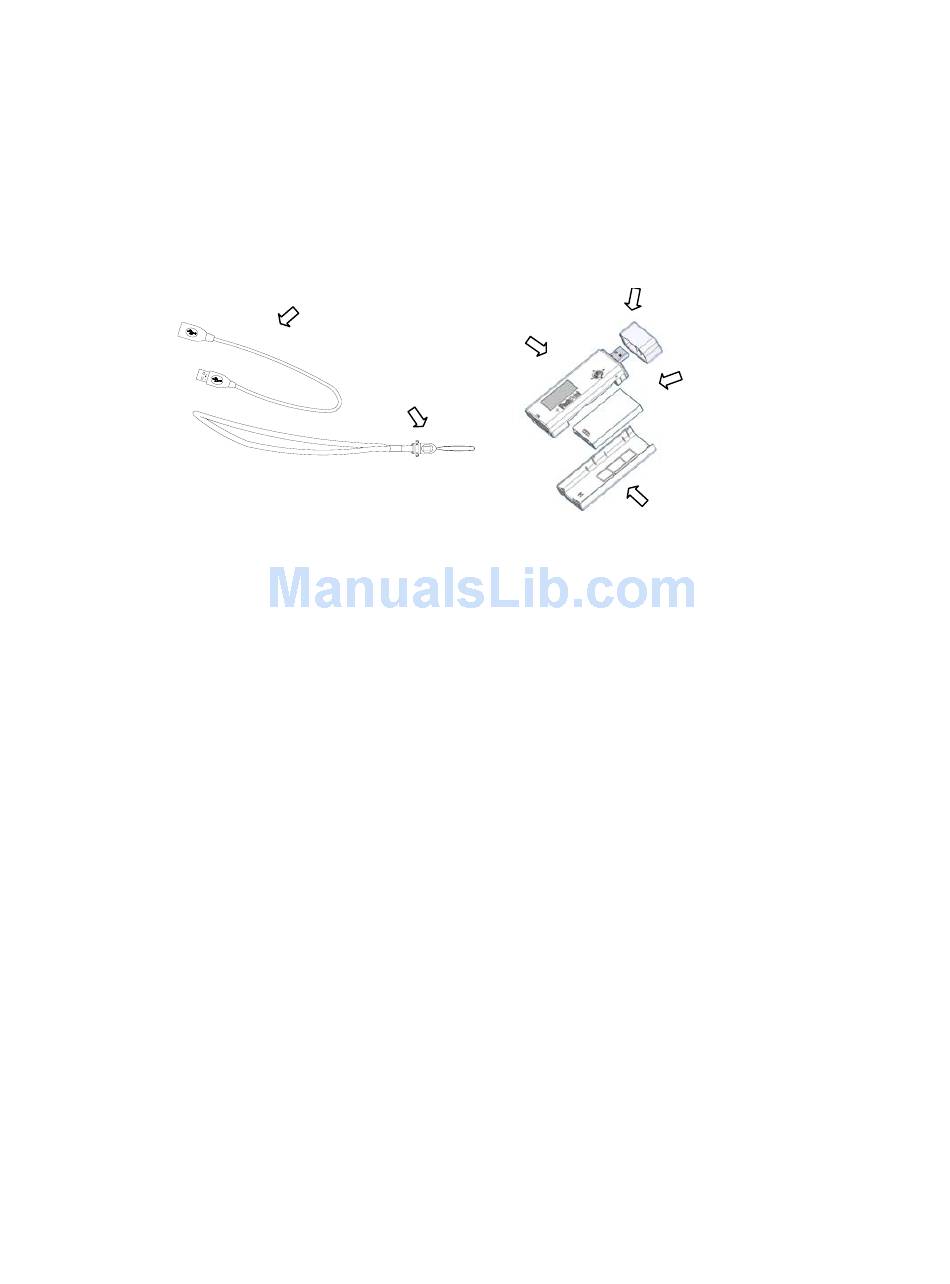

1. Package contents:
Your package contains one each of the following items:
- FlashPoint ShareDrive with Battery Pack
- Cap
- USB Cable
USB Cable
Neck Strap
- Neck Strap
- Quick Start Manual
Cap
FlashPoint
1
Battery Pack
Back Cover
Advertisement
Summary of Contents for Xmultiple FlashPoint ShareDrive
- Page 1 Congratulations on your purchase of the Xmultiple FlashPoint ShareDrive 1. Package contents: Your package contains one each of the following items: - FlashPoint ShareDrive with Battery Pack - Cap - Neck Strap - USB Cable - Quick Start Manual USB Cable...
- Page 2 2. Function Keys Power/ Confirm 確認鍵 向上 Down Next Layer / Select Previous Layer / Cancel...
- Page 3 3.You must charge your ShareDrive Simply insert the ShareDrive into a personal computer or notebook to charge. The initial battery charge should be at least 6-8 hours. After the ShareDrive is fully charged, you must “format” it before using. Full-charge time: About 2 hours. Recharge time: 1 hour (60%) Transfers: Approximately 50,000 data transfer cycles NOTE:...
- Page 4 SURE YOU USE YOUR USB EXTENTION CABLE. IF YOU NEED TO USE ANY EXTERNAL CHARGERS OTHER THAN A PERSONAL COMPUTER or NOTEBOOK TO CHARGE THE FLASHPOINT SHAREDRIVE, IT IS RECOMMENDED TO USE XMULTIPLE’S PROPRIETARY FLASHPOINT SHAREDRIVE CHARGERS ONLY. (Using another manufacture’s charger may cause damage to...
- Page 5 Click “Start” to proceed formatting. Your ShareDrive will be ready to use when the process is completed. Step 4: Create a folder named “Share”. If the FlashPoint ShareDrive already has a “Share” folder created, then simply click to operate the SHARE...
- Page 6 “Share” folder to the connected device. If the FlashPoint ShareDrive does not have a “Share” folder created, then click into the next layer of the menu to select the folder(s) or file(s)
- Page 7 5. Using your USB ShareDrive Plug your FlashPoint ShareDrive into your Personal Computer or Notebook for data transferring and deleting. If the data is unreadable, please remove your ShareDrive from your Personal Computer or Notebook, and then repeat this process.
- Page 8 6. Transferring data to and from your ShareDrive In both cases, before you can transfer data, you must do the following: *Make sure your ShareDrive’s capacity in memory is ALWAYS greater than the thumb drive to be used for LOAD. Do the same process for SHARE, make sure you have enough memory in your thumb drive when operating SHARE as well.
- Page 9 Menu...
-
Page 10: Power On/Off
How to operate 1. Power On/Off Hold the POWER button for three seconds. 2. File Manager ◎2.1 SHARE When connected to the USB device, an USB symbol will appear on the screen. Simply click to operate the SHARE function to copy all the files in the “Share”... - Page 11 LOAD function to copy all the files in the “Load” folder to the FlashPoint ShareDrive. If the connected device does not have a “Load” folder created, then click into the next layer of the menu to select the folder(s) or file(s) to be copied to complete the transferring.
- Page 12 ◎2.3 Delete Deletion is ONLY accessible to the files saved in the FlashPoint ShareDrive. ※ Important: Please note that when you confirmed the deletion of the selected file, the deleted file will be UNRECOVERABLE! ◎2.4 Capacity This function allows you to view the free memory capacity space of the FlashPoint ShareDrive and the connected device.
- Page 13 3. Setting ◎3.1 Automatically Power Off Setup 3.1.1 On/Off To turn On or Off the Automatically Power Off function. 3.1.2 Automatically Power Off Timer Use the up/down keys to adjust the timer for Automatically Power Off. ◎3.2 Battery Capacity To view the available percentage of the battery capacity remaining.
- Page 14 ◎3.3 Language English and Traditional Chinese interface are available for selection. ◎3.4 Firmware Version Provides the information of the firmware version being used. ◎3.5 Firmware Update Have the new firmware code saved in an empty thumb drive and connect to the ShareDrive for updating.
- Page 15 off automatically for update completion. The latest firmware code will be available at our website www.sharedrives.com.
- Page 16 6. How to operate “Reset” function Should you ever encounter a problem while transferring data, Reset Pinhole simply reset your ShareDrive by accessing the “Reset Pinhole” on the right hand side of your ShareDrive. For complete User’s Manual, please go to our website www.sharedrives.com.
