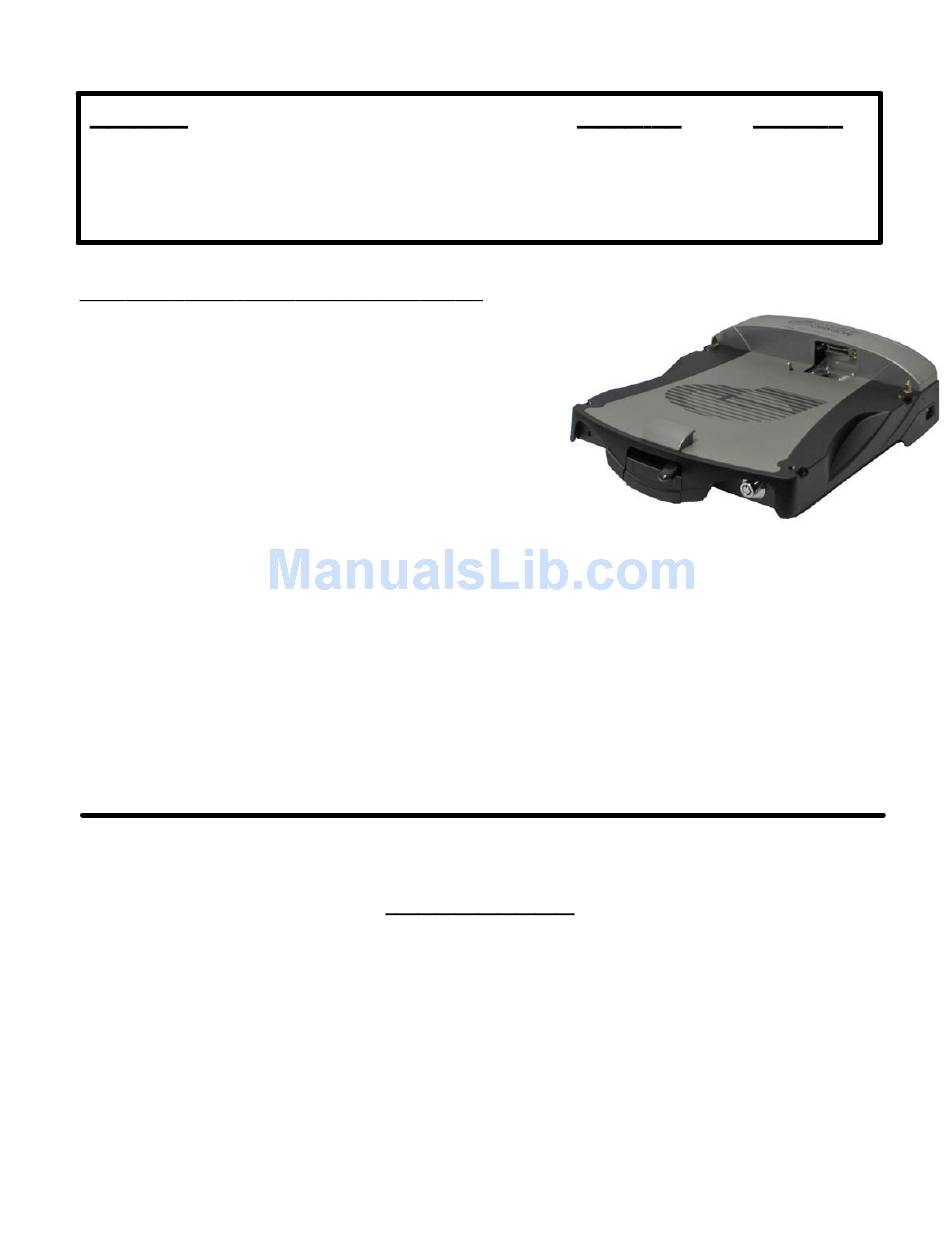

INSTALLATION INSTRUCTIONS
Product
DOCK-PANASONIC-PANDOCK
7160-0227-00, 7160-0227-02
7160-0227-01, 7160-0227-04
7160-0227-05, 7160-0227-06
This instruction sheet is for the following products:
Panasonic Toughbook CF29 & CF30 docking stations with
No integrated high gain antenna pass-thru cable.
Item No. 7160-0227-00 (Button lock, No RF)
Item No. 7160-0227-04 (Auto lock, No RF)
Panasonic Toughbook CF29 & CF30 docking stations with
Single integrated high gain antenna pass-thru cable.
Item No. 7160-0227-01 (Button lock, Single RF)
Item No. 7160-0227-05 (Auto lock, Single RF)
Panasonic Toughbook CF29 & CF30 docking stations with
Dual integrated high gain antenna pass-thru cable.
Item No. 7160-0227-02 (Button lock, Dual RF)
Item No. 7160-0227-06 (Auto lock, Dual RF)
*These instructions are for the docking station only. For instructions on features, set-up and
operation of the CF29 computer, please refer to the manuals provided by Panasonic with the
computer.
** This docking station is designed to be used with a variety of Gamber-Johnson mounting
systems. Installation instructions for other Gamber-Johnson products are provided with each
individual product.
IMPORTANT SAFETY INFORMATION for
Safety is dependent on the proper installation and servicing of this docking station. It is
important to read and follow all instructions before installing this product.
To properly install a Gamber-Johnson docking station you must have a good understanding
of automotive electrical procedures and systems, along with proficiency in the installation
and service of aftermarket vehicle equipment.
There are no adjustments required at any time of the electrical components within the
docking station. Opening the port replication housing will void the product warranty.
If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868
INSTALLERS
Revision
Form #
Rev B
INST-459
8 Pages
pg 1
Advertisement
Table of Contents
Summary of Contents for PSI 7160-0227-00
-
Page 1: Installation Instructions
This instruction sheet is for the following products: Panasonic Toughbook CF29 & CF30 docking stations with No integrated high gain antenna pass-thru cable. Item No. 7160-0227-00 (Button lock, No RF) Item No. 7160-0227-04 (Auto lock, No RF) Panasonic Toughbook CF29 & CF30 docking stations with Single integrated high gain antenna pass-thru cable. - Page 2 During Installation DO NOT connect this docking station to the vehicle battery until: 1. ALL other electrical connections are made 2. Mounting of ALL components is complete 3. VERIFICATION that no shorts exist in the entire system DO NOT install equipment or route wiring or chords in the deployment path of any air bag.
- Page 3 PRE-INSTALLATION RECOMMENDATIONS Conduct a "Bench Test" Gamber-Johnson strongly advises a "bench test" be conducted to verify that all electronic and software issues are resolved prior to installation: 1. Make sure computer is operational by itself. 2. Insert computer into docking station and verify that the computer is operating in the dock.
- Page 4 IMPORTANT REMINDERS: Use only SAE J1128 Type GPT number 16 AWG stranded wire (minimum) to attach the docking station to the vehicle's electrical system. Connect lead wires to the Docking Station (recommend using quick disconnects as shown in (Figure 1) Caution: The disconnect must be easily accesible. When assembling the Quick Disconnects use only Panduit crimp tools CT-100, CT-600, CT-1525, CT-1550 OR CT-1551.
- Page 5 Figure 1 CABLE RESTRAINT INFORMATION Attach tie wrap anchors to the underside of the dock by pushing into the holes in the locations shown in Figure 1. Anchors are located in the hardware bag supplied with the dock. Cable tie wrap Attach cable ties to the anchors as shown in anchors Figure 2.
- Page 6 INSERTING COMPUTER into the DOCK 1. Make sure the sliding door (located on the Figure 3 on the back edge of the computer) has been opened, exposing the computer's docking connector. (See Figure 3) 2. Insert the computer: a. Align the center notch in the computer with the front retainer tab.
- Page 7 REMOVING COMPUTER from the DOCK 1. Push latch button in (Unlock with key if locked). 2. Lift the back of the computer off of the locating pins. 3. Lift the computer out from under the front retainer tab. MOUNTING THE DOCKING STATION Mount docking station to mounting system using the four 1/4-20unc mounting holes on the bottom of the dock.
- Page 8 Severe Vibration Installations Gamber-Johnson highly recommends the use of the vinyl covered side restraints in severe vibration applications. Restraints and mounting hardware are provided with the dock in the hardware bag and are assembled to the dock as shown in Figure 6. Figure 6 Angle Side Restraints upward and insert into side cutouts on docking...
