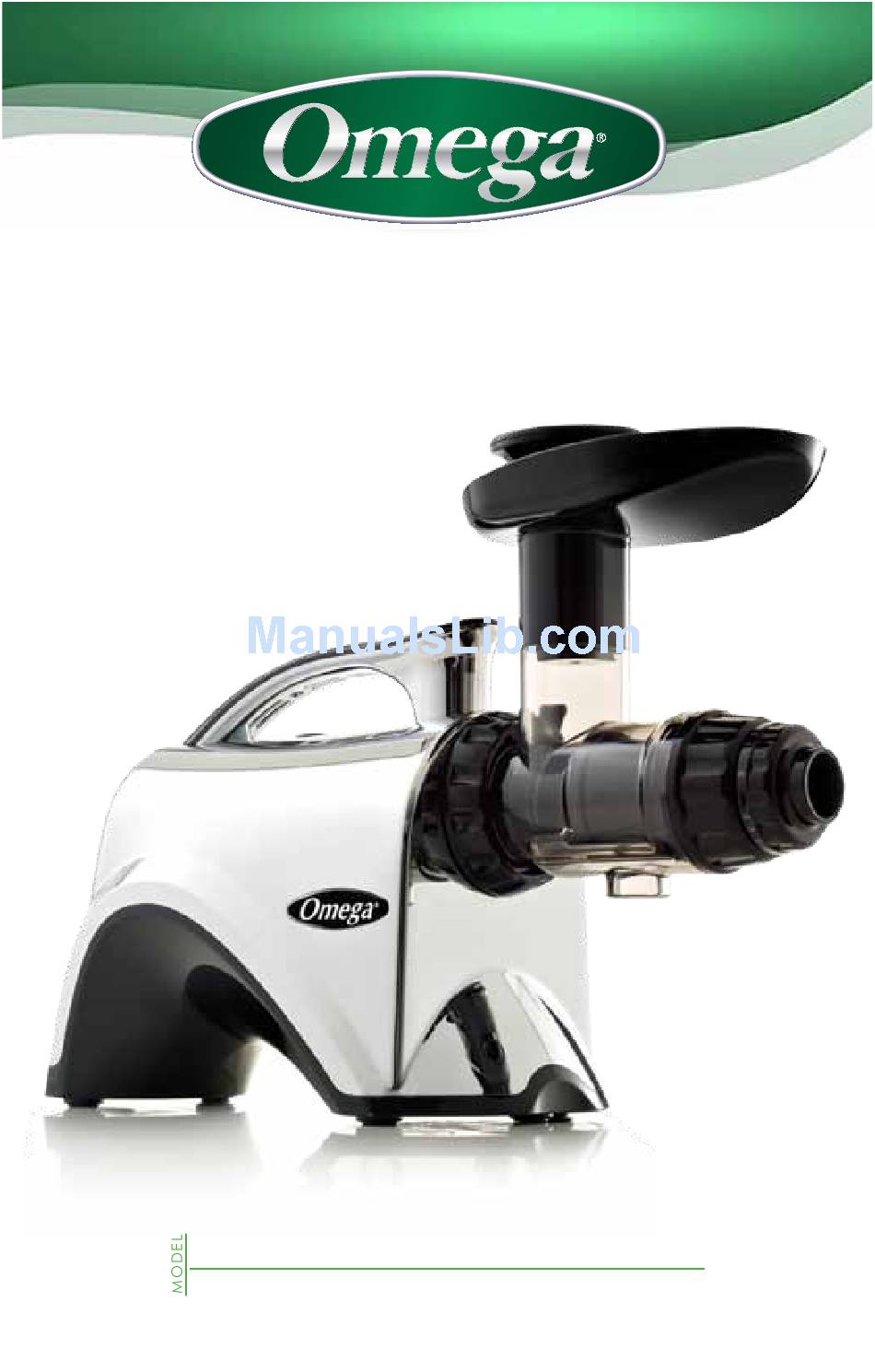

- Page 1 USER MANUAL NC800 - NC900 - Nutrition System L O W S P E E D M A S T I C A T I N G J U I C E R www.OmegaJuicers.com 021315...
- Page 2 We are driven by you, our brand supporters. Your enthusiasm helps us continue to reinvent and renew our line of juicers, high speed blenders and beverage equipment. Our team at Omega thanks you for supporting us for over 50 years! Join us on Twitter @OmegaAppliances &/or on Facebook @OmegaJuicers PROdUCT ReGISTRATION, vISIT: www.omegajuicers.com/omega-warranty-registration...
-
Page 3: Table Of Contents
02 - 03 02 - 03 Safety First, Important Safeguards Safety First, Important Safeguards 04 - 05 04 - 05 Know Your Omega Know Your Omega 06 - 07 06 - 07 Quick Start Assembly Quick Start Assembly 08 - 09... - Page 4 SAFETY FIRST...
- Page 5 SAFETY FIRST When using electrical appliances, basic safety precautions should always be followed including the following. READ ALL INSTRUCTIONS BEFORE USING. To protect against electrical shock, do not immerse cord, plug, or main body (motor) in water or other liquid. Close supervision is necessary when any appliance is used by or near children.
-
Page 6: Know Your Omega
KNOW YOUR OMEGA... - Page 7 KNOW YOUR OMEGA Pusher Housing 3 Pasta Nozzles Hopper Auger (Inside Drum) 1 Breadsticks Nozzle Drum Blank Cone (Inside Drum) Sieve Handle Juicing Screen (Inside Drum) Cleaning Brush Locking Clip Blank End Cap Pulp Container On/Off Button (In Rear) Adjustable End Cap...
-
Page 8: Quick Start Assembly
QUICK START ASSEMBLY... - Page 9 QUICK START ASSEMBLY FOR JUICING Hopper Blank End Cap Drum Adjustable End Cap Locking Clip Pulp Container Auger Juice Container Juice Screen FOR FOOD PROCESSING Hopper Blank Cone Drum Blank End Cap Locking Clip Nozzle Options Auger Pulp Container...
-
Page 10: Operating Instructions
OPERATING INSTRUCTIONS... - Page 11 OPERATING INSTRUCTIONS JUICING FUNCTION Press [ON] button on the back of the Omega® Nutrition System to start. [On] Gradually put the ingredients into the hopper chute and press down with the pusher. DO NOT place any metal objects into the hopper. If the drum set is clogged...
-
Page 12: Multi-Purpose Nutrition System
MULTI-PURPOSE NUTRITION SYSTEM... - Page 13 MULTI-PURPOSE NUTRITION SYSTEM This heavy-duty nutrition system features a patented, stone mill-like auger, made of hygienic U.S. FDA-approved melamine. The low speed of 80 RPMs ensures full taste and the highest nutritional value. • FRUIT JUICE. Efficiently juices hard and soft fruits: even citrus fruits. •...
-
Page 14: Sterilization & Easy Cleaning
STERILIzATION & EASY CLEANING... - Page 15 You can thoroughly wash parts by immersing in warm water diluted with one or two drops of baking soda or dishwashing soap for about 30 minutes. EASY CLEANING SYSTEM When finished using the Omega® Nutrition System, simply put parts into dishwasher, on top rack.
-
Page 16: Precautions For Safe Use
PRECAUTIONS FOR SAFE USE... - Page 17 PRECAUTIONS FOR SAFE USE All users of this appliance must read and understand these safety precautions before operating. SIGN SAMPLES This sign indicates contents that may cause risk of a fire or an electrical shock. Specific warning is written in the sign. This sign indicates contents that may cause risk of a fire or an electrical shock.
- Page 18 PRECAUTIONS FOR SAFE USE DO nOT MOiSTEn THE BaSE Or SPLaSH WaTEr On THE BaSE. Be careful not to let any liquids or other substances get into the switch on the appliance. DO NOT OPERATE THE SWITCH WITH WET HANDS. It may cause electric shock or a fire.
- Page 19 DUring THE OPEraTiOn, DO nOT aTTEMPT TO MOVE THE BaSE, DiSaSSEMBLE THE BOWL SET Or ParTS anD TrY TO LOCK THEM. It may cause an injury or a failure. Any act of event needed, switch off first and unplug the power cord. WHEn USing THE aPPLianCE, BE CarEFUL FOr a nECKTiE, LOng nECKLaCE, SCarF ETC.
-
Page 20: If The Auger Stops Working
IF ThE AUGER STOPS WORKING... - Page 21 IF ThE AUGER STOPS WORKING Press [Rev] button for 3 to 5 seconds, then release. When the [Rev] button is released, the auger will stop rotating. Repeat this 2 to 3 times. The [Rev] button pushes the ingredients upward releasing the food clog. Press [ON] button to operate properly.
-
Page 22: How To Prepare
hOW TO PREPARE FrUiTS anD VEgETaBLES WHEaTgraSS anD grEEnS MinCing anD CHOPPing nUT BUTTErS nUTS anD SOY MiLKS DESErTS BaBY FOODS COFFEE grinDS PaSTa anD BrEaDSTiCKS... -
Page 23: Fruits And Vegetables
Place the sieve on the juice container or bowl after juicing process is complete and before pouring juice into a glass. • Thoroughly wash fresh ingredients to remove accumulated chemicals. The Omega® Nutrition System can extract juice from un peeled fruits and vegetables but your taste may prefer peeled produce. -
Page 24: Wheatgrass And Greens
hOW TO PREPARE WhEATGRASS AND GREENS Juicing Screen Adjustable End Cap No Nozzle Needed • Sieve: You may want to use this if you have juiced items that create more foam or more pulp than you prefer. Place the sieve on the juice bowl after juicing process is complete and before pouring juice into a glass. -
Page 25: Nut Butters
NUT BUTTERS Blank Cone Blank End Cap Nozzle is Optional • Nut butters are an all-natural version of peanut butter, almond butter, sunflower seed butter, etc. • Remove all skins and shells from nuts. Turn [ON] machine. Start adding nuts. •... -
Page 26: Baby Food
No Nozzle Needed • Making homemade baby food with your Omega can be very rewarding knowing that you are giving your baby fresh produce that is nutritious and easily digestible. This also gives your baby regular chances to experience a wide variety of textures and tastes without artificial preservatives or additives. - Page 27 PASTA OR BREADSTICKS Blank Cone Blank End Cap Round, Flat or Breadsticks Nozzle • This machine is made to extrude pasta; not make pasta. Make dough by hand or use a mixer. • Sprinkle a small amount of flour on the pasta, on the nutrition system hopper and inside the drum to prevent sticking.
- Page 28 TROUBLEShOOTING...
- Page 29 TROUBLEShOOTING Please troubleshoot using the details below before contacting Omega Customer Service for repair or service. When contacting Omega for after-sales service, please have the manufacturer’s serial number or bar code available. The Appliance Does Not Work • Make sure the power cord is plugged in correctly.
- Page 30 PRODUCT SPECIFICATIONS...
- Page 31 PRODUCT SPECIFICATIONS Product name Omega Nutrition System Model Name NC800HDS/NC900HDC/NC900HDR Rated Voltage 120 V rated Frequency 50 Hz rated Power Consumption 150 W 80RPM Cord Length 64 inches (1625.6 mm) Motor 2 HP Shipping Weight 20 lb (9 kg) Outward Dimension 6.5”...
- Page 32 RECIPES...
- Page 33 Soak almonds overnight in 3 cups of water. 6 cups of distilled water Drain. Place almonds in 3 cups of fresh water. Using the juicing screen in the Omega® Nutrition System, ladle almonds and water into juicer. If you prefer the milk thinner add more water.
- Page 34 1 tsp real salt through about 2-3 times until oils start to appear. Transfer to a bowl and combine all ingredients by hand, with a spoon. Pour the mixture into the Omega® Nutrition System one more time. PREP 5 minutes 10 minutes...
- Page 35 2 tbsp water flour/salt mixture, then add egg. ½ tsp salt If dough is too stiff, then add water. With an Omega® Nutrition System, change the juicing cone for the blank cone, choose preferred pasta nozzle. Put dough through chute and cut noodles to preferred length.
- Page 36 ½ tsp kosher salt flour until it forms into a soft dough. ½ tsp minced garlic With an Omega® Nutrition System, ¾ tsp dried italian seasoning change the juicing cone for the blank cone, 4 ½ - 5 ½ cups flour choose preferred bread stick nozzle.
- Page 37 What You’ll Need: How To Prepare: 3 medium red apples Steam 3 medium red, skinned and seeded apples. With an Omega® Nutrition System, change the juicing cone for the blank cone, choose preferred nozzle. Process through the Omega® Nutrition System.
- Page 38 Carrots What You’ll Need: How To Prepare: 3 large carrots Steam carrots. With an Omega® Nutrition System, change the juicing cone for the blank cone, choose preferred nozzle. Process through the Omega® Nutrition System. Three large carrots yields about 1 cup.
- Page 39 Clean Boost What You’ll Need: How To Prepare: ½ a beetroot Cut product to fit into hopper. 5 spinach leaves Juice in an Omega® Nutrition System. ¼ cabbage 1 broccoli stick Pour over ice. ½ a grapefruit ½ a lemon...
- Page 40 How To Prepare: Wash the apples, then remove 2 apples the core and cut into quarters. 3 kiwis Peel the kiwis and chop into small pieces. Juice ingredients in your Omega® Nutrition System. Stir before drinking. PREP 5 minutes JUICE...
- Page 41 What You’ll Need: How To Prepare: Wash all produce. 1 cucumber 2 collard green leaves Add all ingredients into your Omega® 1 handful of cauliflower florets Nutrition System and juice. ½ lemon (yellow rind removed) Pour into your glass and enjoy!
- Page 42 RECIPES Tropical Morning What You’ll Need: How To Prepare: 1 cup diced peaches In your Omega® Nutrition System, juice all your ingredients until smooth, 1 cup diced and peeled and pour through a strainer if desired. mango 1 freshly squeezed orange Serve chilled and garnish with a ½...
- Page 43 With an Omega® Nutrition System, change the juicing cone for the blank cone and assemble your preferred nozzle. Thaw lemon cubes slightly before pushing thru the chute of Omega® Nutrition System. Serve. PREP 6 hours 5 minutes PROCESS...
- Page 44 Nourish Your Body Enrich Your Soul Discover the complete line of Omega brand professional products at www.OmegaJuicers.com 6291 Lyters Lane • Harrisburg, PA 17111, USA • T: 1.800.633.3401 • F: 717.561.1298...
