Cree FSP-211 Installation Instructions

CAUTIONS
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. To avoid the possibility of electrical shock, turn off power supply before installation or servicing.
2. Product must be installed in accordance with NEC or your local electrical code. If you are not familiar with
these codes and requirements, consult a qualified electrician.
3. All electrical connections have been made at the factory.
4. The sensor is designed for mounting heights between 8 ft. to 40 ft., see figure 1, 2 and 3 for product specific
coverage pattern. The handheld remote unit has a range of only 40ft.
5. When mounting heights are above 30ft., the sensor generally only detects large objects such as forklift
trucks.
6. When sensor lens assembly is removed the exposed sensor body is sensitive to electrostatic discharge. Take
the necessary steps to avoid possible damage to the sensor.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
SENSOR DESCRIPTION
The FSP-211 is a motion sensor that dims lighting
from high to low based on movement. This slim,
low-profile sensor is designed for installation inside
the bottom of a light fixture body. The PIR lens
module connects to the FSP-211 through a 1.30"
diameter hole in the bottom of the fixture.
The sensors use passive infrared (PIR) sensing
technology that reacts to changes in infrared
energy (moving body heat) within the coverage
area. Once the sensor stops detecting movement
and the time delay elapses, lights will go from high
to low mode and eventually to an OFF position if it
Page 1 of 5

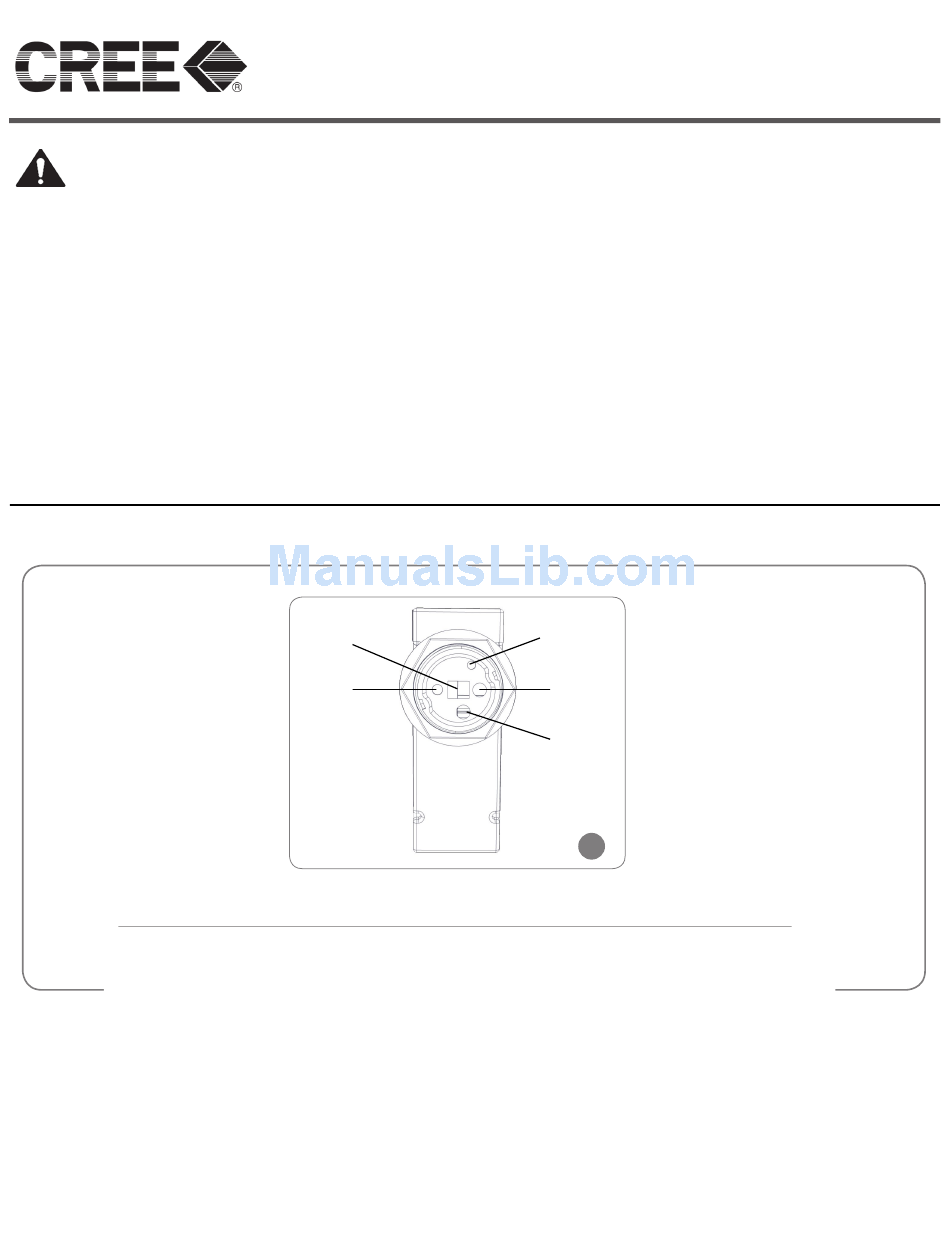

PIR Sensor
Motion Indicator
Red LED
DIGITAL HIGH/LOW PIR FIXTURE
Light Sensor
IR Transmitter
IR Receiver
F1
is desired. Sensors must directly "see" motion of a
person or moving object to detect them, so careful
consideration must be given to sensor luminaire
placement and lens selection. Avoid placing the
sensor where obstructions may block the sensor's
Figure 1.
line of sight. See
The FSP-211 operates at 120V/230V/240V/277V,
no power pack is required. It is designed to be
installed in indoor and outdoor environments. Once
powering the device up, the FSP-211 will use factory
default parameters to operate. If adjustments are
needed, programming tool must be used.
FSP-211
INTEGRATED SENSOR
INSTALLATION INSTRUCTIONS
CI369X01R0
