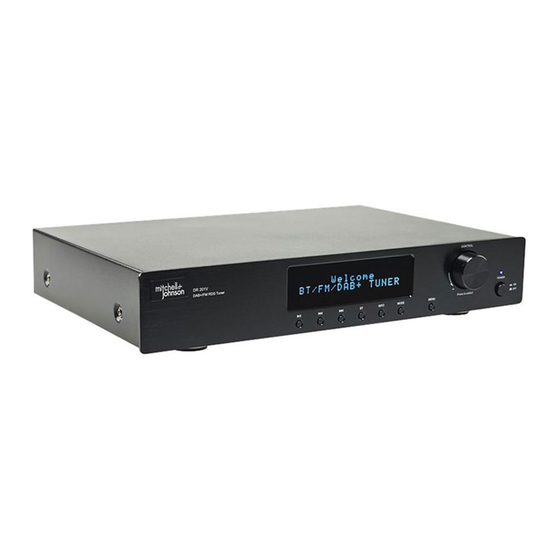

Summary of Contents for Mitchell & Johnson DR201V

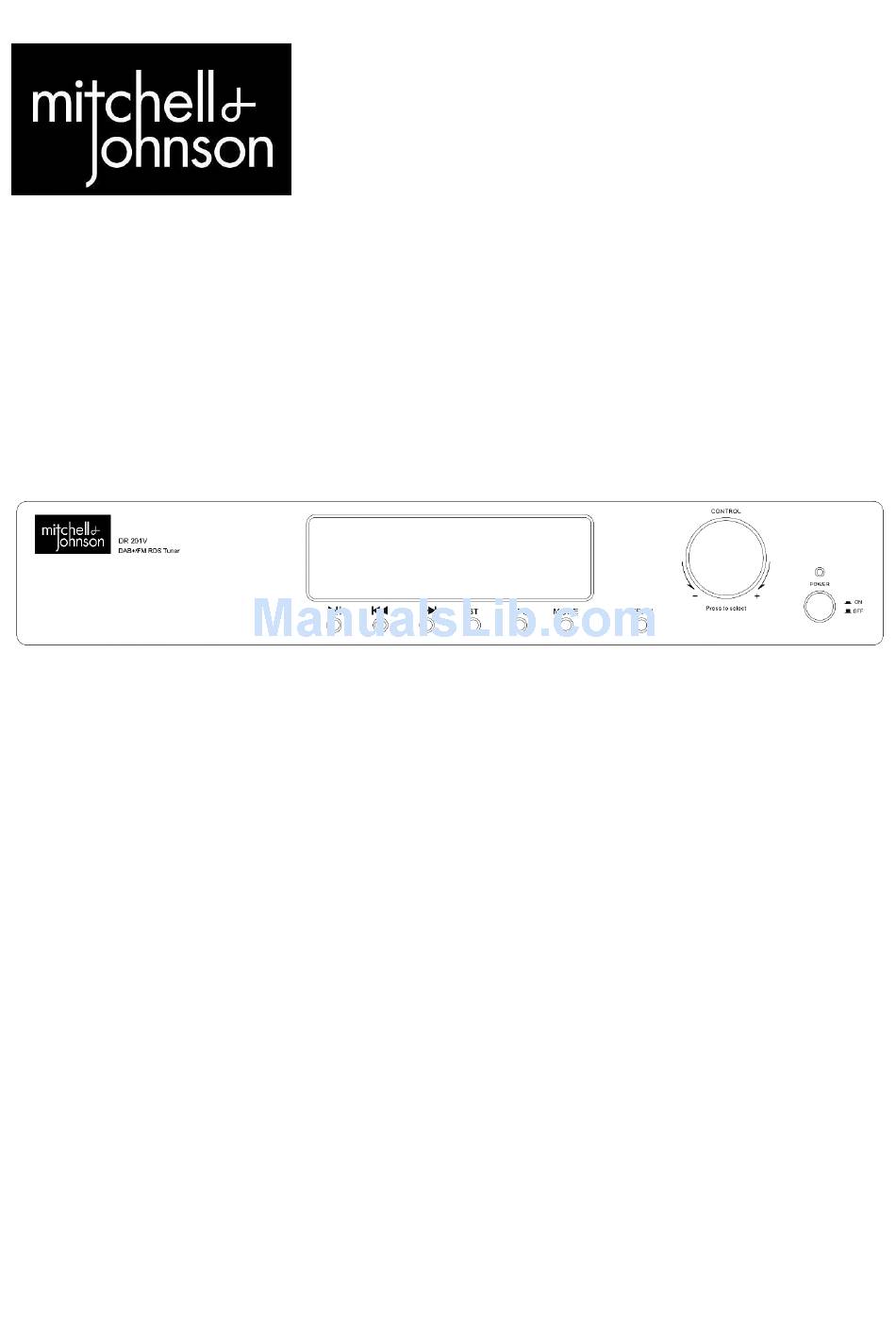

- Page 1 DR201V FM/DAB/DAB+ Stereo Tuner with Bluetooth User Guide...
- Page 2 Dear Customer Thank you for deciding to purchase this Mitchell & Johnson product. This instruction manual will give you a general idea of how this device operates, as well as providing you with information on safety procedures and cleaning. In order to maintain this product in good condition, and to ensure it’s safe operation, please take a few minutes to read and carefully follow all the safety and operating instructions found in this manual.
-
Page 3: Table Of Contents
Table of Contents INTENDED USE ..............................5 ..............................5 XPLANATION OF SYMBOLS SAFETY INFORMATION ............................6 ACCESSORIES ............................... 7 DESCRIPTION OF PARTS ............................8 ..................................8 RONT ANEL ..................................8 ANEL ....................................9 ISPLAY ..............................10 EMOTE ONTROL ANDSET SETUP ................................. 11 ........................ -
Page 4: Intended Use
There are no user-serviceable parts found inside the device, therefore the device need never be opened. Page | 5 © Mitchell & Johnson UK 2013 DR201V IB Ver 1.0 Rev 0.0... -
Page 5: Safety Information
Never use the device, if the power cable or device is damaged. Page | 6 © Mitchell & Johnson UK 2013 DR201V IB Ver 1.0 Rev 0.0... -
Page 6: Accessories
1 x Remote control handset 1 x stereo left and right RCA to RCA cable for connecting to amplifier 1 x DAB wire antenna 1 x mains power cable Page | 7 © Mitchell & Johnson UK 2013 DR201V IB Ver 1.0 Rev 0.0... -
Page 7: Description Of Parts
Press to skip to the next station up in the station list in DAB mode. Press Control button to confirm selection of station. Press to select Bluetooth device in the list that has been paired with the DR201V. Press to view information on line 2 of the display screen. -
Page 8: Display
In Bluetooth mode it displays the name of the connect Bluetooth device. On the second line the elapsed time of the track playing will be displayed. Page | 9 © Mitchell & Johnson UK 2013 DR201V IB Ver 1.0 Rev 0.0... -
Page 9: Remote Control Handset
Repeat current track or entire CD. Select to play small intro of each Page | 10 © Mitchell & Johnson UK 2013 DR201V IB Ver 1.0 Rev 0.0 track on CD. Select to playback tracks on CD in random order. - Page 10 Make sure that batteries are not dismantled, short-circuited or are thrown into fire. Never re-charge non- rechargeable batteries. There is a risk of explosion! Page | 11 © Mitchell & Johnson UK 2012 DR201V IB Ver 1.0 Rev 0.0...
-
Page 11: Setup
5. Setup The DR201V must be connected to an amplifier before any radio stations can be enjoyed. It also needs the supplied antenna or external aerial connected to ensure DAB or FM reception is possible. Connection of Antenna or External Aerial... -
Page 12: Connection To An Amplifier Via Coaxial Digital Cable
Connection to an Amplifier via Coaxial Digital Cable Connection to an Amplifier via Optical Digital Cable Page | 12 © Mitchell & Johnson UK 2013 DR201V IB Ver 1.0 Rev 0.0... -
Page 13: Rs 232 Interface Specifications And Commands
6. RS 232 Interface Specifications and Commands The DR201V is equipped with an RS232 interface to enable control of the unit in a custom installation. Below is the command list for use by your qualified custom install engineer. DAB RS232 COMMAND LIST... -
Page 14: Troubleshooting And Error Messages
7. Troubleshooting and error messages The DR201V is equipped with state-of-the-art technology and is safe to operate. Nevertheless, problems or malfunctions may occur. Before contacting Mitchell & Johnson customer support, refer to the following for possible solutions. PROBLEM POSSIBLE SOLUTION... -
Page 15: Maintenance And Handling
(e.g. alcohol, benzene or thinners) as these could damage the controls, casing or any markings and labels found on the device. Page | 15 © Mitchell & Johnson UK 2013 DR201V IB Ver 1.0 Rev 0.0... - Page 16 According to legislation batteries are to be returned to the place of purchase or disposed of at a designated recycling site Page | 16 © Mitchell & Johnson UK 2013 DR201V IB Ver 1.0 Rev 0.0...
-
Page 17: Specifications
S/N Ratio (A) >80dB Power Supply AC 230V ~ 50Hz Max Power Consumption 20Watts NOTE: Specifications and design are subject to possible modifications without notice Page | 17 © Mitchell & Johnson UK 2013 DR201V IB Ver 1.0 Rev 0.0... - Page 18 www.mitchellandjohnson.com...
