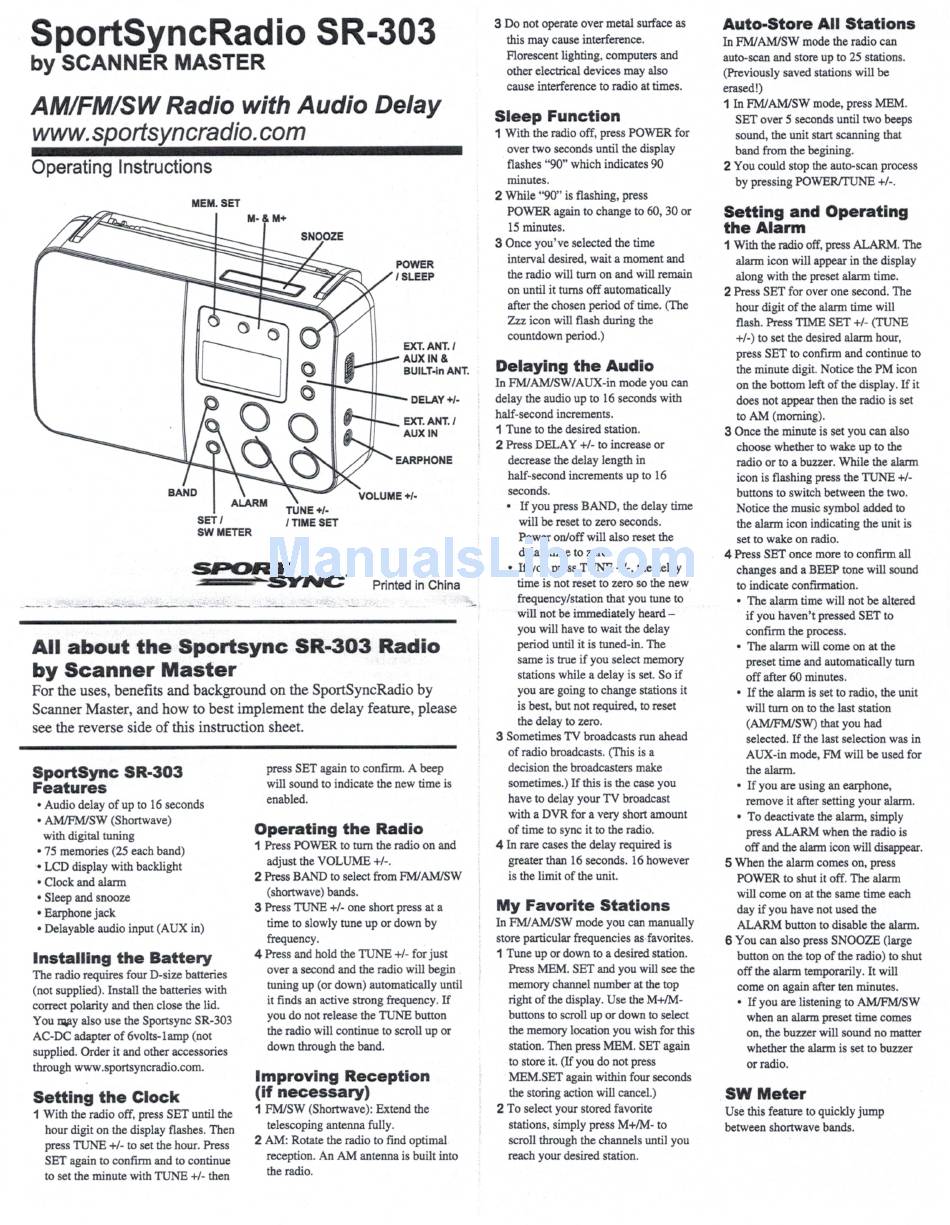

Scanner Master SportSyncRadio SR-303 Operating Instructions

SportSyncRadio SR-303
by SCANNER MASTER
AM/FM/SW Radio with Audio Delay
www.sportsyncradio.com
Operating Instructions
MEM. SET
)WER
LEEP
EXT. ANT. I
dix IN &
WILT-in ANT.
DELAY +1-
ANT. I
dix IN
RPHONE
I TUNE +1-
SET/
/ TIME SET
SW METER
Printed in China
All about the Sportsync SR-303 Radio
by Scanner Master
For the uses, benefits and background on the SportSyncRadio by
Scanner Master, and how to best implement the delay feature, please
see the reverse side of this instruction sheet.
SportSync SR-303
Features
• Audio delay of up to 16 seconds
• AM/FM/SW (Shortwave)
with digital tuning
• 75 memories (25 each band)
• LCD display with backlight
• Clock and alarm
• Sleep and snooze
• Earphone jack
• Delayable audio input (AUX in)
Installing the Battery
The radio requires four D-size batteries
(not supplied). Install the batteries with
correct polarity and then close the lid.
You ry also use the Sportsync SR-303
AC-DC adapter of 6volts-lamp (not
supplied. Order it and other accessories
through www.sportsyncradio.com .
Setting the Clock
I With the radio off, press SET until the
hour digit on the display flashes. Then
press TUNE +1- to set the hour. Press
SET again to confirm and to continue
to set the minute with TUNE +1- then
press SET again to confirm. A beep
will sound to indicate the new time is
enabled.
Operating the Radio
I Press POWER to turn the radio on and
adjust the VOLUME +1-.
2 Press BAND to select from FM/AM/SW
(shortwave) bands.
3 Press '11/NE +1- one short press at a
time to slowly tune up or down by
frequency.
4 Press and hold the TUNE +1- for just
over a second and the radio will begin
tuning up (Or down) automatically until
it finds an active strong frequency. If
you do not release the TUNE button
the radio will continue to scroll up or
down through the band.
Improving Reception
(if necessary)
I FM/SW (Shortwave): Extend the
telescoping antenna fully.
2 AM: Rotate the radio to find optimal
reception. An AM antenna is built into
the radio.
3 Do not operate over metal surface as
this may cause interference.
Florescent lighting, computers and
other electrical devices may also
cause interference to radio at times.
Sleep Function
1 With the radio off, press POWER for
over two seconds until the display
flashes "90" which indicates 90
minutes.
2 While "90" is flashing, press
POWER again to change to 60, 30 or
15 minutes.
3 Once you've selected the time
interval desired, wait a moment and
the radio will turn on and will remain
on until it turns off automatically
after the chosen period of time. (The
Zzz icon will flash during the
countdown period.)
Delaying the Audio
In FM/AM/S W/AUX-in mode you can
delay the audio up to 16 seconds with
half-second increments.
I Tune to the desired station.
2 Press DELAY +1- to increase or
decrease the delay length in
half-second increments up to 16
seconds.
• If you press BAND, the delay time
will be reset to zero seconds.
Power on/off will also reset the
delay time to zero.
• If you press TUNE +/-, the delay
time is not reset to zero so the new
frequency/station that you tune to
will not be immediately heard -
you will have to wait the delay
period until it is tuned-in. The
same is true if you select memory
stations while a delay is set. So if
you are going to change stations it
is best, but not required, to reset
the delay to zero.
3 Sometimes TV broadcasts run ahead
of radio broadcasts. (This is a
decision the broadcasters make
sometimes.) If this is the case you
have to delay your TV broadcast
with a DVR for a very short amount
of time to sync it to the radio.
4 In rare cases the delay required is
greater than 16 seconds. 16 however
is the limit of the unit.
My Favorite Stations
In FM/AM/SW mode you can manually
store particular frequencies as favorites.
I Tune up or down to a desired station.
Press MEM. SET and you will see the
memory channel number at the top
right of the display. Use the M+/M-
buttons to scroll up or down to select
the memory location you wish for this
station. Then press MEM. SET again
to store it. (If you do not press
MEM.SET again within four seconds
the storing action will cancel.)
2 To select your stored favorite
stations, simply press M+IM- to
scroll through the channels until you
reach your desired station.
Auto-Store All Stations
In FM/AM/SW mode the radio can
auto-scan and store up to 25 stations.
(Previously saved stations will be
erased!)
I In FM/AM/SW mode, press MEM.
SET over 5 seconds until two beeps
sound, the unit start scanning that
band from the begining.
2 You could stop the auto-scan process
by pressing POWER/TUNE +1-.
Setting and Operating
the Alarm
I With the radio off, press ALARM. The
alarm icon will appear in the display
along with the preset alarm time.
2 Press SET for over one second. The
hour digit of the alarm time will
flash. Press TIME SET +1- (TUNE
+1-) to set the desired alarm hour,
press SET to confirm and continue to
the minute digit. Notice the PM icon
on the bottom left of the display. If it
does not appear then the radio is set
to AM (moming).
3 Once the minute is set you can also
choose whether to wake up to the
radio or to a buzzer. While the alarm
icon is flashing press the TUNE +1-
buttons to switch between the two.
Notice the music symbol added to
the alarm icon indicating the unit is
set to wake on radio.
4 Press SET once more to confirm all
changes and a BEEP tone will sound
to indicate confirmation.
• The alarm time will not be altered
if you haven't pressed SET to
confirm the process.
• The alarm will come on at the
preset time and automatically turn
off after 60 minutes.
• If the alarm is set to radio, the unit
will turn on to the last station
(AM/FM/SW) that you had
selected. If the last selection was in
AUX-in mode, FM will be used for
the alarm.
• If you are using an earphone,
remove it after setting your alarm.
• To deactivate the alarm, simply
press ALARM when the radio is
off and the alarm icon will disappear.
5 When the alarm comes on, press
POWER to shut it off. The alarm
will come on at the same time each
day if you have not used the
ALARM button to disable the alarm.
6 You can also press SNOOZE (large
button on the top of the radio) to shut
off the alarm temporarily. It will
come on again after ten minutes.
• If you are listening to AM/FM/SW
when an alarm preset time comes
on, the buzzer will sound no matter
whether the alarm is set to buzzer
or radio.
SW Meter
Use this feature to quickly jump
between shortwave bands.
