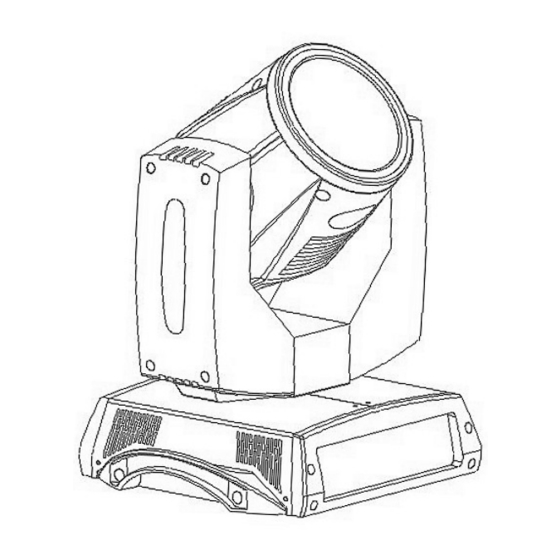

200W/230W BEAM LIGHT USER MANUAL KEEP THIS MANUAL FOR FUTURE NEEDS... -
Page 3: Table Of Contents
CONTENTS 1. Introduction…………………………..………………………………………4 2. General Guidelines…………….……………………………………………4 3. Safety Instructions…………………………………………………………..5 4. Installation Instructions……………………………………………………..6 5. Cleaning and Maintenance…………………………………………………7 6. Technical Parameters…………………..………………………………….. 8 7. Gobo&Color……………………………………………………………….….9 8. Menu Function………………………………………………………….…..10 9. Circuit Schematics…………………………………………………..……..11 10. DMX Channels……………………………………………………..…..…..12 11. Remark………………………………………………………………………...15... -
Page 4: Introduction
Thank you for your patronage. We are confident that our excellent products and service can satisfy you. For your own safety, please read this user manual carefully before installing the device. In order to install, operate, and maintain the lighting safety correctly. We suggest that the installation and operation should be done by the verified technician and follow the instruction strictly. -
Page 5: Safety Instructions
If you use the quick lock cam in hanging up the fixture, please make sure the quick lock fasteners turned in the quick lock holes correctly. Operate the device only after having familiarized with its functions. Do not permit operation by persons not qualified for operating the device. Most damages are the result of unprofessional operation. -
Page 6: Installation Instructions
Make sure that the available voltage is not higher than stated at the end of this manual. Make sure the power cord is never crimped or damaged by sharp edges. If this would be the case, replacement of the cable must be done by an authorized dealer. Always disconnect from the mains, when the device is not in use or before cleaning it. -
Page 7: Cleaning And Maintenance
CLEANING AND MAINTENANCE 1. To reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture. 2. Do not spill water or other liquids into or on to your unit. 3. During long periods of non-use, disconnect the unit’s main power. 4. -
Page 8: Technical Parameters
TECHNICAL PARAMETERS POWER SUPPLIE Input power:110-240V 50/60 Hz LAMP SOURCE Discharge lamp with a short arc burner in a reflector system - Type: Optional YODN MSD R5 200W/YODN MSD R7 230W Philips UHP 189W/Philips MSD Platinum 5R 189W Osram Siruis HRI 230W - Output Lamp power: 200W/230W - Color temperature: 8,500 K - Average life: 2,000 h... -
Page 9: Gobo&Color
ELECTRONICS Function reset from the lighting desk ON/OFF lamp control from the lighting desk "AUTOTEST" function from menu Electronic monitoring with status error SAFETY DEVICES Bipolar circuit breaker with thermal protection. Automatic break in power supply in case of overheating or failed operation of cooling system. -
Page 10: Menu Function
MENU FUNCTION... -
Page 11: Circuit Schematics
CIRCUIT SCHEMATICS... -
Page 12: Dmx Channels
DMX CHANNELS CHANNEL STANDARD(16CH) VECTOR(20CH) Color Wheel Color Wheel Stop/Strobe Stop/Strobe Dimmer Dimmer Static Gobo Change Static Gobo Change Prism Insertion Prism Insertion Prism rotation Prism rotation Function Function Frost Frost Focus Focus Pan Fine Pan fine Tilt Tilt Tilt Fine Tilt fine Pan/Tilt Speed Pan/Tilt Speed... - Page 13 077-082 Magenta+Cyan 082-086 Cyan 086-090 Cyan+cto260 090-094 Cto260 094-099 Cto260+cto190 099-103 Cto190 103-107 Cto190+ctb8000 107-111 Ctb8000 111-116 Ctb8000+blue 116-120 Blue 120-124 Blue+White 124-128 Slow roation 128-255 Slow to fast rotation(160 rpm) 000-003 Closed Slow strobe(1 flash/sec) Fast strobe(12 flash/sec) 104-107 Open Slow pulsation Stop/strobe 108-207 Fast pulsation...
- Page 14 224-230 Gogo12 shake,slow-fast speed 231-236 Gogo13 shake,slow-fast speed 237-243 Gogo14 shake,slow-fast speed 244-249 Gogo15 shake,slow-fast speed 250-255 Gogo16 shake,slow-fast speed Prism 000-127 Prism excluded insertion 128-255 Prism inserted Position 0° Position 90° Position 180° Position 270° Position 360° Prism Position 450° rotation Position 540°...
-
Page 15: Remark
Any damage resulting by misuse is not within the Company’s warranty. Any fault or problem caused by neglecting the manual is also not in the charge of dealers. Errors and omissions for every information given in this manual excepted. All information is subject to change without prior notice. By Guangzhou Lees Electronics CO.,Limited...
