Summary of Contents for AVTevh 348Z

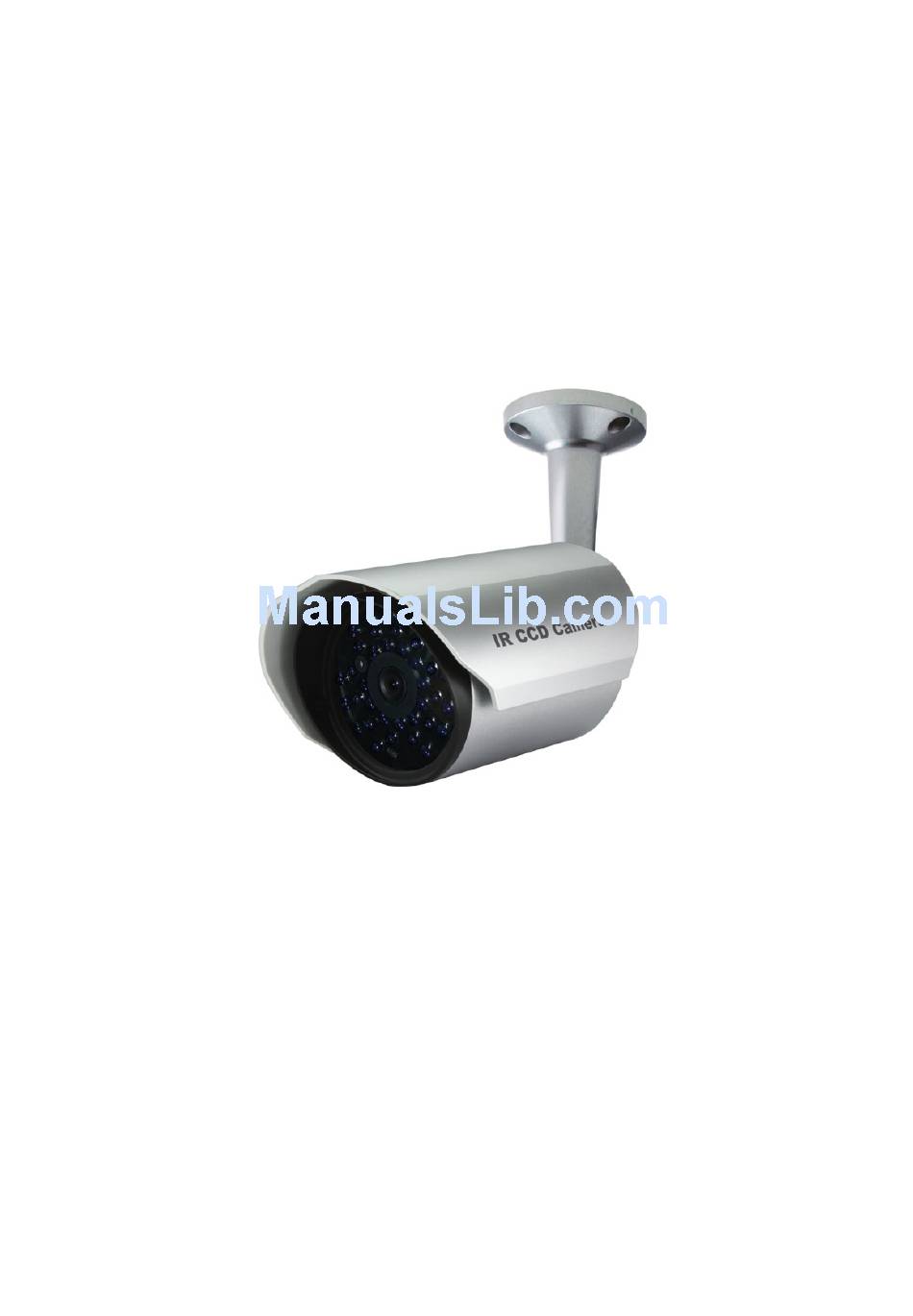

- Page 1 348Z Outdoor IR Camera DVR / Camera Communication System Series alarm shop Please read instructions thoroughly before operation and retain it for future reference. For the actual display & operation, please refer to your product in hand. AK511_V0.9...
- Page 2 OVERVIEW This outdoor IR camera is a controllable camera, allowing users to manually adjust & set camera parameters from a DVR without additionally connecting RS485 control wires. It can be used with our DCCS DVR series for directly control, or with other brand’s DVR controlled via our optional DCCS control box.
- Page 3 PACKAGE CONTENT IR camera User Manual Bracket INSTALLATION 1. Use the supplied three screws to attach the bracket to wall. Drill a hole in advance on the proper position of the wall for the Power and Video Cable to pass through later. 2.
- Page 4 CAMERA PARAMETER SETTING This camera supports DVR / Camera Communication System, DCCS, and users are allowed to configure the camera parameters directly from the DVR supporting DCCS technology. Note: For details about DVRs supporting DCCS, please check with your distributor or reseller.
- Page 5 BACK LIGHT It is the function to adjust the image to compensate for an area that is overpowered by brightness because of excessive light. The image will be properly exposed for clearness. Select to activate (ON) or disable (OFF) this function. Note: This function is available only in the day mode.
- Page 6 IMPORTANT SAFEGUARD All lead-free products offered by the company comply with the requirements of the European law on the Restriction of Hazardous Substances (RoHS) directive, which means our manufacture processes and products are strictly The crossed-out wheeled bin mark symbolizes that within the European Union the product must be collected separately at the product end-of-life.
