- Page 1 Grommes~Precision Precision Electronics AXIOM 250 INSTRUCTION MANUAL Unpacking Procedures ..The Back Panel ..Installation Information ..Speaker Installation ..Description & Specifications ..The Auto-Mute Circuit ..Product Overview ..Using Trumpet Speakers ..The Front Panel ..Maintenance ..
-
Page 2: Unpacking Procedures
AXIOM 250 INSTRUCTIONS Thank you for purchasing from Grommes~Precision! Grommes~Precision and its commercial audio division, Precision Electronics, has been designing, engineering, and manufacturing quality sound equipment in the United States since it started opera- tion in March of 1946. Over a half a century of quality, service, and flexibility as “Your Personal Manufacturer”... -
Page 3: Description And Specifications

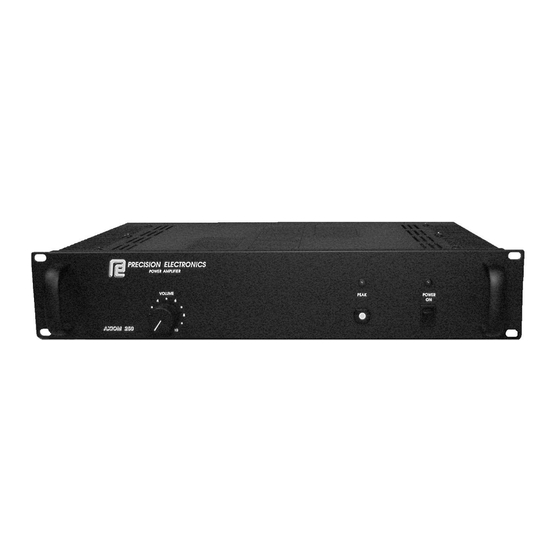

III. DESCRIPTION & SPECIFICATIONS DESCRIPTION The AXIOM 250 is a 1.5 channel high fidelity commercial audio amplifier that provides 250 watts of continuous RMS power directly into 8 ohm or transformer isolated 25V or 70.7V lines. Designed for all-in-one telephone paging solutions, the AXIOM 250 includes a balanced 600 ohm/Tel-Page input... -
Page 4: Product Overview
AXIOM 250 INSTRUCTIONS IV. PRODUCT OVERVIEW V. THE FRONT PANEL 1 - VOLUME CONTROL 3 - POWER SWITCH This gain control adjusts the master volume This switch turns the unit on or off. level of output for the amplifier. 4 - POWER INDICATOR... -
Page 5: The Back Panel
AXIOM 250 INSTRUCTIONS VI. THE BACK PANEL MODEL: AXIOM 250 PRECISION ELECTRONICS, INC. A GROMMES~PRECISION COMPANY 1331 ESTES AVENUE GURNEE, IL 60031 EIA #871 SERIAL # 1 - AC Line Cord Three conductor line cord for AC supply volt- age. -
Page 6: Speaker Installation
AXIOM 250 INSTRUCTIONS VII. SPEAKER INSTALLATION The AXIOM 400 is designed to be connected to 4 ohm speakers directly, or to variable impedance speakers that match the amplifier’s line output voltage of 25V or CONNECTING FOR DIRECT 8 OHM OPERATION Connect 8-ohm speaker(s) to terminals 1 and 2. -
Page 7: The Auto-Mute Circuit
AXIOM 250 INSTRUCTIONS VIII. THE AUTO-MUTE CIRCUIT The Auto-Mute Circuit DISABLING OR ENABLING THE AUTO-MUTE CIRCUIT The AXIOM series of mixer amplifiers include a built-in automatic Connect shunt here to mute circuit. The MIC/TEL-PAGE/600 ohm input channel, can auto- disable the Auto-Mute matically mute the AUX channel. -
Page 8: Troubleshooting
AXIOM 250 INSTRUCTIONS X. TROUBLESHOOTING SYMPTOM POSSIBLE CAUSE POSSIBLE SOLUTION(S) No AC power present. Power Indicator on Verify the unit is receiving AC power. • Front Panel Does Verify the AC outlet has proper AC voltage available. • Not Glow: Unit’s AC circuit breaker is...
