Summary of Contents for Formula Sound AVC2

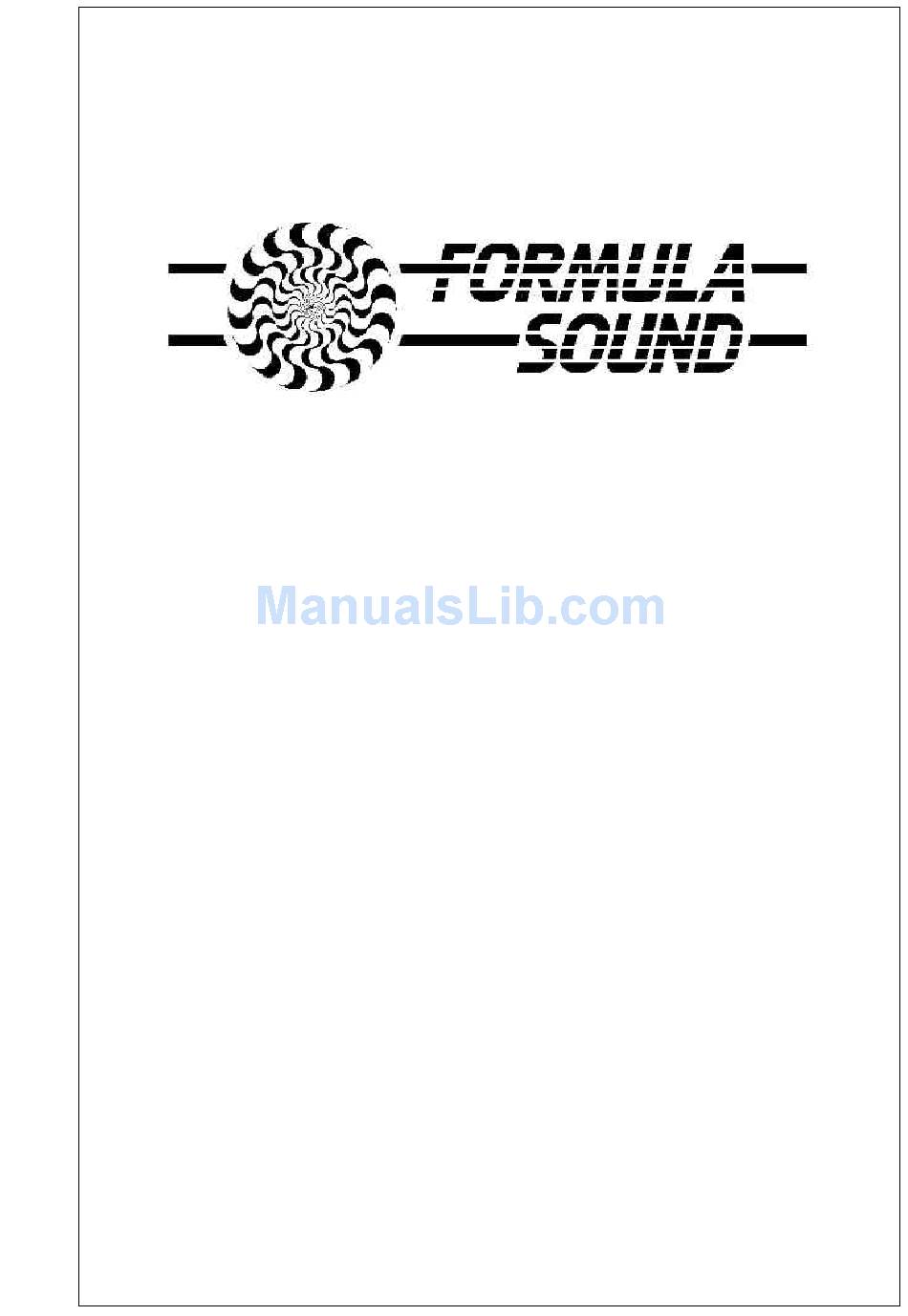

- Page 1 AVC2 AUTOMATIC VOLUME CONTROL USERS MANUAL XLR VERSION...
- Page 2 The level is reduced in discreet steps indicated by the led bargraph meter on the front panel of the unit. The action of the AVC2 is to fade between these steps and is almost undetectable in use. The more one tries to increase the volume the more the AVC2 will decrease it so that the system will barely change in perceived level.
- Page 3 INSTALLATION The unit should normally be installed in the signal chain either between the mixer or pre amp and the amplifiers, or in larger systems the mixer/ preamp and the electronic crossover. The unit should ideally be mounted where the operator can see the indicator leds on the front panel or alternatively a remote indicator could be installed (see auxiliary connections section) Connections are via XLR connectors for the audio and 2 X 4 way connectors for auxiliary connections.
- Page 4 Vu meters fitted to his mixer to be an indication of maximum permitted volume level. To achieve the required system volume level adjust the output level of the AVC2 by using the output pots on the rear panel. The output pot’s are accessible through small holes located between the input and output connectors and are labelled 1 &...
- Page 6 FORMULA SOUND LTD. Ashton Road Bredbury Stockport Cheshire SK6 - 2SR TEL 0161 494 5650 (+44 161 494 5650) FAX 0161 494 5651 (+44 161 494 5651) Formula Sound reserve the right to alter specifications at any time without notice.
