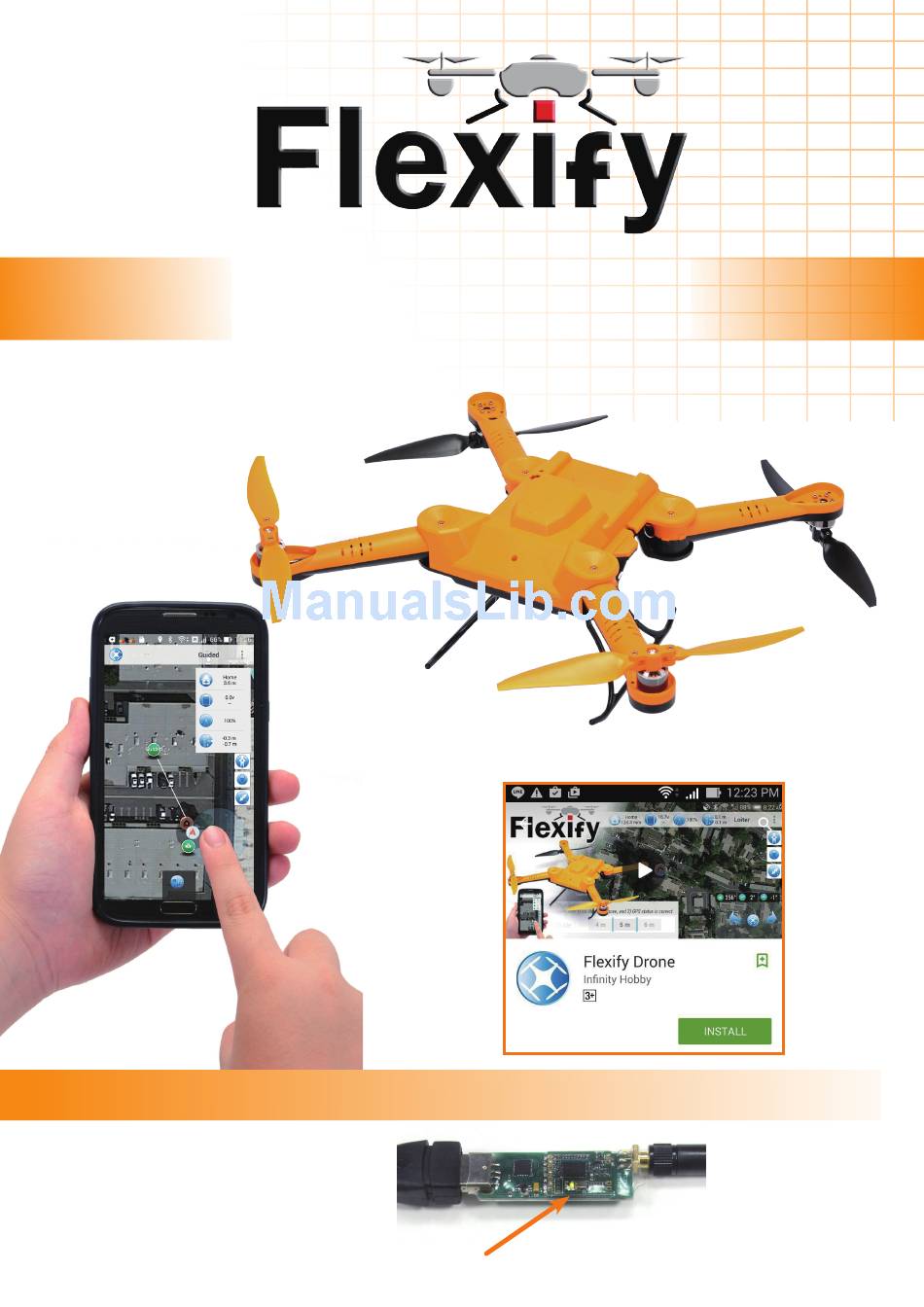

APP introduction & operation manual
*Search and install " Flexify Drone " on Google play
1. Make sure the smartphone supports OTG.
Connect the telemetry module to
smartphone through OTG cable. The
telemetry module lights green, which
means the smartphone supports OTG.
2016.01 V1.2
P.1
Advertisement
Summary of Contents for flexify APP
- Page 1 APP introduction & operation manual *Search and install " Flexify Drone " on Google play 1. Make sure the smartphone supports OTG. Connect the telemetry module to smartphone through OTG cable. The telemetry module lights green, which means the smartphone supports OTG.
- Page 2 2. Connect the telemetry module to smartphone through OTG cable. * Before starting APP, please make sure Flexify is turned on and ready to fly (it may take time). If the APP is unable to connect t o F l e x i f y, p l e a s e r e s t a r t A P P a n d t r y connecting again.
- Page 3 4. Press "Connect" to connect to the Drone. 5. After connecting, here is the APP screen : Located satellite amount GPS status (Lock/Unlock) Tolerance range diameter (the drone cannot be took off by GPS mode if the diameter is longer than 2.3M)
- Page 4 6. Select the flight mode first. Flight Data Settings Calibration Flight Data Settings Calibration...
- Page 5 7. Select “Settings” Geo Fence (500M) ON/OFF: When the Drone flies over 500m, it will return automatically. If pilot activates “smartphone solo control mode”: Ⅰ .Main screen will indicate “turn left/turn right” controls. Ⅱ .If the drone loses signal from the smartphone, it will activates fail safe RTL.
- Page 6 11. After arming the motor through smartphone: Motor warning message...
- Page 7 12. Press OK, and the motor will start to spin in slow speed Flight mode Tilt angle Roll angle Direction angle Home Height Takeoff Arm / Disarm Height Turn left Turn right...
- Page 8 13. After arming the motor Select the height and press “Takeoff” Main screen will indicate “turn left/turn right” controls if pilot activates “smartphone solo control mode” Land Follow Pause 14. After taking off Select RTL/ Land/ Pause/ Follow or press the destination on the map (waypoint flight) Ⅰ...
-
Page 9: Waypoint Flight
15. Waypoint flight Long press a destination on the map. It will appear a green “guided” icon, and the Drone will fly to the destination. Current position of the Drone Launch point Destination... - Page 10 1. Turn off WIFI on smartphone Android would access WIFI to help locating. Before GPS located, the position shown on APP could be located from WIFI base. We suggest pilot to turn off WIFI on smartphone before activating follow mode.
- Page 11 3.Keep distance from Flexify The maximum diameter of tolerance range is 2.3 M (Flexify cannot be took off if the diameter is longer than 2.3M). Please refer to the picture below, the blue circle is the tolerance range. Before activating follow mode, please make sure the pilot keeps distance from the tolerance range.
-
Page 12: Accelerator Calibration
17. Accelerator Calibration Press “Calibration” and follow the instructions. Make sure each movement is correct for higher accuracy. P.12...
