FingerTec TA100 Series Installation Manual

We Make Things Easy

Installation Guide

TA100 Series
Fingerprint Time Attendance System
w w w . f i n g e r t e c . c o m

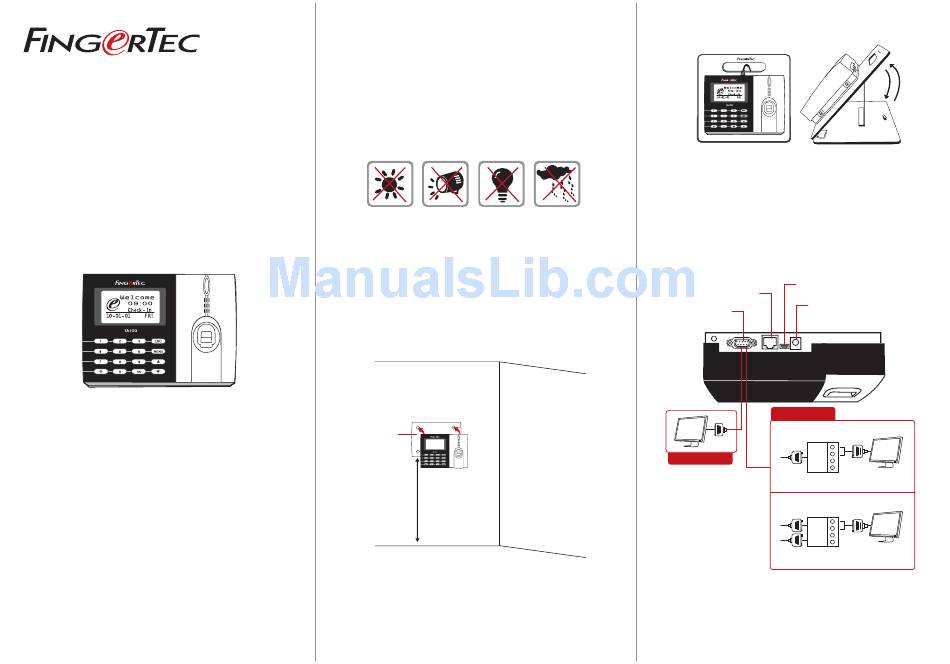

Step 1
Determine the Location and Positioning
of the Installation
•
Avoid installing the terminals in locations that has contact with
a strong light source (e.g direct sunlight, spotlight, fluorescent
light, etc)
•
Avoid installing the terminals in locations with high moisture or
condensation levels in the air
•
The recommended installation height of the terminal from the
ground is 1.2 meters.
Step 2
Mounting of Terminals
A. MOUNT ON WALL
Back Plate
4 feet / 1.2 meter
(recommended)
•
After determining the height of the terminal from the ground level
and having made the relevant marks on the wall, drill the screws
into the wall to secure the back plate.
•
Attach the terminal to the back plate and tighten the screws. Refer
to Appendix I for dimensions and measurements of installation.
B. FLEXI- KIT
FingerTec offers flexi-kits for all its time attendance models. Attach
the terminal on the flexi-kit for convenience.
Step 3
Wiring for Power Supply
The power jack is positioned on top of the terminal, labeled
Power Adapter Port in the below diagram.
USB PORT
TCP/IP PORT (LAN)
POWER ADAPTER
RS232/RS485 SERIAL
PORT
CABLE PORT
RS484 PORT
1. RS485 Single Connection
RX+
RS232 PORT
RX-
RS232/ RS485
Data Converter
2. RS485 Network Connection
RX+
RX-
RS232/ RS485
Data Converter
Please use the power adaptor provided in the package or alterna-
tively you can opt for a linear power supply with specifications of
5VDC 2A. Plug the one point of the power adapter to the terminal
and the other end to the power outlet. Don't exceed the recom-
mended voltage or current to avoid damaging the terminal.
