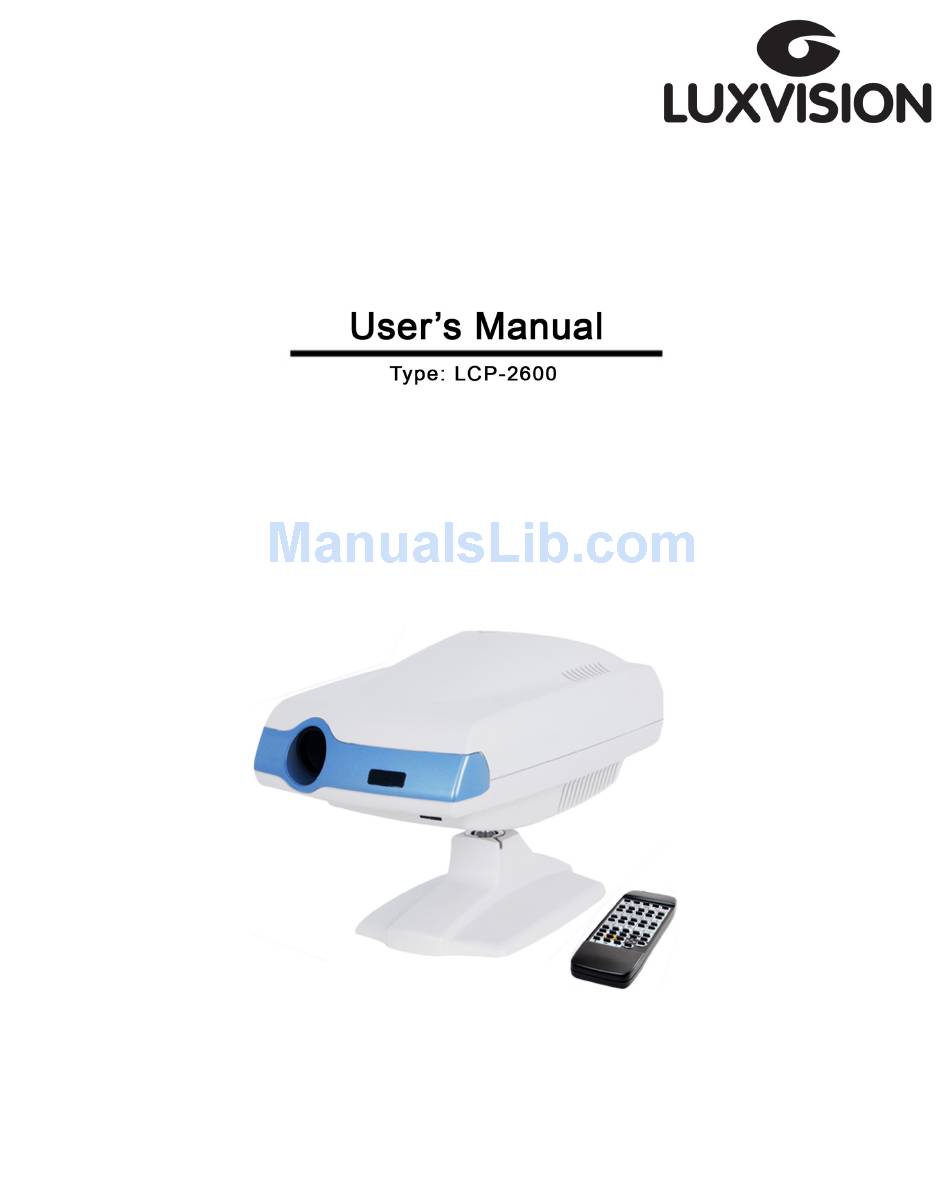

luxvision LCP-2600 User Manual

Auto chart projector
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LCP-2600 and is the answer not in the manual?

Questions and answers

Related Manuals for luxvision LCP-2600

Summary of Contents for luxvision LCP-2600

  • Page 2: Table Of Contents

    LUXVISION - LCP-2600 Please read and know this operating manual inside out, in prior to use of this equipment. Table of Contents Introduction Package Contents Classifications Designated Symbols Safety Instructions Instrument Components Installation Focusing ..10 Operating Instructions ..11 Charts Description...
  • Page 3 LUXVISION - LCP-2600 Maintenance ..16 Basic Trouble Shooting . … Transportation . . . Technical Specifications ..20...

  • Page 4: Introduction

    Introduction Congratulations on your purchase of the LCP-2600 Auto Chart Projector. In the area of subjective refraction, the LCP-2600 is best used for measuring visual acuity. It is fully recommended that you carefully read, understand and follow the steps in this manual in order to ensure safe operation, optimum performance and a longer service life from your new instrument.

  • Page 5: Classifications

    2 AA-sized batteries Classifications [ Classification under the provision of 93/42/EEC(MDD)] ClassⅠ LCP-2600 is classified into ClassⅠ system. [Protection method against electric shock] ClassⅠ LCP-2600 is Classified into ClassⅠ instrument. ClassⅠ instrument in which protection against electric shock does not rely...

  • Page 6: Designated Symbols

    Be careful not to splash water on the instrument. [Degree of protection against flammability] LCP-2600 is classified as an equipment not suitable to be used in a Potentially flammable anesthetic mixture with air or with oxygen or nitrous oxide.

  • Page 7: Safety Instructions

    LUXVISION - LCP-2600 This symbol indicates that important operating and maintenance Instructions are included in this User’s Guide. This symbol on the main switch indicates that the power is OFF. This symbol on the main switch indicates that the power is ON.
  • Page 8 LUXVISION - LCP-2600 At Operation - Never disassemble or touch the inside of the instrument. This may result in an electric shock or instrument malfunction. -Never yank the power cord to disconnect from wall outlet but hold the plug while disconnecting.
  • Page 9 LUXVISION - LCP-2600 - Install the instrument in a stable and level place where vibration or shock does not occur. The instrument may not perform observation correctly or may malfunction. Also, if the instrument is tripped over because of any accidental shock, it may result in possible injury.
  • Page 11 LUXVISION - LCP-2600 1. Upper Case 2. Projection Lens 3. Window for remote detection 4. Table stand Focusing Wheel 6. Pilot Lamp Power Switch...
  • Page 12 LUXVISION - LCP-2600 RS-232C Connector Power Connector 10. Fuse Holders...
  • Page 13 LUXVISION - LCP-2600 11. Inflated ray transmitter 17. Vertical, horizontal line, single 12. Letters chart Letter Masking 13. Number chart 18. Children chart 14. Snellen chart 19. Vectograph chart 15. Program 20. Red/Green Test 16. Lamp ON/OFF 21. Direction...

  • Page 14: Installation . ,9

    LUXVISION - LCP-2600 INSTALLATION The LCP-2600 should be installed according to the following procedures: 1. If using a wall mount, it is best to locate a wall stud to support the weight of instrument. 2. Determine the refracting distance (form the patient’s eye to the screen) and install the projection screen.
  • Page 15 LUXVISION - LCP-2600 4. Check the three-dimensional alignment of the system. The instrument is optimized when the projection screen is angled to direct light to the patient’s head. Place a mirror on the screen. The light should project where the...

  • Page 16: Focusing

    LUXVISION - LCP-2600 FOCUSING To obtain the correct focus: 1. Measure the distance from the patient to the screen (refracting distance). 2. Turn the Auto Chart Projector on, and using the remote control, project the 0.05 “K” onto the screen.

  • Page 17: Operating Instructions

    LUXVISION - LCP-2600 OPERATING INSTRUCTIONS 1. Turn on the power switch of the instrument. The projection lamp lights and the chart for 0.05 vision shall be viewed in 3 seconds. 2. Changing the chart Press the appropriate chart button on the remote controller.
  • Page 18 LUXVISION - LCP-2600 ☞ To move the position up or down Press ■ To use Red/Green filter: Press ■ To release masking and filter: Press any chart button 4. Programmed operation ■ To install Program “A” Make sure press the button of “LAMP” to turn off the lamp.

  • Page 19: Charts Description

    Press the left button and heard buzzer sound 3 times to complete the installation of Program B. ■ Programmed Operation Turn on LCP-2600, press the button of “RESET” to select the program A or B. After operate the program, change the chart by the button of ‘PROGRAM’.
  • Page 20 LUXVISION - LCP-2600 Red / Green Astigmatism Clock Dial Snellen Worth For Dot Phoria Fixation Phoria with Fixation Schober Coincidence Number Cross Grid Minute Stereo Children Binocular Balance...
  • Page 21 LUXVISION - LCP-2600 B-TYPE letters Snellen Children Binocular Balance Duochrome Balance Cross Cylinder Dots Red / Green Astigmatism Clock Dial Landolt Worth For Dot Phoria with Fixation Number Fixation Coincidence...
  • Page 22 LUXVISION - LCP-2600 Schober Minute Stereo Cross Grid C-TYPE letters Horizontal Line Red / Green Cross Cylinder Dots Astigmatism Clock Dial Snellen Worth For Dot Fixation Phoria...

  • Page 23: Maintenance

    LUXVISION - LCP-2600 Schober Phoria with Fixation Number Cross Grid Coincidence Vertical Children Binocular Balance Minute Stereo Children Vertical Line MAINTENANCE Risk of electric shock. Always disconnect the power cord from the wall and the instrument prior to performing any of the following procedures.
  • Page 24 LUXVISION - LCP-2600 ■ Cleaning There are no cleaning requirements other than regular office housekeeping, such as dusting. ☞ Cleaning the main body < Projection Lens > 1) Blow dusts with a blower brush. 2) If it is not clean enough, wipe with lens cleaning paper.
  • Page 25 LUXVISION - LCP-2600 The lamp may be HOT! Do not touch the Lamp directly and allow the sufficient amount of time to cool down the heat. 1) Unfasten the screw at the Lamp Cover. 2) Disassemble the Lamp Cover by lifting it and pull out the Lamp.
  • Page 26 LUXVISION - LCP-2600 6) Adjust the filament image at the center of paper with the screw at the lamp Note plate. ( : Do not look into the lamp directly) 7) Place the Lamp Cover and fasten the screw. 8) Turn off the power switch.

  • Page 27: Basic Trouble Shooting

    LUXVISION - LCP-2600 quarter clockwise to lock. Basic Trouble Shooting Note : Risk of electric shock. Always disconnect the power cord from the wall and the instrument prior to performing any of the following procedures. ■ If the instrument does not function at all: 1) Check the facility power source.

  • Page 28: Technical Specifications

    LUXVISION - LCP-2600 ■ Make sure the instrument is disconnected from the power source. ■ If the instrument was installed on a custom mount, please remove the unit from the mount. ■ Pack the instrument in a sturdy carton with suitable packing materials.
  • Page 29 LUXVISION - LCP-2600 Main body : 265(H) x 230(W) x 360(D)mm Dimensions Remote controller : 20(H) x 64(W) x 195(D)mm Main body : 6.0Kg Net weight Remote controller : 180g 1 dust cover 1 metal screen (400mm x 350mm), Accessories...
