Summary of Contents for Altimate Medical EasyStand Evolv

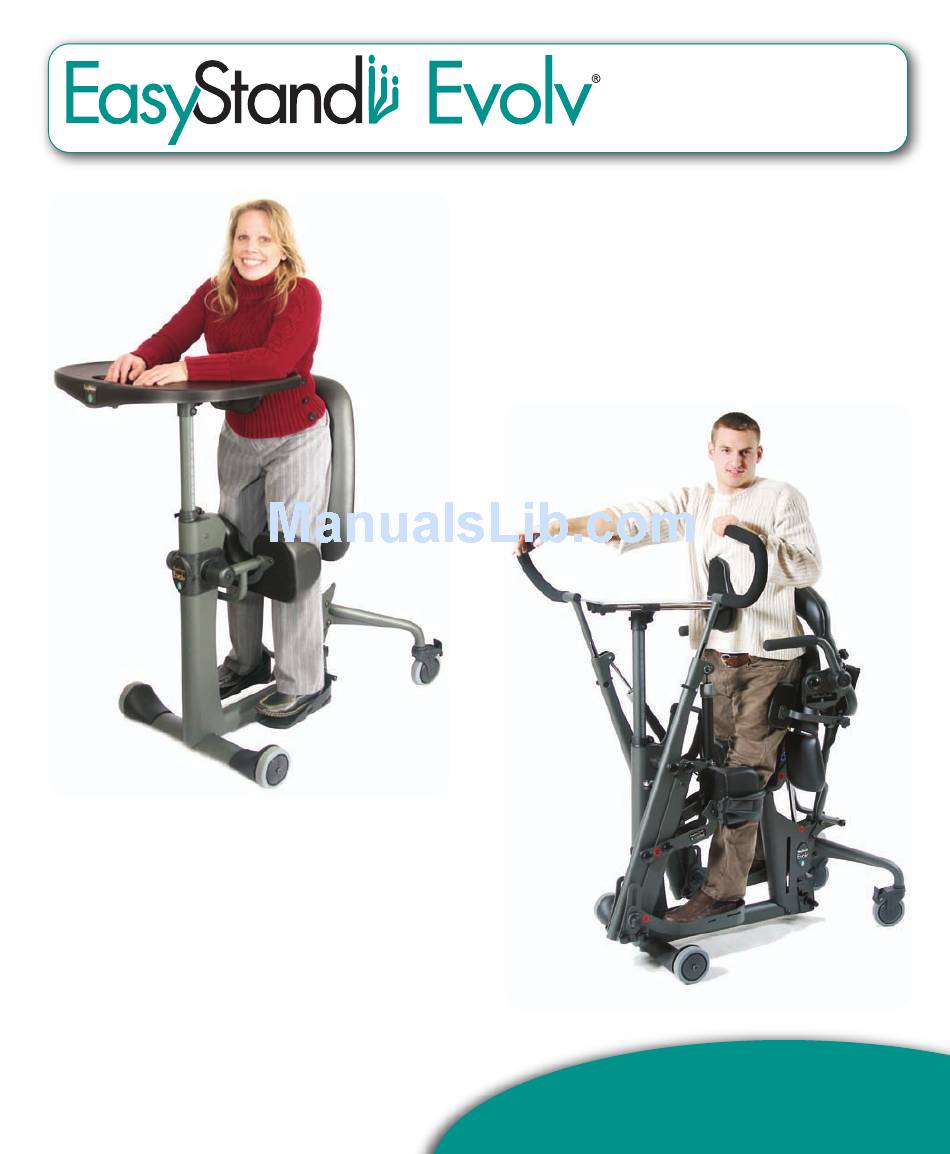

Page 1 & Glider ™ ™ Owner’s Manual...
Page 2: Environmental Conditions
SYMBOL LEGEND 50º C CAUTION/ATTENTION, see ENVIRONMENTAL instructions for use. CONDITIONS -40º C Store in less than 70% humidity and temerapture - 40º C to 50º C TYPE B APPLIED PART DATE OF MANUFACTURE SERIAL NUMBER PINCHPOINT Please be environmentally responsible and recycle this product through your recycling facility at its end of life.
Page 3: Table Of Contents
Safety Precautions ......2 EasyStand Evolv Assembly ....3 Swing Away Front .
Page 4: Introduction
Introduction Congratulations on your purchase of the EasyStand standing frame! We at Altimate Medical have designed the EasyStand with your comfort and happiness in mind. This manual is an integral part of your standing system and should be read completely and thoroughly by anyone that will be operating the unit.
Page 5: Safety Precautions
Caution: Advise bystanders to keep clear of the unit while in use. Warning: Do not use the EasyStand Evolv Mobile option on an incline, it is intended for level surfaces only. Doing so may cause the unit to tip.
Page 6: Easystand Evolv Assembly
® EasyStand Evolv Assembly ® Videos on EasyStand Evolv assembly & fitting can be viewed at www.easystand.com/videos FIG. 3B FIG. 3A FIG. 1 FIG. 2 Seat Assembly FIG. 2B Front Frame page 3 EasyStand Evolv Assembly...
Page 7 Tighten securely. FIG. 3A- Attach the pump handle to the pump on the seat assembly with bolts and nuts, tighten securely. FIG. 3B- Insert top of handle into pump handle and tighten bolts securely. page 4 EasyStand Evolv Assembly...
Page 8 FIG. 5 FIG. 6 FIG. 4 page 5 EasyStand Evolv Assembly...
Page 9 FIG. 6- Install the seat onto the seat assembly after all the other options are added. For easier installation, pump the seat halfway up. Start all four bolts first, then tighten securely. For Evolv adjustments, see p. 27-30. Evolv E3 page 6 EasyStand Evolv Assembly...
Page 10: Swing Away Front
Swing Away Front Assembly Swing Away Front for Shadow Tray Tray FIG. 8 FIG. 9 Tray Frame FIG. 7 FIG. 8 H-Frame Kneepad Bracket Crossbar FIG. 7 Front Caster Frame page 7 Swing Away Front Assembly...
Page 11 FIG. 7- Insert the H-frame into the front caster frame. Insert pins into the holes provided (crossbar should face seat). If you ordered Front Swivel Casters refer to p. 24. If you ordered Independent Kneepads refer to p. 25. FIG. 8- Place the kneepad bracket onto the H-frame. Remove the three bolts from the kneepad making sure the plastic insert stays in place.
Page 12: Shadow Tray
Shadow Tray Assembly ™ Shadow Tray Bracket Set-up FIG. 11- Remove the end cap on the FIG. 10- Place the Shadow Tray bracket bracket. Set parts aside. flat as shown. FIG. 13- Rotate the tube mount FIG. 12- Pull the tray mount about 1 inch off as shown.
Page 13 FIG. 16- To install the support arm, first remove the nut from the bolt that is pre-assembled to the arm, leaving the bolt and the two halves of the fitting (one plastic and one metal) in place on the tube. Thread the bolt into the hip plate, as shown in Fig.
Page 14: Mobile
Mobile Assembly FIG. 21 FIG. 19 FIG. 20 Mobile Bracket Mobile Bracket Kneepad Bracket FIG. 23 Mobile Assembly Wheel Frame FIG. 22 page 11 Mobile Assembly...
Page 15 FIG. 19 Front Frame FIG. 19- Place the front frame onto the wheel frame. Line up the two bolts to the holes of the wheel frame, start both bolts before tightening securely. Wheel Frame FIG. 20- Attach the casters to the rear seat assembly and tighten using the wrench provided, do not overtighten.
Page 16: Easystand Glider Assembly
® EasyStand Glider Assembly ™ FIG. 25- For International orders only: Place the front frame and the seat assembly on its side, slide the front frame into the opening of the seat assembly as shown. Line up holes and insert all four bolts first, then place nuts onto bolts and tighten securely with hex wrench and 19mm open ended wrench.
Page 17: Easystand Glider Adjustments
EasyStand Glider Adjustments ® ™ FIG. C FIG. A FIG. B FIG. D FIG. A- To adjust the height of the glide handles, loosen each clamp. Adjust the handles to the user’s desired position and tighten the clamps. The resistance cylinders are individually adjustable to provide eleven different resistance settings.
Page 18: Pow'r Up Lift Option
Pow’r Up Lift Option Charging the Battery FIG. A The EasyStand Evolv Pow'r Up Lift uses two 12 volt sealed lead batteries rated at 2.9 amps each. An EasyStand Evolv can be lifted approximately 100 times on one full battery charge. An audible alarm will sound when the battery is low.
Page 19 Assembly of the Hand Control FIG. C1 FIG. C1- If you ordered the Mobile Option, assemble the hand control as illustrated in Fig. C1. FIG. C2- If you did not order the Mobile Option, assemble the hand control as illustrated in Fig. C2. CAUTION: The Evolv Pow’r Up Option is not designed for continuous use.
Page 20: Battery Replacement
Note: If your control box (which includes the batteries) is within the 90 day warranty, please do not open the control box, contact Altimate Medical customer service for a replacement. Once your batteries have reached the end of their life and need to be replaced, please follow the instructions below.
Page 21 FIG. E Activating the Mechanical Emergency Release All Altimate Medical electric lift products are equipped with a mechanical release to be used in emergency situations. CAUTION: Using the emergency mechanical release as the primary means to return to the seated position can cause damage to your unit.
Page 22: Other Options
Option Assembly Back Option PNG50062, PNG50066, PNG50067, PNG50068 To assemble your back option, slide the back assembly into the seat assembly as shown. Tighten securely with bolts provided, then add the swing-away arms. Remove the nut from the arm. Place the arm onto the unit keeping the arm assembly together.
Page 23 Remove the nuts and bolts from the pump handle. Insert the handle onto the pump. Line up holes and insert bolts, place nuts onto bolts. Tighten securely. Standard Standard Adjustable/ T-Style Quad Grip Actuator Actuator Removable Handle Handle Handle Left Handle Right Handle Universal Left/Right Extension...
Page 24 Standard Foot Secure Foot Straps Straps PNG30030 PNG30031 Airline Buckle Velcro Hip Belt Hip Belt PNG30029 PNG30028 page 21 Option Assembly...
Page 25 X-Style Y-Style Chest Vest Chest Vest Medium-PNG30170 Medium-PNG30171 Large-PNG30056 Large-PNG30021 Chest Strap High Mount Chest Small-PNG50192 Vest Bracket Large-PNG50193 PNG11212 page 22 Option Assembly...
Page 26 Place tray onto the tray post, insert nut into Remove bolts from chest slot and bolt into hole, tighten securely. pad and place onto tray. Tighten bolts securely. Angle Adjustable Tray - Large Contoured Clear Acrylic Chest Pad PNG50366 PNG30000 Angle Adjustable Tray Oversized Tray Angle Adjustable Tray -...
Page 27 Glide Handles Glide Handle Extensions Glide Handles Left Side-PNG10194 PNG10177 PNG50251 Right Side-PNG10196 (Evolv Medium only) (Evolv Medium only) (Evolv Large only) Front Swivel Casters for Swing-Away Front Front Swivel Casters Evolv Medium/Large-PNG50314 Evolv Medium/Large-PNG50314 Place a block of wood under the unit to Evolv XT-PNG50346 raise the caster frame.
Page 28 Independent Roho ® Swing-Away Front Independent Kneepads PNG50385 Independent Knee PNG50425 Kneepads PNG50384 Remove ratchet handle and hardware from the knee bracket. Place onto the column in the order as shown. Make sure spacer is placed between the two steel brackets. Leave the bolt just loose enough to allow bracket to slide freely.
Page 29 Rotating Seat Evolv Medium-PNG50324 Evolv Large/XT-PNG50318 Install the seat onto the seat assembly ® Roho Seat after all the other Evolv Medium-PNG30183 options are added. Evolv Large/XT-PNG30023 Tighten the bolts securely. Hip Supports Medium-PNG50161 Large-PNG50198 Glider Medium-PNG50345 Glider Large-PNG50374 Slide hip supports onto notch and knob under seat.
Page 30: Adjusting Your Evolv
® Adjusting Your EasyStand Evolv ® Foot Plates FIG. G Caution: Never reposition the foot plates while you are in the standing position. FIG. G- Loosen the clamp connecting the foot bracket to the seat post to adjust the foot plate height and plantar/dorsi.
Page 31 FIG. J Hip Supports FIG. J- The hip supports are optional and can be removed for transferring. The hip support width can be adjusted by loosening the knobs underneath the seat. Loosen the knob on the side of the unit to adjust the hip support width. Always tighten securely.
Page 32 Seat Depth/Back Angle FIG. L Caution: These adjustments are only to be made while the unit is in the seated position. FIG. L- Loosen the knob on the seat tube located under the seat. Do not unscrew seat depth knob all the way when adjusting the seat. Depress the spring button and position the back so that the hip pivot is located as close as possible to the user’s hips.
Page 33: Shadow Tray Adjustments
Shadow Tray Adjustments ™ Tray Depth Adjustment Chest Pad Height Adjustment FIG. B Support Locking Mechanism FIG. A FIG. A- To adjust chest pad height, loosen knob and move to desired position. Tighten securely. FIG. B- To adjust the depth of the front pad and tray, loosen the knob located below the tray.
Page 34: Evolv Options & Parts Detail
Evolv Options & Parts Detail (front) ® page 31 Evolv Options & Parts Detail...
Page 35 page 32 Evolv Options & Parts Detail...
Page 36 Evolv Options & Parts Detail (rear) ® page 33 Evolv Options & Parts Detail...
Page 37 page 34 Evolv Options & Parts Detail...
Page 38: Perfect Fit Guide
Perfect Fit Guide Caution: These adjustments are only to be made while the unit is in the seated position. step one - measure Before transfering into the stander, measure for approximate seat depth (A) and seat to foot plate (B) settings.
Page 39: Transferring
There are many different methods of transferring into the EasyStand Evolv stander, whether you transfer independently or need assistance. There are also a variety of options that can be added to the Evolv to help make your method of transferring more manageable.
Page 40: Standing
Standing Contraindications Standing/weight bearing may not be an option for the following reasons: If the user has severe contractures or range of motion issues If the user has severe osteoporosis or brittle bone disease If the user has postural orthostatic hypotension If the user has dislocated joints Caution: Consumers considering a standing program should consult with a qualified physician and medical team to determine what indications or contraindications exist for...
Page 41: Maintenance
Maintenance Cleaning/Disinfecting • Clean the EasyStand Evolv with a mild non-abrasive disinfectant or soap and water. • Check your EasyStand periodically to make sure that all nuts, bolts and adjustable parts are tightened securely. Failure to do so may result in parts falling off which may cause a choking hazard for children.
Page 42: Specifications
Specifications Shadow Tray Evolv Tray Depth Range Height Range (approximate) (from back) -standard 9-38cm 3.5”-15” - Medium 4’0”-5’6” 122-168cm -deep 19-48cm 7.5”-19” - Large 5’0”-6’2” 152-188cm Tray Height - XT 6’0”-6’10” 183-208cm (from seat pivot) -standard/deep 7” 18cm 7.25” Weight Limit -standard/deep 10”...
Page 43: Limited Warranty
Return freight charges will be prepaid by Altimate Medical. For warranty service, please contact the authorized supplier from whom you purchased your Altimate Medical product. In the event you do not receive satisfactory warranty service, please write directly to Altimate Medical at the address below. Do not return products to our factory without prior authorization.
Page 44 Standing programs should be monitored by the attending therapist. Altimate Medical maintains a policy of continual product improvement and reserves the right to change features, specifications, and prices without prior notification. Check with Altimate Medical for latest info. FORM MANAEVM 0111 Copyright © 2011 Altimate Medical, Inc. All rights reserved. Printed in the U.S.A.
