Summary of Contents for LG MS3842XRL
-

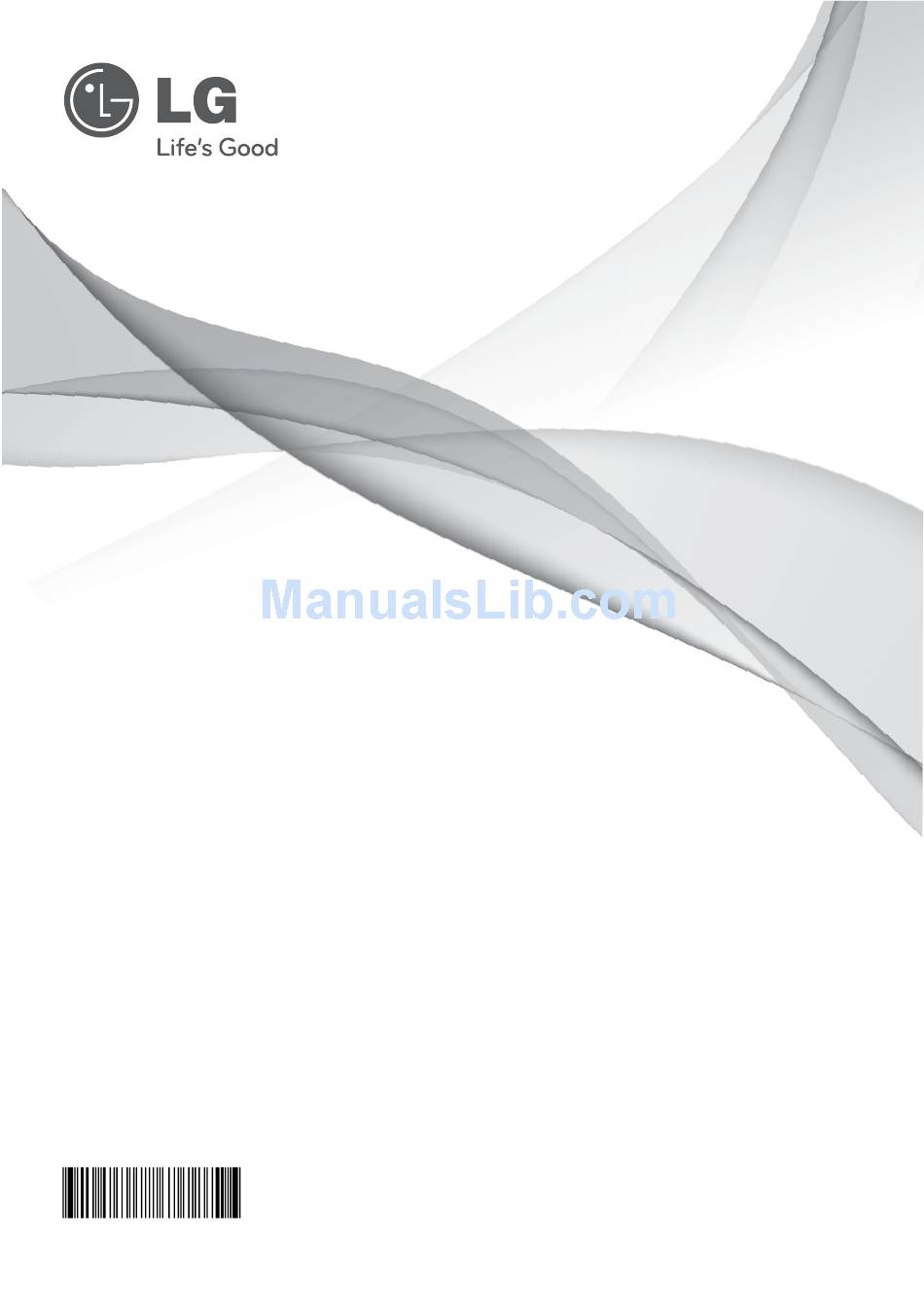

Page 1: Microwave Oven
OWNER’S MANUAL MICROWAVE OVEN Please read this owner’s manual thoroughly before operating. MS3842XRL www.lg.com MFL40257821... -
Page 2: Precautions
PRECAUTIONS Precautions to avoid possible exposure to excessive microwave energy. You cannot operate your oven with the door open due to the safety interlocks built into the door mechanism. These safety interlocks automatically switch off any cooking activity when the door is opened; which in the case of a microwave oven could result in harmful exposure to microwave energy. -
Page 3: Table Of Contents
CONTENTS PRECAUTIONS CONTENTS UNPACKING & INSTALLING FEATURE DIAGRAM CONTROL PANEL OPERATING INSTRUCTIONS TIMED COOKING 2 or 3 STAGE TIMED COOKING MICROWAVE POWER LEVELS CHILD LOCK COOKING TIMER ADD MINUTE MORE/LESS SETTING CLOCK ENERGY SAVING ONE TOUCH AUTO MENU AUTO COOK AUTO REHEAT BREAKFAST MENU QUICK DEFROST... -
Page 4: Unpacking & Installing
UNPACKING & INSTALLING By following the basic steps on these two pages you will be able to quickly check that your oven is operating correctly. Please pay particular attention to the guidance on where to install your oven. When unpacking your oven make sure you remove all accessories and packing. Check to make sure that your oven has not been damaged during delivery. -
Page 5: Unpacking & Installing
UNPACKING & INSTALLING Plug your oven into a standard household socket. Make sure your oven is the only appliance connected to the socket. If your oven does not operate properly, unplug it from the electrical socket and then plug it back in. Open your oven door by pressing the DOOR OPEN button. -
Page 6: Feature Diagram
FEATURE DIAGRAM Remove your Microwave Oven and all material from the shipping carton. Oven Front Plate Window Door Screen Your oven will be packed with the following materials: Door Seal Glass Turntable ......1 each Display Window Owner's Manual & Control Panel Cooking Guide......1 each Rotating Ring......1 each Door Open Button... -
Page 7: Operating Instructions
OPERATING INSTRUCTIONS 2 or 3 STAGE TIMED COOKING TIMED COOKING (manual cooking) For Two Stage cooking, repeat timed cooking This function allows you to cook food for a steps 2 to 5 from the above example before pressing desired time. There are 11 power levels available. the START/Q-START button. -
Page 8: Child Lock
OPERATING INSTRUCTIONS CHILD LOCK ADD MINUTE A time-saving pad, this simplified control lets This is a unique safety feature that prevents you quickly set and start microwave cooking unwanted oven operations. Once the CHILD without the need to touch START/Q-START LOCK is set, no cooking can take place. -
Page 9: Setting Clock
OPERATING INSTRUCTIONS SETTING CLOCK ONE TOUCH AUTO MENU TABLE When your oven is plugged in for the first time or when power resumes after a power interruption, Category Direction Amount the numbers in the display reset to "0". Popcorn Popcorn lets you pop commercially 100 or 85g Example:To set 11:11. -
Page 10: Auto Cook
OPERATING INSTRUCTIONS AUTO REHEAT AUTO COOK This feature allows you to reheat pre-cooked This feature allows to cook foods that you select by room-temperature or refrigerated foods without touching AUTO COOK pad. It has 4 foods categories. having to select the cooking time and power level. Example : To cook 113g of Pasta This feature has 4 categories: dinner plate, pizza, soup/sauce and casserole. -
Page 11: Breakfast Menu
1. Touch STOP/CLEAR. 2. Touch two times. ‘bF-2’ appears in the display. 3. Touch number 4. ‘8’ appears in the display. 4. Touch START/Q-START. QUICK START The QUICK START feature allows you to set 30 seconds intervals of HIGH power cooking with a touch of the START/Q-START. -
Page 12: Chicken Choices
680 g 340 g 1. Touch STOP/CLEAR. 2. Touch CHICKEN CHOICES CHICKEN once. CHOICES ‘Ch-1’ appears in the display. 3. Touch number 2. ‘340’ appears in the display. 4. Touch START/Q-START. 680 g 170 or 340g 113 or 227g... -
Page 13: Melt
OPERATING INSTRUCTIONS MELT SOFTEN The oven uses low power to melt foods (butter, The oven uses low power to soften foods (butter, ice chocolate, marshmallows and cheese). See the cream, cream cheese, and frozen juice) following table. See the following table. Example : To Melt 227g Chocolate. -
Page 14: Auto Defrost 14~16
*For best results, remove fish, shellfish, meat, and poultry from its original wrapping paper or plastic package. Otherwise, the wrap will hold steam and juice close to the foods, which can cause the outer surface of the foods to cook. *For best results, shape your ground meat into the form of a doughnut before freezing. - Page 15 56.7g...
-
Page 16: Auto Defrost
OPERATING INSTRUCTIONS AUTO DEFROST TABLE (CONT.) Poultry setting FOOD SETTING AT BEEP SPECIAL INSTRUCTIONS CHICKEN Whole POULTRY Turn over (finish defrosting breast- Place chicken breast-side up on a microwav - side down). Cover warm areas with able roasting rack. Finish defrosting by aluminum foil. -
Page 17: Heating/Reheating Guide
To heat or reheat successfully in the microwave, it is important to follow several guidelines. Measure the amount of food in order to determine the time needed to reheat. Arrange the food in a circular pattern for best results. Room temperature food will heat faster than refrigerated food. Canned foods should be taken out of the can and placed in a microwavable container. -
Page 18: Fresh Vegetable Guide
Cook time Standing Vegetable Amount Instructions at HIGH Time Artichokes 2 medium Trim. Add 2 tsp water and 2 tsp juice. Cover. 2-3 minutes (230 g each) 4 medium 10~13 Asparagus, 450 g cup water. Cover. 2-3 minutes Fresh, Spears Beans, Green &... -
Page 19: Microwave-Safe Utensils
MICROWAVE-SAFE UTENSILS Never use metal or metal trimmed utensils in Paper your microwave oven Paper plates and containers are convenient and Microwaves cannot penetrate metal. They will safe to use in your microwave oven, provided that bounce off any metal object in the oven and the cooking time is short and foods to be cooked cause arcing, an alarming phenomenon that are low in fat and moisture. -
Page 20: Food Characteristics & Microwave Cooking
FOOD CHARACTERISTICS & MICROWAVE COOKING Keeping an eye on things Moisture content of food The recipes in this book have been formulated Since the heat generated from microwaves tends with great care, but your success in preparing to evaporate moisture, relatively dry food such as them depends on how much attention you pay to roasts and some vegetables should either be the food as it cooks. -
Page 21: Food Characteristics & Microwave Cooking
FOOD CHARACTERISTICS & MICROWAVE COOKING Stirring Standing time Stirring is one of the most important of all Foods are often allowed to stand for 3 to 10 microwaving techniques. In conventional cooking, minutes after being removed from the microwave food is stirred for the purpose of blending. oven. -
Page 22: Safety Precautions
SAFETY PRECAUTIONS IMPORTANT SAFETY INSTRUCTIONS REDAY CAREFULLY AND KEEP FOR FUTURE REFERENCE WARNING Please ensure cooking times are correctly set as over cooking may result in FIRE and subsequent DAMAGE to the OVEN. 1 Do not attempt to tamper with, or make any 11 Be certain to place the oven so the front of the adjustments or repairs to the door, control panel, door is 8 cm or more behind the edge of the... -
Page 23: Safety Precautions
SAFETY PRECAUTIONS WARNING Please ensure cooking times are correctly set as over cooking may result in FIRE and subsequent DAMAGE to the OVEN. 22 It is hazardous for anyone other than a competent 28 This appliance is not intended for use by persons person to carry out any service or repair operation (including children) with reduced physical, sensory that involves the removal of a cover which gives... -
Page 24: Question & Answers
QUESTION & ANSWERS Q What’s wrong when the oven light will not 1 Popcorn-popping utensils designed specifically glow? for microwave cooking. A There may be several reasons why the oven light 2 Prepackaged commercial microwave popcorn will not glow. that contains specific times and power outputs Light bulb has blown. -
Page 25: Plug Wiring Information/Technical Specifications
The wires in this mains lead are colored in accordance with the following codes BLUE ~ Neutral BROWN ~ Live GREEN & YELLOW ~ Earth TECHNICAL SPECIFICATIONS MODEL MS3842XRL 230 / 240 V~ 50 Hz Power Supply Rated Power Consumption 1600 W Microwave *1100 W Output power. - Page 26 LGEAP CUSTOMER CUSTOMER Printed in China...
