Summary of Contents for Huvitech B4HD

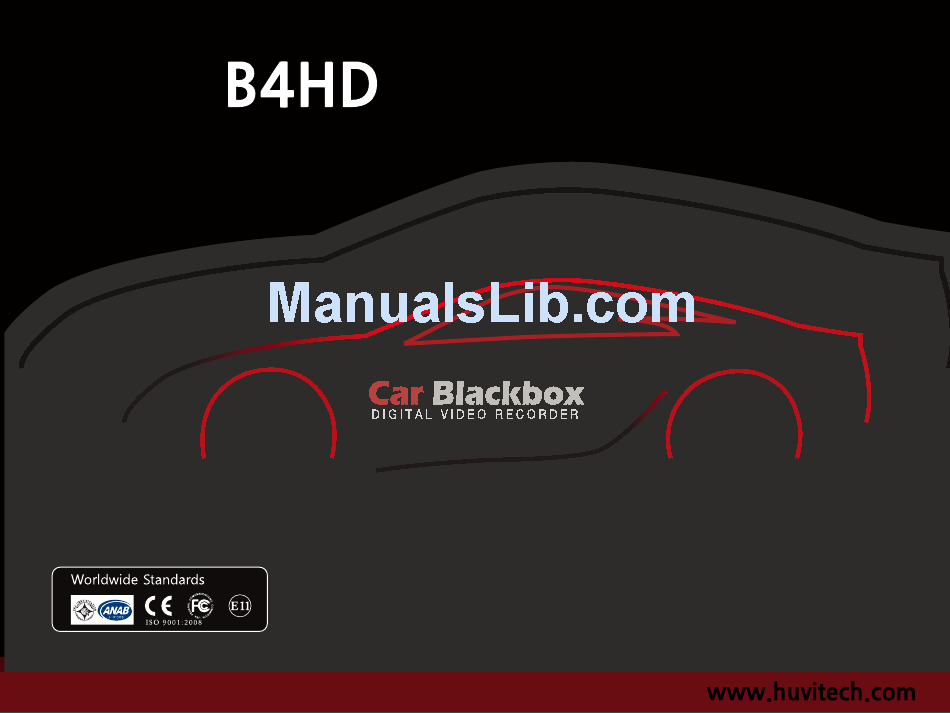

- Page 1 User Manual...
-
Page 2: Before Use
• This Manual contains important information about the proper use and cautions in use of the product. Please read carefully before use. • B4HD is an auxiliary product to alert users for safe driving and prevent accidents, by recording video during driving. Also purpose for evidence of an accident. -
Page 3: Table Of Contents
Contents • Safety Precautions • Product Feature • Standard Package • Product Parts • External GPS/TV-OUT Cable Installation • LED Operation • Voice Guide • PC Original Viewer Program Installation • PC Original Viewer – Screen Configuration • PC Original Viewer – Viewer Configuration •... -
Page 4: Safety Precautions
Safety Precautions Operational and Security Precaution • Do not operate the product during driving. It may cause accident. • The product must be installed at a point which would not obstruct the driver’s view. • Do not allow unauthorized disassembly or alteration to the product. It may cause malfunction, and the consequent product damage will not be covered under the warranty. - Page 5 Safety Precautions SD Card Precaution in use • In order to confirm normal operation of the product, please check the image of a SD card and format it on a regular basis. • (PC format needed one to two times per month) •...
-
Page 6: Product Feature
Product Feature High Quality Lens and High Image Quality / Resolution support • 2 Mega Pixel image sensor mounting in Front / Rear. • Front : 115˚, Back : 140˚ • HD(1280×720) High Image Quality Resolution and total 30fps(Front 20 + Rear 10). Various Recording Function and Video Data Acknowledgement •... -
Page 7: Standard Package
Standard Package 3M tape for bracket Direct Cable Micro SD Card Installation Accessories Option Accessories B4HD Body Cigar Lighter AV OUT (Option) (Option) -
Page 8: Product Parts
Product Parts TV OUT DC Jack Braket slot Speaker SD Card slot SD Card holder REC Button MUTE by manual Front camera Volum Inside camera IR LED Power LED... -
Page 9: External Gps/Tv-Out Cable Installation
TV- Out to a AV- in jack you car B4HD body. up a cable. jack on a B4HD navigation. body. When connecting to your Car Navigation, GPS module may be affected by main... -
Page 10: Led Operation
LED Operation ▶ LED Operation State Green Purple Booting/SD Format mode/End recording Blink FW Update Fast Blink Normal Recording(with GPS signal) Blink Event Standby(with GPS signal) Light On Event Recording(with GPS signal) Fast Blink Normal Recording(without GPS signal) Blink Event Standby(without GPS signal) Light On Event Recording(without GPS signal) Fast Blink... -
Page 11: Voice Guide
Voice Guide Status Voice Comment Power on please take your seatbelt / do not operate the device while driving Memory Error please check the memory card firmware update will start, Firmware update please do not operate the device while updating accessing SD Format please press REC button for 5 seconds to delete the entire files Start recording... -
Page 12: Pc Original Viewer Program Installation
PC Original Viewer Program Installation System Requirements Windows XP(32bit), Windows Vista(32bit), Window7(32/64) Pentium4 2.8GHz & RAM over 1GB. Display monitor resolution: 1024 * 768 DirectX Support (WPF) Install - Playback program is in packaged Micro SD card. - Insert this SD card into the USB card reader and connect to the computer. -
Page 13: Pc Original Viewer - Screen Configuration
PC Original Viewer – Screen Configuration... - Page 14 PC Original Viewer – Screen Configuration Item Function Item Function Fast - Rewind 1CH / 2CH select screen Viewer Configuration Playback or Pause System Configuration Stop Screen Capture Fast - Forward Print File Skip Zoom Control Volume Play List/Map Button Total File Time/Playback Time Playback File Location Brightness/Contrast/Chroma...
-
Page 15: Pc Original Viewer - Viewer Configuration
PC Original Viewer – Viewer Configuration... - Page 16 PC Original Viewer – Viewer Configuration Item Description Set location for captured JPEG image. JPEG stores location Select language. Language Select display channel. Playback mode Select repeated playback. Repeat Select App is always the top of another window. App location Select video reverse.
-
Page 17: Pc Original Viewer - Configuration
PC Original Viewer – Configuration... - Page 18 PC Original Viewer – Configuration Item Description Mode Setup Select the recording mode Time Setting Set your current time in PC Front Camera Video Quality Select video quality in a front camera Rear Camera Video Quality Select video quality in a rear camera REC Time Select recording time for each file REC Channel...
-
Page 19: Configuration Default Setting
Configuration Default Setting Item Status mode Infinite Front Video quality High Audio volume Voice information volume G-sensor sensitivity Data Overwrite GMT Time +09:00 Sumer time apply TV-out frequency NTSC Recording FPS 14.5/14.5 Contrast Middle Brightness Middle Camera Sensor Color Middle Movie Ratio between infinite / event Event... -
Page 20: Recording Mode Button Function
Recording mode and Button function 1. Recording : Device records video with turn on engines 2. Recording type : It is separated between infinite and event 3. Data storing : data store into infinite and event folder. Recording Recording Recording method Recording time Storing Folder mode... - Page 21 (GOM, Quicktimer, Window Media Player) 3) Playback Open a removal disc, you can see each folders. And click 1) Remove a SD Card from B4HD files to playback which is stored in each folders. Open a SD Card slot cover and press softly, then a SD Card can be removed easily.
- Page 22 2. Playback from own viewer software 5) Playback 1~2) it is a normal video player with the same By choosing the file on the right hand side of the viewer playback method file can be played back. 3) operate the viewer software 4) open files Click the magnifying glass located at file location in up right of the viewer then, files will automatically list up...
- Page 23 3.playback from monitor / navigation 1) connect the AV cable to the port with correct 2) change the External display mode real time video monitor/navigation (AV cable : optional part) can be displayed. AV1(external input mode) * external device (monitor/navigation) must have input port, for the AV cable purchase please ask related manufacturer.
-
Page 24: To Save Video File On Your Pc
To save video file on your PC 1. Enter to removal disc after insert SD card to your PC. 2. Go to the folder where recorded video files are stored. 3. Create the new folder in same location. 4. Drag the particular file to the new file to copy. (If you drag a folder, the whole folder will be copied.) -
Page 25: Firmware Upgrade
Firmware Upgrade • Auto Firmware Upgrade 1) Turn off the recorder and take the memory card out 2) Connect the memory card to your PC and backup the data 3) Format the memory card (please refer to the PC page) 4) Put the firmware file into the memory card 5) Once Put the memory card into the recorder, update starts immediately. -
Page 26: How To Format The Memory Card
How to format the memory card 1) By using PC Put the memory card click “right side” and click the “format” click 32KB and proceed the into your PC and click formatting my computer Please backup the manual and software file before formatting. However, please choose fat32 when formatting otherwise the recorder could not be operated correctly. -
Page 27: Rec Time
REC Time ▶ Default Setting 16GB 32GB Picture quality Infinite (60%) Event (40%) Infinite (60%) Event (40%) Very High Approx 2.30 hour Approx 1.39 hour Approx 5.02 hour Approx 3.20 hour Approx 3.20 hour Approx 2.12 hour Approx 6.44 hour Approx 4.28 hour High * when the memory card has insufficient storage recorder will overwrite from the oldest file... -
Page 28: Specification
Specification Item Specification Item Specification Camera Front/back 2M Pixels Video Out NTSC / PAL Composite G－Sensor Built-in 3x - G sensor Audio record Built-in MIC External GPS(Optional) Voice information Built-in Speaker Video compression H.264/AVC Memory storage Micro SD card(SDHC) Audio compression DC input DC 12V ~ 24V Free Voltage 85(w)x48(H)x36(D)mm... -
Page 29: Faq
Power is not turned on. ※ Check once again if the power cable is properly connected. If the problem is not solved, please contact manufacture. 2. The map is not shown when a video is played on a PC original viewer program. ※... -
Page 30: Warranty
Important data shall be backed-up in a safe place and we shall not be responsible for any loss of the data stored in the product. Date : Distributor : Customer Service Manufacture : #201-711 & 712 Chunui Techno Park Ⅱ 202 Chunui-Dong, Wonmi-Gu, Bucheon-City Gyeonggi-Do, Korea(ZIP:420-857) Please download the user manual, program from below website http://www.huvitech.com...
