BFDX BF-P108 User Manual

Uhf digital two-way radio
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

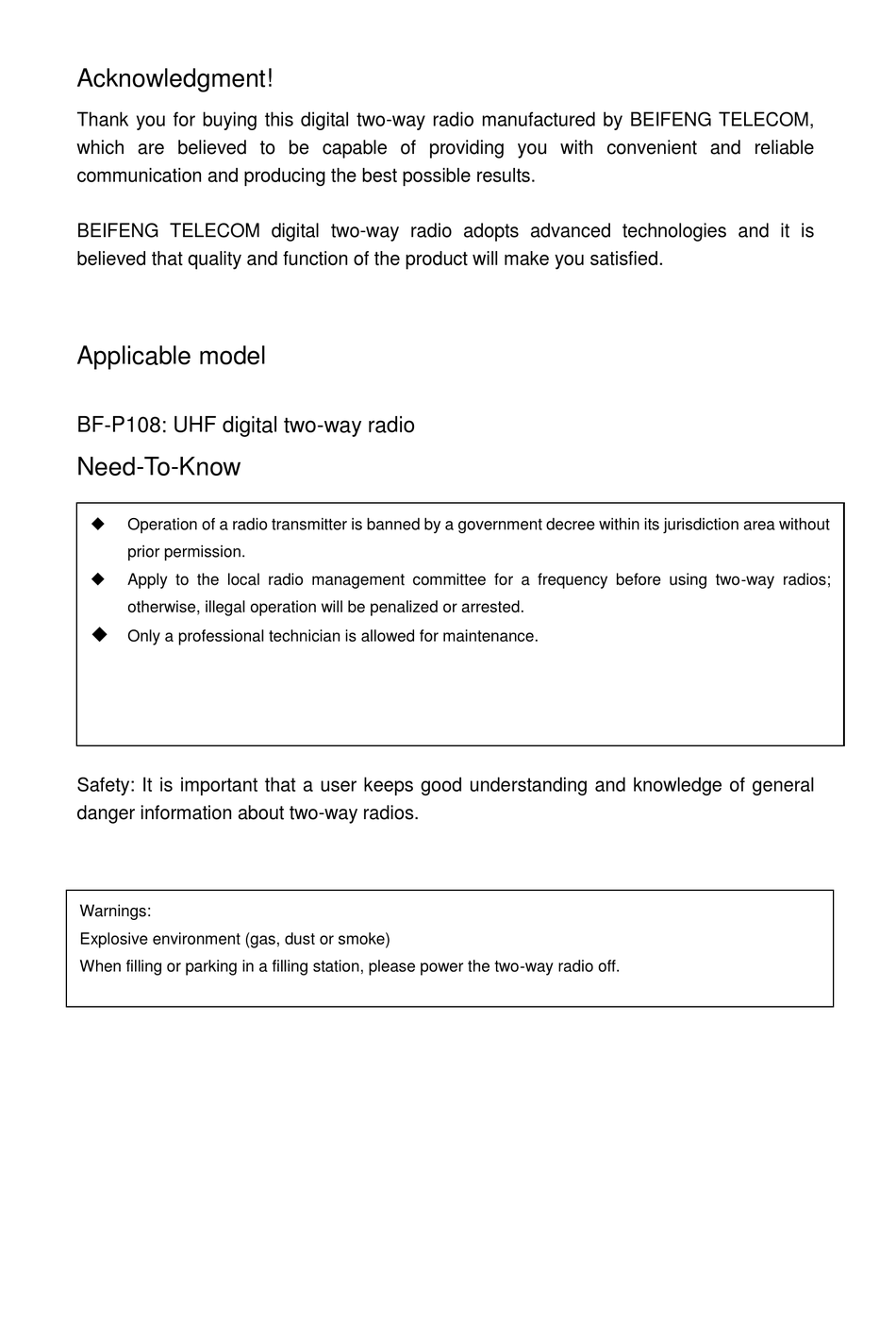

Acknowledgment!
Thank you for buying this digital two-way radio manufactured by BEIFENG TELECOM,
which are believed to be capable of providing you with convenient and reliable
communication and producing the best possible results.
BEIFENG TELECOM digital two-way radio adopts advanced technologies and it is
believed that quality and function of the product will make you satisfied.
Applicable model
BF-P108: UHF digital two-way radio
Need-To-Know
Operation of a radio transmitter is banned by a government decree within its jurisdiction area without
prior permission.
Apply to the local radio management committee for a frequency before using two-way radios;
otherwise, illegal operation will be penalized or arrested.
Only a professional technician is allowed for maintenance.
Safety: It is important that a user keeps good understanding and knowledge of general
danger information about two-way radios.
Warnings:
Explosive environment (gas, dust or smoke)
When filling or parking in a filling station, please power the two-way radio off.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BF-P108 and is the answer not in the manual?

Questions and answers

Related Manuals for BFDX BF-P108

Summary of Contents for BFDX BF-P108

  • Page 1 BEIFENG TELECOM digital two-way radio adopts advanced technologies and it is believed that quality and function of the product will make you satisfied. Applicable model BF-P108: UHF digital two-way radio Need-To-Know  Operation of a radio transmitter is banned by a government decree within its jurisdiction area without prior permission.
  • Page 2 If secondary development is performed on the product, please contact BEIFENG TELECOM or BEIFENG TELECOM vendors. Precautions Please follow following precautions to prevent fire, personal injury or damage to two-way radio:  It is recommended to use the two-way radio with 1 minute of TX and 4 minutes of RX. Long-term continuous TX may result in heating of the rear of the product.

  • Page 3: Unpacking And Inspection

    Key Functions Keys Single-key call Emergency System Address Book Channel Channel Functions Scan Functions of Scan Group Technical Specifications Unpacking and Inspection Note: following unpacking descriptions are only for BEIFENG TELECOM vendors, authorized BEIFENG TELECOM service centers or factories. Please carefully take the product out of the package. It is recommended to check accessories contained in the package according to the following table before discarding its package.

  • Page 4: Use Of Lithium Battery

    Charging After the BF-P108 charger is energized, the orange indicator is not on. Install the battery pack, contact properly, and then the red indicator is on to start charging. After the battery is fully charged, the green indicator is on. If the temperature is beyond the range...
  • Page 5 contacted, the red indicator flashes.  Installation/Removal  Do not have battery terminals short circuited and do not put the battery in the fire.  Do not remove the case of the battery pack.  Do not install the battery pack in a dangerous environment; otherwise, spark may result in explosion.

  • Page 6: Belt Clip

     Belt clip Install it along the slot till you hear “click” until it is locked by the slot.  Harness Pass the harness through the runner on the top. About the product...

  • Page 7: Led Indicator

    ① Power /Volume Power switch－Volume (volume) controller Switch the power on during rotating clockwise. Rotate to adjust the volume. If being configured to cancel all mute modes, the product will broadcast channel number in a voice manner. If the channel transmits no frequency, you will be prompted with a short voice prompt.

  • Page 8: Channel Selection

    Enable a user to change key functions via programming software (see P? for details) ⑥ Key 2 Enable a user to change key functions via programming software (see P? for details) ⑦ Key 3 Enable a user to change key functions via programming software (see P? for details) ⑧...
  • Page 9  Receiving When the channel you are using is called, the green indicator is ON. This call can be heard only when the same frequency and call rule are received. Functions  General Settings Device Name 1）  Set an alias of the two-way radio. A user can input 8 characters at most. Valid characters include alphanumeric characters, space and special characters.
  • Page 10 reduce probability of missing message for RX two-way radio. The duration of preamble can be set by software. When scanning number increases for the target two-way radio, increase of the duration of preamble is also required accordingly. If the scanning two-way radio loses data message often, increase this value in all the TX two-way radios.
  • Page 11  If this feature is enabled, an unoccupied two way radio will automatically enter the power save mode, i.e. making certain features in standby mode. After a certain time or when a user presses any key, the two-way radio returns normal operation and check if any incoming call in the channel.

  • Page 12: Key Functions

    communication. In private call mode, allowance prompt sounds only when the target private call two-way radio is powered on and connection can be effectively established. Volume offset 5）  Set the volume offset value of a prompt tone. Setting of this feature will result in the volume of the prompt tone higher or lower than or equal to audio volume controlled by the volume knob.
  • Page 13 enabled, the two-way radio will be kept in this mode before pressing this key to disable this function. Unused channel deletion: enable a user to temporarily delete unnecessary channels from the scan list (excluding selected channels). For example, when the two-way radio is powered off and on again, deleted unused channels will resume in the scan list.
  • Page 14  Enable a user to change short press of key 1. It has the same function as above. 4）Long press of key 1  Enable a user to change long press of key 1. It has the same function as above. 5）short press of key 2 ...

  • Page 15: Call Type

    2）Call type Enable a user to select a call type from selected call members in the “call object”  column. 1. SMS  Enable a user to select quick SMS. These SMS are selected from SMS setting.   A user can input 138 characters at most. Valid characters include alphanumeric characters, space and special characters.
  • Page 16 2. Assign a unique name for the area. 2）Add a channel in an area 1. Right click an area. 2. Select “Add (A)” to create a digital channel. 3. Assign a unique name for the channel. 3）Delete area 1. Right click “Area” folder in the view. 2.
  • Page 17 4）Talk-around allowed  During transmission, use RX parameters instead of TX parameters. The feature enables adjacent two-way radios to realize communication without a repeater, especially for a situation that two-way radios are adjacent and a repeater is beyond the range. The feature can switch between repeater and talk-around modes by short press or long press of programmable key (repeater/talk around) or talk around (Setting menu).
  • Page 18 Configure the digital emergency alarm system in the “signaling system” folder  before selecting; otherwise, the default value is used (null). “RX only” function should be disabled.  11）TX power  Set TX power level of the two-way radio in the channel. A user can switch between high power and low power by long press or short press of programmable keys (High/low power) or power (“Setting”...
  • Page 19 voice, it will prompt a user with prompt tone if the transmission is disabled. Available color code: before allowing transmission, the two-way radio will check if a specified color code is not used. If it is the same as available color code for receiving, the transmission is disabled.
  • Page 20 1. Right click “Scan” folder in the tree view. 2. Select “Add (A)”. 3. Assign a unique name to the list. 2). Delete a scan group 1. Right click a specific scan group in the tree view. 2. Select “Delete (D)”. 3).
  • Page 21 members in the scan list, if a user presses PTT, the two-way radio will perform transmission in the TX channel. Any channel can be used as a specified TX channel. In addition, a user can select a selected channel. 9）Priority sampling time (ms) ...
  • Page 22 Shock&Vibration MIL-STD-810C/D/E/F...
