Summary of Contents for Synaestec Audio Origo

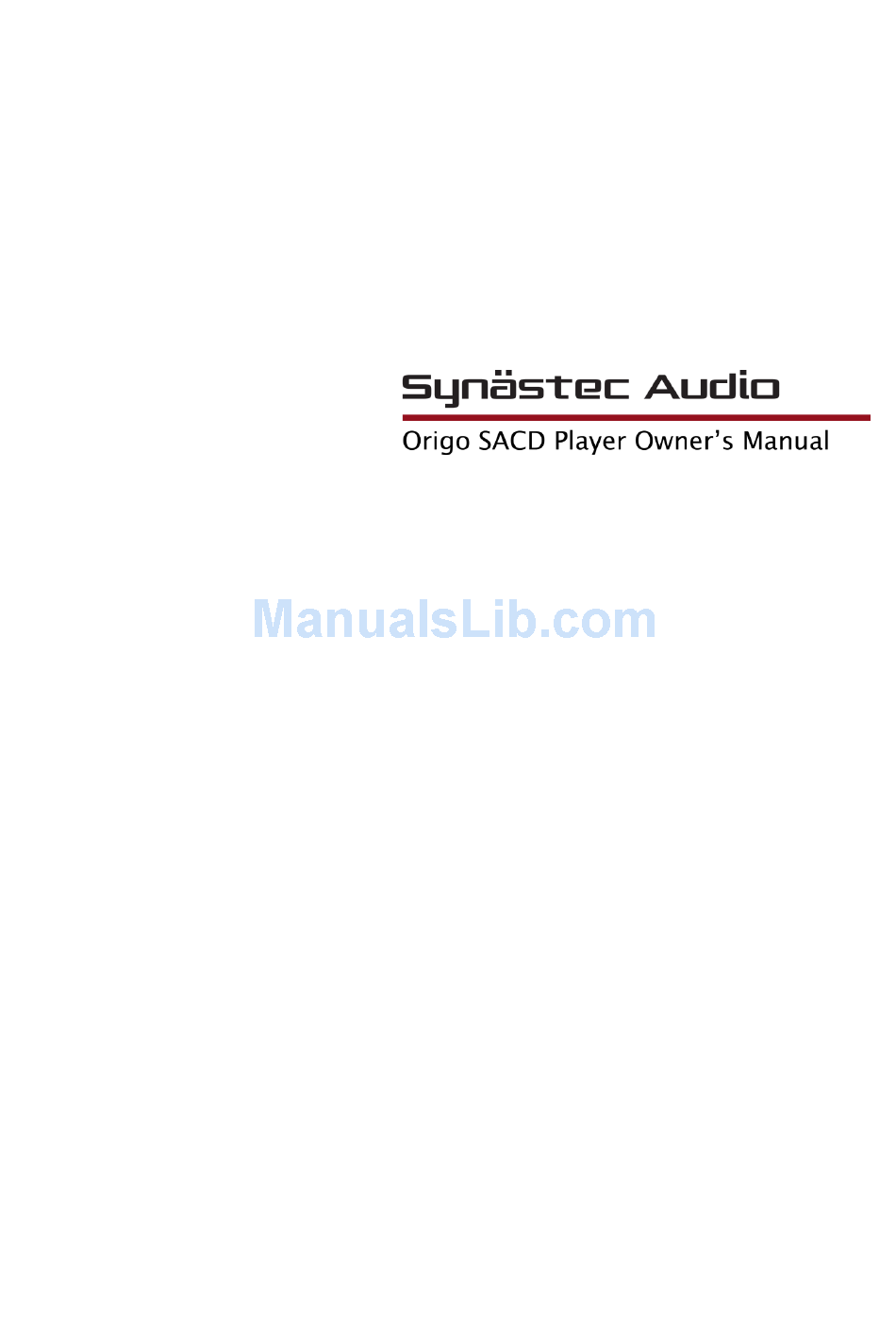

- Page 1 ...
- Page 2 Dear Music Enthusiast, Thank you for purchasing Synaestec Audio Origo, a state of the art CD/SACD player utilizing legendary pure ladder type digital to analog converter that have proven to be the best technology in all time. The Origo is also able to play digital music files of almost any sampling rate through its USB audio streaming input. This is the all‐in‐one digital music player system that will provide the ultimate listening pleasure that you have never experienced. Please take some time to read this owner’s manual before using the equipment for the first time. You will find useful information which will enhance your listening pleasure. ...
-
Page 3: Table Of Contents
Contents Warning ............................ 4 Unpacking ........................... 4 Origo CD/SACD Player ......................... 5 Remote control ........................... 6 Preparations .......................... 6 USB audio setup ........................ 7 Operation ............................ 8 Setup Menu .......................... 9 Play Mode ......................... 10 Input Select ........................ 11 Time Indicator ........................ 11 Brightness ......................... 11 Safety and Protection ....................... 12 DC protection ........................ 12 ... -
Page 4: Warning
Unpacking You will find in the Origo packaging: ‐ An Origo CD/SACD player ‐ A remote control unit ‐ An AC power cord ‐ This owner’s manual The Origo is machined from multiple blocks of aircraft grade aluminum instead of stamped thin metal sheets. It is much heavier than other equipment of the same size. Lift the player with great care, or search for assistance when trying to remove it from the packaging. The packaging material is specially designed to well protect the Origo. We recommend you to keep the original packaging in case you need to transport the player in the future. 4 ... -
Page 5: Origo Cd/Sacd Player
Origo CD/SACD Player Front view 1. Display and IR remote sensor 2. PLAY/PAUSE / rotate clockwise for next track or anti‐clockwise for previous track 3. STOP/EJECT / rotate clockwise or anti‐clockwise for browsing in setup menu Rear view 4. AC main power inlet 9. SPDIF digital output ‐ RCA unbalanced 5. Analog audio output ‐ XLR balanced 10. AES/EBU digital input ‐ XLR balanced 6. Analog audio output ‐ RCA unbalanced 11. USB audio streaming input ‐ type B 7. AES/EBU digital output ‐ XLR balanced 12. SPDIF digital input ‐ RCA unbalanced 8. Reserved for future software upgrade 5 ... -
Page 6: Remote Control
Menu Play/Pause Number keys Next track / Fast forward / browse in Menu +10 / Enter 10. Battery holder Preparations Install Origo on a rigid and stable platform. A vibration free platform will help extracting its optimal sonic performance. Make sure the main power switch is in the OFF position (O) before connecting the power cable. Always use an AC power cord with ground wire. The Origo must be earthed, both for safety and sonic reason. To get the best sound quality, make sure that all your Hi‐Fi equipments are connected into one mains socket. Connect the player's audio output to your amplifier's input, using high quality audio cables. ... -
Page 7: Usb Audio Setup
Origo to your Windows computer. After finishing the driver installation, connect the Origo to your computer. Select Synaestec USB audio 2.0 as the default playback device through your music player software. Mac OS environment There is no need to install any drivers. The Origo's USB streaming interface is plug and play under Mac OS environment. Simply connect the USB interface and then select Synaestec USB Audio 2.0 in the Sound menu. ... -
Page 8: Operation
After turning on the player, you can open the disc tray and insert your CD or SACD using the STOP/EJECT button. When you have finished listening, press the Power button on the remote control or press and hold the PLAY/PAUSE knob on the front panel to turn the Origo back into ready mode. If you plan to leave the Origo unused for a long period of time, use the main power switch on the rear panel to switch it off completely. There is an Oven‐Controlled‐Crystal‐Oscillator (OCXO) inside the Origo to generate the perfectly accurate audio reference clock. This OCXO needs 5 minutes to warm up in the initial power up. There is a warm up sign on the display screen, and it will disappear when the OCXO ... -
Page 9: Setup Menu
Setup Menu Enter the Setup Menu by pressing the Manual button on the remote control, or by pressing the STOP/EJECT knob on the player’s front panel continuously for more than 3 seconds. To enter Setup Menu Front panel Remote control Press to enter Menu Press and hold Setup Menu screen Browse the Setup Menu using the Previous/Next track button on the remote, or by rotating the STOP/EJECT knob on the front panel. Navigate in Setup Menu Front panel Remote control or Press to enter ... -
Page 10: Play Mode
Play Mode You can choose how the disc is being played in the Play Mode menu. Program Create custom playlist by picking tracks from the list, selected tracks will be played in the assigned sequence. It is possible to select up to 30 tracks in the program. To exit program, press the Stop button twice. ... -
Page 11: Input Select
Input Select The Origo accepts different types of external digital audio inputs up to 24bit‐192KHz besides playing CD or SACD. Activates the USB audio streaming input. Coaxial Activates the SPDIF coaxial digital audio input. AES/EBU Activates the AES/EBU balanced digital audio input. DISC Disables all external digital audio inputs and switch to play CD or SACD. Time Indicator You can select the way how the play time is displayed on the screen. Time elapsed in track (Default) Remaining time on track Remaining time on disc Brightness There are 5 different levels of display brightness available, level 5 being the brightest. Or you can choose Auto, which will brighten up the display upon any control command, and then ... -
Page 12: Safety And Protection
Safety and Protection DC protection The Origo protects the loudspeaker from DC leakage. In case of the present of DC leakage, the audio output will be cut off automatically. Short circuit protection The Origo is designed to withstand momentary short circuit. However, do not short circuit the audio output intentionally. Maintenance Cleaning Clean the surface with soft dry cloth only. Do not use any solvent or cleaning agent. Remote Control Battery replacement Unscrew the bottom plate of the remote control unit. Replace old batteries with AAA size dry cell alkaline batteries (LR03). Reclose the bottom cover after battery replacement. Always replace both batteries at the same time. Mixing new and old batteries will reduce battery life. Fuse replacement Only replace Fuse with the same rating as the supplied one. ... -
Page 13: Specifications
Specifications Input impedance: 110 Ohm Digital inputs: 1 symmetrical Input impedance: 75 Ohm 1 asymmetrical Minimum input level: 0.2Vpk‐pk 1 USB 2.0 high speed compliant Output impedance: 110 Ohm Digital outputs: 1 symmetrical Output level: 1.6Vpk‐pk Output impedance: 75 Ohm 1 asymmetrical Output level: 1.2Vpk‐pk ... - Page 14 Origo SACD Player Owner’s Manual (English, Rev. 1.0) Synästec Audiosysteme GmbH, Veilchenweg 1, 72479 Straßberg, Deutschland Website: www.synaestec‐audio.de, E‐mail: info@synaestec‐audio.de Tel: +49 (0) 7434 532 496, Fax: +49 7434 532 626 14 ...
