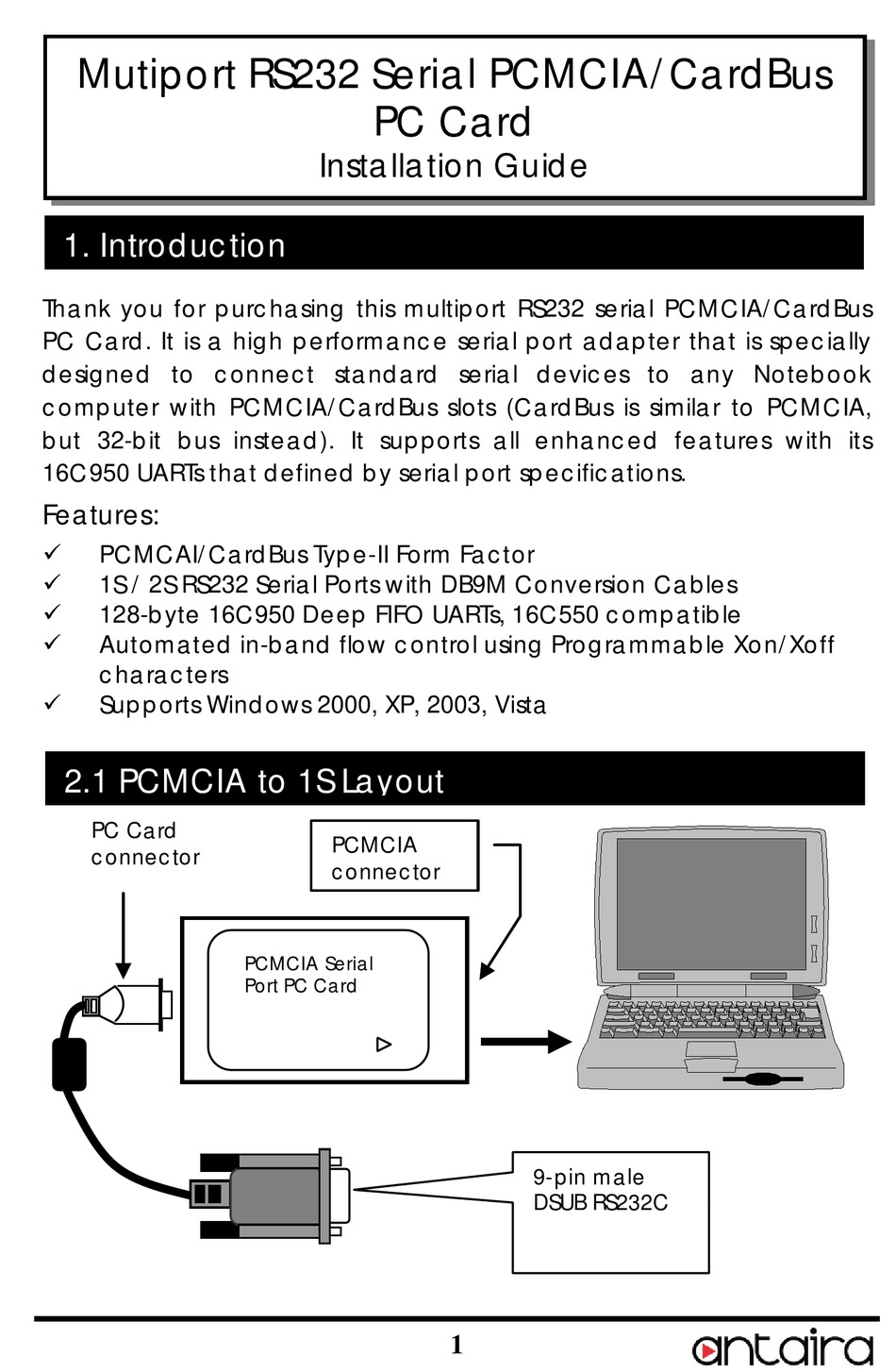

Mutiport RS232 Serial PCMCIA/CardBus
1. Introduction
Thank you for purchasing this multiport RS232 serial PCMCIA/CardBus
PC Card. It is a high performance serial port adapter that is specially
designed to connect standard serial devices to any Notebook
computer with PCMCIA/CardBus slots (CardBus is similar to PCMCIA,
but 32-bit bus instead). It supports all enhanced features with its
16C950 UARTs that defined by serial port specifications.
Features:
PCMCAI/CardBus Type-II Form Factor
1S / 2S RS232 Serial Ports with DB9M Conversion Cables
128-byte 16C950 Deep FIFO UARTs, 16C550 compatible
Automated in-band flow control using Programmable Xon/Xoff
characters
Supports Windows 2000, XP, 2003, Vista
2.1 PCMCIA to 1S Layout
PC Card
connector
PC Card
Installation Guide
PCMCIA
connector
PCMCIA Serial
Port PC Card
9-pin male
DSUB RS232C
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ANTAIRA MSC-302A
Summary of Contents for ANTAIRA MSC-302A
-
Page 1: Installation Guide
Mutiport RS232 Serial PCMCIA/CardBus PC Card Installation Guide 1. Introduction Thank you for purchasing this multiport RS232 serial PCMCIA/CardBus PC Card. It is a high performance serial port adapter that is specially designed to connect standard serial devices to any Notebook computer with PCMCIA/CardBus slots (CardBus is similar to PCMCIA, but 32-bit bus instead). - Page 2 Multiport RS232 Serial PCMCIA/CardBus PC Card 2.2 PCMCIA to 2S Layout PC Card PCMCIA connector connector PCMCIA Serial Port PC Card Port 1: 9-pin male DSUB RS-232C Port 2: 9-pin male DUB RS-232C 3. Installing the PC Card Due to the hot-plug feature of the PCMCIA/CardBus, the installation of the PC card is quite straightforward.
- Page 3 Multiport RS232 Serial PCMCIA/CardBus PC Card The “Add New Hardware Wizard” in the Operating Systems will be invoked, and will guide you to complete the whole driver installations. Installing 9-pin Serial cables Connect 9-pin serial cables to each serial device from the PC card DB9 connector.
- Page 4 Multiport RS232 Serial PCMCIA/CardBus PC Card 5. Safe-Removing the PC Card In Windows 2000, XP and Vista, if you insert the PC Card, you will get a 〝green arrow 〞icon at the bottom of the screen, after clicked this icon, you will be allowed to safe-remove the PC Card afterward Click this icon before removing the PC Card Note: In some notebooks, removing the PC card will cause...
