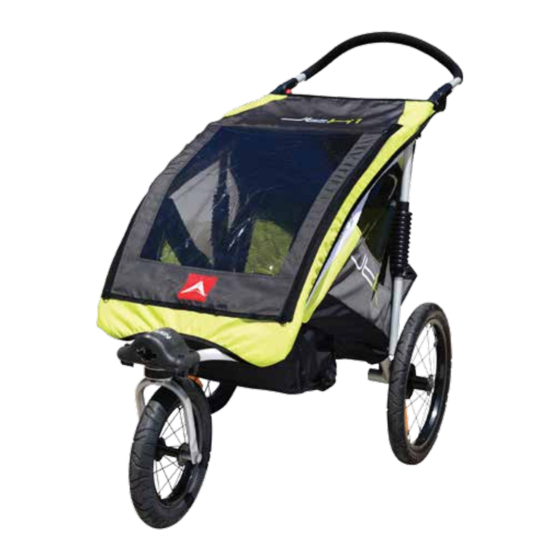

MODEL JTX-1 BIKE TRAILER
Please keep this Owner's Manual for future reference.
1. Please read this Owner's Manual completely before assembling or operating this product.
2. This product should be assembled by an adult.
IMPORTANT SAFETY INFORMATION
• Failure to follow these warnings and assembly instructions could result in serious injury or death!
• Immediately discard all plastic bags and plastic wrapping materials!
• Maximum total weight capacity for one child is 50 pounds
• Never use this trailer/stroller if it becomes damaged!
• To avoid serious injury, children should always wear the seat belt and the shoulder straps!
• Never leave children unattended in or around this product!
• Never allow children to assemble, fold, or disassemble this unit!
• Accessories or parcels placed in trailer/stroller may cause it to become unstable!
• Not for use with children under 12 months old! Children must be able to support their own head!
• Before riding, check that all parts are assembled according to the manufacturer instructions!
• Tires should be inflated to 25-35 PSI for maximum comfort! Check tire pressure before each use!
• Use a foot pump or hand pump to inflate tires! Pressurized air hoses can cause over inflation!
• Periodically re-check all fasteners to make sure they are tight!
• Clean trailer only with soap and water. Do not use solvents
• Make sure your bike brakes work properly! Braking distance is increased when pulling a trailer!
• This trailer is wide! Allow extra clearance near curbs, signs, parked cars, and other obstacles!
• A bicycle with trailer attached requires a wide turning radius! Do not turn sharply!
• Children must wear an approved safety helmet when using this product in trailer mode!
• Never remove protective canopy when pulling children in the trailer!
• Always use the safety flag when pulling this trailer!
• When pulling one child in the trailer, seat him/her in the center!
• Do not ride over curbs! Avoid bumps and holes! Always signal your turns!
• Use extra caution when turning on uneven pavement, and going downhill!
• Not for use at high speeds! Do not exceed 10 MPH!
• Do not pull this trailer at night!
• Install a rearview mirror on your bike to check on children in trailer!
• Dress children appropriately to prevent them from getting chilled or overheated while riding
INSTRUCTIONAL
OWNER'S MANUAL
SAFE TOWING TIPS
1
Advertisement
Table of Contents
Related Manuals for Allen Sports JTX-1
Summary of Contents for Allen Sports JTX-1
- Page 1 INSTRUCTIONAL OWNER’S MANUAL MODEL JTX-1 BIKE TRAILER Please keep this Owner’s Manual for future reference. 1. Please read this Owner’s Manual completely before assembling or operating this product. 2. This product should be assembled by an adult. IMPORTANT SAFETY INFORMATION •...
-
Page 2: Parts List
INSTRUCTIONAL OWNER’S MANUAL FULLY ASSEMBLED TRAILER PARTS LIST QUANTITY DESCRIPTION Frame w/ Canopy, Sling Seat with 5 point safety harness, tow bar, tow bar coupler and rear wheel bracket attached 16” Rear wheels Safety flag... - Page 3 INSTRUCTIONAL OWNER’S MANUAL MAIN CABIN FRAME AND ASSEMBLY NOTE: Remove the trailer, wheels, hitch arm and jogger kit from the box. Set the jogger kit aside, as you will install this later. Lay the trailer on the ground with the black fabric side down. STEP 1: Remove trailer and all components from carton.
-
Page 4: Wheel Installation
INSTRUCTIONAL OWNER’S MANUAL WHEEL INSTALLATION Your Allen Sports trailer uses simple and convenient push button quick-release wheels. STEP 1: To install the wheel, first push the button on the outside of the wheel hub, and insert the axle through the hanger bracket on the frame as shown. -
Page 5: Safety Flag Installation
TOP COVER/WINDSCREEN NOTE: Your Allen Sports trailer is equipped with an all-weather cover that snaps in place on the trailer frame as shown below. The upper frame has snaps located just below the adjustable handlebar fittings. To fix, simply snap the snap STEP 1: buttons on each side. -
Page 6: Five-Point Harness
OWNER’S MANUAL SAFETY WRIST STRAP NOTE: The model JTX-1 includes a safety wrist strap that should be installed and used whenever the JTX-1 in the jogger/ stroller mode. Always use the wrist strap when a passenger is in the stroller. - Page 7 INSTRUCTIONAL OWNER’S MANUAL FOLDING STEP 1: To fold your trailer, first, push the locking button on the right side trigger, then while still holding the locking button, pull up on the right and left triggers simultaneously. STEP 2: Second, push handlebar down to fold frame. Continue until fully folded. NOTE: The trailer can be folded with or without the wheels on.
- Page 8 INSTRUCTIONAL OWNER’S MANUAL ATTACHING TRAILER TO BICYCLE Your Allen Strailer is designed to attach easily to just about any full-size bicycle. The hitch fitting must be attached to the rear axle of the bike. Do not attach to any cycle where it cannot attach to the axle. It is recommended that the bicycle(s) to which the trailer will be attached undergo a safety check by a qualified bicycle mechanic before attaching the trailer to it.
-
Page 9: Trailer Maintenance
INSTRUCTIONAL OWNER’S MANUAL TRAILER MAINTENANCE Your trailer will give you many years of service with minimal care. To ensure safe and dependable operation, we recommend the fol- lowing regular maintenance: BEFORE EACH RIDE: STEP 1: a. Check all fasteners to make sure they are tight. Tighten or replace if needed b. - Page 10 INSTRUCTIONAL OWNER’S MANUAL JOGGER & STROLLER KITS Please keep this Owner’s Manual for future reference. 1. Adult Assembly required. No tool required. 2. For ages 6 months or 50 lbs. IMPORTANT SAFETY INFORMATION • Failure to follow these warnings and assembly instructions could result in serious injury or death! •...
- Page 11 INSTRUCTIONAL OWNER’S MANUAL JOGGER KIT Your JTX-1 trailer can accept an optional jogger kit. If not included with your trailer at time of purchase, please contact your retailer for more information on how to purchase this accessory. INCLUDES: The kit consists of a 12 inch wheel...
- Page 12 INSTRUCTIONAL OWNER’S MANUAL INSTALLING THE JOGGER KIT To install the jogger kit, first remove the hitch arm by releasing opening and releasing the QR pin, then STEP 1: pull out the arm. Next, take the jogger wheel and insert into the bearing on the bottom side of the front receiver block. STEP 2: Push the axle through the bearing until the wheel assembly contacts the receiver block.
-
Page 13: Adjust Handlebar
INSTRUCTIONAL OWNER’S MANUAL ADJUST HANDLEBAR. Your Allen Sports jogger has an adjustable height handlebar, for users of all sizes. Push the red buttons inside the handlebar assembly, (both sides simultaneously), and push down or lift STEP 1: up to a preferred height. Then release the red buttons and allow the handlebar to lock in place.
