Sangamo CHOICE PR1 User Instructions

Fit & forget...

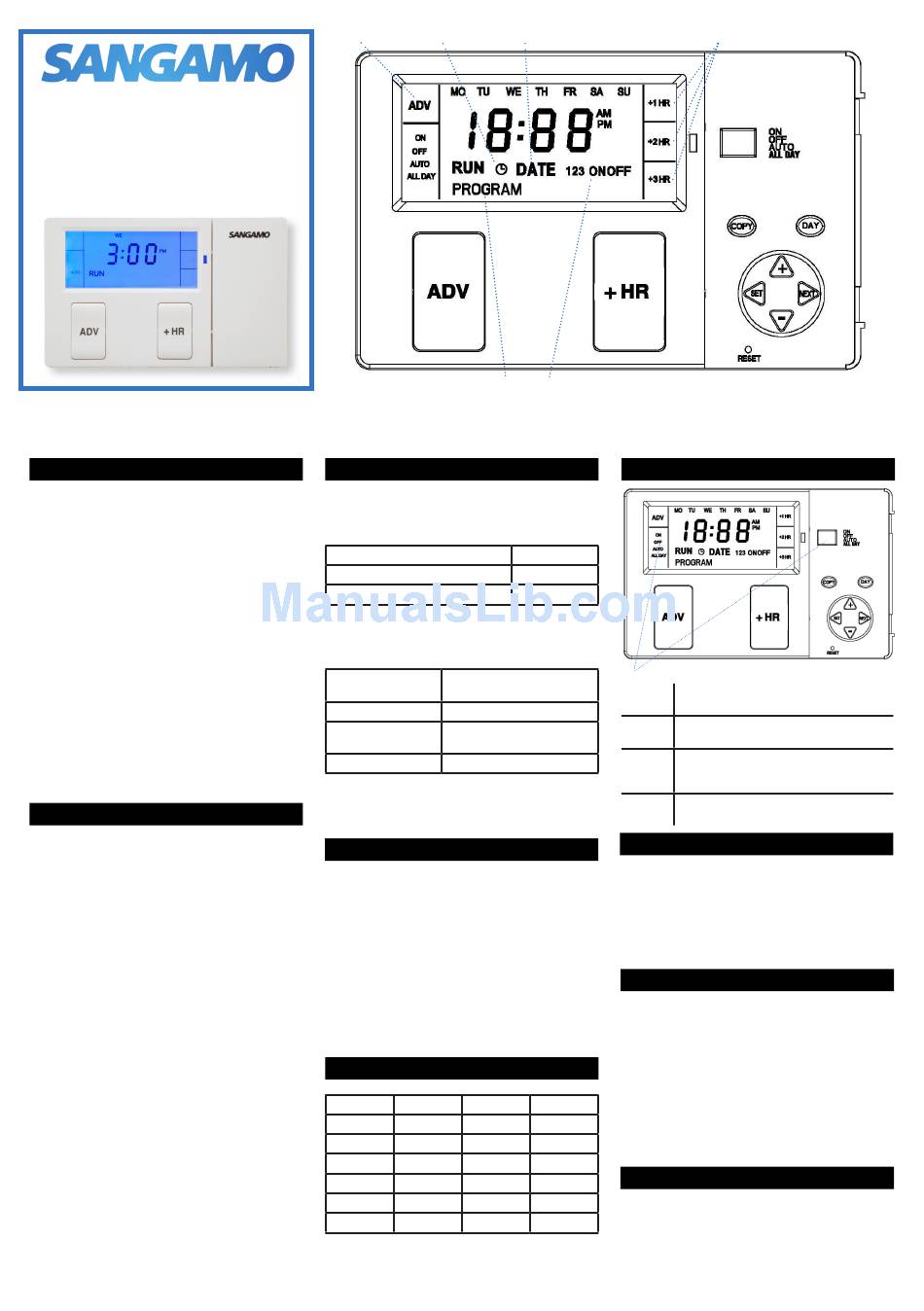

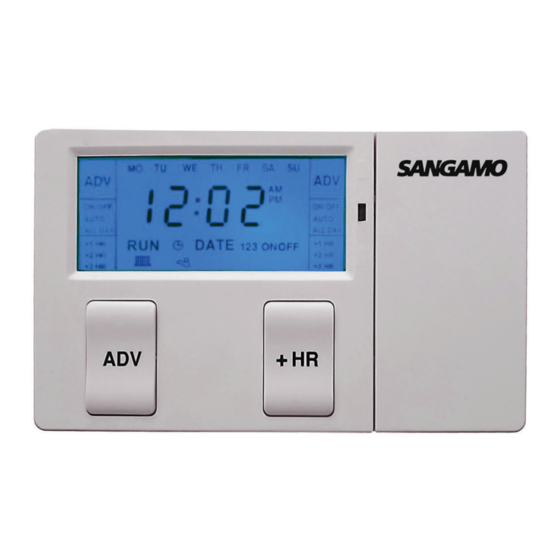

CHOICE PR1
1 Channel Programmer
User Instructions

Introduction

What is a central heating programmer...?
Central Heating programmers allow you to set 'On'
and 'Off' time periods for your heating and/or hot
water. One Channel models switch your central heating
and domestic hot water on and off at the same time,
while the two and three channel versions control your
domestic hot water and heating to come on and go
off at different times. Three channel programmers
are often used to provide separate control for two
heating zones (perhaps upstairs
as well as the separate control for your hot water.
Sangamo Choice programmers make it easy to set the
'On' and 'Off' time periods to suit your own lifestyle, with
options for; 7 day, 5/2 day, and 24 hour programming.
You can also choose to have your heating and hot water on
continuously or be permanently off. Choice programmers
also adjust automatically between Greenwich Mean Time
and British Summer Time. The Choice programmers even
have a default set of programmes, so you can decide
not to adjust the programming at all! And to improve
your comfort, you can temporarily adjust the heating
programme, with the Choice; 'Advance' or 'Boost' buttons.

Programmer Summary

This programmer can automatically switch your central
heating or hot water ON and OFF up to 3 times a
day, at whatever times you choose. Timekeeping is
maintained through power interruptions by a non-
replaceable battery designed to last for the lifetime
of the programmer. The clock is automatically put
forward 1 hour at 1:00am on the last Sunday of March
and back 1 hour at 2:00am on the last Sunday of
October. The clock is factory pre-set to UK time and date,
but you can alter the time setting if you wish.
During installation, the installer selects 24 hour, or 5 day/
2day, or 7 day programming and 2 or 3 on/off periods per
day, via a 4 position DIP switch on the back of the unit
(see installation instructions).
IMPORTANT: These settings should only be changed
by a qualified person. Contact your installer.
IMPORTANT: This programmer is not suitable for
the switching of devices greater than 6Amp rated.
(e.g. Not suitable for use as an immersion timer)
The large, easy to read display makes programming easy
and the unit is designed to eliminate the possibility of ac-
cidental changes to your programme. Buttons normally
visible only affect your set programme temporarily. All
buttons which can permanently change your programme
are located behind the flip-over fascia.
• The 24 hour programmer option runs the same
programme every day.
• The 5 day/2 day programmer option allows differ-
ent ON/OFF times at week ends.
• The 7 day programmer option allows different ON/
OFF times for each day of the week
[5]

Configuration

When setting time, date or changing programme times
the first screen displayed indicates the configuration as
set up by the installer. (See SETTING THE TIME section)
Configuration
2 ON/OFF Pumped System
3 ON/OFF Pumped System
and downstairs)
The 24 hour, or 5 day/2day, or 7 day programming option
as set up by the installer can also be verified at this stage
by how the Monday to Sunday indicators are displayed.
Programming
Option
7 DAY
5/2 DAY
24 HOUR
Now press any button to move to Setting the Time and
Day.
Built In Programme
For convenience,
programme which will be satisfactory for many people, but
which can be changed very easily (see section CHANGING
PROGRAMME TIMES). Once the unit is powered up this
built in programme will run.
If the user changes from the built in programme and
wishes to return to it, then pressing the reset button with
a non metallic pointed tool will return the unit to the built
in / default programme. NOTE: Every time the reset is
pressed, the time and date must be set again. See
the sections SETTING THE TIME & SETTING THE DATE

Factory Programme Settings

2Pu
1st ON
1st OFF
-
-
2nd ON
2nd OFF
If the unit is installed as a 24 hour programmer the built
in programme will be the same for each day (i.e. Sat-Sun
be same as Mon-Fri above).
[1] [2]
[3] [4]
Display
2PU
3PU
Mon to Sun Indicators
flash
Mon to Sun individually shown
Mon to Fri together then Sat
& Sun together
Mon to Sun together shown
the programmer has a built
3Pu Mon-Fri Sat-Sun
1st ON 6:00am 7:00am
1st OFF 8:30am 9:00am
2nd ON 12:00 noon 12:00 noon
2nd OFF 12:00 noon 12:00 noon
3rd ON 4:30pm 4:30pm
3rd OFF 10:30pm 11:00pm
[6]

Selecting Operating Mode

MODE
ON Central Heating and Hot Water is ON
continuously
AUTO Central Heating and Hot Water will be
switched ON or OFF as programmed
ALL DAY Central Heating and Hot Water will be
switched ON only once each day between
the first ON time and last OFF time
OFF Central Heating and Hot Water is OFF
continuously

Setting The Time

• Press the SET button once. The configuration setting
in
will appear on the screen.
• Press the SET button again. The clock icon [1] on the
screen will flash.
• Press the +/- buttons to adjust the time. Time will
change quicker if pressed continually.
• Press SET once to move on to setting the DATE or press
multiple times to return to RUN mode.

Setting The Date

• Press the SET button until the Y:XX icon (year) ap-
pears and the D (DATE) icon [2] flashes.
• Press the +/- button to set the year.
• Press NEXT button. M:XX appears (month).
• Press +/- button to set month.
• Press NEXT button. D:XX appears (Day).
• Press +/- button to set day.
You can review or edit the date you have set just by
pressing NEXT button again and repeating the sequence
above. To confirm the date and move on to PROGRAM
mode press SET button once or press SET button multiple
times to return to RUN mode.

Changing Programme Times

The built in programmes can easily be changed to better
suit your lifestyle.
To change the times:
• Press SET button until PROGRAM [3] flashes in the
display and 1 ON [4] appears. This indicates the time
shown on the display is the first ON time.
• By pressing the +/- buttons you can alter the ON time
