Ortery PeerCall 100 User's Manual
Experience the relax talking mood with broadband advantage
Connect to people as long as you like anytime, anywhere in the world

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PeerCall 100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ortery PeerCall 100

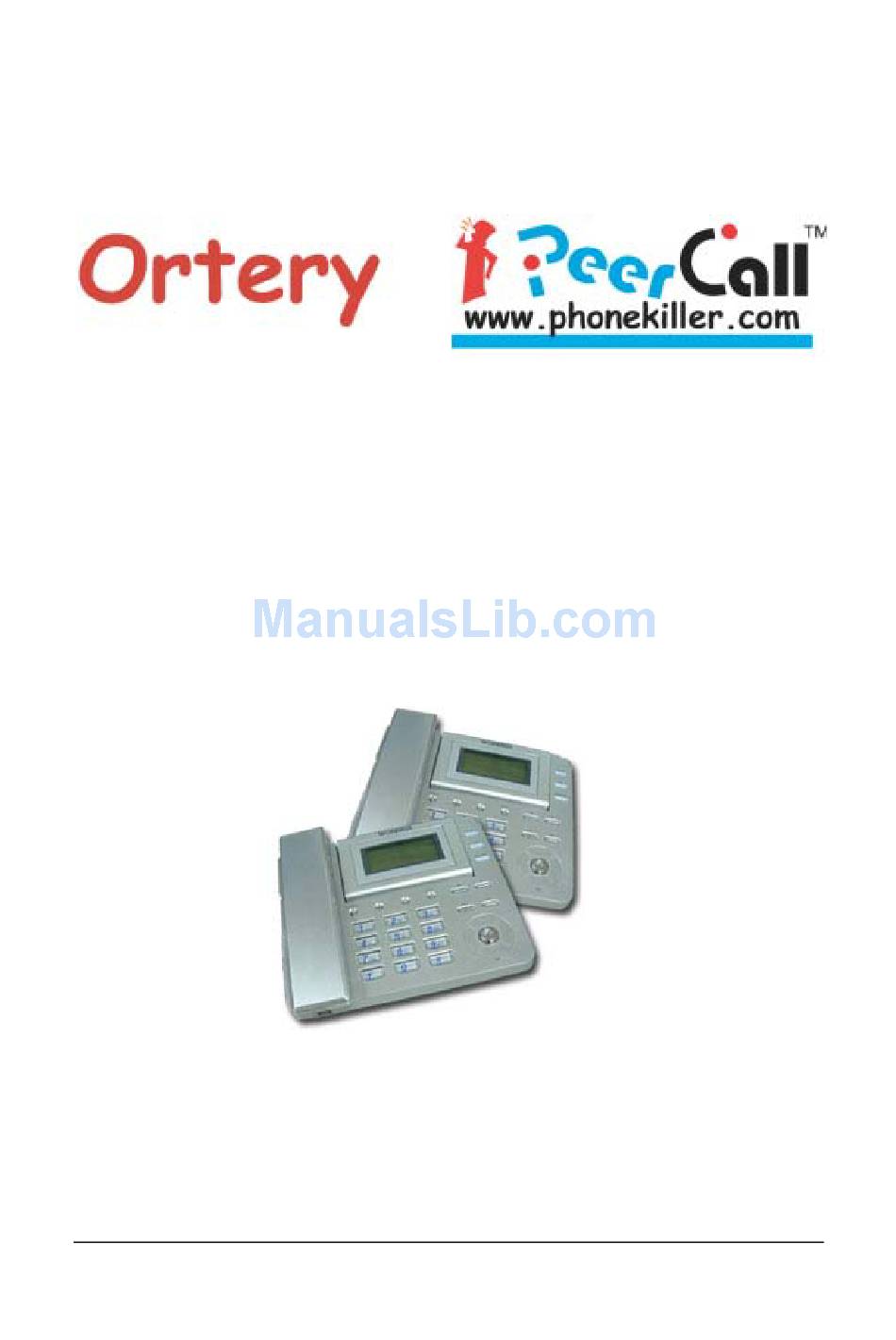

  • Page 1 Ortery PeerCall 100 User’s Manual Experience the relax talking mood with broadband advantage Connect to people as long as you like anytime, anywhere in the world...

  • Page 2: Table Of Contents

    PeerCall User’s Manual Ortery PeerCall User’s Manual (For 18-Key Model) 01/01/2004 V0.20 Table of Contents 1. Installation ......................... 1 1.1 Power Adaptor ......................1 1.2 Internet Connector ..................... 1 2. Make a Call......................... 2 2.1 Standby........................2 2.2 Dial a Number......................2 2.3 Access a Previous Number from Call list ..............

  • Page 3: Installation

    PeerCall User’s Manual Congratulations! You’ve purchased PeerCall, the phone that lets you make calls over your internet connection. Just plug it in to the Internet broadband connector, and start enjoying it! 1. Installation RJ45 DC IN 1.1 Power Adaptor 1.1.1 Connect the DC cable to the DC IN jack of the PeerCall. 1.1.2 Connect the power cord (main lead) to a wall outlet.

  • Page 4: Make A Call

    Standby mode if it is ready for Dialup. The message PeerCall 100 and the current time will be displayed. The number, i.e. 100, is the model number of the product. One of the TheDHCP, PPPoE, or FxIP will be on to...

  • Page 5: Access A Previous Number From Call List

    PeerCall User’s Manual During the conversation, if the receiver hangs up the phone or press <Exit>, the message End of Talk will be displayed for two seconds, then the PeerCall will be put back to Standby mode. But if the link was disconnected due to transmission difficulties (for more than eight seconds), the display will show Disconnected.

  • Page 6: Retrieve A Phone Number From The Phone Book

    PeerCall User’s Manual message Enter ID 0-9 will be displayed. User can then enter the one digit memory ID (0-9); the ten-digit phone number will be stored to the Phone Book and displayed on the screen. Press <OK> to start calling. Press <Exit> or hang up the hook put the PeerCall back to Standby mode.

  • Page 7: Retrieve A Voice Message

    PeerCall User’s Manual 4.1.5 A message which lasts less than two seconds will be ignored by the PeerCall. 4.2 Retrieve a Voice Message 4.2.1 Press the <Function> button to allow user to retrieve Voice Messages. 4.2.2 If there are no Voice Messages, the message No Message will be displayed with a warning (buzzer) sound.

  • Page 8: Set Pppoe Parameters

    PeerCall User’s Manual setting. If you connect PeerCall at the LAN socket in the office, or connect to an IP Sharing Router at home, there’s a very good chance you are connecting with DHCP mode through an NAT server. If you connect to the ISP site through an ADSL or Cable Modem directly, or use only routers without an NAT server, you are very likely using PPPoE mode for connection.

  • Page 9: Set Fixed Ip Parameters

    PeerCall User’s Manual * ⇧ (Caps Lock) After user enters or erases an entry, the last character will always be shown on the display. For an entry which is longer than 12 characters, PeerCall will display the entered account name by segment, i.e. character 1 to 12 , or to 23...

  • Page 10: Set Network Connection Mode

    PeerCall User’s Manual 5.1.2.4 PeerCall will then auto restart for the new setting to take effect. After save the IP, Network Mak, and Gateway IP to the system, if there is problem to take effect, please power off and then power on the phone again to restart the new setting to take effect. 5.1.3 Set Network Connection Mode The connection mode which was selected for the power-on will be displayed first.

  • Page 11: Show Peercall System Information

    PeerCall User’s Manual take effect. 5.5 Show PeerCall System Information Press <Previous> and <Next> to display various PeerCall system information. They are, 5.5.1 The 10 digits phone number (e.g. 123-456-7890). 5.5.2 The firmware version number (e.g. F/W V1.10). Press <OK> to put the PeerCall back to Standby mode.

  • Page 12: Appendixes

    Description DHCP Failed No IP was Assigned by the DHCP Server Not Ready Cannot Connect to a Server PeerCall 100 Connected Successfully – go to Standby mode PPPoE Error! Recorded PPPoE Account Name or Password is Invalid PPPoE N/A Cannot Access the PPPoE Server PPPoE Reject Rejected by the PPPoE Server –...
