Summary of Contents for Atrie wirespan 5100b
-

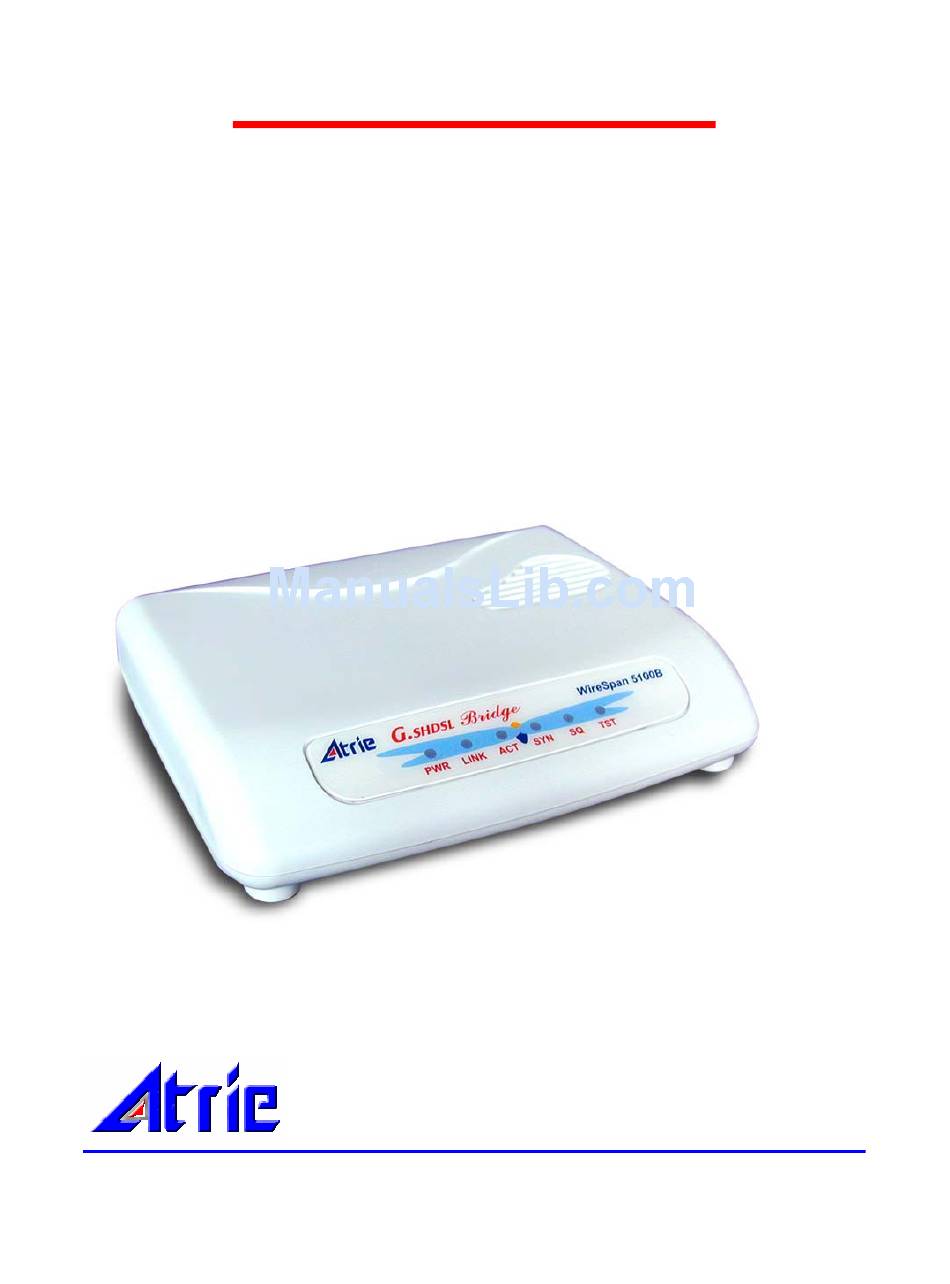

Page 1: Installation Guide
Bridge WireSpan 5100B Installation Guide (Version 1.00) ATRIE TECHNOLOGY INC. 10F, No.14, Lane 609, Sec. 5, Chung Hsin Rd., San Chung City, Taipei Hsien, Taiwan, R.O.C. Tel : (886)2-2999-5155 Fax : (886)2-2999-4960 Website : http://www.atrie.com.tw E-mail : contacts@mail.atrie.com.tw... - Page 2 Determining the data rate The following chart shows the maximum reach, on 24 AWG and 26 AWG wire, for each data rate the WireSpan 5100B supports. The actual reach depends on such factors as the condition of the line and the presence of bridge taps, splices, line noise, and so on.
-
Page 3: Technical Specifications
Relative humidity Up to 95% Non-condensing Storage temperature -10 to 70 °C Pin Definition The table lists the pinouts for the WireSpan 5100B ports. Pins not listed are not assigned. DSL Port 10/100BaseT Port (PC) 10/100BaseT Port (HUB) Pin 3: DSL Ring... -
Page 4: Console Port
DSL Port 1. -- 2: Ring for DSL 3: Tip for DSL 4. -- 10/100BaseT Port (PC) 1: RD+ 2: RD- 3: TD+ 4: -- 5: -- 6: TD- 7: -- 8: -- 10/100BaseT Port (HUB) 1: TD+ 2: TD- 3: RD+ 4: -- 5: --... -
Page 5: Terminal Emulation
Data Terminal Ready (DTR) From From Ground (GND) Common Panel Description Front Panel WireSpan 5100B Bridge LINK TST On : Modem is on the diagnostic Power On : Power is available Off : Modem is on the test Off : Power is off... -
Page 6: Dip Switch
DIP Switch POSITION 1 - Central, Remote selection Description Remote side Central side Note : One device is setting to Central side, the other is setting to Remote side. POSITION 2,3 - Ethernet line speed selection Description AUTO(Half/Full) 10Mbps Half Duplex 100Mbps Half Duplex Reserved POSITION 4,5,6,7 - DSL rate selection... -
Page 7: Connect The Cables
1992Kbps 2056Kbps 2312Kbps POSITION 8- NVRAM/DIP switch selection Description Read NVRAM for power on configuration. Read DIP for switch for power on configuration. Connect the cables To DSL Port Connect cable t o HUB : a local network via an Ethernet device such as HUB or SWITCH PC : a PC...
