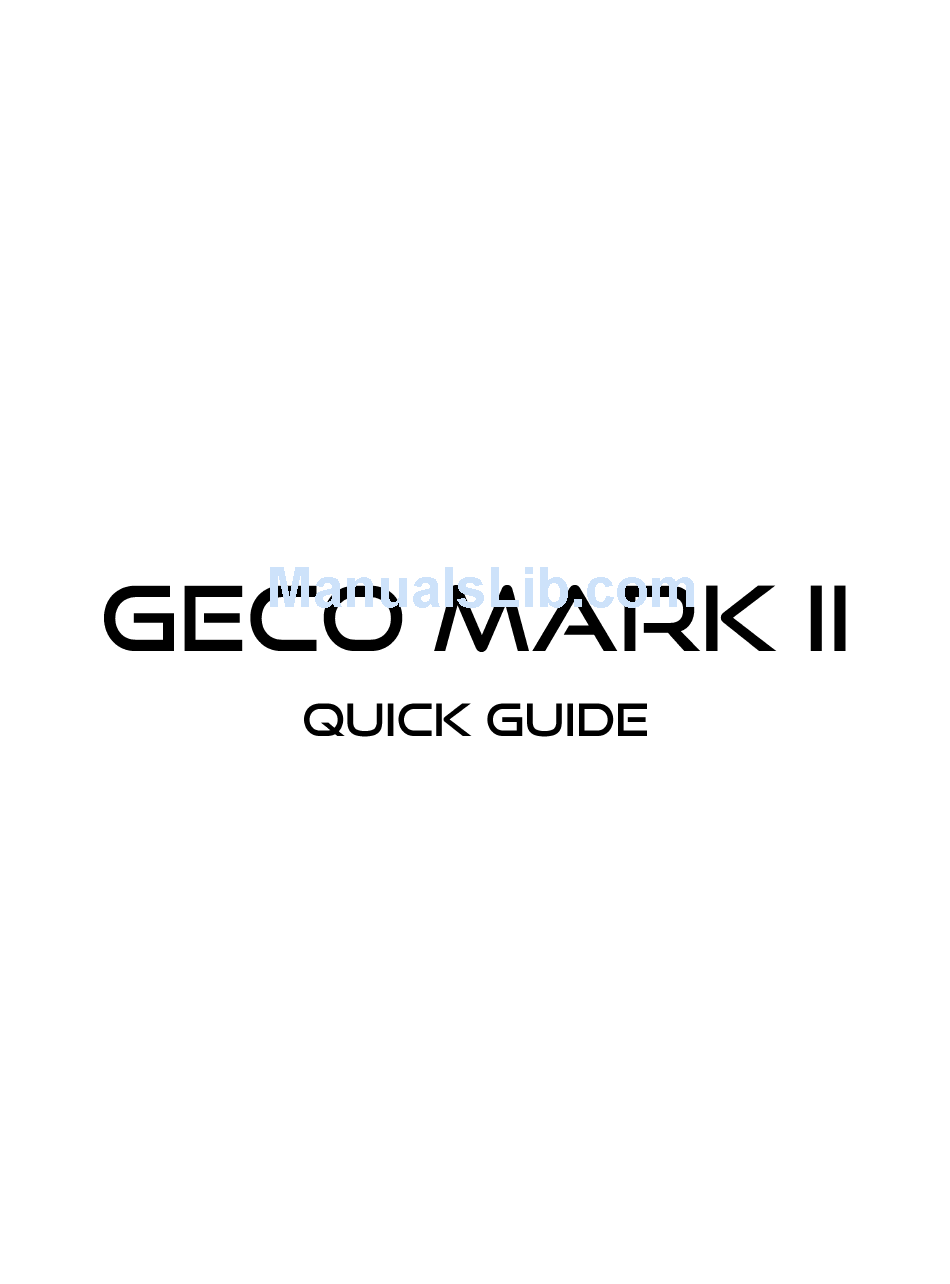

Geco MARK II Quick Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MARK II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Geco MARK II

  • Page 2 Congratulations on Purchasing your Geco Mark II Welcome to the Geco Family! Please read this manual before you start using your Geco. Customer Support Visit www.gecocam.com or email support@gecocam.com for technical support. Find Us Online  Like us on Facebook: www.facebook.com/GecoCam ...
  • Page 3 Included  Geco Mark II  8GB Micro SD Card  Micro USB Cable  Wall Charger  Memory Foam strips  Waterproof Case rated up to 30m  Tripod mount  Multi-Sized High Tensile Elastics...
  • Page 4 Geco Specs  Weight: approximately 20 grams  Dimensions: 70mm x 29mm x 16mm  Video format: .mov  Video encoding: H.264  Memory: Micro SD card  Resolution: 1080P @30fps 720P @60fps 720P @30fps  Battery: Li-Poly  Battery Life: Approximately 60 minutes in 720P@30fps...
  • Page 5 Overview On/Off & Record Button Reset Button Multi Mount Clips Lens Micro USB Port Microphone Micro SD Slot...

  • Page 6: Getting Started

    USB port at the back of the Geco It should be borne in mind that shooting in 1080P is more demanding on the components of the GECO and thus full charge is highly recommended for recording in full HD. Recommended charging time is 45 minutes.
  • Page 7 Mounting Mounting the Geco will vary depending on the size of the arm of the glasses to which they will be attached. Smaller/thinner arms will require the memory foam strips to be used. Bigger/Thicker arm:  Choose the size of high tensile elastics that is suitable to your glasses ...
  • Page 8  Adjust the position of the Geco along the arm until such time as it is most comfortable. *This method is also used for vibration dampening...

  • Page 9: Waterproof Case

     Push the right side of the strap of your goggles through the elastic hold, ensuring the strap is restrained by both elastics.  Adjust the position of the Geco along the arm until such time as it is most comfortable.

  • Page 10: Resolution Settings

    Resolution Settings After connecting your Geco to the computer by USB and using it in removable disk mode, you should see a file named Setting.txt in the root directory. It is automatically generated by the camera. Please follow these guidelines to change your recording quality between 720p@60fps, 720p@30fps and 1080p@30fps.
  • Page 11 Resolution Settings The default quality is 1080p@30fps denoted by “0” b. Change the "0" to "1" for 720P@60fps: c. Change the "0" to "2" for 720P@30fps: Note: Change only the specified part, otherwise the settings will not take effect.
  • Page 12 Resolution Settings 3. Save and Exit the file: 4. Remove device:  Safely remove your device from your PC  Power on your Geco and the settings will take effect.

  • Page 13: Operation

    If the camera is left to record for 30 minutes, the Geco will save the video, start a new video file and continue recording. d. To stop recording click the button again, the blue LED will pulse for three seconds, the Geco will save the file and turn off.
  • Page 14 Confirm that your Geco is turned off. b. Remove the micro SD card from the Geco c. Connect the Geco to the computer via USB cable, this will initiate the live stream/ webcam mode. 4. Using Removable Disk Mode: a.
  • Page 15 Other Status Indications: Low power: The LED will flash blue and the camera will turn off automatically after 10 seconds, The Geco will save your current recording before turning The Storage Space is Full: The LED will flash red and blue for 15 seconds...

  • Page 16: Troubleshooting

    Geco. To initiate reset make sure your Geco is powered on, then use a thin object to click and hold the tactile button for 5 seconds within the reset hole, this will do a factory reset of your Geco.

  • Page 17: Warranty

    Geco Cam (Pty) Ltd assumes no liability for any loss, injury, unlawful actions and in no event will Geco Cam (Pty) Ltd be liable for incidental or consequential damages resulting from the use of this product or any of its parts.
