Summary of Contents for Aquaport AQP-FKM1
- Page 2 AQUAPORT SELECT 3 STEP SYSTEM Aquaport has developed a technologically advanced range of water filters to suit your filtration needs and budget. From a system that reduces chlorine, taste and odour, to a premium system that reduces Giardia and Cryptosporidium.
- Page 3 5 minutes Prior to installation, check for any existing State or Local Plumbing If the Aquaport water filter system has not been used for over 48 hours, 1 Codes, to ensure installation is compliant. to 2 litres of water will need to be flushed through the system before the water is used.
- Page 4 INSTALLATION INSTRUCTIONS A. Component identification and content check list: Model AQP-FKM1 - M Series Single Stage Filter Kit Description Cartridges (behind) Carbon Filter Assembly Head Filter head Mounting Bracket 1/4” quick connect inlet connector 1/4” quick connect outlet connector Other Components 1/4”...

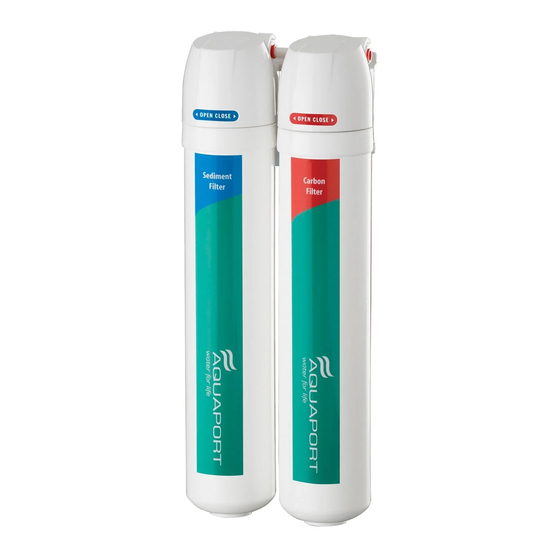

- Page 5 Model AQP-FKM2 – M Series Twin Stage Filter Kit Description Cartridges Sediment Filter (behind) Carbon Filter Assembly Head Filter head Mounting Bracket 1/4” quick connect inlet connector 1/4” quick connect outlet connector Other Components 1/4” Tubing x 3 metres Pressure Limiting Dual Check Valve Mains connection with shut off valve Sealing tape Screws for mounting bracket...
- Page 6 Model AQP-FKM3 – M Series Triple Stage Filter Kit Description Cartridges Sediment Filter (behind) Carbon Filter Ultra Fine Filter Assembly Head Filter head Mounting Bracket 1/4” quick connect inlet connector 1/4” quick connect outlet connector Other Components 1/4” Tubing x 3 metres Pressure Limiting Dual Check Valve Mains connection with shut off valve Sealing tape...
- Page 7 Typical Installation Diagram A. Cold Water Flexible Line To Cold Tap Outlet. B. Mains connection with shut off valve. C. Cold Mains Water Isolation Outlet. D. 1/4” Tubing. E Pressure Limiting Dual Check Valve. NOTICE: TAP F. Filter Head & Cartridges. FAUCET NOT G.
- Page 8 B. Water Supply Installation Be careful not to over tighten, as cross threading and leaking can occur. Make sure the shut off valve connection is not Preferred Installation against a wall as the 1/4” tubing must not be bent, see Page 5. (Utilising existing kitchen sink water supply and flexible 5.
- Page 9 C. Mounting System Installation Pick a location under the sink to mount the system. Location Fig 2 Fig 3 should be easily accessible, with clearance at the top and bottom 100mm of the filter, to allow ease of removal of filter cartridge. Please ensure there is enough space on either side of the system for the tubing connections.
- Page 10 Tap faucets are sold separately and can be purchased from a distributor of Fig 6. Aquaport Water Filter Kits or directly from Aquaport on 1300 764 325. A selection of tap faucets is available to suit your budget and home décor.
- Page 11 This condition will clear itself over use, or you may flush water through the system until water appears clear. 6. Your Aquaport water filtration system is now ready to produce refreshing, great tasting water for you and your family. INSTALLATION AND OPERATING INSTRUCTIONS 9...
- Page 12 FILTER REPLACEMENTS Repeats steps 1-3 for all other cartridges for double or triple stage systems. Please check system again the next day after 1. Isolate water supply, by turning the shut off valve ‘off’ or installation for any leaks. turning water ‘off’ at the mains water supply. Open tap faucet to release any excess water still present in system.
- Page 13 Cartridge Replacement Cartridge Model(s) in System Model Cartridge Service Life Pack Model Replacement Pack Replace every 12 months or AQP-FKM1 AQP-RFM1 M Series Carbon Filter 6500 litres, whichever (single stage system) (pack contains 1x cartridge) is earlier. Replace every 12 months or...
- Page 14 CUSTOMER HOTLINE 1300 764 325 TROUBLE SHOOTING BEFORE YOU CALL FOR SERVICE PLEASE REVIEW THE TROUBLE SHOOTING TIPS FIRST. Problem Possible Causes What To Do Turn on the water faucet and allow these harmless Water contains tiny New filter contains activated carbon, carbon particles to purge from the canister.
- Page 15 7. The warranty does not cover damage to the product caused Warranty does not apply to cartridge which is a consumable. by accident, fire, or floods. The Aquaport water system has a maximum and minimum water To Make a Warranty Claim supply pressure limits. The water supply pressure must not exceed the maximum and minimum water supply pressure limits 1.
- Page 16 CUSTOMER HOTLINE: 1300 764 325 Aquaport Corporation Pty Ltd PO Box 81 Findon SA 5023 Australia Telephone: 1300 764 325 Facsimile: 08 8354 0722 Email: aquaport@aquaport.com.au Web: www.aquaport.com.au...
