Delphi Mira Quick Start Manual

Mira Mobile Computer
Quick Start Guide

THE PACKAGE

The Mira package includes the following items:
− 1 Mira mobile computer
− 1 AC/DC power supply
− 1 plug kit
− 1 standard Micro USB cable (laser and 2D Imager models only)
− 1 guitar pick + cord

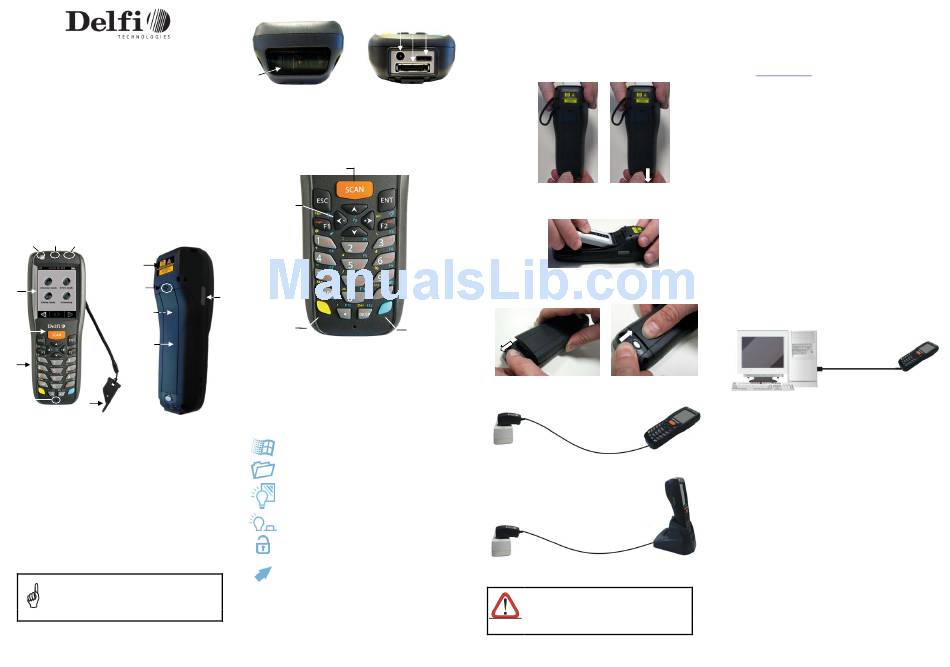

THE TERMINAL

C D
B
I
J
A
K
E
L
F
G
H
A) QVGA 64K color display I) Laser safety label
B) ON/OFF power key J) Rear speaker
C) Speaker K) Product label (under
battery)
D) LEDs
L) Battery cover
E) Scan key
M) Programmable side key (on
F) Keyboard
both sides of the mobile
G) Microphone
computer)
H) Guitar pick stylus
Before using the terminal, remember to remove the
protective film covers in front of the display and of the
Data Capture window.
NOTE
r. 0.9.0.1
O
N
N) Data capture window* P) Communication/charger
connector (through cradle)
O) DC charger connector
Q) MicroUSB communication
connector (through cable)

KEYPADS

2
1
M
3
4
1. Cursor Keys
2. Scan Key
3. Yellow Modifier
4. Blue Modifier
Special Function Icons
ICON FUNCTION
After a blue modifier key press, it opens the Start
menu.
After a blue modifier key press, it opens the file
manager.
After a blue modifier key press, it switches ON/OFF the
display backlight.
After a blue modifier key press, it switches ON/OFF the
keyboard backlight.
After a blue modifier key press, it locks and unlocks the
keyboard.
After a blue modifier key press, it disables the
touchscreen and allows the user to control the device
through a joystick-driven cursor, with Mira side keys
acting as left and right buttons
P Q

GETTING STARTED

Insert the Battery

1. Push the latch release button and pull the latch down; then remove
the battery cover.
PUSH
2. First insert the upper side (contacts), then the bottom side of the
battery pack into the slot:
3. Reinsert the cover. First insert the upper side and then press the
latch release button and pull the latch down to insert the bottom.
Push the knurled section of the latch upwards to close the cover:

Charge the Battery

With Power Supply
With Single Cradle
Do not use the Mira until batteries are charged for
minimum 4 hours.
CAUTION

SYNCHRONISE YOUR DEVICE WITH THE PC

Set up Synchronisation using Windows Mobile®
Device Center
Windows Mobile® Device Center can be downloaded from Microsoft
website www.microsoft.com. It is only compatible with Windows Vista
and Windows 7; if you run Windows XP or earlier, you have to
download Microsoft ActiveSync.
You can establish a connection to your Mira through the
following interfaces:
 USB either directly or through the Single Dock
 RS232 either directly or through the Single Dock
 Bluetooth®
To establish a partnership between the Mira and a host PC, start
Windows Mobile® Device Center and follow the steps below:
1. Connect the Mira to the host PC. Windows Mobile®
Device Center configures itself and then opens.
2. On the license agreement screen, click Accept.
3. On the Windows Mobile® Device Center's Home screen, click
Set up your device.
4. Select the information types that you want to synchronize, then
click Next.
5. Enter a device name and click Set Up.
When you finish the setup wizard, Windows Mobile® Device Center
synchronizes the mobile computer automatically. Microsoft® Office
Outlook® emails and other information will appear on your device
after synchronization.
Communicate with Host
