Pantone Color Cue Quick Start Manual

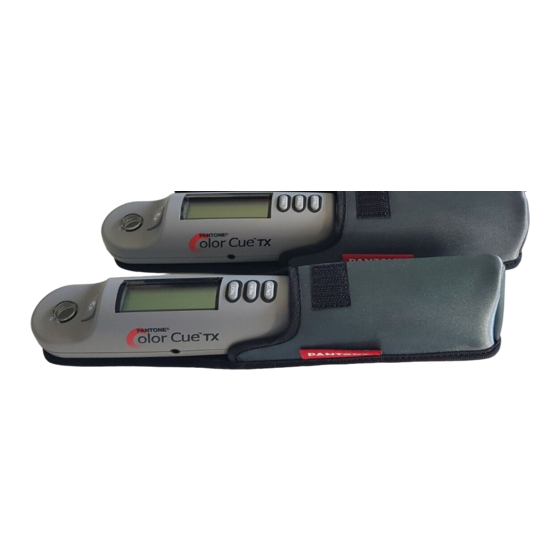

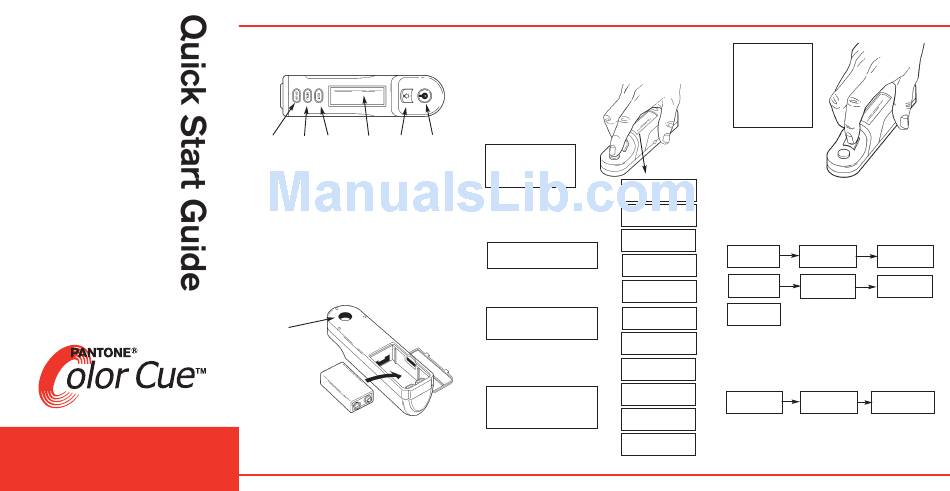

PANTONE Color Cue Top View
Power Menu Next Display View View and
Light Measure
button button
To turn On the PANTONE Color Cue, press and hold the Power
ON/OFF button. If there are no characters on the display, install or
replace the battery.
PANTONE Color Cue Bottom View
Sample
Port
To select a Color
Place the PANTONE Color Cue down on a sample and press the clear View
and Measure button, which is also a switch.
Press the View and Measure
button and a PANTONE
Number for that specific color
will appear in the display.
PANTONE 185 C
PANTONE Wm Red
75.00%
PANTONE RubRed
25.00%
The Next key may be used to step the
display through additional information.
CMYK
0 91 76 0
Euro CMYK
0 95 64 0
The items available for display are CMYKOG
0 100 0 0 76 0
determined by each deck type and
selected by Menu operations.
sRGB100
90 5 18
sRGB255
230 13 46
HTML
After the last item, the PANTONE
E60D2E
Number will appear. If you go past the
item you wish to see, just keep going
Lab
until it reappears.
50.23 76.22 42.05
PANTONE 185 C
If the sample is small
and alignment is difficult,
look through the measure
window to align the
sample. The View Light
Button may be used
to provide additional
(green) light
Menu Operations
The Menu button is used to select menu options. On the first press, the
display will show *Measure and the currently selected deck. Pressing
Menu again will step the display. " * " marks the selected menu item.
*Measure *PANTONE coated *Color Lookup
PANTONE coated *Color Lookup Display Data
*Display Data *Calibrate *Special Options
Calibrate Special Options
Measure
*Measure
PANTONE coated
Library Selection
Pressing the View and Measure button changes or starts the selected
menu item. The following sequence selects the deck type.
*PANTONE coated *PANTONE matte *PANTONE uncoated
Color Lookup Color Lookup Color Lookup
When the desired library is selected, press the Next button and it will
return to the top of the menu. Press the View and Measure button on
top of a new sample to get a PANTONE Number for that specific color
using the new selection, i.e., C, M and U for coated, matte and uncoated,
respectively.
