Summary of Contents for quiko QK-KEY
-
Page 1: Installation Guide
Via Seccalegno, 19 – 36040 Sossano – Vicenza – Italy Tel +39 0444 785513 Fax +39 0444 782371 info@quiko.biz www.quiko.biz Installation Guide ● QK-KEY – Surface Mount... -
Page 2: Specifications

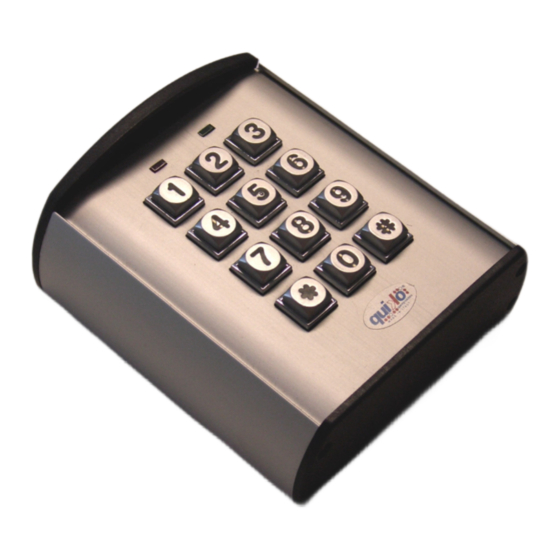

QK-KEY Installation Guide General: The QK-KEY encoder is safe and comfortable access control products. Get an individual access code. The device includes an environment resistant An optional bypass pushbutton enables easy Internal opening (the opening time is programmable) Features: Installation possibilities: on wall, under... - Page 3 QK-KEY Installation Guide Programming: 100 memory cells 8 digits long each one, available. Cell 00 is used for door opening times values storage. Cell 99 is used programming code value storage. The rest of the 98 cells from 01 to cell 98 are used for different access codes values storage.
- Page 4 QK-KEY Installation Guide Setting opening times values A different opening time value can be set to opening via the keyboard and via the optional bypass pushbutton. The times values are from 1 second till 9 seconds. Enter the programming code: if not changed is: 123456 *, the green led will blink.
- Page 5 QK-KEY Installation Guide Electrical Drawing DEFAULT Relay RLY = Normally open Jumper as in drawing 12VAC LINE Bypass pushbutton Electric lock...
