Summary of Contents for Hydro-Force Power X Pro Spot MA51H

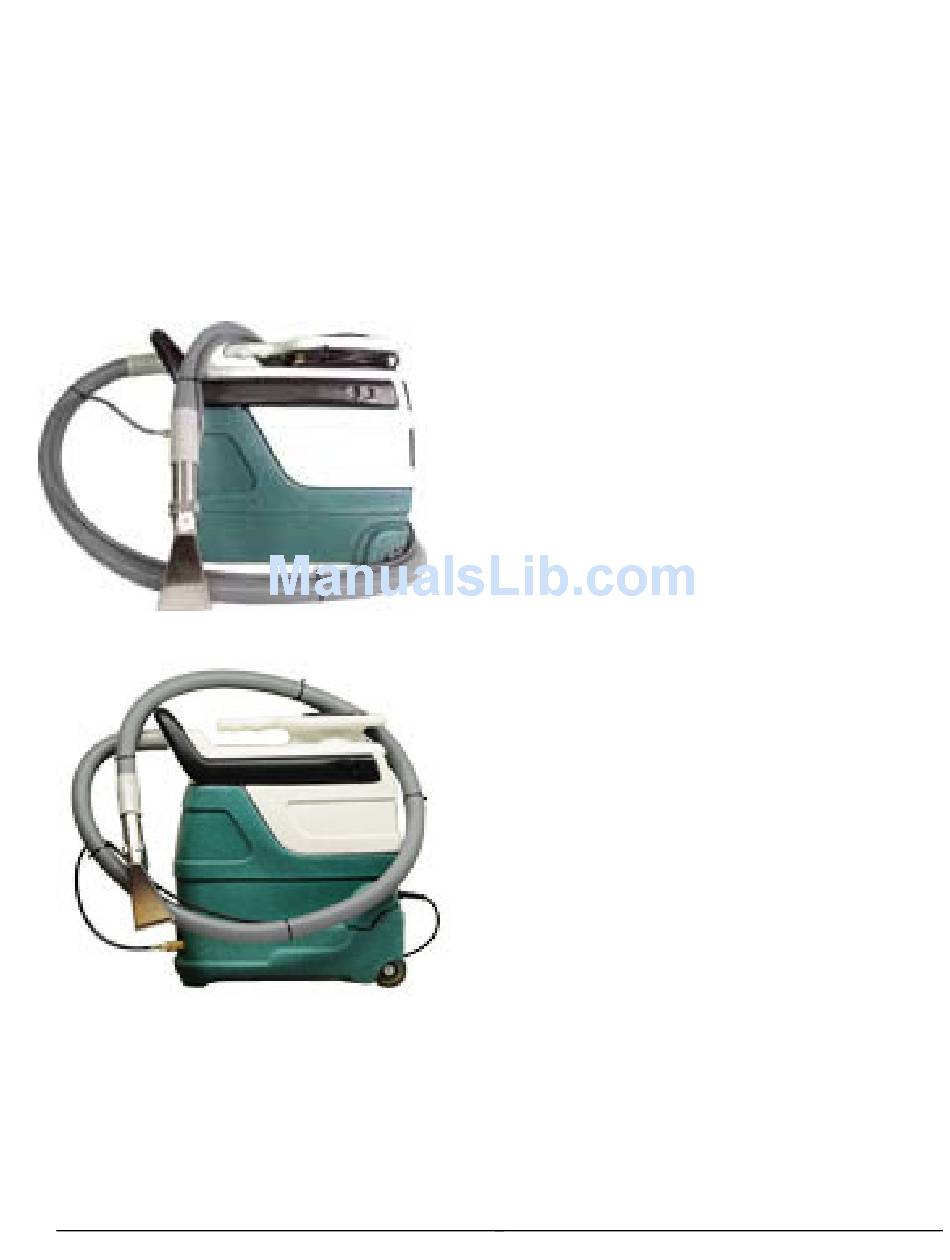

- Page 1 Operating Manual Power X Pro Spot Extractor MA51 Power X Pro Spot Extractor MA51H Power X Pro Spot Extractor with Heat Hydro-Force 4282 South 590 West Salt Lake City, UT 84123 801-268-2673 801-268-3856 FAX Revised: 10-08-2014...
-
Page 2: Table Of Contents
Power X Pro Spot Extractor Operating Manual TABLE OF CONTENTS TOPIC PAGE # • Introduction • Technical Specifications SECTION 1: Operational Safety • Electrical Safety • Mechanical Safety SECTION 2: Operation Procedures • Electrical Supply • Water Supply & Chemicals •... -
Page 3: Introduction
Hydro-Force 4282 South 590 West Salt Lake City, UT 84123 801-268-2673 801-268-3856 FAX Information in this manual is subject to change without notice and does not represent a commitment on the part of Hydro-Force or its parent or affiliated companies. -
Page 4: Technical Specifications
Technical Specifications Power X Pro Spot Extractor Model MA51 Height: 19” Length: 21” Width: 10” Weight: 18lbs. Solution Tank Capacity: 3 gallon Recovery Tank Capacity: 3 gallon Power Cord: 20 foot – 16/3 Solution Outlet 1/4” Male Quick Connect Solution Pump: Flojet ET508224-HP pump 55 psi –... -
Page 5: Electrical Safety
Section Safety CAUTION! This machine is an electrical appliance. Care must be taken to reduce the risk of electrical shock. • READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE OPERATING THE POWER X PRO SPOT EXTRACTOR. • To reduce the risk of property damage or injury, repairs to electrical systems should only be performed by experienced technicians. -
Page 6: Mechanical Safety
• Solvent-based or water-based solutions containing solvents may damage the pump, hoses, and other components. Do not assume chemical compatibility. Contact your distributor or Hydro-Force if you have questions regarding the compatibility of your chemicals with the machine. -
Page 7: Section 2: Operation Procedures
Section Operation Procedures Knowledge of the proper operation of the Power X Pro Spot Extractor is required to ensure user safety and efficient performance of the extractor. Prior to using the Power X Pro Spot Extractor for the first time the Anti-Freeze used to protect the unit during shipping must be flushed from pump, hoses &... -
Page 8: Starting System - Switches
4. Starting the Spotter - Power Switches: MA51 The new style MA51 without heat has two switches, one to turn on the vacuum motor & one to turn on the solution pump. (Older Power X Pro Spot Extractors without heat only had one switch for both the vacuum and the pump.) When you are ready to start cleaning, turn the switches to the ON position. -
Page 9: Shutdown Procedures
Shutdown Procedures: (MA51H only) If you are using the heater turn the heater off before you make the last few cleaning passes or spray the tool into a bucket for a minute to cool off the heater, before you turn the pump switch off. When finished cleaning, turn off all switches. -
Page 10: Troubleshooting
Section Troubleshooting Troubleshooting – Power X Pro Spot Extractor Problem Cause Solution Machine not Building circuit breaker tripped. Reset breaker or move cord to other outlet turning on - Faulty power cord Replace cord No power Faulty switches or internal wiring Check wiring &... - Page 11 Problem Cause Solution Vacuum Building circuit breaker tripped. Reset breaker or move cord to other outlet Motor Faulty power cord Replace cord not running Faulty switch or internal wiring Check wiring & test switch - Repair as needed * Vacuum motor faulty Replace vacuum motor (AV06) Loss of Vacuum motor faulty...
-
Page 12: Solution Flow Path Ma51
MA51 Solution Flow Path Solution Tank Outlet Quick Connect Pump AP30 Denotes Denotes Water incoming water flow in pressure flow hose... -
Page 13: Solution Flow Path Ma51H
MA51H Solution Flow Path Solution Tank Outlet Quick Connect PRESSURE RELIEF VALVE Pump HEATER AP30 CHECK VALVE Denotes Denotes Cold Denotes Heated Denotes Heated incoming water Water flow in Water flow in Water by-pass flow flow pressure hose pressure hose from heater pressure relief... - Page 14 MA51 Wiring Diagram - Standard POWER CORD OLD STYLE SINGLE SWITCH VACUUM AV06 Power Switch PUMP POWER CORD NEW STYLE GREEN DUAL SWITCH GROUND SCREW VACUUM AV06 Pump Vacuum Switch Switch PUMP...
- Page 15 MA51 STANDARD SWITCH PANEL: New Style – Dual Switch Vacuum Switch Solution Pump Switch Power Cord Old Style – Single Switch Solution Pump Switch & Vacuum Switch When the switch is turned to the ON position power is supplied to the solution pump motor and vacuum motor.
-
Page 16: Wiring Diagrams Ma51H
MA51H Wiring Diagram with Heater GROUND SCREW POWER CORD Pump Heater Vacuum Switch Switch Switch PUMP VACUUM AV06 HEATER 600w Auto Reset Temperature Manual Reset Hi-Limit Control Switch 10-0814 Temperature Switch 10-0814-B HEATER ELEMENT – PSA101500B New Style Heater Only... - Page 17 MA51H with HEATER SWITCH PANEL: Solution Pump Switch When the switch is turned to the ON position Vacuum Switch power is supplied to the solution pump motor When the switch is turned to the ON only. position power is supplied to the vacuum motor only.
-
Page 18: Maintenance
Section Maintenance Proper maintenance is required to keep the Power X Pro Spot Extractor operating properly, prevent downtime and to extend the life of your equipment. WARNING: Disconnect electrical power before performing any service or maintenance inside machine base or before testing or repairing switches or power cords. -
Page 19: Warranty
CLEAN VACUUM SHUTOFF ASSEMBLY: Inside the recovery tank, on top of the stand pipe, is the Vacuum Shutoff Assembly. It functions to prevent debris and water from being sucked into the vacuum motors. Operating the Power X Pro Spot Extractor without the Vacuum Shutoff Assembly or with a poorly maintained assembly will greatly decrease the life of the vacuum motors and will void the warranty. - Page 20 Descaling Heater – MA51H Only: 1. Pour one gallon of descaling solution into the solution tank. For light scale build-up a mild acid solution may be sufficient. Heavier build-up may require a stronger descaling solution. 2. With Cord plugged in, connect the solution hose& tool to the solution outlet male quick connect. 3.
-
Page 21: Parts
Section Parts Replacement parts available for repair of your Power X Pro Spot Extractor. Power X Spotter Pump – AP30 SOLUTION INLET 1/8” FPT SOLUTION OUTLET 1/8” FPT Power X Spotter Vacuum Motor – AV06... - Page 22 Item # MA51 Component Description Qty Needed NM5090-ST Solution Tank NM5090-RT Recovery Tank 10-0383 6/32 x ¼ Phil Pan Blk Screw (Latch & Switch Plate) 8* / 6** 10-0400-D Latch 10-0412 C Channel For Spotter 10-0414 Rivet For Spotter Handle 10-0384 .125 Thick Nylon Washer 10-0385...
- Page 23 MA51 1/4” NYLON BARB X 1/8” MPT NA0839 OETIKER HOSE CLAMP 1/8” HEX NIPPLE 10-0435 BR070 NA0840 PUMP AP30 1/4” ID THREADED HOSE 10-0434 SCREW VAC MOTOR MOUNT (QTY 2) 10-0014 1/4” NYLON BARB/ ELBOW – 1/8” MPT 10-0406 VACUUM MOTOR AV06 WHEELS (QTY 2) 10-0303...
- Page 24 MA51 1/4” ID HOSE 10-0434 1/4” NYLON BARB X 1/8” MPT NA0839 OETIKER HOSE CLAMP 10-0435 ACORN STRAINER NA0840 1/4” NYLON BARB/ ELBOW 1/8” MPT 10-0406 1/8” NPT BULKHEAD FITTING PP11-800091 1/4” MALE QUICK CONNECT AH102B 1/4” X 1/8” HEX NIPPLE BR130...
- Page 25 VACUUM FILTER MA51 10-0431 SPOTTER HATCH & COVER 10-0302 GASKET – 10-0302-A SCREWS – 10-0419 (QTY 6) SPOTTER HATCH COVER BOTTOM VIEW SPOTTER HANDLE ASSEMBLY NM5090-HANDLE HANDLE SLIDE ASSEMBLY 50-0001A SPOTTER COVER & FLOAT RECOVERY TANK 10-0304 NM5090-RT SOLUTION TANK NM5090-ST...
- Page 26 SOLUTION TANK SCREW FOR BASE PLATE - 10-0482 NM5090-ST FLAT WASHER – NM5032 MA51 (Old style -4) (New Style – 2) BOTTOM BASE PLATE MA51 10-1028 WHEELS (QTY 2) 10-0303 SCREW FOR BASE PLATE - 10-0482 LATCH SCREWS – 10-0387 FLAT WASHER –...
-
Page 27: Ma51H
Item # MA51H Component Description Qty Needed NM5090-ST Solution Tank NM5090-RT Recovery Tank 10-0383 6/32 x ¼ Phil Pan Blk Screw (Latch & Switch Plate) 10-0400-D Latch 10-0412 C Channel For Spotter 10-0414 Rivet For Spotter Handle 10-0384 .125 Thick Nylon Washer 10-0385 .06 Thick Nylon Washer NM5032... - Page 28 Item # MA51H Component Description Qty Needed 10-0906 Heater Box Only 10-0900 Heater Body Only 10-0801-G Insulation for Heater Box PSA100910 Heater Assembly Complete with all Fittings & Temperature Switches PSA001 High Pressure – High Temperature Hose Assembly SP-3-H-BLK Handle - Black NM5090-HANDLE Handle Assembly (Includes hardware) 10-0387...
- Page 29 MA51H VACUUM FILTER 10-0431 SPOTTER HATCH & COVER 10-0302 GASKET – 10-0302-A SCREWS – 10-0419 (QTY 6) SPOTTER HATCH COVER BOTTOM VIEW SPOTTER HANDLE ASSEMBLY NM5090-HANDLE HANDLE SLIDE ASSEMBLY 50-0001A SOLUTION TANK NM5090-ST RECOVERY TANK NM5090-RT SPOTTER COVER & FLOAT 10-0304 SPOTTER BASE W/ HEAT SP-3-HS-GRNGRAN...
- Page 30 POWER CORD 10-00448-B SOLUTION TANK MA51H NM5090-ST LATCH 10-0400-D RECOVERY TANK NM5090-RT SCREWS 10-0383 (QTY 2) LATCH KEEPER 10-0400-C SCREWS SWITCH 10-0383 (QTY 2) PDRI01 GROUND SCREW NM4061 NM4081 SCREW 6-32 X 1/4” 10-0383 STRAIN RELIEF 10-0027 NUT 10-0027-A MA51H BACK / SWITCH PLATE 10-1026 SPOTTER BASE MA51H VENT GRATE...
- Page 31 MA51H SCREW VAC MOTOR MOUNT (QTY 2) 10-0014 HOSE 3/8” ID HI-TEMP BLACK PUMP AP30 1/8” HEX NIPPLE BR070 BARB 3/8” X 1/4” MPT BR020 VACUUM MOTOR BULKHEAD FITTING 1/4” AV06 NM5087 PLATE VAC MOTOR MOUNT SCREW VAC MOUNT PLATE (QTY 2) 10-0380 90 DEGREE BRASS ELBOW 3/8”...
- Page 32 Heater is secured to Spotter Base with two screws & Flat Washers: MA51H 2 - SCREW 10-32 x 1/2” BH SOC SS – NM4061 Heater 2 – WASHER FLAT #10 SS – NM4255 Assembly HOSE HP 1/4”ID HI-TEMP BLUE HOSE LP 3/8” ID HI-TEMP BLACK 1/4”...
- Page 33 MA51H BARB 1/4” X 1/8” MPT NA0839 1/4” ID HOSE 10-0434 RECOVERY TANK ACORN STRAINER 1/8” FPT NM5090-RT NA0840 SOLUTION TANK NM5090-ST SPOTTER BASE MA51H SP-3-HS-GRNGRAN BULKHEAD FITTING 1/4” NM5087 NIPPLE 1/4” HEX BR072 1/4” MALE QUICK CONNECT AH102B...
-
Page 34: Hoses & Tool
AW55H HOSE & TOOL ASSEMBLY ITEM# Description PA205 3.5" SS Upholstery Tool AH35 1-1/4" Gray Vacuum Hose (Sold per foot) PP08-805088 1-1/4" Hose Cuff AH101B 1/4" QD Female NA40A 3/16" HP Black Solution Hose (Sold per Inch) 96" AH01 1/8" Hose End for 3/16" hose AH02 1/4"... -
Page 35: Limited Warranty
Your Power X Pro Spot Extractor is designed to give you years of reliable service. If a problem should arise use the troubleshooting section in the operation manual to diagnose and correct the problem if possible. If you are unable to determine the cause or solution to the problem contact your distributor or Hydro-Force for assistance.
