Summary of Contents for Rotorlight ANOVA BI-COLOUR V2 - SOLO 5600K

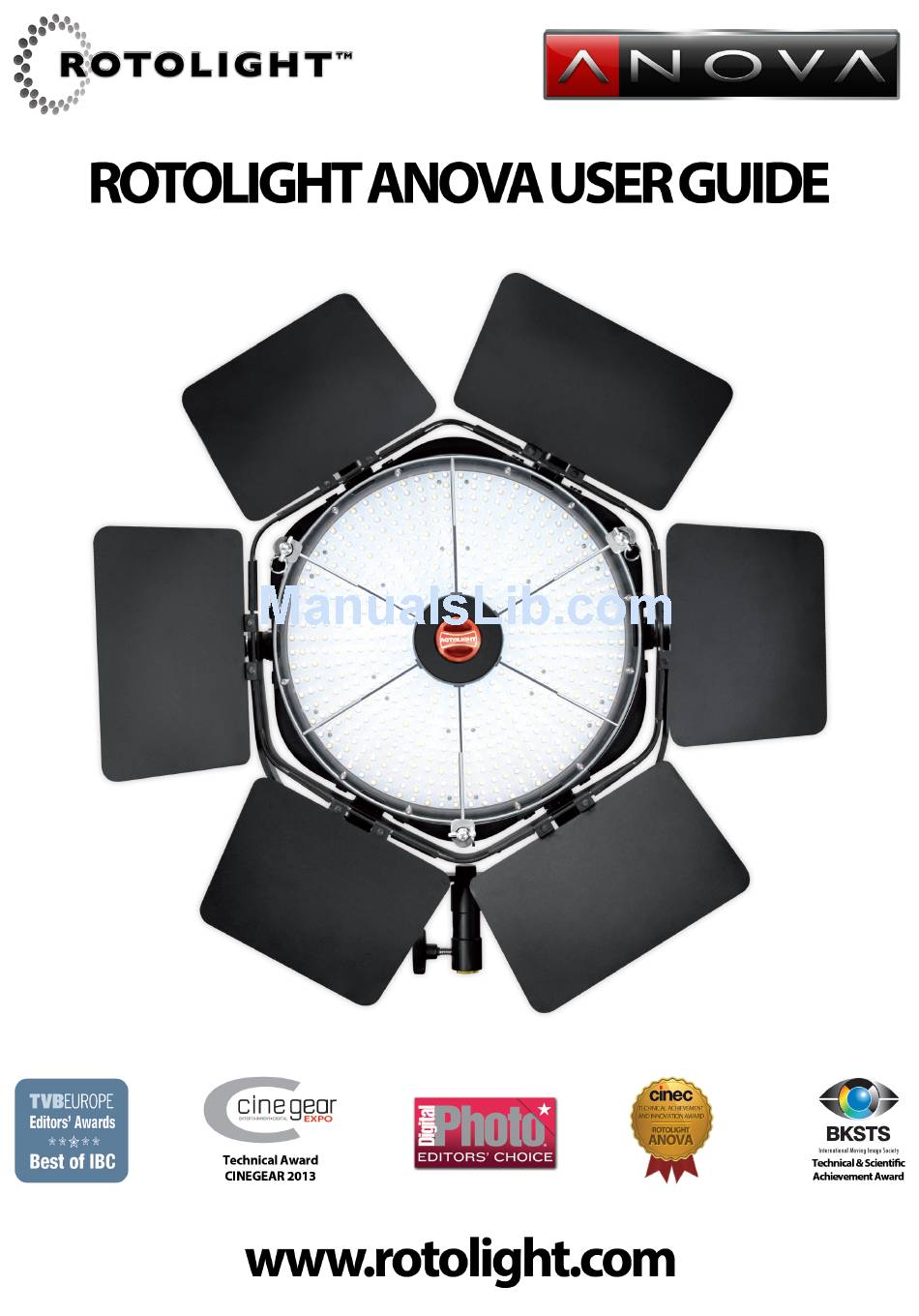

- Page 1 ANOVA BI-COLOUR V2 - SOLO 5600K ©Rotolight Ltd. 2015...
- Page 2 Page 2 “We are what we repeatedly do. Excellence, then, is not an act, but a habit.” - Aristotle Magic_eye_download_card_forUserGuide-2014.pdf 05/03/2015 12:18 DOWNLOAD THE ROTOLIGHT MAGIC EYE APP FOR WIRELESS ANOVA CONTROL NOW! iPhone Please scan the QR Code or type the URL into your browser.
-
Page 3: Table Of Contents
Contents Chapter Title Page About Anova What’s in the Box Hardware Notes Anova Menu Operation Technical Specifications Troubleshooting Warranty Information Credits Rotolight Quality Assurance Published by Rotolight Inc. Pinewood Studios, Pinewood Road, Iver Heath, SL0 0NH United Kingdom www.rotolight.com Tech Support: support@rotolight.com UK +44 (0) 1753 422 750... -
Page 4: About Anova
Page 4 About Anova Thank you for purchasing Rotolight ANOVA, the world’s most advanced LED Floodlight. The Multi-Award Winning Rotolight ANOVA made at Pinewood Studios - UK, will change the way you work with light forever. The revolutionary ANOVA V2 range of ‘totally flicker free’... -
Page 5: Hardware Notes
Page 5 Hardware Notes Encoder Switch Rotate to Increase (+) or Decrease (-) displayed value. Click to select. Press, hold and rotate for ‘Fast’ data entry. NB: To reset the device to the Factory Default Values, Power up the ANOVA whilst holding down the encoder switch, it will display ‘DIST’ (Distributor), and you select either yes or no to reset the unit. - Page 6 Page 6 recommended AC/DC adapter. Never exceed the recommended Voltage (13-17 volts DC). Make sure you use the ‘XTRA Strap’ cable ties to secure the Power connector / adapter to your light stand, so there is no strain on the 2.1mm DC Socket, otherwise damage may occur to the socket.
- Page 7 Page 7 Accessory Mounting Spigots The three spigots on the front face of ANOVA are used to mount the ‘Gel Frame Holder’ (lower position) using three ‘Ball Lock Pins’ , and the upper mounting position is used to mount optional accessories for the ANOVA, e.g. Honeycomb Louver, SoftBox, Focussing Fresnel Filter (Available separately).
-
Page 8: Anova Menu Operation
Page 8 Anova Menu Operation ANOVA’s menu can be accessed via the encoder knob on the backplate. Rotating the knob will toggle through the menu items, press the encoder knob inwards to make a selection. Below are explanations of the menu functions. Brightness Brightness is displayed as 0% to 100%. - Page 9 Page 9 Control Mode Anova offers a range of control methods: Local Control Displayed as LOCL, this mode allows control via the backplate encoder knob and switch. DMX Control This mode allows control via a DMX device wired through the DMX input. In addition, ANOVA can be set to act as a DMX Master Controller and convert incoming wireless signals to DMX via the selected DMX -bri (brightness channel #) and –col (colour channel #).
- Page 10 Page 10 To operate the ANOVA via the selected DMX channels you must also select CNTL – dmx from the control menu. To summarise, you can set the channels for DMX control of brightness and colour in the DMX Menu. You can also activate DMX Master Mode, which in turn will automatically activate the WIFI system.
- Page 11 Page 11 We apologise if this PIN process seems a little complicated, but a lot is happening here, e.g., you are setting a specific wifi channel for your ANOVA network, by setting the same PIN you are identifying which lights will be networked together, the WEP is protecting you from unwanted interference from Audiences/Hackers, and finally if you need to have multiple ANOVA networks this is easily possible using the PIN system.
-
Page 12: Technical Specifications
Page 12... -
Page 13: Optional Accessories
Page 13 Component Weights Anova 2590g (2.59kg) Yoke 440g (0.44kg) One piece yoke with knobs 610g (0.6kg) Anova with Yoke, and knobs 3202g (3.2kg) Flight Case 7100g (7.1kg) Case filled with Anova, yoke, PSU and AC cord 8530g (8.53kg) Filter Sleeve Set 90g (0.9kg) Power Supply and AC Cord 500g (0.5kg) -
Page 14: Troubleshooting
Page 14 Troubleshooting I have attached a battery but the unit does not power up ? Check that the power switch is set to ‘BATT’ and not ‘OFF’ or ‘DC IN’ . I have attached the AC to DC Adapter but the unit does not power up ? Check that the power switch is set to ‘DC IN’... -
Page 15: Warranty Information
Page 15 Warranty Information Manufacturer will extend Distributor and its customers a Limited manufacturer’s Product Warranty of 1 Year on Manufacturers Products from date of purchase. Distributor agrees that this warranty shall not include General ‘wear and tear’ , and shall be invalidated by tampering with, dropping or damaging the product or misuse. - Page 16 Page 16...
