Page 3

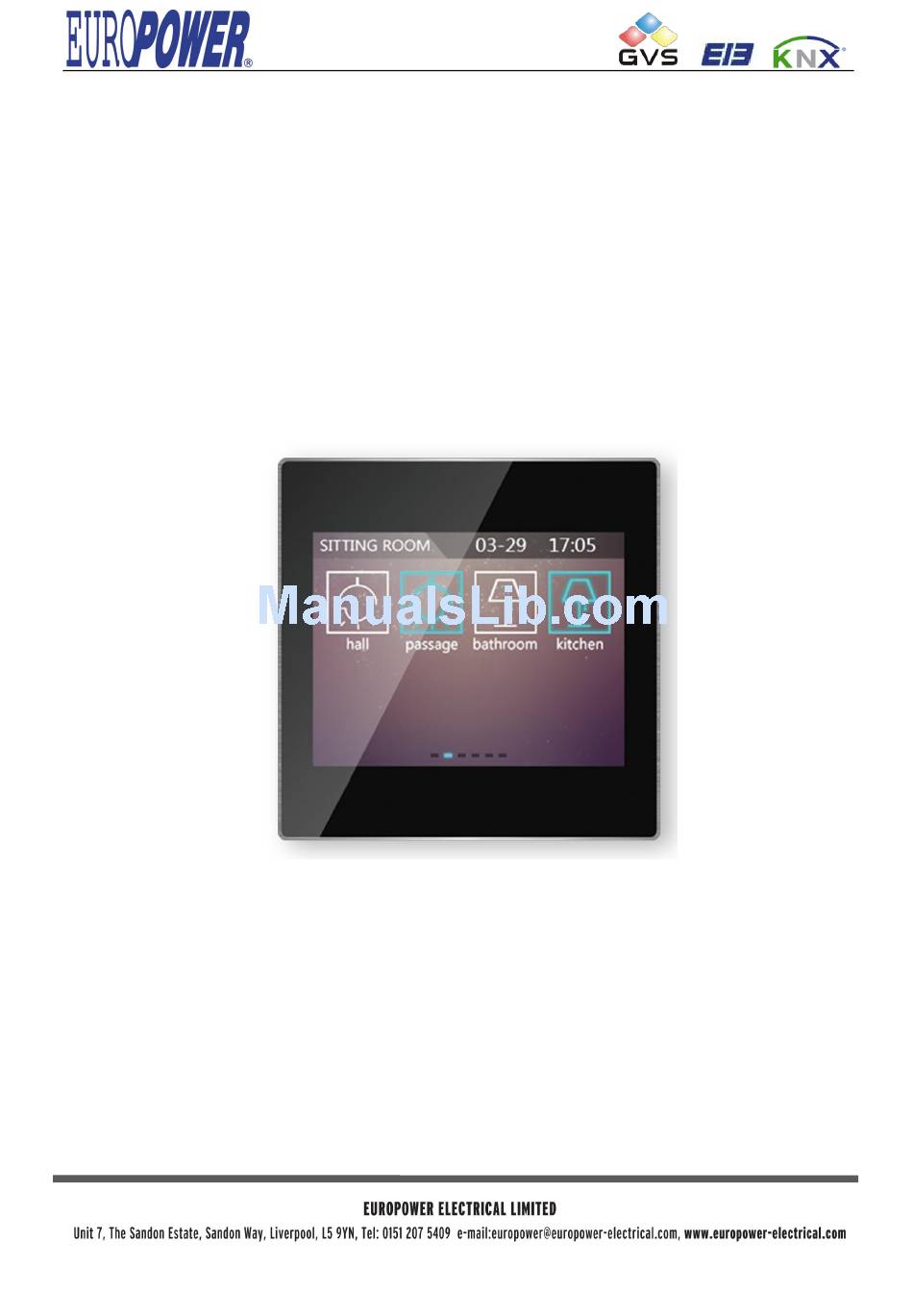

1. Introduction The Colour Touch Panel 3.5″ (hereinafter referred to as TFT) is used to display status and control various devices in the EIB/KNX system. When you touch some graphic button in the TFT operation system, the TFT will execute a predefined function, such as switch lighting, scene control or blinds/shutter control etc. The TFT can display frame via LCD and make warning tone compare with common button panel, and the users can operation the TFT system easily and clearly via interactive interface.
2. Technical Parameters Power Supply Operating Voltage 21-30V DC, powered from BUS Auxiliary power supply 20-30V DC Bus Current <12mA Bus Power Consumption <360mW Auxiliary Power Consumption <6W Connections EIB / KNX Via bus connection terminal(black/red) Auxiliary power supply Via bus connection terminal(grey/yellow) Cable cross-section Single core 0.2—6.0mm...
Page 6
3.2 Circuit Diagram ① and ②: auxiliary power supply connection terminals ③ and ④: KNX/EIB Bus connection terminals ⑤: SD card slot...
Page 7
Project Design and Applications Features Overview: TFT main interface can be configured according to the users' needs, unrestricted buttons, and max. 10 pages of icons can be configured. Switching and Dimming The functions can be used for switching and dimming the lighting devices, the dimming and switching has feedback status value.
Page 9
6. Interface Effects Operation Interface and Icon 6.1 Main Control Interface The main interface shows time and date, page name and functional buttons. Switch pages by sliding around 6.2 Intelligent Scene Mode By sliding down from the main interface, it enters the intelligent scene interface; the main interface displays time and date, the name of scene, and the time setting button.
Page 10
6.3 Time Setting & Time Switch Setting Menu 6.4 Time Setting Interface Clicking "Time Setting" in Intelligent Scene to enter time setting interface, as shown below: 6.5 Time Switch Clicking the icon can enable or disable the day timing function of weekly timer.
Page 11
6.6 Screensaver Clock Interface 6.7 Program Updating Interface When user inserts the SD card with project file into the slot, it will prompt, as shown below: 7. Functions & Applications 7.1 Switching and Dimming 1. Icon...
Page 12
2.Operation Interface Short press the button to send the switching telegram Long press the button for dimming (according to the parameters setting) See the figure as follows, 7.2 Shutters/blinds Control 1、Icon 2、Operation Interface Short press the curtain button to enter its secondary interface, showing as follows,...
Page 13
Depending on the configuration of the software parameters, in blinds/curtains mode, two or three buttons can be invoked; Long-press button to move up or down the blinds, releasing the button to stop the blinds; (according to the parameters setting) Short-press button can move up and down or stop the blinds. Click the bottom right button to return to a main interface.
Page 14
Click on the button of showing effect picture, return to the main interface. 7.4 Customized Value Sending 1.Icon 2.Functions Click the button to send a group of different types of data telegrams. (According to the parameters setting) 7.5 Temperature Control 1.
Page 15
display; The middle row: Indoor/outdoor temperature switch temperature display The bottom row: comfortable mode, standby mode, night mode, protection mode; temperature setting, set displaying temperature value. 2. Functions Humidity: by bus telegram to update values. Heating/Cooling: configure temperature control system through the configuration software. If set as heating/cooling system, user can click to switch between heating and cooling.
