Summary of Contents for Secure SSP 301

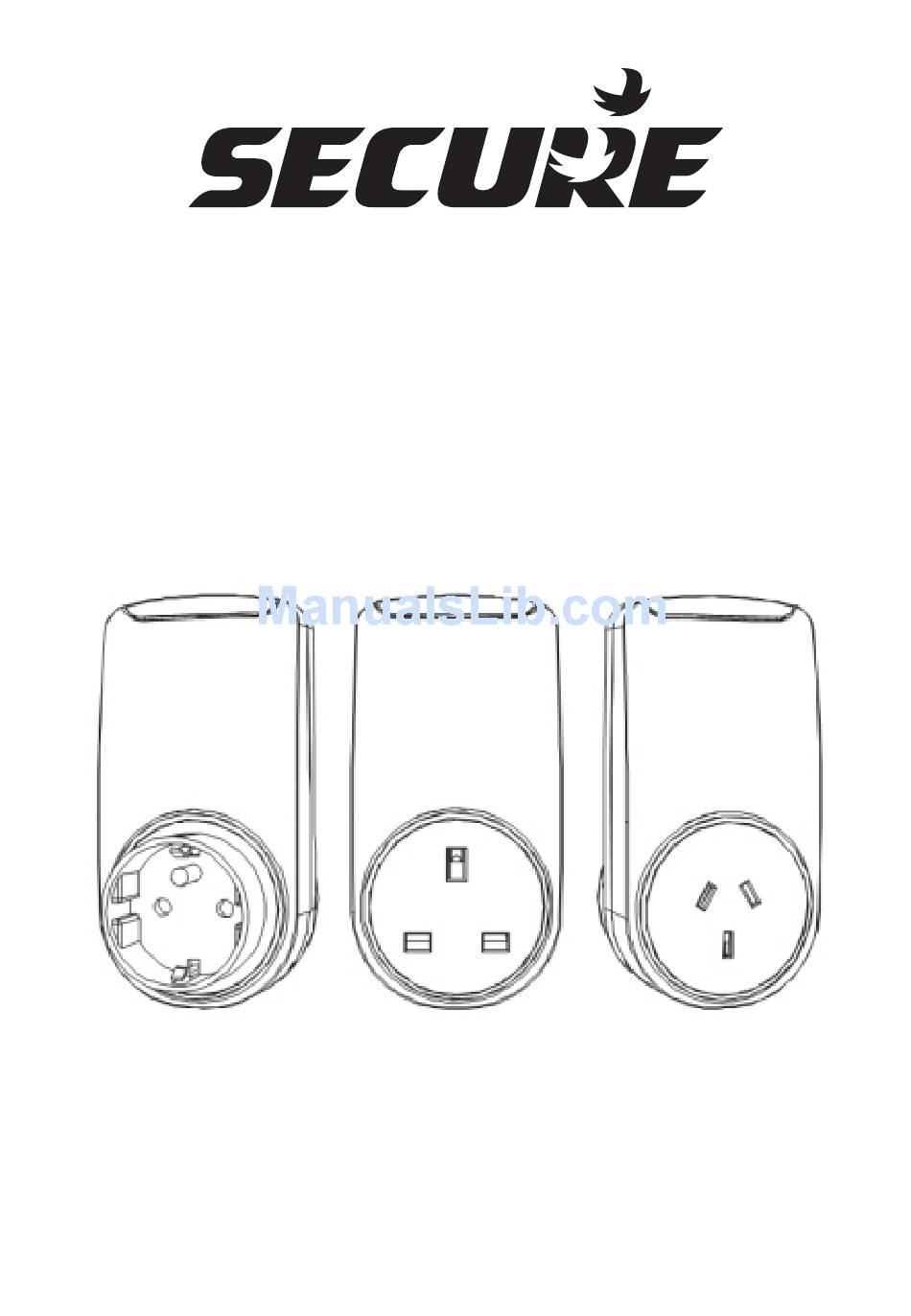

- Page 1 SSP 301 Z-Wave Switch and Repeater User and Installation Instructions BGX501-920-R03...
- Page 2 Z-Wave network or manually by pressing its integrated button. out of range controller cannot communicate directly with device Z-Wave Controller SSP Repeater Lamp Load The SSP 301 acts as a repeater in a Z-Wave network by helping messages from other devices reach there destinations.
-
Page 3: Installation
The SSP 301 is a fully compliant Z-Wave Plus™ device that will work with other manufacturer's Z-Wave devices. Installation Button Step 1: Unpack, and insert the SSP 301 into the wall socket. Ensure that the red- coloured network status LED is flashing (once per second). - Page 4 Step 2: Including and Excluding a Device To include the SSP 301 onto a network, put the controller into inclusion mode. Now, press and hold the button on SSP 301 for 4 to 7 seconds t h e n r e l e a s e .
- Page 5 If there is an issue with RF communication, re-locate the device and repeat the inclusion process. To exclude the SSP 301 from a network, put the controller into exclusion mode (refer to controller instructions) and follow the same sequence as per the inclusion process for include node.
- Page 6 Step 4: Identify the device to the controller by sending the node information, to do this press and hold the SSP 301 button for more than 1 second, but less than 4 seconds, and then release. Step 5: The controller should confirm...
- Page 7 Appliance Socket Press the SSP 301 button (less than one second) to supply power to its socket. By default, the green LED will be lit when the supply is On. The socket type will vary with country. The figure shows the UK variant. Ensure that the appliance plug is firmly plugged into the appliance socket.
- Page 8 1 second socket outlet 1-4 seconds Send NIF ( used for Association Inclusion/exclusion Red LED flashes seconds twice per second 7-11 SSP 301 resets to Red LED flashes Seconds factory default once per second (Refer 'Device Reset Locally' command class)
- Page 9 Z-Wave Plus command classes Z-Wave Plus Implemented Device Classes Device Class Generic Binary Switch Specific On/OFF Power Switch Basic Routing Slave Command Class Commands Supported Basic (V1) Report Mapped on Binary Switch Command class (V1) Binary switch (V1) Report Manufacturer Specific (V2) Report Manufacturer ID = 0x0059...
- Page 10 Version (V2) Report Version Command Class Get Version Command Class Report Association (V2) Report Remove Supported Groupings Get Supported Groupings Report Specific Group Get Command Specific Group Report Command Product supports one association group that have maximum of 4 nodes. Configuration (V1) Report See Configuration Parameters for details...
- Page 11 Power cycle the device, press and hold the button for 7-11 seconds within the 60 seconds of power cycle to put the device in factory default. It reset all configuration and association to factory default. It also removes the device from Z-Wave network. Association Group Info (V1) Group Name Get Group Name Report Group Info get...
- Page 12 Z-Wave Plus Info (V2) Report Role Type - ZWAVEPLUS_INFO_REPORT_ROLE_TYPE_SLAVE_ ALWAYS_ON Node Type - ZWAVEPLUS_INFO_REPORT_NODE_TYPE_ZWAVE PLUS_NODE Installer Icon- ICON_TYPE_GENERIC_ON_OFF_POWER_SWITCH User Icon- ICON_TYPE_GENERIC_ON_OFF_POWER_SWITCH Power Level (V1) Power Level Set Power Level Get Power Level Report Power Level Test Node Set Power Level Test Node Get Power Level Test Node Report Note: For more information about Z-Wave command classes and their use refer to...
- Page 13 Value set more than maximum allowable limit will Ÿ be rejected silently, and SSP 301 will retain it last configuration value. Important: When any configuration is set, then it shall be recommended that user should read back and verify that has...
- Page 14 OFF for Relay Open power cycle ON for Relay Open Open OFF for Relay Close Retain last ON for Relay Open status over the OFF for Relay Close power cycle SSP 301 is shipped with zero default relay LED configuration...
- Page 15 Visual Indication of a Communication Failure The SSP 301 can indicate a communication failure state to the end user in the following situation: if the SSP 301 is configured with TIME-INTERVAL based data reporting (Configuration parameters #2) and at least one node is associated to it.
- Page 16 Technical specifications Electrical Purpose of control: Electrical control Supply: 230V±10% AC, 50Hz Current rating (load): Resistive Inductive 13 A 0.4 3 A 16 A 0.4 3 A ANZ: 10 A 0.4 3 A Control type: Micro-disconnection Control action: Type 1B Software class: Class A Burden:...
- Page 17 After Care: Clean only with a clean damp cloth - do not use any aggressive cleaning agents. If cleaning agents are necessary, check compatibility before use. Mounting: UK: Type G EU: “Schuko” Type E & Type F ANZ: Type I Ball Pressure Test Temperature: 75°C...
- Page 18 Class: Inclusion: If the Z-Wave controller does not respond within 2-seconds then the SSP 301 will try with NWI (Network Wide Inclusion). The total process can take up to 20 seconds. This is a Z-Wave certified product and can be used with Z-Wave controllers that support its functionality.
- Page 19 European Head Office Secure Controls (UK) Ltd. South Bristol Business Park Roman Farm Road Bristol, BS4 1UP, UK e: info@securetogether.com www.securetogether.com European Sales Office CEWE Instrument AB Box 1006, 611 31 Nyköping t: +46 8 600 80 60 e: info@securetogether.com www.securetogether.com...
- Page 20 Secure Meters Ltd Pratap Nagar Industrial Area Udaipur 313003 India p: +91 294 2492 300-05 f: +91 294 2492 310 e: mktg@securetogether.com www.securetogether.com Elegant Metering Solutions FZE 4EA 326, P.O. Box 54857 Dubai Airport Free Zone Dubai, UAE p: +971 50 6575166 f: +971 04 204 5619 e: emsfze@emsdxb.ae...
