Summary of Contents for Stream Flow Plus FP1

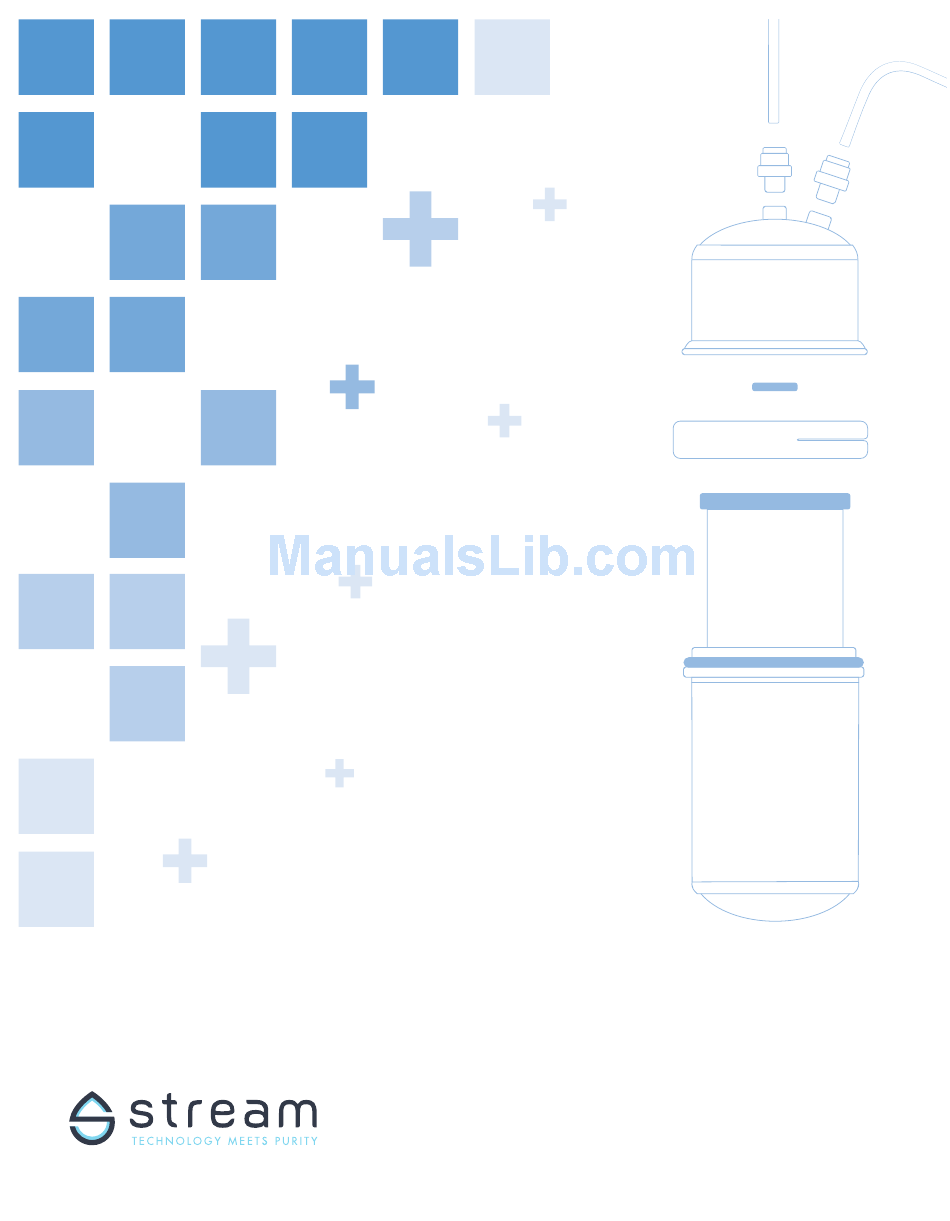

- Page 1 User’s Manu al Stream Flow Plus (FP1) Logo Variation Horizontal...
-
Page 2: Table Of Contents
Stream Drinking Water Systems Thank you for choosing a Stream filtration system. It is our commitment to provide our valued customers the very best in water quality and we look forward to serving you for many years. Here’s how to connect Stream and begin enjoying quality water for less. -
Page 3: General Information
(0.5 micron) Certified by: NSF International , CA Dept. of Public Health : Cert: #13-2190 1. The Stream Flow Plus Drinking Water System is installed Notes below the sink and connects to a separate faucet included in the installation materials. -
Page 4: Installation Overview & Parts
Housing Bottom Acrylic Sleeve Stream Drinking Water Systems have been tested and certified, so you know that they will perform at the highest level possible. Please read this manual before installing your Stream Flow Plus System, as installation, operation, and maintenance will aid in your System’s performance. Not following these instructions carefully could lead to product failure or possible damage. -
Page 5: Preparing The Housing
Preparing the Housing Please prepare the housing as outlined in this section before moving on to Section 3. Be sure to gather all all recommended tools for the Stream Flow Plus below the sink installation before you begin. A. Filter Cartridge Installation... -
Page 6: Sec
• Wire cutter or knife B. Attaching the Adapters to the Housing Stream Flow Plus models are shipped with all of the adapters and connectors needed for the filter system. Here is how to connect them to the housing top: To Connect Straight Adapters: 1. -
Page 7: Housing Assembly
C. Housing Assembly Outlet Connector Below Sink Installation Includes: Inlet Connector Housing Top Rubber Cushion V-Band Stainless Steel Faucet with blue tubing attached 1/4” Inlet and Outlet Connector Filter Adapt-a-Valve Assembly: O-Ring Wall Bracket Housing Bottom Adapt-a-Valve Threading Adapter Acrylic Sleeve *Faucet is not included as part of the NSF Unit Certification Below the Sink Installation... -
Page 8: Installing The Faucet
Sec. Installing the Faucet A. Drill the Hole or Use Existing Hole Porcelain or Ceramic Surface 1. Choose and then mark the spot you’d like to mount the faucet on your sink top. a. Make sure there aren’t any reinforcing ribs under the spot you’ve selected. -
Page 9: Mounting The Faucet
B. Mounting the Faucet Small Black Washer Cover Plate Large Black Washer Plastic Washer Counter top Lock Washer Wing Nut Blue Tubing 1. Make sure the blue tubing is attached to the faucet. 2. From the sink/counter top, place the following over the faucet hole: a. -
Page 10: Connect To Plumbing
Sec. Connect to Plumbing The Adapt-a-Valve assembly includes an Adapt-a-Valve and adapter. NOTE: When attaching the Adapt-a-Valve to straight pipe threads, use Teflon tape on the threads. Wrap the tape around the pipe only once. Before Included Water supply line before installation After Choose the configuration (3/8”... - Page 11 B. Use the 1/2” configuration if you have a water supply line that either does not have a slip joint nut, or has a 1/2” slip joint nut at the angle stop valve. Water supply line with Adapt-a-Valve in 1/2” configuration Install on the cold water line only: 1.
-
Page 12: Drinking Water System
Push the collar against the face of the fitting; then you can remove the tubing. C. Ice Maker Connection Not only can you use your Stream Flow Plus Drinking Water System for quality water at the sink, but you can also connect that same unit to your refrigerator for quality ice. Here’s how: Connecting to Your Unit: 1. -
Page 13: Placing Stream Flow Plus Under The Sink
D. Placing Stream Flow Plus Under the Sink You can either set your Stream Flow Plus System on the cabinet floor or mount the unit on the cabinet wall with the bracket included in your kit. If you do mount the unit on the cabinet wall, make sure it can support the unit’s weight (about 7.5 with a dry filter and even more with a wet filter!). -
Page 14: Start-Up And Use
Filter life will vary depending on the amount of water used and the amount of impurities being processed in your water. If your Stream Flow Plus clogs, it may be because it is protecting you from the contaminants and physical matter in your drinking water. If this happens, see Section I.A - Operation and Maintenance Specifications. -
Page 15: Performance Certification
Performance Certification MODEL - FP1 Stream Drinking Water Systems Product Performance Tested and Certified Stream Drinking Water System Tested and Certified by NSF International to NSF/ANSI Standards 42 and 53 for the reduction of claims specified below. Standard 42, Aesthetic Effects Standard 53, Health Effects •... -
Page 16: Performance Data Sheets
50,000/ml 99.95% ** Percent reduction reflects actual performance of Stream product as specifically tested (at 200% of capacity). Percent reduction shown for VOCs* reflects the allowable claims for volatile organic chemicals/compounds as per tables. Chloroform was used as a surrogate for VOC reduction claims; the Stream Systems actual reduction rate of chloroform was >99.8% as tested. - Page 17 Note: This addresses the U.S. Environmental Protection Agency (USEPA) Primary and Secondary Drinking Water Regulations in effect at its time of publication, as they relate to Stream’s performance in conformance to the industry performance criteria. These regulations are continually being updated at the Federal level. Accordingly, this list of MCLs will be reviewed and amended when appropriate.
-
Page 18: Operational Specifications
Department of Public Health for the reduction of specific contaminants listed herein. 2. Chloroform was used as a substitute for claims of reduction of VOCs, where the Stream System’s actual reduction rate of chloroform was greater than 99.8% when tested at 200% capacity. -
Page 19: California Certification
Trademark/Model Designation Replacement Elements Stream Flow FL Stream Flow Plus FPL Manufacturer: Stream Laboratories, Inc. The water treatment device(s) listed on this certificate have met the testing requirements pursuant to Section 116830 of the Health and Safety Code for the following health related contaminants:... -
Page 20: Troubleshooting & Faqs
“ice maker tee” from your dealer. Can the Stream Flow Plus System be used Yes, you can hand pump or siphon water If your water source might be... - Page 21 You should not use a water Systems don’t remove dissolved softener for drinking water. minerals so the pH is not changed. Can the Stream System be used on If the water source is questionable, you Stream Systems are designed to be untreated water? should disinfect it before use.
-
Page 22: Maintenance Problems
B. Maintenance Problems Flushing/Disinfecting the Unit Housing: You should not let water sit for more than 10 days without being used. If you do, the System may need to be flushed or disinfected before you start using it again. 1. Make sure the water to the unit is turned off. 2. - Page 23 Warranty Stream believes in improving your water and your life, which is why we’ve tailored our warranty for you— to make your life just a little bit easier. Stream will repair or replace any System at absolutely no charge (baring the transportation to Stream headquarters) during the warranty period.
-
Page 24: Stream Laboratories, Inc
Stream Laboratories, Inc. 2520 Shell Road Ste B Georgetown, TX 78628 Phone: (888)-615-5733 StreamFilters.com...
