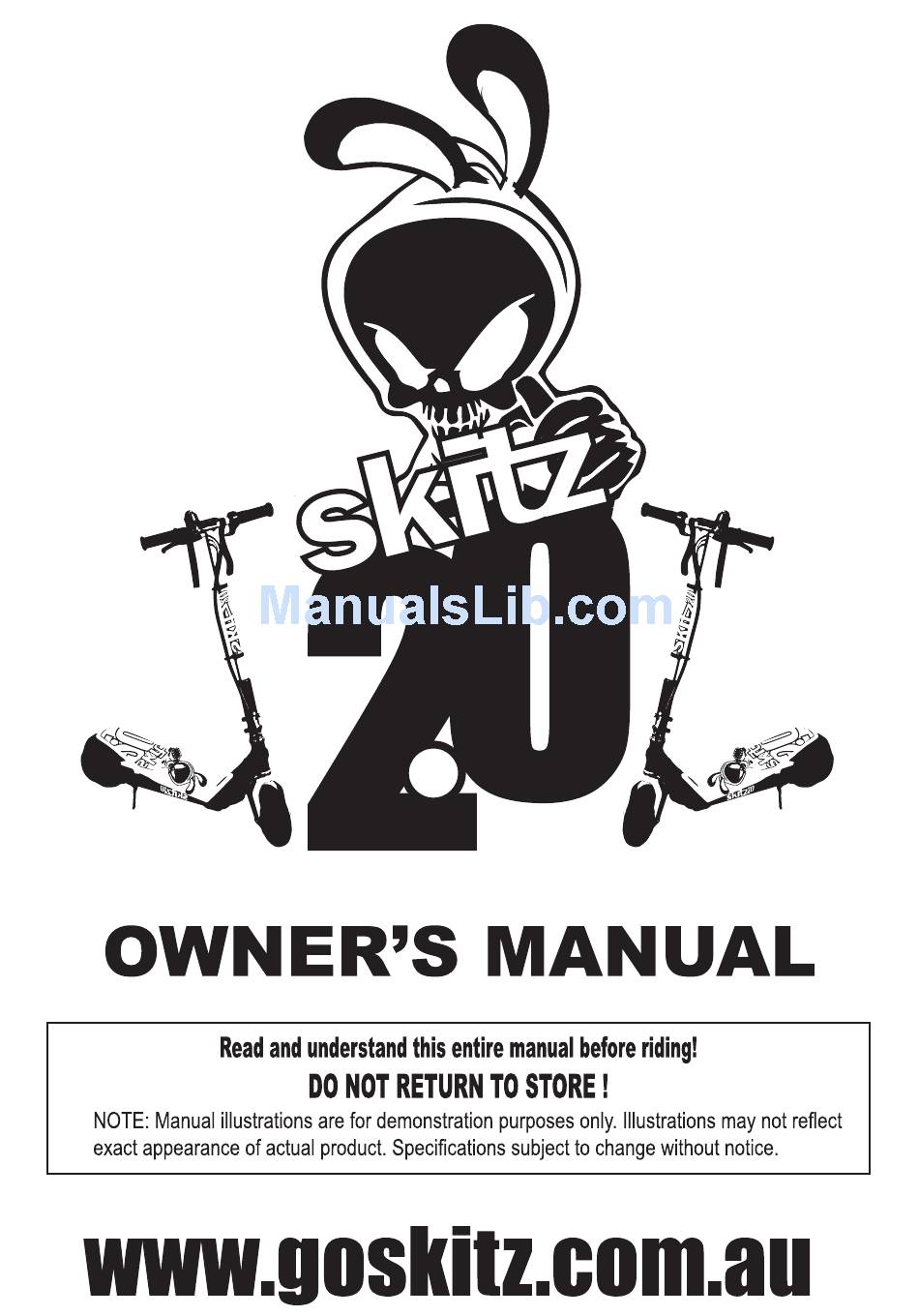

Goskitz skitz 2.0 Owner's Manual

Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the skitz 2.0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Goskitz skitz 2.0

  • Page 2: Table Of Contents

    GoSkitz advises that you periodically review and reinforce all information in this manual with all riders, and that you inspect and maintain your scooter to insure their safety.

  • Page 3: Safety And Warnings

    Safety and Warnings Maintain a hold with both hands on the handlebars at all times. Never allow more than one person at a time to ride the scooter. Never use near steps, water, or swimming pools. Keep your fingers and other body parts away from the belt, motor, steering system, wheels and all other moving components. Never ride while using a cell phone or wearing headphones.

  • Page 4: Before You Start

    WARNING: DO NOT USE NON-GoSkitz PRODUCTS WITH YOUR 2.0 ELECTRIC SCOOTER. This scooter has been built to specific GoSkitz Scooter design specifications and should not be modified. Altering of the original components may or may not be compatible with the design and will void the warranty.

  • Page 5: Assembly

    Assembly Handlebar Steer Tube Assembly (Trade Edition) Tools required: 5mm hex wrench, 10mm wrench 1. Depress the push button located on 2. Tighten the bolts with the 5mm hex 3. Align handlebars both vertically and the rear of the fork and insert the wrench, evenly and securely.

  • Page 6: Tire Inflation

    Assembly Tire Inflation Tools required: Air/tire pump Tires are inflated to the maximum PSI prior to shipping however some air pressure maybe lost between the manufacture date and your purchase date. Using a hand pump with a Schrader-type valve and pressure gauge inflate the tires to the recommended PSI as called out on the tire sidewall.
  • Page 7 Assembly Charging the Battery WARNING: Batteries must be fully charged before you ride your electric scooter. Required components: Battery charger • Initial battery charge time - 14 hours • Recharges after initial charge - Up to 10 hours • When scooter is not in regular use batteries need to be charged on a monthly basis to maximize performance. 1.

  • Page 8: Hardware Maintenance

    Hardware Maintenance Brake Check the brakes for proper function. When you squeeze the lever, the brake should provide positive braking action. When you apply the brake with the speed control on, the brake cut off switch should stop the motor. Make sure that the brakes are not rubbing when lever is not being applied.

  • Page 9: Repair And Maintenance

    Repair and Maintenance WARNING: Turn the power switch “OFF” before conducting any maintenance procedures. Adjusting the Brakes Tools required:10mm wrench 1. To adjust the brake cable thread 2. If the brake cable is still either too clockwise (loosen) or counter tight or too loose use a 10mm wrench clockwise (tighten) the adjuster barrel to loosen the brake cable pinch bolt...
  • Page 10 Repair and Maintenance Chain and Rear Wheel Replacement Tools required: 4mm hex wrench, 5mm hex wrench, 14mm wrench, 13mm wrench, 10mm wrench, Phillips screwdriver 2. Loosen brake cable pinch nut with 1. Using a 4mm hex wrench remove 3. Remove the brake arm bolt with a 10mm wrench.
  • Page 11 Repair and Maintenance Chain and Rear Wheel Replacement 6. Place the chain under tensioner 7. Ensure axle hardware is seated 8. Retighten the brake arm bolt with a wheel and onto the rear chain wheel correctly against the frame. After Phillips screwdriver &...
  • Page 12 (nickel-cadmium) batteries. Do not store the battery in temperatures above 70°F (21°C) or below 32°F (0°C). Battery Charger Only use the supplied battery charger. If battery charger is damaged discontinue use immediately and replace with a GoSkitz Scooter recommended battery charger.

  • Page 13: Troubleshooting

    Battery may need to be replaced. Even with proper care, rechargeable batteries do not last forever. The average rechargeable battery life is 1 to 2 years depending on scooter conditions and use. Replace only with GoSkitz replacement batteries. Brakes are not adjusted Refer to the instructions on adjusting the brakes on page 8.

  • Page 14: Scooter Components

    Scooter Components(Trade Edition) part description Throttle Handlebar Clamp Brake Lever Handlebar Steer Tube Clamp Headset Front Fork Front Wheel decorative cover On/Off Switch Frame Reset Button Charger Port Bottom Side Cover Controller Kickstand Left Side Cover Right Side Cover Battery Box Battery Battery Strip Deck...

  • Page 15: Scooter Components

    Scooter Components (Luxury) part description Throttle Handlebar Clamp Brake Lever Handlebar Steer Tube Clamp Headset Front Fork Front Wheel decorative cover On/Off Switch Frame Reset Button Charger Port Bottom Side Cover Controller Kickstand Left Side Cover Right Side Cover Battery Box Battery Battery Strip Deck...

  • Page 16: Warranty

    The manufacturer is not liable for incidental or consequential loss or damage due directly or indirectly to the use of this product. GoSkitz does not offer an extended warranty. If you have purchased an extended warranty, it must be honored by the store at which the scooter was purchased from.
