Summary of Contents for Gepro EASY SPRAYER

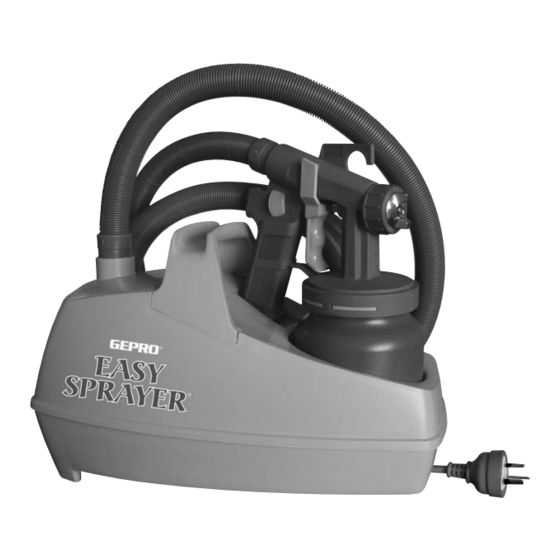

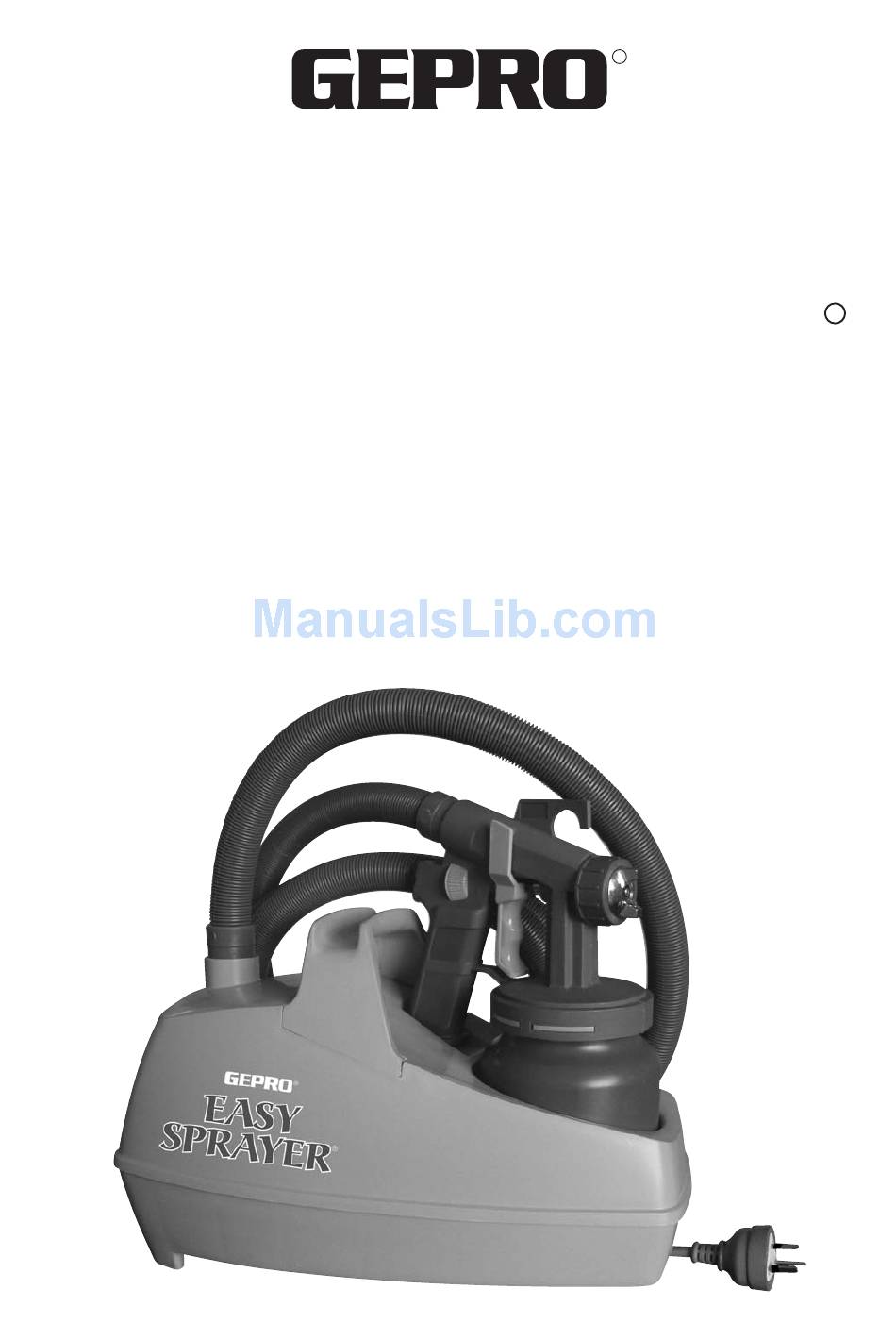

- Page 1 EASY EASY EASY SPRAYER SPRAYER SPRAYER HIGH VOLUME LOW PRESSURE SPRAY PAINT OUTFIT SPRAY PAINTING MADE EASY...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION Congratulations on your purchase of the GEPRO Easy Sprayer Paint Outfit. It will save you time, money and aching wrists. Page Efficiency describes Easy Sprayer perfectly. Now those tiresome large surface area painting jobs can be cut down to size. -
Page 3: Warning
GETTING STARTED GETTING STARTED Prepare the surface to be painted Most domestic paints are supplied at brushing First class results depend largely on surface preparation. - Remove flaking paint. consistency and must be thinned before spraying. - Wash down to remove grease. (Stir in tinters before thinning). -
Page 4: Adjusting The Air Cap
Adjust the air cap Slacken off the retaining ring slightly and turn the air-cap to the required position to produce a horizontal or vertical spray pattern. The horizontal spray is generally used when painting up and down and vertical spray when painting across. Switch on the blower unit Note that air flows from the nozzle at all times. -
Page 5: Spray Painting Techniques
HANDLING THE Overlap each preceding pass by about one third This ensures an even coating. The spray pattern is SPRAY GUN specially designed with an oval shape so that when the narrow ends of the pattern are overlapped, a uniform coat results. -
Page 6: Care Of Equipment
The power unit is sealed at the factory. for safety reasons, electrical repairs should only be performed by qualified technicians. Defective units should be returned to GEPRO Approved Repair Agent. -
Page 7: Troubleshooting
TROUBLESHOOTING TROUBLE CAUSE REMEDY Sags or Runs Too much paint Screw in paint control Gun moved too slowly Move gun faster Paint to thin Add unthinned paint to give correct time through thinning cup Gun held at incorrect angle or too close Hold gun at right angle to surface and at a distance of 15 to 20cm Spray overlapped too much... -
Page 8: Specifications
2 YEAR LIMITED WARRANTY 1. The Trade Practices Act 1974 (Commonwealth) and Manufacturer's Operating manuals, and under The GEPRO Easy Sprayer is covered by a two (2) year similar State and Territory legislation relating to the competent supervision. from original date of purchase, domestic (home use) - Page 9 Be careful not to damage or enlarge these holes. This procedure should be carried out every time especially if using fast drying paints. For further information please contact the GEPRO Customer Service Centre on 1800 350 001 WARNING Read and observe the following safety instructions before using this product to avoid personal injury.
