Summary of Contents for Skysighthobby Sky-S60

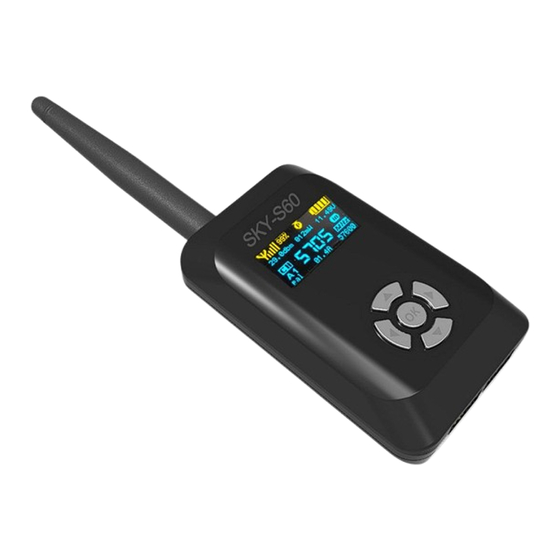

- Page 1 Long Range Wireless OSD 5.8G FPV Transmitter Built-in 10 Axis AHRS + MAVLINK + 600mW Support all flight controller and GPS...
-
Page 2: Table Of Contents
User's Guide Catalogue Product Instruction……………………………………………………………………………3 Features…………………………………………………………………………………………3 Specifications………………………………………………………………………………….4 Channel Frequency……………………………………………………………………………5 Schematic Diagram……………………………………………………………………………5 Interface…………………………………………………………………………………………6 Button Function………………………………………………………………....………6 OLED Display interface……………………………………………………………………….7 OSD Screen Display interface……………………………………………………………….7 Frequency and Channel Groups Setting………………………………………………….8 Home Setting……………………………………………………………………………………8 Switch OSD Panel with remote………………………………………………………………8... -
Page 3: Product Instruction
FPV pilots for FPV pilots. The SKY-S60 transmitter packs a whopping 600mw of ultra clean 5.8GHz power! It can transmit a full range of 32 channels and comes with a clean pre-wired harness; it’s perfect for any long range aircraft. -
Page 4: Specifications
●Power: 600mW, >=1km open distance with 2dbi Omni-directional antenna ● Automatic video mode switching（NTSC/PAL） ● 2 OSD panel, 3 display modes (OSD panel 1, OSD panel 2, OSD off) switch with the remote channel ● Built-in 10-axis AHRS attitude detect, contains a 3-axis accelerometer, 3-axis gyro meter, 3-axis digital compass, barometric altimeter ●... -
Page 5: Channel Frequency
Subcarrier 6.5MHz Audio 4.7KΩ Impedance Gyroscope errors Accelerometer errors Electronic compass errors Barometer errors Net weight Size 68x42x18 mm Channel frequency table (32CH): (Unit of frequency: MHz) 5705 5733 5865 5740 5685 5752 5845 5760 5665 5771 5825 5780 5645 5790 5805 5800... -
Page 6: Interface
Interface:... -
Page 7: Button Function
Button function： Button ◀: 1. OLED main interface push to change the RF channel group 2. Menu interface , push back previous menu Button ▶：OLED main interface push to change the RF channel Button ▲：Up Button ▼： ... -
Page 8: Osd Screen Display Interface
Note ：The RF power information on OLED display is PA chip detector power , not is actual RF output power OSD Screen display interface： OSD panel 1： OSD panel 2： ... -
Page 9: Frequency And Channel Groups Setting
Frequency and channel groups setting： At OLED main interface press button◀ change channel groups At OLED main interface press button▶ change RF channel Home Setting： At OLED main interface long press button ▼ about 3 seconds setting the HOME ... -
Page 10: Mode 1: Using The Built-In 10 Axis Ahrs
Using the remote control 3-band switch or joysticks can toggle the OSD panel interface PPM<1.2ms is OSD off PPM>1.8ms is OSD panel 2 other PPM>1.3ms and PPM<1.7ms is OSD panel 1 Mode 1: using the built-in 10 axis AHRS Click OK，select Com Setting in the menu，select GPS in list Com Type，click OK to save ... -
Page 11: Mode 3: Mavlink Serial Data
Mode 3: MAVLINK serial data This mode only for MAVLINK protocol's flight controller, ex. APM flight controller Need connected to flight control's digital transmit interface Click OK， select Com Setting in the menu， select Mavlink in list Com Type， click OK to save ... -
Page 12: Set The Serial Interface Baud Rate
Set the serial interface baud rate GPS Band rate Setting Click OK，select GPS Band rate in the menu , select the baud-rate for GPS in list , typical GPS baud rate is 4800 or 9600 and 19200 Mavlink Band rate Setting ... -
Page 13: Imu Calibrate
IMU Calibrate When use built-in 10-axis AHRS IMU, you need to do built-in IMU calibrate for the first time use or after restoring the factory settings and the flight place is changed Select IMU Calibrate in menu and press OK , follow to the tips on OLED display, ... -
Page 14: Reset Default Setting
Calibrate will be finish in about 30 seconds Reset Default Setting Choose Reset Default in the menu and press the OK key, it will restore the factory settings After restoring factory settings, depending on the connection mode, please configure the ...
