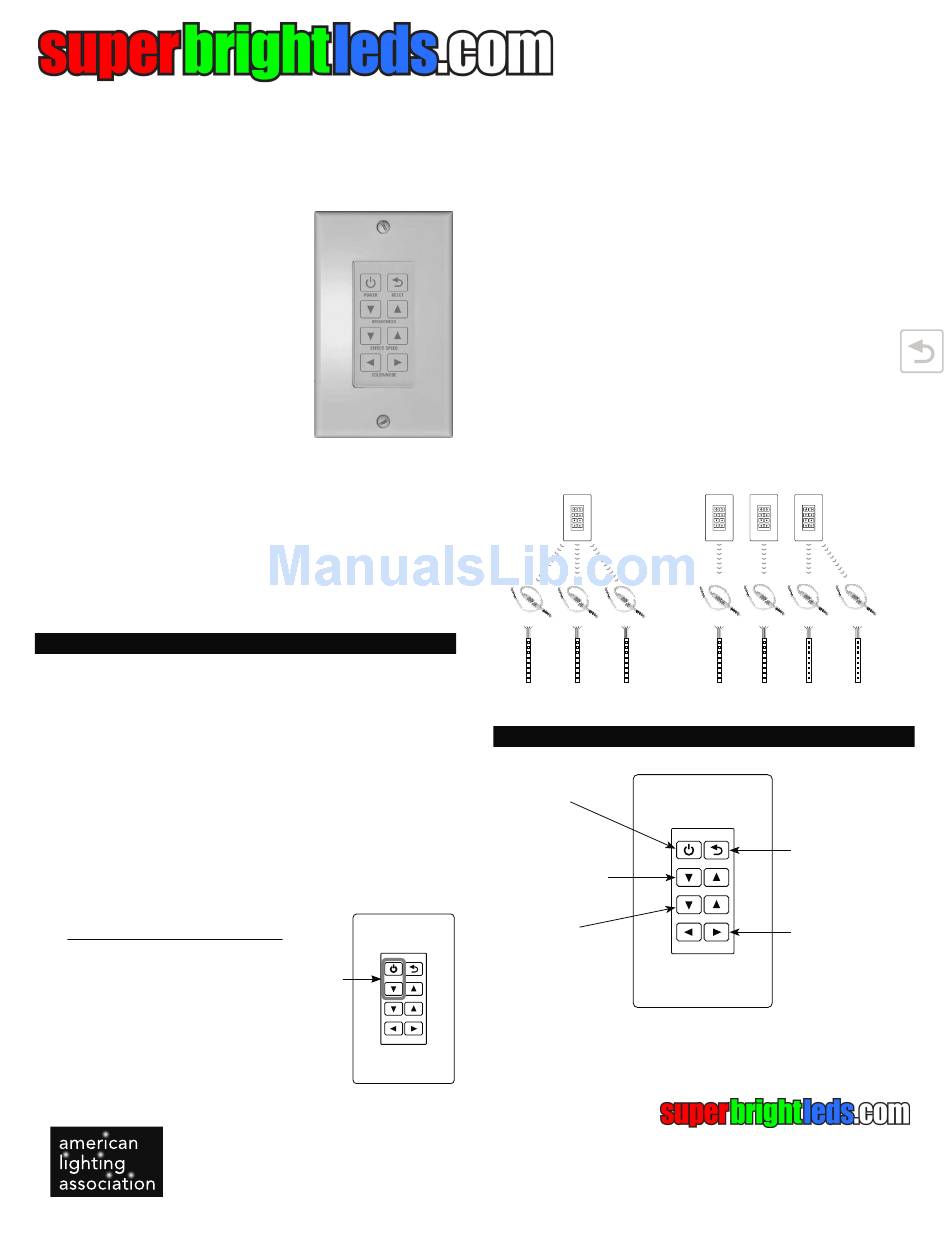

Super Bright LEDS RGB14REM User Manual

Wireless Touchpad for 30 Color RGB LED Controller
Model # RGB14REM
The Wireless Touchpad is for use only with
30 Color RGB Controller with Hand Held
Remote. It provides remote control of low
voltage RGB LED lighting and works through
walls and doors up to 100 ft. away. Using
radio frequency (RF) technology, it
eliminates the need to run wires from the
RGB LED lighting to the wireless touchpad
and is useful in projects where installing new
cabling can be difficult.
Features RF pairing technology for
■
expandability and multi-zone lighting
control. The wireless touchpad can
be paired to control and synchronize
multiple RGB controller receivers in the same area, or multiple
touchpad/receiver sets can control different zones of lighting in the
same area without cross interference.
Includes designer-style wireless touchpad and all necessary
■
mounting screws and drywall anchors. Also includes one 12V
alkaline battery (27A).
Units are for dry location only. If used outdoors, keep in a dry
■
location. Wireless function may cease to operate properly in close-
to-freezing temperatures.

SET UP AND PAIRING

Your RGB color controller contains a radio frequency (RF) receiver that
will need to be programmed or paired to recognize the frequency code of
the wireless touchpad.
Be sure the battery in the transmitter is strong. In a darkened room, you
should see a visible red LED light glowing through the front touchpad
when you press any function key. If this glow is diminished or not
visible, replace battery with a 12V 27A alkaline battery.
1. Following the instructions that came with your color controller,
connect the RGB color controller receiver to your power supply and
RGB LED lights. Be sure your power supply is turned on. Turn your
LED lighting on and select any a static color using the mode key on
the receiver. Model HHRGB14 will already be on a static color or
use the hand held remote that was supplied with the unit.
2. Shut off power to the receiver unit by unplugging the power supply
– do not use the power OFF key. Wait at least 5 seconds.
3. Restore power to the RGB receiver unit,
within 2 seconds after restoring power, press
and hold the power and brightness down keys
simultaneously for about 2 seconds. This
action will pair the two devices.
*The LED light strip will quickly flash once when paired.

Common Code Pairing

It is possible to pair multiple receivers to the same
single transmitter by simply repeating the steps above with additional
receiver units.
Please note that only static colors will synchronize; color-changing
effects will not synchronize due to the various cycling speeds of each
unit. In addition, if you repeatedly press any of the touchpad keys too
fast, the RGB controllers will lose their synchronization.
To re-synchronize, press the reset key on the touchpad
transmitter. All receivers and RGB LED lighting will reset to
the same warm white color. For effective synchronization, all receivers
must be within range of the single wireless touchpad.
Note: you can also "un-pair" the RGB controllers by following the
process above but press the brightness up and brightness down keys.
Common Code Pairing
Pairing and RF code technology can greatly reduce the need for extra wiring.

WIRELESS TOUCHPAD OPERATION

WIRELESS TOUCHPAD OPERATION

Power ON/OFF

BRIGHTNESS

Controls the light
level for static colors
and jump and strobe
effects. Brightness is
not adjustable in any
color fade effects.

EFFECT SPEED

Controls the speed
of all color-changing
effects. Arrow up for
faster, down for slower.
2015 Super Bright LEDs, Inc. All RIghts reserved.
©
Unique Code Pairing
RESET key will take
unit to the #1 sequence
warm white color.
At the same time, it
will return brightness
settings on all colors to
100%. Effect speeds
will return to the
medium speed setting.

COLOR/MODE

Press forward arrow to
advance to next static
color or color-changing
effect. Press back
arrow to return to
previous color or effect
displayed.
