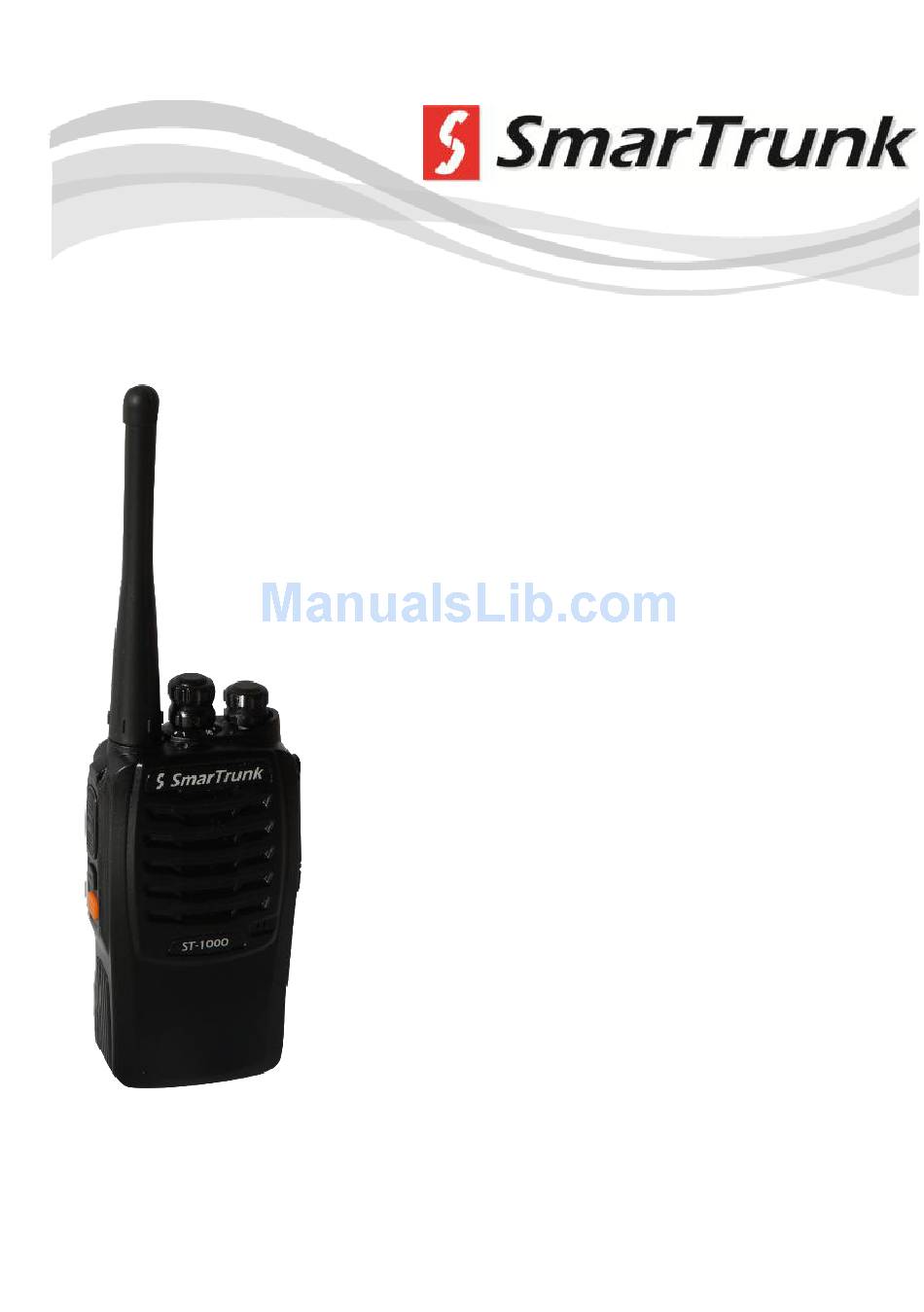

- Page 1 UHF FM DIGITAL TRANSCEIVER ST-1000D ST-1000C VHF FM DIGITAL TRANSCEIVER ST-1000V SmarTrunk Systems, INC. ST-1000UM R1.0a Printed in Malaysia PN: AL1000010A...
- Page 2 FCC NOTICE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, (2) This device must accept any interference received, including interference that may cause undesired operation.
- Page 3 THANK YOU! We are grateful you chose SmarTrunk for your land mobile radio applications. We believe this powerful, flexible and easy-to-use transceiver will provide dependable and reliable communications to keep personnel operating at peak efficiency. SmarTrunk transceivers incorporate the latest in advanced SDR technology.
- Page 4 ATTENTION (U.S.A. Only): The RBRC Recycle seal found on Smartrunk lithium-ion (Li- Ion) battery packs indicates Smartrunk‘s voluntary participation in an industry program to collect and recycle Li-Io batteries after their operating life has expired. The RBRC program is an alternative to disposing Li-Io batteries with your regular refuse or in municipal waste streams, which is illegal in some areas.
-
Page 5: Table Of Contents
CONTENTS Contents Page APPENDIX I: DEALER PROGRAMMED FUNCTIONS ….19 BATTERY CHARGER............... 9 GETTING ACQUAINTED .............. 13 Installing the Antenna ST-FA0X ..........12 Installing the Belt Clip ..............12 Installing/ Removing the LI-Ion Battery Pack ......12 LED INDICATOR ................16 MAKING A CALL ................ -
Page 6: Unpacking And Checking Equipment
UNPACKING AND CHECKING EQUIPMENT Note: The following unpacking instructions are for use by your SmarTrunk dealer, an authorized SmarTrunk service facility, or the factory. Carefully unpack the transceiver. We recommend that you identify the items listed in the following table before discarding the packing material. -
Page 7: Smartrunk St-Sbp18
SMARTRUNK ST-B16 BATTERY PACK RECOMMENDATIONS If not charged or used correctly, Lithium Polymer batteries may ignite without warning and cause serious injury and property damage. If you are unable to follow the safety recommendations then do not use them Do not charge Lithium Polymer cells on or near combustible materials including paper, plastic, carpets, vinyl, leather, or wood. - Page 8 battery and connectors for even the smallest damage. CAUTION: cells may be hot! Do not allow the electrolyte to get into eyes or on skin. Wash affected areas immediately if get in contact with electrolyte. Do not alter or modify connectors or wires of a Lithium Polymer battery pack.
-
Page 9: Battery Charger
SMARTRUNK BC-02 BATTERY CHARGER Never leave the charger unattended. If you will be away from the charger then leave it unconnected from the battery. Charge all batteries on concrete, at least 10 feet (3 meters) away from combustible materials. Do not use if flammable liquids are in the area. Use this charger only with SmarTrunk Lithium Polymer battery packs. - Page 10 The Battery Charger ST-BC02 is a device specially designed to recharge SBP-16 battery pack compatible with ST-1000 SDR radio. This device has enough internal intelligence to exchange information with the battery under charge and improves charging regulation to extend battery life as much as possible, keeping risk out of battery damage by wrong recharging process.
- Page 11 End of charge: As soon as the re-charge process has been completed the charger led becomes green. You can decide when the performance becomes too poor to buy a new battery, but anyway, the battery life indicator will let you get an approximate idea of battery health after the charging process ends.
-
Page 12: Installing The Antenna St-Fa0X
Installing/ Removing the LI-Ion Battery Pack Only use the ST-B16 battery packs with this transceiver. To install the battery, please complete the following steps. Match the grooves of the battery pack with the corresponding holes on the back of the transceiver. Pull the battery pack down on the back of the transceiver until the release latch on the base of the battery locks. -
Page 13: Getting Acquainted
GETTING ACQUAINTED Rotary encoder Move clockwise or counterclockwise to change the selection according to the mode programmed for this encoder. Power switch and Volume control Turn clockwise to switch ON the transceiver. Rotate to adjust the volume. Turn fully counterclockwise to switch OFF the transceiver Page 13... -
Page 14: Making A Call
Transmit/ Busy/ Low Bat Lights red during transmission Green while receiving a call Blinks on red to show low battery status Speaker Microphone Side Keys Press to activate its programmable function. The function assigned to this key is designed by your dealer. PTT (Push-to-Talk) switch Press this switch, and then speak into the microphone to call a station. -
Page 15: Rotary Functions
If enabled by your radio programmer or dealer, your radio may have a time out timer, which can set a limit to the max length of your transmission without releasing the PTT. If it happens, you will receive a warning beep. ROTARY FUNCTIONS Top rotary switch function can be assigned to different associated functions in your dealer shop. -
Page 16: Led Indicator
Lights green: while receiving. Flashes red: when the battery power is low, once per 2 second when battery charge is under the 5% and once per second when it’s less than SWITCH ON/OFF AND VOLUME SELECTOR Turn clockwise to switch ON the transceiver. Rotate to adjust the volume. - Page 17 position. If your radio is in the end of the list, it will jump to the first channel in your channel table (roll over) Channel Down: Selects the previous channel in the current channel list from current bank. If the rotary is also set for channel selector, this button action will still change the channel, overriding the top rotary switch position.
- Page 18 APPENDIX I: DEALER PROGRAMMED FUNCTIONS Short Push Long Push Channel Up Channel Down Power Toggle Monitor RSSI Set Hybrid Mode Cleat Hybrid Mode Page 18...
-
Page 19: Appendix I: Dealer Programmed Functions
Copyright 2014 Printed in Malaysia www.smartrunk.com ST-1000UM R1.0a AL1000010A Page 19...
