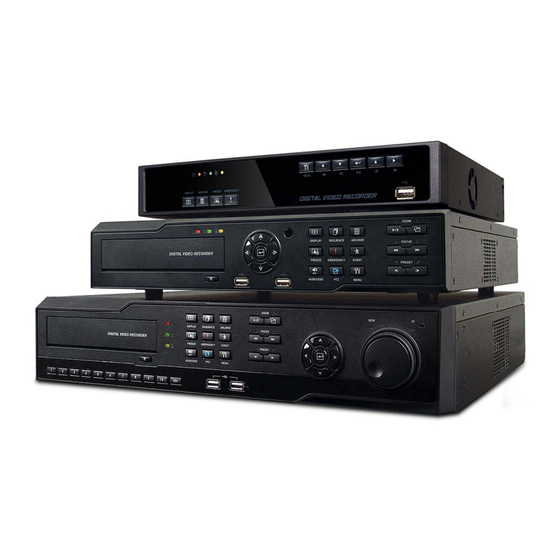

Standalone Digital Video Recorder
Premium DVR
4, 8, 16 Channel Models
User`s Manual
MADE IN KOREA
KM1123FAMFN
FAM6_K
This document contains preliminary information and is subject to change without notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MV-ADV1602HD and is the answer not in the manual?

Questions and answers

Summary of Contents for Elcomax MV-ADV1602HD

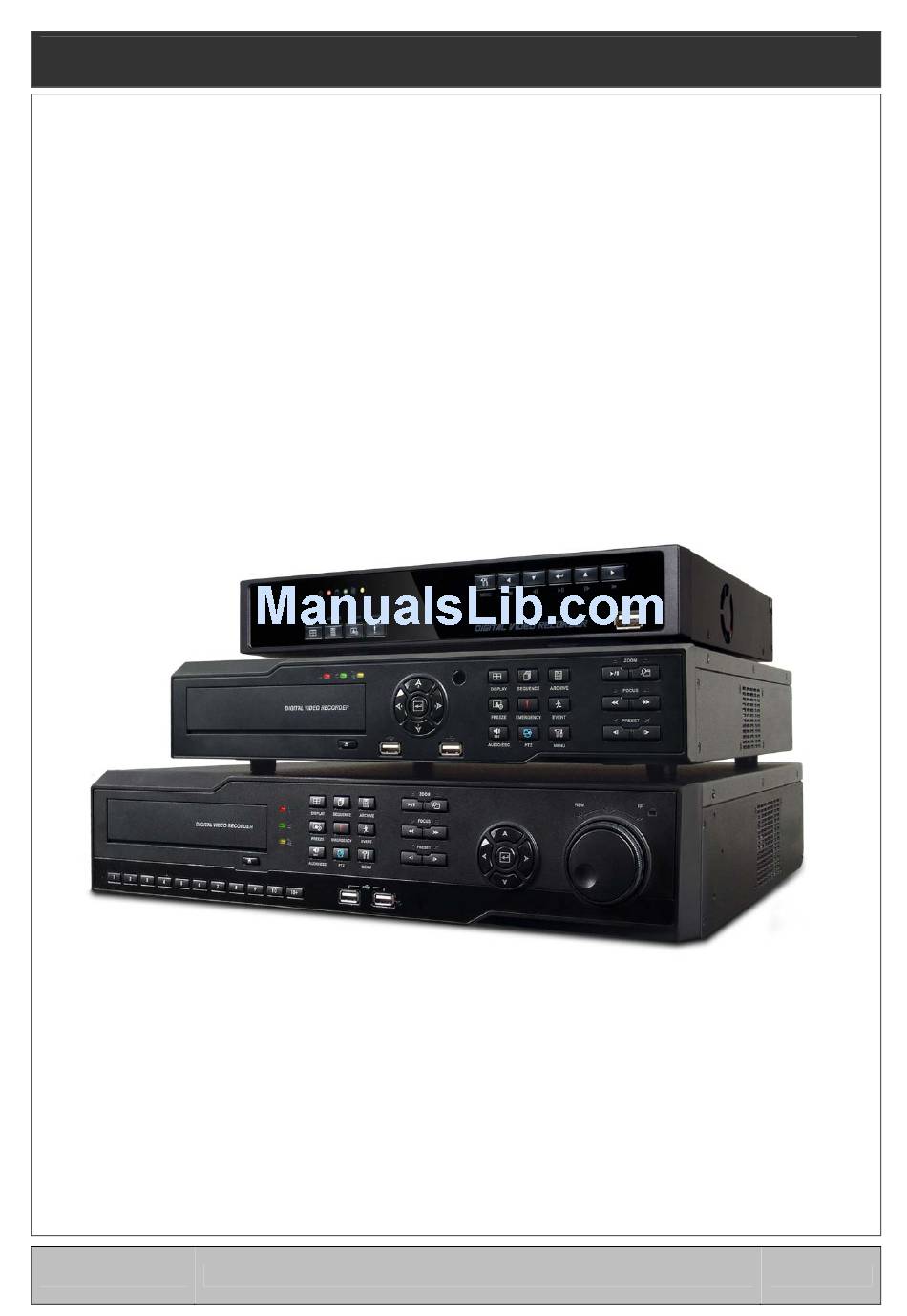

  • Page 1 Standalone Digital Video Recorder Premium DVR 4, 8, 16 Channel Models User`s Manual MADE IN KOREA KM1123FAMFN FAM6_K This document contains preliminary information and is subject to change without notice.

  • Page 2 FCC Compliance Statement Notice to Users This equipment has been tested and found to comply with the limits for a Class A digital device. Pursuant to Part 15 of the FCC Rules, these limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 3 Cautions  This product has free voltages (100V ~ 240V). See installation instructions before connecting to the power supply.  This product uses a Lithium battery.  To avoid any risk of explosion, do not replace the battery on the main board by anything other than a Lithium battery. ...
  • Page 4 12. Servicing  Do not attempt to service this equipment yourself. Refer all servicing to qualified service personnel. 13. Damage Requiring Service  Unplug this equipment from the wall outlet and refer servicing to qualified service personnel under the following conditions: ①...
  • Page 5 The List of Configuration A and E(4CH) Type : 4 / 8 / 16CH B and E(8, 16CH) Type : 4 / 8 / 16CH DVR Set C, D, F, G, H and I Type : 4 / 8 / 16CH Manual / CMS CD Remote Controller Manual...

  • Page 6: Operation Precautions

    Operation Precautions  Power Off  Do not turn DVR off, or plug off the power adapter while DVR is in operation (record/playback). Otherwise, it may cause permanent damage to the equipment. Please click ( ) SETUP>SYSTEM>Shutdown sequentially and then remove the power after DVR is shut down completely.

  • Page 7: Table Of Contents

    Table of Contents 4.2.3 Account ............42 1. PRODUCT FEATURES ....... 11 4.2.4 System Log ........... 44 1.1 Unpacking ............11 4.2.5 Exit ..............44 4.2.6 Shutdown ............45 1.2 Service ............11 4.3 DISPLAY ............45 1.3 System Connection Diagram ......11 4.3.1 OSD ..............
  • Page 8 7. ICMS VIEWER ........... 115 5.7 Menu Bar ............75 7.1 System Recommendations ......115 5.8 Alarm Out Control .......... 76 7.2 Program installation ........115 6. CMS PRO ............ 78 7.3 Login .............. 116 6.1 CMS Pro Features .......... 78 7.4 Watch Mode ...........
  • Page 9 11.3 Keyboard Configuration ......187 10.1.10 Setting ............156 10.1.11 Uninstallation ..........156 11.4 Operation ............187 10.2 iPad Mobile ..........158 11.4.1 DVR/PTZ Mode conversion ......187 10.2.1 System Requirements ........ 158 11.4.2 DVR Control Mode ........187 10.2.2 Installation ..........158 11.4.3 PTZ Control Mode........
  • Page 10 13.4 HSC2410 ............206 13.4.1 Introduction ..........206 13.4.2 Features ............. 206 13.4.3 Technical Specification ....... 206 13.4.4 Unpacking ..........206 13.4.5 Service ............206 13.4.6 System Dimension Diagram ....... 207 13.4.7 Connector Wiring ........207 13.4.8 Cable ............207 13.4.9 Display ............

  • Page 11: Product Features

    Product Features 1.1 Unpacking  This equipment is an electronic appliance, so it should be handled with special care.  After unpacking, please check if all the following items are included. - DVR Main body A, B and E(4CH) Type : Power Supply Adapter (DC 12V, 5A) and Power Supply Cable C, D, E(8, 16CH), G, H and I Type : Power Supply Adapter (DC 12V, 6.67A) and Power Supply Cable...
  • Page 12 B Type – 4 / 8 / 16 channel Series DVR...
  • Page 13 C Type – 4 / 8 / 16 channel Series DVR...
  • Page 14 D Type – 4 / 8 / 16 channel Series DVR...
  • Page 15 E(4CH) Type – 4 channel Series HD-SDI DVR...
  • Page 16 E(8, 16CH) Type – 8 / 16 channel Series HD-SDI DVR...
  • Page 17 F Type – 4 / 8 16 channel Series HD-SDI DVR...
  • Page 18 G Type – 4 channel Series HD-SDI DVR...
  • Page 19 H Type – 4 channel Series HD-SDI DVR...
  • Page 20 I Type – 4 + 4 channel Series Hybrid DVR...

  • Page 21: Installation

    Installation 2.1 Hard disk and DVD-RW Installation 2.1.1 SATA Port  When installing HDDs, make sure to connect from SATA 1 Port. A Type  - Main substrate of this DVR has two SATA port: it is indicated as SATA 1 and 2. B and E(8, 16CH) Type ...

  • Page 22: E-Sata External Storage

    2.1.3 e-SATA External Storage (C, D, E(8, 16CH), F, G, H and I Type)  These series DVRs have one external SATA Port; the picture above shows external SATA 6 Port.  6 SATA Port: It is designed to mount 4HDDs per each external SATA Port. 2.1.4 HDD Installation ...

  • Page 23: Dvd-Rw Installation

    2.1.6 DVD-RW installation  Securely fix DVD-RW by using bracket and screws provided herewith.  Please do not use any different DVD-RW cables (data cable and power supply cable) other than the ones we provide.  Otherwise, it may cause damage to the DVD-RW. ...

  • Page 24: Connector Wiring

    2.2 Connector Wiring 2.2.1 Video-In/Loop Out Connections A, B, C and D Type  Connect a camera to ‘VIDEO IN’.  If user wishes to link camera input to another device, please connect the camera to ‘LOOP OUT’. (C Type). ...

  • Page 25: Hdmi Connections

    2.2.5 HDMI connections  Connect HDMI cable to HD out port of rear panel and HDMI port of HD output device.  Please click ( ) SETUP> DISPLAY> VGA and the following screen will appear.  Click the box below to select resolution. - User can select the resolution among ‘1920x1080 RB’, ‘1920x1080’, ‘1680x1050 RB’, ‘1680x1050’, ‘1280x1024’, and ‘1024x768’...

  • Page 26: Alarm Connections(Relay (Dry Contact))

    2.2.10 Alarm Connections(Relay (Dry Contact))  Connect Alarm Output (buzzer, siren, etc.) to ‘NO or NC 1~ NO or NC 2’ connectors, Power to ‘COM’ connector and Ground to ‘GND’ connector. 2.2.11 RS-485/422 Connections  PTZ Camera connector.  Please use TX+, TX-, RX+ and RX- terminals. 2.2.12 RS-485 Over Coax Connection (A, B and C Type ONLY) ...

  • Page 27: Power Supply Connections

    2.2.17 Power Supply connections A, B and E(4CH) Type  : Plug the power supply adapter (DC 12V, 5A) which include in this product to ’DC12V’ connector and plug another side to power source. Adapter input voltage is a free volt (100 VAC ~ 240 VAC). Please do not use any different power supply adapter because it may cause the DVR to malfunction.

  • Page 28: Input Device And Screen Icons

    Input Device and Screen Icons 3.1 Key and LEDs B and E(8, 16CH) Type KEYS PTZ KEY Operating mode Setup mode •Up/Down/Left/Righ ▲, ▼, ◄, ► • Control Pan/Tilt rotation of up/down/left/right in PTZ mode t on screen cursor control 1 ~ 16 •...
  • Page 29 C, D, F, G, H and I Type KEYS PTZ KEY Operating mode Setup mode •Up/Down/Left/Righ ▲, ▼, ◄, ► • Control Pan/Tilt rotation of up/down/left/right in PTZ mode t on screen cursor control 1 ~ 16 • Camera select keys : (4/8/16 channel DVR) DISPLAY •...

  • Page 30: Camera Select Keys For 16 Channel Dvr

    3.2 Camera Select Keys for 16 Channel DVR B and E(8, 16CH) Type  Below shows how to select camera channel for 4 channel DVR - Select Camera No. 1~4: press 1~4 key  Below shows how to select camera channel for 8channel DVR - Select Camera No.

  • Page 31: Front Panel

    3.3 Front Panel A and E(4CH) Type 4 / 8 / 16 Channel DVR B and E(8, 16CH) Type 4 Channel DVR 8 Channel DVR 16 Channel DVR C, E, F, G, H and I Type 4 Channel DVR 8 Channel DVR 16 Channel DVR 3.4 Using a Remote Controller ...

  • Page 32: Using A Mouse

    3.5 Using a Mouse  Mouse provides an easier access to adjustment. Refer to below for proper use.  Left mouse button functions the same as Enter ( ) key on the front panel of DVR.  Right mouse button displays the following “Function keys” on screen. ...

  • Page 33: Screen Icon

    3.6 Screen Icon Icon Description Icon Description Continuous recording mode In Audio recording Event recording mode CMS access indication/ No. of accesses (Motion) (up to 16) Event recording mode In channel sequencing (Alarm In) In recording Lock PTZ registration / PTZ mode Setup in HDD Overwrite mode Setup in HDD No Overwrite mode Setup in HDD No Overwrite mode...

  • Page 34: Setup

    Setup 4.1 Login / Logout  At the default setting of DVR, user has to input the password to enter the set up menu.  Please press SETUP key to enter the setup menu and the following screen will appear. ...

  • Page 35: System

    4.2 SYSTEM 4.2.1 Information  Please click ( ) SYSTEM>Information and the following screen will appear. Status Site Description  Decide on a name of DVR.  Please click ( ) keyboard icon on Site Description frame and the following virtual keyboard will appear. ...
  • Page 36  Import: Copy the Menu setup stored in USB memory stick into DVR. Please plug in the memory stick and then click ( ) Import.  Export: Store the Menu setup of DVR in USB memory stick. Please plug in the memory stick and then click ( ) Export. ...
  • Page 37 Record  When user completes Version input, please click ( ) Record. Then, the following screen will appear.  The screen shows start time and end time of recorded data. Overwrite Setting  Click ( ) Overwrite Setting button and the following screen will appear. ...

  • Page 38: Admin

    CAUTION IF USER USES “Rec Days” FUNCTION, DVR WILL STORE ONLY THE DAYS THAT SPECIFIED BY USER. PLEASE BEWARE OF DATA LOSS DUE TO “Rec Days” FUNCTION. NOTE Notify setting does not affect saving the recorded data. It only gives notification and keep recording until hard disk is full. NOTE For more specific setting about Alarm-out, use Setup>DEVICES>Alarm Out.
  • Page 39 CAUTION ANY CHANGE IN DATE/TIME IS IMMEDIATELY APPLIED ON VIEWING SCREEN (LIVE), BUT THE DATE/TIME WHEN THE RECORDING WAS DONE IS NOT CHANGED. MAKE SURE TO REBOOT DVR AFTER CHANGING THE DATE/TIME. DO NOT FORGET TO EXECUTE SHUTDOWN (SYSTEM>Shutdown) BEFORE REBOOT. Time Zone ...
  • Page 40 NTP Server  Click ( ) keyboard icon in NTP Server frame and the virtual keyboard will appear. Input IP address of NTP server. NOTE “Use NTP” function connected to the Time zone, user should set the Time zone correctly to operate the NTP function properly. NOTE Currently used NTP is administered by pool.ntp.org and its IP address is 65.23.154.62.
  • Page 41  Following format, DVR will auto-reboot. If there are more than 2 HDDs, please formats each of HDDs. DVR will auto-reboot when all the HDDs are formatted.  If the format changes to ‘---‘after reboot, it means formatting has been properly done. CAUTION EXECUTE REMOVE PROCEDURE EVEN WHEN USER REMOVE PREVIOUSLY INSTALLED HDD.

  • Page 42: Account

    4.2.3 Account  Please click ( ) SYSTEM>Account and the following screen will appear. New Group  Please click ( ) New Group and the following screen will appear.  Click ( ) keyboard icon on the right-hand side of Group Name frame. Then, the virtual keyboard will show. Please click ( ) desired characters (up to 8 characteristics) on the virtual keyboard.

  • Page 43: New User

    New User  Please click ( ) New User and the following screen will appear.  Click ( ) the keyboard icon on the right-hand side of User Name frame and the virtual keyboard will appear. Click desired characteristics (up to 8 characteristics) on the virtual keyboard. ...

  • Page 44: System Log

     Use key if wish to erase password on keyboard. 4.2.4 System Log  Please click ( ) SYSTEM>System Log and the following screen will appear.  System Log displays diverse events as below events by specifying the user account that actually has accessed the DVR. - Setup (Menu) Enter/Exit - Playback Mode Enter/Exit - Network Access Enter/Exit...

  • Page 45: Shutdown

    4.2.6 Shutdown  Shutdown is a function to help user safely turn the DVR off. Please use the proper shut down procedure to avoid damaging to our DVR system. Do not remove the power during shut down.  Click ( ) SYSTEM>Shutdown and then choose ‘OK’ on the dialogue box to confirm. ...

  • Page 46: Main Monitor

    De-Interlace  This function changes playback display into Progressive Scan or Interlace Scan. Check () De-Interlace, then frame will display as the Progressive Scan and shows the better picture quality. 4.3.2 Main Monitor  Please click ( ) DISPLAY>Main Monitor and the following screen will appear. ...

  • Page 47: Multi Spot

    4.3.3 Multi Spot  This connection supports multi-channel display (1/4/9/16) on spot monitor depending on its channels(4/8/16).  Click [MS] button on the menu bar to select the Multi Spot.  Click [1/4/9/16] button to select the multi channel split display mode. ...

  • Page 48: Video In / Out

    4.3.4 Video In / Out  Users are able to set its video output resolution from 1024 x 768 to 1920 x 1080  DVR displays and records differently with previous NTSC or PAL methods.  Analog Output will help users to select its video output between NTSC and PAL. ...

  • Page 49: Network

    4.4.1 Network  Please click ( ) DEVICES>Network and the following screen will show. Network Type  Please click ( ) Network Type. When you click ( ) the button, it changes alternately to Static (fixed IP) and DHCP (floating IP).
  • Page 50 DDNS  Please click ( ) DDNS and the following screen will appear.  ‘Floating IP system’, although being predominantly used over Internet, is very inconvenient for users because its address varies every time when user access. The best alternative is DDNS (Dynamic Domain Naming System) which uses name (domain name) instead of IP address (numbers).
  • Page 51 - As for Domain Name, user has to input the Domain Name given from the selected DDNS Server. - As for ID and Pass word, use the user ID and Password to log in to the selected DDNS Server. - Click “Run ddns service” to start mapping from DVR to DDNS Server. - Choose ‘OK’...
  • Page 52 CAUTION PLEASE CHECK THE ROUTER FOR UPNP SUPPORTABILITY BEFORE START USING THE UPNP FEATURE. CAUTION ONCE PORT NUMBERS ARE CHANGED, IT MUST BE CHANGED THE PORT NUMBERS OF CMS (Central Monitoring Station) PROGRAM AS WELL. Notification  Please click ( ) Notification and the following screen will appear. ...

  • Page 53: Camera / Ptz

    4.4.2 Camera / PTZ  Please click ( ) DEVICES>Camera/PTZ and the following screen will appear.  Click ( ) the keyboard icon on the right-hand side of each frame on Title column and the virtual keyboard will appear. Then, register titles of cameras.

  • Page 54: Audio

     Click ( ) ▲, ▼ direction buttons on the right-hand side of the ID column to set ID number (i.e., 0 ~ 9999) of each PTZ.  While pressing (+) or (-) button, ID increases or decreases by 10 units. ...

  • Page 55: Alarm Out

    Alarm Schedule  Users are able to schedule the Alarm In deactivation period.  Click ‘Alarm Schedule’ and the following screen will appear.  Select the Alarm Input(s) to apply alarm in sensor deactivation according to Alarm schedule.  Select the Hours to deactivate the alarm in sensor. ...

  • Page 56: Record

    4.5 RECORD  Please click ( ) RECORD and the following screen will appear. 4.5.1 Setting  Please click ( ) RECORD>Settings and the following screen will appear.  There are three kinds of recording mode. - Continuous: record continuously. - Event: record only when Sensor or Motion calls.
  • Page 57 -HD-SDI Type- E and F Type 360x240 (360x288) 720x240 (720x288) 720x480 (720x576) 1280 x 720 1920 x 1080 4 Channel DVR Max. 30 fps per Channel Max. 30 fps per Channel Max. 30 fps per Channel Max. 15 fps per Channel Max.
  • Page 58  Click ( ) each frame on Resolution column to select recording resolution of a corresponding camera. User may select one of 360x240(288), 720x240(288), 720x480(576), 960x480(576), 1280x720 and 1920x1080.  Click ( ) each frame on Frames column to select recording rate of a corresponding camera. Recording rate varies by camera.
  • Page 59 Emergency  Please click ( ) Emergency and the following screen will appear Emergency.  The Emergency menu will allow user to set Emergency videos.  Each frame on Title column shows camera title registered in DEVICES>Camera/PTZ. User may not change camera titles here.

  • Page 60: Schedule

     HD-SDI Input (CH 5 ~ 8) 360x 240(288) 720x240(288) 720x480(576) 1280 x 720 1920 x 1080 2 Channel SDI Max. 30 fps per Channel Max. 30 fps per Channel Max. 30 fps per Channel Max. 30 fps per Channel Max.

  • Page 61: Pre Alarm

    Motion / Alarm In Motion / Alarm In / Continuous Motion / Alarm In / Pre Alarm  Choose ‘OK’ to confirm the setting. NOTE Holiday (H) registration is done with a separate menu. 4.5.3 Pre Alarm  Please ( ) RECORD>Pre Alarm and the following will appear. ...

  • Page 62: Motion Detection

    H Type 360x240 (360x288) 720x240 (720x288) 720x480 (720x576) 1280 x 720 1920 x 1080 4 Channel DVR Max. 30 fps per Channel Max. 30 fps per Channel Max. 30 fps per Channel Max. 30 fps per Channel Max. 30 fps per Channel I Type Analog Input (CH 1 ~ 4) ...

  • Page 63: Holiday

    4.5.5 Holiday  Please click ( ) RECORD>Holiday and the following screen will appear.  The Holiday menu will allow user to register holidays. Please follow the registration procedure below. ① Use arrow buttons in the Month Calendar to select Year and Month of holiday to be registered. : search subsequent ‘Year’...

  • Page 64: Motion Event

    ① Click ( ) Alarm In frame and select Alarm In 1. ② Select cameras for recording when Alarm In 1 is on. Please check  a check box under Link Camera. More than two cameras can be set. ③ Select alarm outputs to be worked when Alarm In 1 is on. Please check  a check box under Link Alarm Out or R1~2. More than two alarm outputs can be set.

  • Page 65: Video Loss

    4.6.3 Video Loss  Please click ( ) LINK>Video Loss and the following screen will appear.  Select alarm outputs and set up E-mail addresses for notification when Video Loss occurs.  Link Notification displays E-mail addresses registered in DEVICES>Network>Notification. ...

  • Page 66: System Event

    4.6.5 System Event  Please click ( ) LINK>System Event and the following screen will appear.  Select recording cameras and alarm outputs while Emergency recording using EMERGENCY key and set E-mail addresses for notification.  Link Notification displays E-mail addresses registered in DEVICES>Network>Notification. ...

  • Page 67: Operation Instruction

    OPERATION INSTRUCTION 5.1 Viewing 5.1.1 First Image  Power on DVR and the following live video will appear, while viewing and recording at the same time.  The screen will display date/time and icons below. Icon Description Continuous recording mode Event recording mode (Motion) Event recording mode (Alarm In) In recording...

  • Page 68: View Format

     Click Emergency recording button, icon will show.  Click Audio button, icon will show. And click channel button, then user can change only audio channel. NOTE When front key does not work well, please check whether the audio icon is activated on the screen.
  • Page 69  Following is the key usage found in Pan/Tilt mode. Function Up/Down/Left/Right rotation Zoom out Zoom in Focus near Focus far Iris Close Iris Open Save Preset Go to the Preset Go to OSD main menu Run Group Tour 1~9 Run Pattern 1~9 ...

  • Page 70: System Log

    5.1.6 System Log  Press EVENT key and the System Log screen will appear.  Please refer ‘SETUP>SYSTEM>System Log’ to learn different events listed on the System Log and see how to delete the System Log. 5.1.7 Key Lock  Press AUDIO>FF>FORWARD keys in sequence to operate the key lock function. This function is indicated by icon in the lower portion on the right-hand side of the screen.

  • Page 71: Date / Time Search

    5.2.1 Date / Time Search  Please click ( ) Date/Time Search in SEARCH menu and the following input box will appear.  Follow the procedure below to search video by date/time. ① Click ( ) the date and/or time whichever user needs to change and block the item. The designated item will be marked in a square.

  • Page 72: Event Search

    ⑤ The screen will show selected date/time. ⑥ Click ▲▼ button for selecting cameras. ⑦ Click then recorded data will be highlighted on the bar. ⑧ Selected camera will show the time bar 0-60 and It will be marked on 2.5minutes basis during selected time zone. ⑨...

  • Page 73: Playback

    5.3 Playback  This involves searching recorded video to playback the wanted video of a specific date and time in search mode.  Press SETUP key or please press the mouse right button and click in Playback mode. Then, the following screen will appear. ...

  • Page 74: One-Touch Playback

    5.4 One-touch Playback  Press the PLAY/PAUSE key or double click the mouse wheel (central button) in the viewing mode. Then, user will be able to view the wanted recorded video right away without going through the search procedure. The video plays back the recorded video from the last one minute.

  • Page 75: Menu Bar

    NOTE Please do not change the settings by DVR or CMS, while back up. NOTE Please enter all the necessary information before Click ‘START’. NOTE If the When the targeted file size is over 2GB, press “ ” button on the right again after the first “ARCHIVE SUCCESS”. And DVR will continue to archive to another file with the extension of “-002”...

  • Page 76: Alarm Out Control

    5.8 Alarm Out Control  Please click ( ) Color / Alarm in SEARCH popup menu or in front panel and the following input box will appear. NOTE This function is enabled only when LIVE MODE and 4 SPLIT SCREEN MODE or HIGHER. NOTE A Type has 1 Alarm Relay out, B and C Type has 2 Alarm Relay out ports and 4/8/16 Alarm out, D and E Type has 1 Alarm Relay out and 1 Alarm out, and F Type has 2 Alarm Relay out and 4 Alarm out.
  • Page 77 Professional Central Monitoring Software CMS Pro Full-featured Enterprise Class Surveillance Solution User`s Manual This document contains preliminary information and is subject to change without notice.

  • Page 78: Cms Pro

    CMS Pro 6.1 CMS Pro Features 6.1.1 Introduction  The CMS Pro is a central surveillance system solution that monitors multiple sites with video, audio and event signals from DVR over networks.  The software supports different windows of live viewer, playback player, interactive map viewer, various search panes and event signal monitoring panes.

  • Page 79: Installation

    6.2 Installation 6.2.1 Software Installation  Please follow the program installation procedures below. ① If an old version of CMS Pro program was installed, completely uninstall or delete the old version. CAUTION USERS SHOULD COMPLETELY REMOVE CMS PRO PROGRAM OF AN OLD VERSION BEFORE INSTALLING NEW VERSION IN ORDER TO REDUCE COLLISION.

  • Page 80: Login

    ⑦ When the following screen appears, click “Install.” ⑧ When the following screen appears, click “Finish” to complete the installation. NOTE  If the PC has a previously installed CMS Pro, the installer asks whether to overwrite the existing DB or not. The DB contains setting values on the program.

  • Page 81: Menu

    NOTE Users may change the password in [Setup] – [Change Password] menu. For the detailed information, please refer to the ‘Chapter 7.4.4.3 Change Password’ page. The CMS Pro saves settings and layouts on the program of the current user when the program is closed. 6.3 Menu ...

  • Page 82: Setup

    6.4 Setup 6.4.1 Local Setup - Device  Please make sure the network setting of DVR has been done properly prior to the remote connection setting. 6.4.1.1 Remote Site Connection Setup  Click Setup – Local Setup – Device to enter the setup and a dialog will pop up as below picture. 6.4.1.2 New Device Register Device ...
  • Page 83 Camera  Choose a camera name between DVR and CMS setting or both. - Device Camera Name: Display camera name of DVR. - CMS Camera Name: Display Camera name of CMS. - Both (Device-CMS) Camera Name: Display both as [DVR name]-[CMS name]. ...

  • Page 84: Device Group Setup

    6.4.2 Device Group Setup  It is possible to make a group of multi-devices for user’s convenience. - Users are able to combine multiple devices as one group of connection for easy control. - Users are able to extract the cameras from registered DVRs to make own group of display. 6.4.2.1 New Grouping Setting ...

  • Page 85: Local Setup - Environment

    6.4.3 Local Setup - Environment  This enables users to adjust the default setting for user’s convenience. 6.4.3.1 System  Users are able to check the current version of the software.  Users are able to select the language among English, Korean, Japanese, Russian and Turkish. 6.4.3.2 Viewer Audio ...
  • Page 86  Date / Time format: Users can adjust and set the mode of date / time display in accordance with the location. - Date/Time: show current time. - Date Format: select the date format among YYYY-MM-DD/MM-DD-YYYY/DD-MM-YYYY. - Time Format: select the time format between 24Hours/ 12 Hours AM/PM. ...

  • Page 87: Instant Playback

    6.4.3.4 Setup  Select Save Directory: Users can select the save directory of setup data or log data by designating the folder in the PC or other storage device and the change of the directory will be applied only after clicking “OK” button and exit. ...

  • Page 88: Local Setup - Account

    6.4.4 Local Setup - Account  When more than 2 users need to access CMS Pro, multiple User Accounts and its authorization can be set in this menu.  This setup is only permitted to Admin account holder.. 6.4.4.1 Add User Account ...

  • Page 89: Local Setup - E-Map

    6.4.4.4 Login Setting  This function protects any activities of all Manager/User accounts by asking ID and Password prior to the fulfillments.  Select the activities from the list ( ) and click “Apply” to save. 6.4.5 Local Setup – E-map ...
  • Page 90  Place the icon of cameras, audios and alarms on the map. Each icon’s detail is as below. Box Camera. Generally indicates as Outdoor camera. Dome Camera. Generally indicates as Indoor camera. Users can hear the audio in the site by clicking the icon after setting the E-map. The icon will be light on when the alarm in is activated.

  • Page 91: Remote Device Setup

     Click “File” Tab to continue to set up the E-map.  Type a name of E-map when you finish map setting in “New” menu.  Click “new” to add a new location in Location list. If the other location is already saved, then select the location from the list. ...

  • Page 92: Change Password

    6.4.7 Change Password  Users are able to change the password of the ID. - Password: input the current password. - New Password: input the new password. - Confirm Password: confirm the new password. NOTE User “ID” cannot be modified. 6.4.8 Help 6.4.8.1 About ...

  • Page 93: Remote Device System Log

    6.5.2 Remote Device System Log  User can check the system log of the device in this menu.  Type, Date/Time/Description can be checked.  The contents in the parenthesis show the name of the device. Ex) [Demo]  Check “Visible” in the Remote Device System Log menu to see the menu or uncheck “Visible” in order not to see the menu. ...

  • Page 94: Cms System Log

    NOTE The Remote Device Event Log is on when the “pause” is shown while the log is stopped when the “resume” is shown in the menu.  Double click the detected “ Alarm In” or “Motion” event in the remote device event log to check the video of the event. ...

  • Page 95: Health Check

    6.5.5 Health Check  This is the menu where users can easily check the overall status of the device.  Check “Visible” in the Health Check to see the menu or uncheck “Visible” in order not to see the menu. ...

  • Page 96: Show All Windows

     Recording Data Status The channel is not being recorded because it’s not supported. The channel is being recorded. The channel is not being recorded currently but can be recorded later.  Alarm In Status Alarm In is not activated and cannot be added. Alarm In is being activated.

  • Page 97: Application

    Application 6.6.1 Search  There are five different types of search menu; Timebar, Event, POS/ATM, Thumbnail and Smart Search  The detailed information and directions is described in chapter 8. 6.6.2 Exit  If users wish to exit the program, then click the “Exit” in the Application menu.

  • Page 98: Live (Live Video Monitoring System)

    6.7 Live (Live Video Monitoring System) 6.7.1 Overview  This program is to display live video from multiple channels in customized screen format.  The program is based on user friendly interface. Users may configure the entire program and open or close the panes and screens in the program.
  • Page 99 6.7.2.2 Auto Sequence  Users are able to set the auto sequence.  When user set the “Auto Sequence” display mode, screen will change to 1 channel display mode and channel will be changed by user’s setup. For more information Please refer chapter 1.4.3.6. 6.7.2.3 Instant Playback ...
  • Page 100 6.7.2.4 Digital Zoom  To use digital Zoom, please make the display as 1CH.  Right click on the mouse and select Enter Digital Zoom.  To Zoom in and out, please use the display function at the corner of the channel Display or click and drag the area wish to zoom in.
  • Page 101 6.7.2.5 PTZ Control  After right mouse click on the channel that PTZ camera is connected, select “PTZ control”.  Users can designate the certain area and set the name by using “Preset” function.  Up to 255 presets can be designated. ...
  • Page 102 6.7.2.6 Screen Capture & Print  After right mouse click, select “Capture & Print Screen”  The brightness, contrast and saturation can be adjusted to store in users’ taste and can be printed directly. NOTE Image adjustment is only possible on the last captured image. ...

  • Page 103: Instant Recording

    6.7.2.7 Audio On/Off  Click right mouse button to on/off audio in the channel.  Audio On/Off function is applied to only one channel out of all connected channels. - Once audio is on “ ” will be changed to show connected audio channel. “ ”...
  • Page 104  If users click ‘OK’, It will start recording of particular chosen channel.  When users want to view the archived file, please choose “Open Folder”  It will open the saved directory of the file.  When users double click the created file, password window will pop –up. ...

  • Page 105: Screen Layout Control

    6.7.2.10 Display Option  Users can set up the display of camera name and time in “Display Option”.  After right mouse click, check the “Show Camera Name” to display the camera name or uncheck the menu to hide it. ...

  • Page 106: Sequencing

    6.7.5 Sequencing  Click the to switch the channel according to setup made in auto sequence in Local setup – Environment.  It is only supported one channel 6.7.6 Audio Volume Control  Users can control the audio volume using the bar controller at the bottom of the screen.

  • Page 107: Search

    6.8 Search 6.8.1 Overview  There are five different types of search function and users are able to search the recorded data by using a suitable search function of the five in accordance with their purpose. NOTE Search window cannot be closed during playback, also cannot be changed window size. Please close the window after stop. Playback more than 2 channels at the same time is available only in time bar search.
  • Page 108 NOTE Audio and Digital Zoom are supported only in 1CH display mode.  In the playback menu, users are able to decide to search the data from the beginning of the day or from the cursor position.  Or just simply click on the time line users want, and then click “ ”...

  • Page 109: Event Search

    6.8.3 Event Search  Click the “connect” after right mouse clicking on the device and select the “Event Search”.  Check the event type which users wish to search among “Emergency”,” Alarm” and “Motion”. (Users can select more than 2 event types at the same time) ...

  • Page 110: Thumbnail Search

    6.8.5 Thumbnail Search  Click the “connect” after right mouse clicking on the device and select the “Thumbnail Search”.  This search function provides the users with the certain number of snapshots of the recorded video of the selected camera. ...

  • Page 111: E-Map

    E-Map 6.9.1 Overview  The ‘Map Viewer’ program is to display event signals over map images so that users may acknowledge event status with geographical information.  Users may perceive event occurrence status with visual notifications on icons over the map image and audible notifications on speaker system of a PC.

  • Page 112: Alarm In/Out Control

    6.9.4 Alarm In/Out Control  The Alarm In icon on the map will be light on when the Alarm In equipment like sensor or detector is activated in the site.  If users click the Alarm Out icon, the light is on the icon and the alarm equipment such as siren and buzzer will be activated in the site.

  • Page 113: Uninstalling Cms Pro

    6.10 Uninstalling CMS Pro  Please click the “Uninstall” file in the CMS Pro folder in the PC.  Click the uninstall file and the following message box will pop up.  Click “OK” to remove the program and its components. ...
  • Page 114 iCMS iCMS User`s Manual This document contains preliminary information and is subject to change without notice.

  • Page 115: Icms Viewer

    iCMS VIEWER 7.1 System Recommendations Recommended Core 2 Duo 2.26GHz or higher Main Memory 2GB or higher Video Memory 512MB or higher Display Resolution 1024ⅹ768 (with 32bit color) or higher HDD Storage Space 30GB or higher Network 100~1000 Mbps Fast Ethernet Operating System Mac OS 10.6.0 or higher Program installation...

  • Page 116: Login

    7.3 Login  After installation of the software, iCMS icon appears in ‘Application’ folder.  Please double click on the icon to execute the program.  Select User Name by clicking upside down arrow and enter corresponding Password to login. Watch Mode 7.4.1 Log-in Screen ...

  • Page 117: Local Setting

    7.4.2 Local Setting  Please click ‘Setup’ button on the top of the Toolbar and the following screen will appear.  There are three types of setup such as Device Manager, Display Setup and Password Change. 7.4.2.1 Display Manager  Please click ‘Device manager’ and the following screen will appear. ...
  • Page 118  Device Info - Device Name: input the DVR site name which will be displayed on the Server list. Please note that this name has nothing to do with the ID registered in DVR. Users may create the name that is fairly easy to distinguish. - Description: type brief description of the site - IP Address: input IP address or Domain Name of DVR (check with SETUP>DEVICES>Network in DVR).

  • Page 119: Display Setup

    7.4.2.2 Display Setup  Please click ‘Display Setup’ and the following screen will appear.  Users can adjust and set the environment of the display window. - Default Division: Users can select the number of division of display channels when the program initially displays the screen.

  • Page 120: Live View

    7.4.2.3 Password Change  Please click Password Change in setup menu to change the password.  Please select the ID from the drop down list and type original password.  Please type new password and confirm the password below.  If the information is filled out, click ‘OK’ to finish the Password change. 7.5 Live View 7.5.1 Connection ...
  • Page 121  9-Split Screen Mode: Click on No.9 button and 9-split screen will display. The 9-split screen is in combination of 1~9 and 8~16. If users select Channel No. 9 and click the button, 1~9 split screens will display. Similarly, if users select Channel No. 10, 8~16 split screens will display.
  • Page 122 ② ① ③ ④ Number Description DVR name Start and finish recorded date and time The version of the firmware The number of Connected network(ex. CMS, Mobile CMS, etc.) to the DVR 7.5.4 PTZ Control  Under the server list, PTZ control can be found. This is for the control of Pan/Tilt/Zoom. ...

  • Page 123: Search Mode

    7.5.5 System Log  In the Live mode, system Log is shown. This will allow users to check System Log of Remote Site (DVR). 7.6 Search Mode  This involves searching recorded video to playback the video of a specific date and time. ...

  • Page 124: Event Search

    Search previous ‘Year’ Search subsequent ‘Year’ Search previous ‘Month’ Search subsequent ‘Month’ ② ③ ① ⑤ ④ ⑥ Fast Forward/Backward & Playback (Click the button to increase the speed by x1, x2, x4, x8, x16, x32, x64 and Extreme) Sequence Mode Display Mode( Click the button to divide the screen by 1, 4, 9, 16 and Full Time Bar (24 Hour) Data Bar (Recorded data)

  • Page 125: Pos/Atm

     Please choose one of the devices among the ‘Server List’ and right click on the mouse to have popup menu with Connect.  Please click ‘Connect’ to start the event search  Event search has three different parts called Event Type, Select Camera and Date/Time setting. ①...

  • Page 126: Disconnection

     Display Option – Users are able to select the display option of the playback. ④ Text window: The detected text will be shown on the ‘windows text’ right next to the display screen. ⑤ Overlay: The text will be overlaid on the playback video. ⑥...

  • Page 127: Uninstall

     if users click ‘Disconnect’, the message box below will appear 7.8 Uninstall  Please go into the ‘Application’ folder and right click on the iCMS icon.  Please choose ‘Move to Trash’ to uninstall the iCMS program...
  • Page 128 xCMS xCMS User`s Manual This document contains preliminary information and is subject to change without notice.

  • Page 129: Xcms Viewer

    xCMS VIEWER 8.1 Program Installation  Please follow the program installation procedures below.  Please select the ‘Activities’ on the top left side of the corner, and choose Home directory  Please select the ‘xCMS’ file and move the file to the Home directory ...

  • Page 130: Login

    8.2 Login  Please right-click on the icon and select open to execute the program.  Select User Name by clicking upside down arrow and enter corresponding Password to login. 11111111 8.3 Watch Mode 8.3.1 Login Screen  After users log into the ‘xCMS’, the following screen will appear.

  • Page 131: Local Setting

    8.3.2 Local Setting  Please click ‘Setup’ button on the top of the Toolbar and the following screen will appear.  There are three types of setup menu such as Device Manager, Display Setup and Password Change. 8.3.2.1 Device Manager ...
  • Page 132  Device Info - Device Name: input the DVR site name which will be displayed on the Server list. Please note that this name has nothing to do with the ID registered in DVR. Users may create a name that is fairly easy to distinguish. - Description: type brief description of the site.
  • Page 133  Users can adjust and set the environment of the display window. - Default Division: Users can select the number of division of display channels when the program initially displays the screen. (1, 4, 9, 16, 25, 36 or 64). - Users can choose either English or Korean in language setup.

  • Page 134: Live

    8.3.3 Live 8.3.3.1 Connection  Please choose one of the registered sites in Server list on the right hand side of the ‘Live Display’ screen and the right click on the mouse button will pop up the menu with ‘Connect’. ...
  • Page 135  36-Split Screen Mode: Click on No.25 button and 36-split screens will display.  64-Split Screen Mode: Click on No.64 button and 64-split screens will display.  Seq: Click ‘Seq’ and then it will show an ordered list of display which will change the channel of live display to next channels. For example, In 4 channel display, CH5 to CH8 on the display screen will change to CH9 to CH12 sequently.
  • Page 136 8.3.3.3 PTZ Control  Under the server list, PTZ control can be found. This is for the control of Pan/Tilt/Zoom of DVR.  Buttons on the screen have the following functions. - Up/Down/Left/Right direction buttons - Zoom In/Out, Focus Near/Far, Iris Close/Open Zoom Out/ In Focus Near / Far Iris Close / Open...

  • Page 137: Search Mode

    8.4 Search Mode  This involves searching recorded video to playback the wanted video of a specific date and time.  Users are able to search the recorded data in the xCMS program by Date/Time, Event, POS/ATM Search. - Date/Time Search: search by inputting date/time. - Event Search: search by event.

  • Page 138: Event Search

    ② ③ ① ⑤ ④ ⑥ Fast Forward/Backward & Playback (Click the button to increase the speed by x1, x2, x4, x8, x16, x32, x64 and Extreme) Sequence Mode Display Mode( Click the button to divide the screen by 1, 4, 9, 16 and Full Time Bar (24 Hour) Data Bar (Recorded data) Time Select Bar...

  • Page 139: Pos/Atm

    8.4.3 POS/ATM  POS/ATM button allows users to search for the POS/ATM text.  Please click ‘POS/ATM’ button right next to the ‘EVENT’ and users will see the following screen.  Please choose one of the devices among the ‘Server List’ and right click on the mouse to have popup menu. ...

  • Page 140: Disconnection

     To search the word, please fill out the text box with the searching word.  Please click ‘Search’ when all the necessary requirements are filled out.  The following screen shows the result of the POS/ATM search  Double click on the event that users want to display. Disconnection ...

  • Page 141: Uninstall

    8.6 Uninstall  Please go into the ‘Home’ folder and right click on the xCMS icon.  Please choose ‘Move to Trash’ to uninstall the xCMS program.
  • Page 142 CMS Web Client Pro CMS Web Client Pro User`s Manual This document contains preliminary information and is subject to change without notice.

  • Page 143: Cms Web Client Pro

    CMS WEB CLIENT Pro 9.1 System Requirements  Web Client Pro may not run properly if the PC does not meet minimum requirements. Other programs should not run on the same PC where this is running. Otherwise, Web Client Pro software may not perform as designed. Minimum (Enable Dual Streaming) Recommended (Disable Dual Streaming) Intel Core i5...

  • Page 144: Live Display

    9.3 Live Display  After Login, following screen will appear. ① ⑤ ④ ② ③  The screen contains following features: ① Display current live video ② Setting display mode - Search: Opening search mode in new window. - PTZ: Open PTZ control panel. - Capture: Capturing the image of selected channel.

  • Page 145: Search Screen

    9.4 Search Screen  Click then following screen will appear on a new window. ① ② ③ ④ ⑦ ⑧ ⑥ ⑤  The screen contains following features: ① Searched playback video displays. ② Setting Date/Time to search. - Click a date in calendar, then recorded data will be showed up in Time bar. - Start Time : Setting start time.

  • Page 146: Ptz Control

    9.5 PTZ Control NOTE Must complete the control setting on its DVR and Cameras first.  Click then following screen will appear on a new window. ① ② ③ ④ ⑤ ⑥  The screen contains following features: Pan/Tilt Direction button. ①...

  • Page 147: Capture

    9.6 Capture  Click then following screen will appear on a new window. ① ③ ④ ② ⑤ ⑥  The screen contains following features: Captured Image is displayed. ① ② Color Control - User can change Brightness, Contrast and Saturation of the captured image. Save as Image ③...

  • Page 148: Cms Mobile Viewer

    CMS Mobile Viewer CMS Mobile Viewer User`s Manual This document contains preliminary information and is subject to change without notice.

  • Page 149: Cms Mobile Viewer

    CMS MOBILE VIEWER 10.1 iPhone Mobile 10.1.1 System Requirements  There are no other requirements to run this program because it is specialized to perform on iPhone interface. 10.1.2 Installation  Turn on the iPhone then connect to App Store. ...
  • Page 150  When user clicks a “ ” button, it will be turned to “ ”  Click “ ” to start installation.  If user already has iTunes account, then input user’s account to download the program.  If user does not have the account, then click “ ”...

  • Page 151: Site Registration

    10.1.3 Site Registration  Click “ ” icon on iPhone then below will show.  Tap “ ” then below will show.  Tap “ ” and enter site information which are same as CMS site registration.  Enter Site Name, IP or DDNS address. ...

  • Page 152: Connection

    10.1.4 Connection  Tap on Device Name to connect the DVR to iPhone. 10.1.5 Live View (Portrait View)  To select other channels, - Slide finger from Right to Left to ascend. - Slide finger from Left to Right to descend. ...

  • Page 153: Live View (Landscape View)

     Tap “ ” to enable audio. (1CH display ONLY)  Tap “ ” to disable audio. (1CH display ONLY)  To use Zoom feature, simply pinch and drag in 1CH display. (1CH display ONLY) NOTE Audio, Zoom and PTZ are available only in full screen mode.(1channel only) 10.1.6 Live View (Landscape View) ...

  • Page 154: Search

     Tap Arrow for Pan and Tilt movement.  Touch “ ” to zoom out.  Touch “ ” to zoom in.  If users already set up the presets on DVR, users may use them by touching “ ”. 10.1.8 Search ...

  • Page 155: Snapshot Gallery

     To select other channels, - Slide finger from Right to Left to ascend. - Slide finger from Left to Right to descend.  Tap on “ ” or “ “ to choose split mode between 1, 4, 9 and 16. - In Multi channel display mode, user can double tap on certain channel to change to 1CH display mode.

  • Page 156: Setting

     To see other pictures slide finger across the screen.  Tap “ ” to send the snapshot to the Photos.  Tap ” ” to delete the selected snapshot. 10.1.10 Setting  Tap “ ” to check the information of the application. ...
  • Page 157  Click the “ ” icon then it will ask to delete the program.  Click “ ” button to successfully uninstall the program.

  • Page 158: Ipad Mobile

    10.2 iPad Mobile 10.2.1 System Requirements  There are no other requirements to run this program because it is specialized to perform on iPad interface. 10.2.2 Installation  Turn on the iPad then connect to App Store.  Move to search menu and type “mviewer” then click “ ”.
  • Page 159  When user clicks a “ ” button, it will be turned to “ ”  Click “ ” to start installation.  If user already has iTunes account, then input user’s account to download the program.  If user does not have the account, then click “ ”...

  • Page 160: Site Registration

    10.2.3 Site Registration  Click “ ” icon on iPad then below will show.  Tap “ ” and enter site information which are same as CMS site registration.  Enter Site Name, IP or DDNS address.  Enter Admin/Stream port value. ...

  • Page 161: Live View (Portrait View)

    10.2.5 Live View (Portrait View)  To select other channels, - Slide finger from Right to Left to ascend. - Slide finger from Left to Right to descend.  Tap on “ ” to choose split mode between 1, 4, 9 and 16. - In Multi channel display mode, user can double tap on certain channel to change to 1CH display mode.

  • Page 162: Live View (Landscape View)

    10.2.6 Live View (Landscape View)  To select other channels, - Slide finger from Right to Left to ascend. - Slide finger from Left to Right to descend.  Tap on “ ” to choose split mode between 1, 4, 9 and 16. - In Multi channel display mode, user can double tap on certain channel to change to 1CH display mode.

  • Page 163: Search

    10.2.8 Search  Users are able to search the recorded data with iPad.  Click “ ” on Main menu or “ ” on Live monitoring to use search function.  Choose date that wish to search from Calendar  Choose time that wish to search by sliding the Hour and Minute bar. ...

  • Page 164: Snapshot Gallery

     To select other channels, - Slide finger from Right to Left to ascend - Slide finger from Left to Right to descend.  Tap on “ ” or “ ” to choose split mode between 1, 4, 9 and 16. - In Multi channel display mode, user can double tap on certain channel to change to 1CH display mode.

  • Page 165: Setting

    10.2.10 Setting Setting  Tap “ ” to check the information of the application.  User can read the manual. 10.2.11 Uninstallation  Click the “ ” icon and hold for a while until the program icon shows x mark on the top-left side. ...

  • Page 166: Android Phone (Mviewer Pro)

    10.3 Android Phone (mViewer Pro) 10.3.1 System Requirements  This program is designed and applied only for Android OS(version 2.3 or higher) based mobile device.  Display: Min. 3.7 inch screen NOTE mViewer Pro might not work even though Android OS version is high enough. It is due to the hardware specification of Android device.

  • Page 167: Site Registration

     The program will be automatically installed in user’s application menu. 10.3.3 Site Registration  Click “ ” icon on application menu then below will show.  Tap “ ” on the main menu.  Tap “ ” on top right corner. ...

  • Page 168: Connection

    10.3.4 Connection  Tap on Device Name to connect the DVR to mobile device. 10.3.5 Live View (Portrait View)  To select other channels, - Slide finger from Right to Left to ascend. - Slide finger from Left to Right to descend. ...

  • Page 169: Live View (Landscape View)

     Tap “ ” to enable Landscape view when the device is tilted  Tap “ ” to enable PTZ function. Please refer to 10.3.7 PTZ Control for more detail.  Tap “ ” to enable Alarm Out control. Please refer to 10.3.8 Alarm Out Control for more detail. ...

  • Page 170: Ptz Control

     Tap “ ” to enable PTZ function. Please refer to 10.3.7 PTZ Control for more detail.  Tap “ ” to enable audio.  Tap “ ” to remove Camera Name and Date/Time from OSD.  Tap “ ” to take Snapshot. - Enter file name and press “...

  • Page 171: Alarm Out Control

    10.3.8 Alarm Out Control  Users are able to manually send Alarm out command with the mobile device.  Tap “ ” to enable the Alarm Out control and it will appear on lower left corner of Live screen.  Tap the numbers to send out Alarm from the connected DVR to its output source. 10.3.9 Search ...

  • Page 172: Snapshot Gallery

     To select other channels, - Slide finger from Right to Left to ascend. - Slide finger from Left to Right to descend.  Tap on “ ” or “ ” or “ ” to choose split mode between 1, 4, 9 and 16.

  • Page 173: Setting

    10.3.11 Setting  Tap “ ” to check the information of the application.  User can read the manual.  Users are able to set Password Lock. - Tap “Password Lock” from the setting menu. - Enter password. (Default password is 1111) - Tap “...

  • Page 174: Android Phone

    10.4 Android Phone 10.4.1 System Requirements  This program is designed and applied only for Android OS(version 1.6 or higher) based Smart phones. 10.4.2 Installation  Turn on the phone then connect to Android Market.  Move to search menu and type “mviewer” then select “ ”...

  • Page 175: Site Registration

     The program will be automatically installed in user’s application menu. 10.4.3 Site Registration  Click “ ” icon on application menu then below will show.  Move to “ ” tab and enter site information which are same as CMS site registration. ...

  • Page 176: Connection

    10.4.4 Connection  Click “ ” icon and select one of the registered site and click “ ”.  Move to “ ” tab and click “ ” icon.  To change the display mode, click the “ ” and select among 1ch (full screen), 4ch, 9ch and 16ch multi view. ...

  • Page 177: Search

    10.4.5 Search  Users are able to search the recorded data in the mobile CMS program.  Click “ ” to use search function of the application.  click “ ” to select the month, the date and the time in order. ...

  • Page 178: Ptz Control

    10.4.7 PTZ control  Users are able to control PTZ with Android Phone.  Press volume up button on the right side of the phone to zoom in.  Press volume down button on the right side of the phone to zoom out. ...

  • Page 179: Disconnection

    10.4.9 Disconnection  When disconnecting, please click " ” and exit the mobile viewer program. 10.4.10 Uninstall  Move to Setup > Application > Manage Applications then select “ ”.  Click “ ” icon then it will ask to delete the program. ...

  • Page 180: Blackberry Mobile

    10.5 Blackberry Mobile 10.5.1 System Requirements  This Program is designed and applied only for RIM Blackberry OS based Smart Phones. 10.5.2 Installation  Turn on the phone and connect to Blackberry App World.  Click “search” icon and type “DVR Viewer” program. ...

  • Page 181: Connection

     Click “menu>New” to type the same site information with CMS site registration.  Enter Site Name and IP/Domain.  Enter Admin and Stream port.  Enter ID and Password.  Click “Add” to save the setting. 10.5.4 Connection  If the site is registered appropriately, the following screen will be shown. ...

  • Page 182: Ptz Control

     Users can select the display mode from 1, 4, 9 and 16 multi view.  16 channel multi view is available for CIF resolution.  4 channel multi view is available for H.D1 and D1 resolution.  Only 1 channel view(full screen) is available for 720p and 1080p. ...

  • Page 183: Disconnection

    NOTE As for the touch type of blackberry phone (ex. Storm), users may control PTZ in the same way as Android Phone. 10.5.6 Disconnection  When disconnecting, please click "Disconnect” and exit the mobile viewer program. 10.5.7 Uninstallation  Click “Menu>Delete” on the “DVR Viewer” icon in the download folder to uninstall the program.

  • Page 184: Keyboard Controller

    Keyboard Controller Keyboard Controller User`s Manual This document contains preliminary information and is subject to change without notice.

  • Page 185: Keyboard Controller

    KEYBOARD CONTROLLER 11.1 Connection  User may connect cameras and Keyboard through DVR in various ways.  Below shows the major probable connection methods through RS-485; 11.1.1 Configuration Diagram I  Single system configuration (1 Camera, 1 DVR) DVR PTZ Port RS485 RS485 Tx1+...

  • Page 186: Configuration Diagram Iii

    11.1.3 Configuration Diagram III  Multiple system configuration (Multi Cameras, Multi DVRs) Max 16 Camera RS485 RS485 RS485 RS485 … … … … Multi port Max 16 DVR DVR 1 DVR 2 … … Multi port  Please make sure to connect “Tx to Rx “or “Rx to Tx” with positive polarity. (+ to +) and (- to -). 11.2 Keyboard Setup in DVR ...

  • Page 187: Keyboard Configuration

    11.3 Keyboard Configuration 11.4 Operation 11.4.1 DVR/PTZ Mode conversion  Press System ID number (For example, ID: 001 press Num Pad ) with button.  OSD will show “KBD:1” in right-bottom side that the keyboard is on DVR mode as below picture; ...

  • Page 188: Ptz Control Mode

    - EMERGENCY: turn on/off Emergency record function. - EVENT: pop up a window to see System Log. - PIP: turn on/off PIP screen in case of 1 channel screen. If PIP function is on, user number key(s) + ENT key to change the PIP channel.
  • Page 189 Serial In (POS) Serial In (POS) User`s Manual This document contains preliminary information and is subject to change without notice.

  • Page 190: Serial In (Pos)

    12. SERIAL IN (POS) 12.1 Usage of Serial-In Function  Enables to record/search/display all transactions on monitoring screen by connecting POS/Cash Register.  User can choose the data whether to record/display on their taste without limitedly designated protocols. 12.2 Connection Method ...
  • Page 191 NOTE  DVR and POS terminals, cabling and installation When you completed, Please restart the DVR. DVR is "usb to serial cable" to restart the DVR to recognize the device will need to be sure.  POS terminals to connect to the DVR and Null Modem cable connections. If you have completed all the configuration and settings, and does not result in state action, RS232c cable's pin in the map, please change the Rx and Tx lines.

  • Page 192: Link

    12.4 Link 12.4.1 Link Setup  Click “Setup>Link>” then shows as below. NOTE The above menu is only available on the DVR model with Serial-In function.  Click “Serial In” to appear following screen.  Select POS/ATM port by clicking ‘Serial In’ button. ...

  • Page 193: Schedule Setup

    12.4.2 Schedule Setup  Click “Record>Schedule>” then shows as below.  Tick the box(□) item Alarm In.  Click the Time/Date that wishes to activate ATM/POS function on schedule.  It is possible to activate all the time by clicking top-right side of table. ...

  • Page 194: Port Setting

    12.5.2 Port Setting  Press ( ) the “Port Setting” button in order to set up the port. Default values are Baud rate 2400 bps, Data Bit 5 bit, Stop Bit 1 bit, Parity None.  When the setup is done, press enter ( ) to save the setting. 12.5.3 OSD Display ...
  • Page 195  Each item explains below: - Start Pattern: Indicates the beginning of the new data when new designated data are received from a serial device. - End Pattern: Indicates the end of the data when designated data are received from a serial device. - Discard Pattern: Does not show the designated data on OSD screen.
  • Page 196  Input the pattern of dummy data to Discard Pattern.  Choose the data which willing to display and enter the Start Pattern and End Pattern.  Then tick the Auto box off in order to make the DVR recognizes the data between the Start and End patterns. ...

  • Page 197: Search

    12.6 Search  Using event search function.  Please click ( ) the “Search>Event Search” menu on the pop-up menu of the wallpaper, then user will see the following screen.  It is possible to search the recorded data which is set up on Serial In and Linking pages. ...
  • Page 198 Extensive HD-SDI Video Signal Accessory HD-SDI Video Signal Accessories User`s Manual This document contains preliminary information and is subject to change without notice.
  • Page 199 The List of Configuration HSC 1100 (HDMI to HD-SDI Converter) HSC 1200 (HD-SDI to HDMI Converter) HSC 2110 (1 to 1 Analog to HD-SDI Converter) HSC 2410 (4 to1 Analog to HD-SDI Converter) HSR 1110 (1 In / 1 Out Repeater) HSR 1440 (4 In / 4 Out Repeater) HQS 1004...

  • Page 200: Hd-Sdi Video Signal Accessories

    HD-SDI Video Signal Accessories 13.1 HSC1100 13.1.1 Introduction  HSC 1100 is HD signal converter which converts video signal between HDMI and HD-SDI. It converts the high resolution of HDMI sources to SMPTE 292M, standard HD-SDI signal. 13.1.2 Features  Convert HDMI to HD-SDI ...

  • Page 201: System Connection Diagram

    13.1.7 System Connection Diagram 13.1.7.1 HDMI In/Out and HD-SDI In/Out Connections  Connect a ‘HDMI OUT’ from the device to ‘HDMI IN’ of HSC 1100 using by HDMI cable.  Connect a ‘HD-SDI OUT’ from HSC 1100 to ‘HD-SDI IN’ of HD-SDI device using by 75 ohm coaxial cable. 13.1.7.2 Video Component Input ...

  • Page 202: Hsc1200

    13.2 HSC1200 13.2.1 Introduction  HSC 1200 is HD signal converter which converts video signal between HD-SDI and HDMI. It converts the HD-SDI video to HDMI signal. 13.2.2 Features  Convert HD-SDI to HDMI  Equalized HDMI input supports long HDMI cables up to 30m, 24 gauge ...

  • Page 203: Connector Wiring

    13.2.7 Connector Wiring 13.2.7.1 HD-SDI In/Out and HDMI In/Out Connections  Connect a ‘HD-SDI OUT’ of HD-SDI device to ‘HD-SDI IN’ of HSC 1200 using by 75ohm coaxial cable.  Connect a ‘HDMI OUT’ of HSC 1200 to ‘HDMI IN’ of device with HDMI output using by HDMI cable. 13.2.7.2 Video Component Input ...

  • Page 204: Hsc2110

    13.3 HSC2110 13.3.1 Introduction  HSC 2110 is video signal converter between SD to SDI. It is 1 In / 1 Out SD to SDI signal converter which will convert one analog signal to one HD-SDI signal. 13.3.2 Features  Convert 1CH SD to 1CH HD-SDI ...

  • Page 205: Connector Wiring

    13.3.7 Connector Wiring 13.3.7.1 1 In / 1 Out Analog to HD-SDI Connection  Connect a ‘VIDEO OUT’ of analog device to ‘VIDEO IN’ of HSC 2110 using 75ohm coaxial cable.  Connect a ‘HD-SDI OUT’ of HSC 2110 to ‘HD-SDI IN’ of the HD-SDI DVR using 75ohm coaxial cable. 13.3.7.2 RS-485 Connection ...

  • Page 206: Display

    13.3.10 Display 13.3.10.1 LEDs KEYS Operating mode Power LED • Light off: Converter off (Red) • Light on: Converter on Connection LED • Light off: Not connected (Green) • Light on: Connected 13.4 HSC2410 13.4.1 Introduction  HSC 2410 is video signal converter between SD to SDI. It is 4 In / 1 Out SD to SDI signal converter which will convert four analog signal to one HD-SDI signal.

  • Page 207: System Dimension Diagram

    13.4.6 System Dimension Diagram 13.4.7 Connector Wiring 13.4.7.1 4 In / 1 Out Analog to HD-SDI Connection  Connect 4 ‘VIDEO OUT’ of Analog device to each of 4 ‘VIDEO IN’ of HSC 2410 using 75ohm coaxial cables.  Connect a ‘HD-SDI OUT’ of HSC 2410 to ‘HD-SDI IN’ of the HD-SDI DVR using 75ohm coaxial cable. 13.4.7.2 Power Supply Connection ...

  • Page 208: Display

    13.4.9 Display 13.4.9.1 LEDs KEYS Operating mode Power LED • Light off: Converter off (Red) • Light on: Converter on Connection LED • Light off: Not connected (Green) • Light on: Connected 13.5 HSR1110 13.5.1 Introduction  HSR 1110 is HD SDI repeater to extend the signal transmission distance between HD-SDI devices. The transmission distance is easily extended up to 150m and if it requires to extend longer than 150m, it needs to connect another repeater to extend the signal transmission and it will be extended up to another 150m.

  • Page 209: System Dimension Diagram

    13.5.6 System Dimension Diagram 13.5.7 Connector Wiring 13.5.7.1 1 In/ 1 out HD-SDI Connections  Connect a HD-SDI device (e.g. Camera) to ‘HD-SDI IN’ of HD-SDI repeater.  Connect the HD-SDI device (e.g. DVR) to ‘HD-SDI OUT’ of HD-SDI repeater. 13.5.7.2 Power Supply Connections ...

  • Page 210: Hsr1440

    13.6 HSR1440 13.6.1 Introduction  HSR 1440 is HD-SDI repeater to extend the signal transmission distance between HD-SDI devices. The transmission distance is easily extended up to 150m and if it requires to extend longer than 150m, it needs to connect another repeater to extend the signal transmission and it will be extended up to another 150m.

  • Page 211: Connector Wiring

    13.6.7 Connector Wiring 13.6.7.1 4 In/ 4 out HD-SDI Connections  Connect a 4 HD-SDI device (e.g. Camera) to each of 4 ‘HD-SDI IN’ of HD-SDI repeater.  Connect the 4 HD-SDI devices (e.g. DVR) to each of 4 ‘HD-SDI OUT’ of HD-SDI repeater. 13.6.7.2 Power Supply Connections ...

  • Page 212: Hqs1004

    13.7 HQS1004 13.7.1 Introduction  This device is HD-SDI Video distribution amplifier which has 4 separately buffered HD-SDI outputs. This model is specially designed for 75 ohm HD Digital video distribution. 13.7.2 Features  Compact HD-SDI Video Distribution Amplifier  1 HD-SDI Video Input(SMPTE 292M) ...

  • Page 213: Connector Wiring

    13.7.7 Connector Wiring 13.7.7.1 Distribution-In/Out Connections  Connect a ‘HD-SDI OUT’ of HD-SDI device (e.g. Camera) to ‘HD-SDI IN’ of HQS 1004 using by 75 ohm coaxial cable  Connect 4 ‘HD-SDI OUT’ of HQS 1004 to each ‘HD-SDI IN’ of HD-SDI devices (e.g. DVR). 13.7.7.2 Power Supply Connections ...

  • Page 214: Hfo1100 & Hfo1200

    13.8 HFO1100 & HFO1200 13.8.1 Introduction  HFO 1100 Series are HD-SDI/Fiber optic converters which enable the transmission of HD-SDI signal up to 30km. These converters meet SMPTE 292M specification and are suitable for both indoor and outdoor use. HFO1200 receives the HD- SDI signal and send the signal out through fiber optic cable.

  • Page 215: System Dimension Diagram

    13.8.6 System Dimension Diagram 13.8.7 Connector Wiring 13.8.7.1 HD-SDI in Connections  Connect HD-SDI Camera to ‘HD-SDI IN’ of HFO1200 using 75 ohm coaxial cable 13.8.7.2 Fiber Optic Out Connections  Connect the “LC Fiber Optic out” of HFO1200 which can be connected to opposite site of Fiber optic converter (HFO 1100) by using the fiber optic cable.

  • Page 216: Cable

    13.8.8 Cable  75 ohm coaxial cable is needed  Fiber Optic Cable NOTE The cables above are not included in the package. 13.8.9 Display 13.8.9.1 LEDs KEYS Operating mode Power LED • Light off: Converter off (Red) • Light on: Converter on Connection LED •...
