Step3.

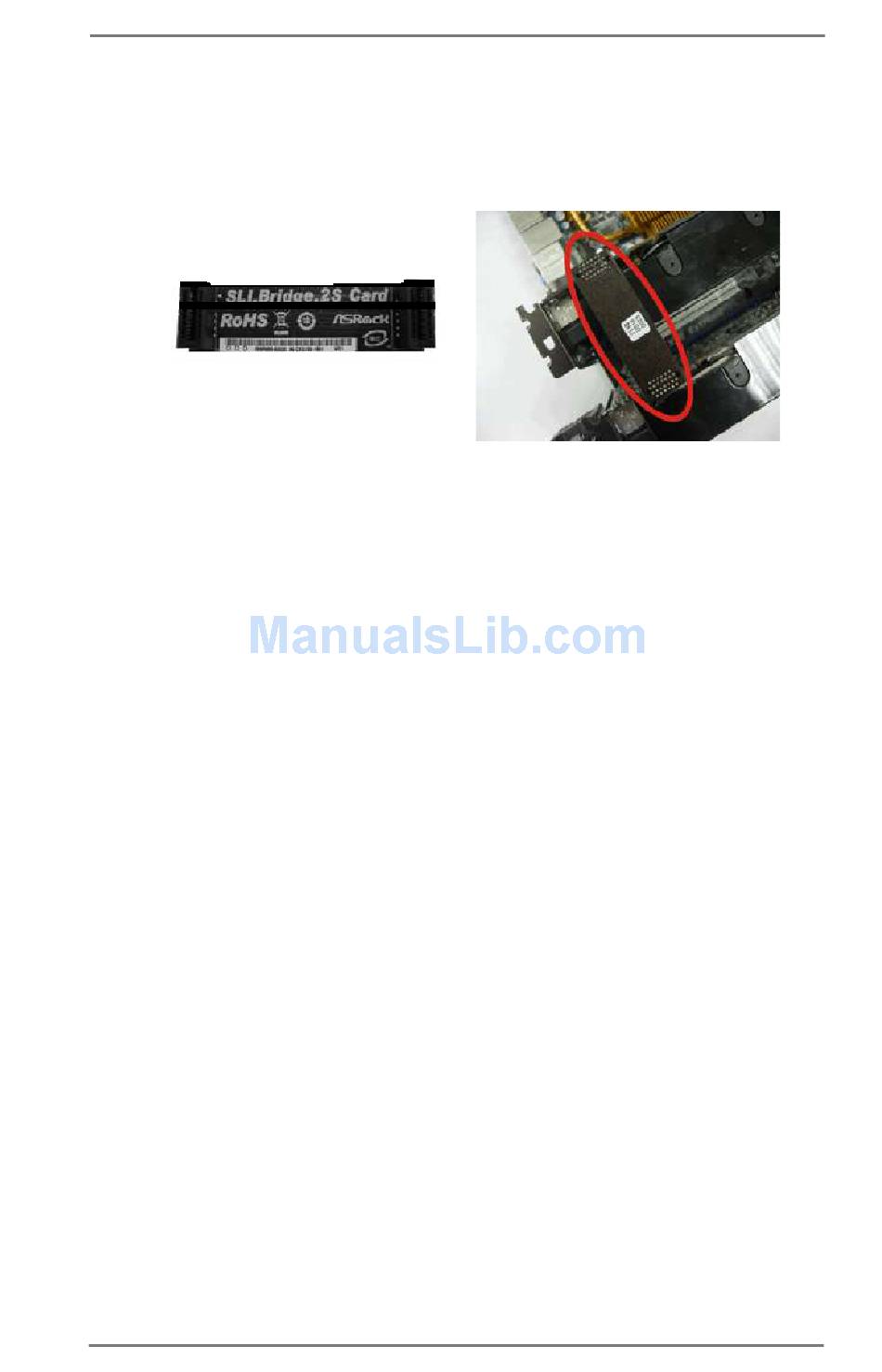

Align and insert the ASRock SLI_Bridge_2S Card to the goldfingers on
each graphics card. Make sure the ASRock SLI_Bridge_2S Card is firmly
in place.
ASRock SLI_Bridge_2S Card
Step4.
Connect a VGA cable or a DVI cable to the monitor connector or the DVI
connector of the graphics card that is inserted to PCIE2 slot.
