ANDI - WMA 7612 L - DISASSEMBLY
1- TOP PLATE
• Remove the two screws that attach the top plate to the cabinet.
• Push the top plate back and then lift upwards and take it out.
2- REAR COVER
• Remove the five screws that attach the back cover to the cabinet.
• Lay the cover 90º to the cabinet and lift to remove.
3- FRONT DOOR
• Open the front door.
• Remove the two screws that secure the front door to the hinge. ( Figure 1a)

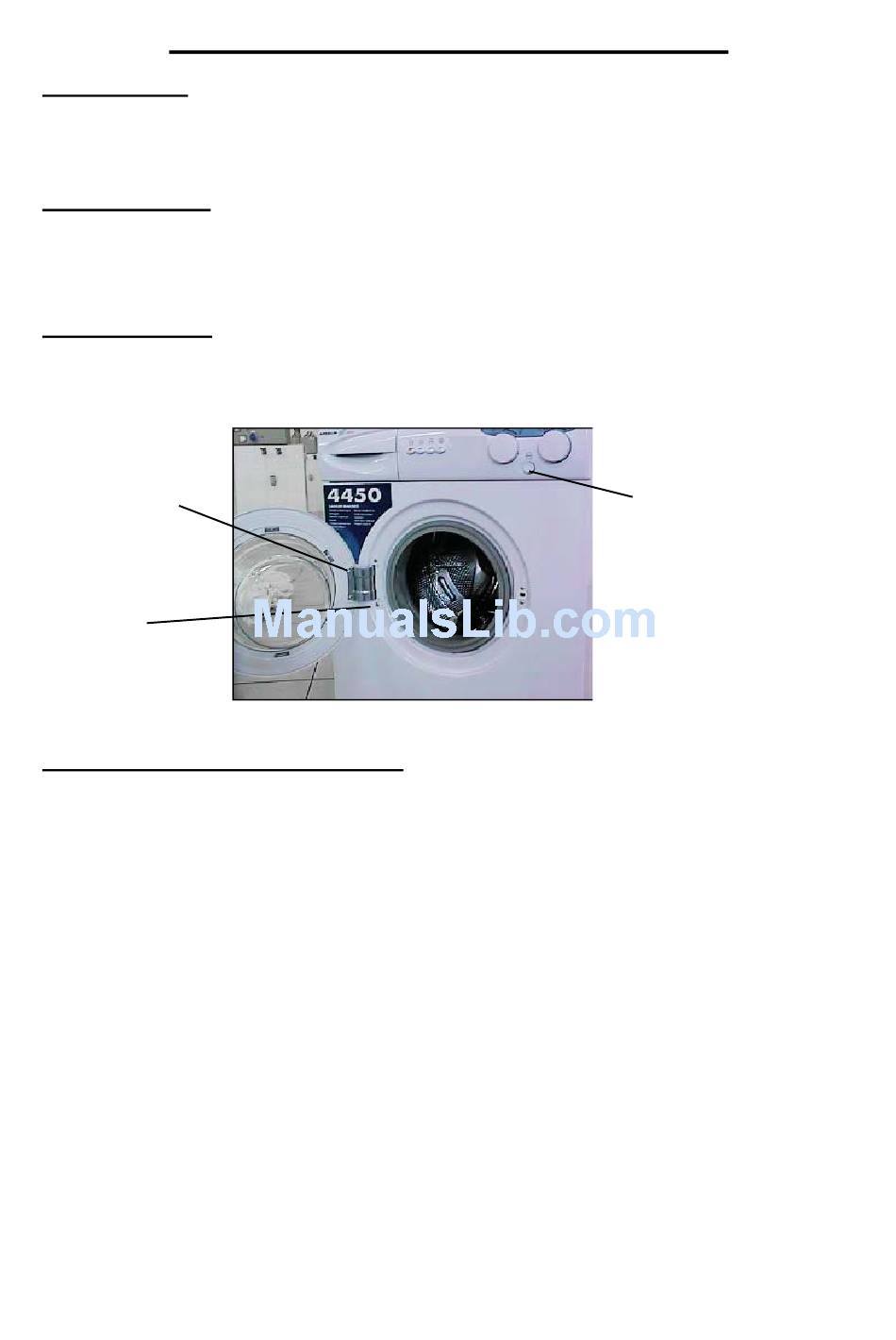

Front door
screw - b
Hinge screw-c
Figure 1a
3a- FRONT DOOR (New BIG DOOR)
The opening side of the big porthole can be changed. It might be wanted that the
180º opening big front door to be opened to right instead of left because of the
ergonomic loading demands where it is placed at home. Therefore instructions for
changing the opening side of the washing machine together with assemblying and
disassemblying instructions are explained below.
To change the opening side of the big porthole
• Detach the door hood from the front panel by taking out the cabinet hood
clamp.
• Detach the door lock from the front panel by unscrewing the two plastic
screws.
• Unscrew the two hinge bolts (M5x10) and take out the front door assembly
from the front panel.
• Unscrew the screw(4,2x9,5) which fixes the hinge support bracket to the front
panel.
• Unscrew the screws of the front panel and detach it from the cabinet.
• Secure the cables going to the door lock at the appropriate hole on the panel
support with a cable clamp by arranging its length (if we are to place the door
lock underneath the detergent dispenser, we should open the wrapping and
extend the cable or if we are to place the door lock underneath the timer, we
shold wrap the cable).
a – Door opening button

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WMA 7612 L and is the answer not in the manual?

Questions and answers

Summary of Contents for ANDI WMA 7612 L

  • Page 1 ANDI - WMA 7612 L - DISASSEMBLY 1- TOP PLATE • Remove the two screws that attach the top plate to the cabinet. • Push the top plate back and then lift upwards and take it out. 2- REAR COVER •...
  • Page 2 • If we are to place the door lock underneath the detergent dispenser we have to mount a door lock protecting part, part number YA2805290100 on the terminals of the door lock secured with a screw. In the other case the door lock protecting partshould be removed (Figure 1b).

  • Page 3: Kick Plate

    -Detach the inner cover from the outer cover without damaging it. -For reassemblying the front door, put the outer cover down the bright side facing the workbench. Place the handle together with its pins on to the outer cover. Place the hinge together with its plastic bushings in the outer cover.

  • Page 4: Front Panel

    7- FRONT PANEL • Press door open knob to open the front door. • Remove the bellow clamp that fixes the bellow to the front panel. ( Figure 3 ) o Remove the bellow from the front panel • Remove the two screws that attach the door lock to the front panel.
  • Page 5 Figure 5 • Pull down the front panel and release from the fixtures on the body. 8- HINGE • Remove the front door. • Remove the bellow clamp that attaches the bellow to the front panel. • Remove the bellow. •...

  • Page 6: Drum Group

    11- BELLOW (from the tub) • Remove the front panel. ( figure 3, 4, 5 ) • Remove the spring clamp that fixes the bellows to the tub cover. • Pull off the bellows. ( When remounting, the bellows holes should look at the lower part of the tub cover ).

  • Page 7: Shock Absorber

    16- SHOCK ABSORBER • Remove the back cover. • Damper pin at the tub is pulled off by pressing on the snaps at the sharp end. ( Figure 7a ) • Pull out the damper pin. ( Figure 7 ) Figure 7 17- TUB INLET HOSE •...

  • Page 8: Drain Hose

    20- DRAIN HOSE • Remove kick plate,front panel,top plate and rear panel. • Remove spring clamp from the pump connection, cut out the plastic clamp securing the drain hose to the cabinet. (Pay attention to the remaining water inside the hose) •...
  • Page 9 23- DRAWER PANEL • Open the detergent dispenser drawer. • Remove the detergent drawer by pressing the arrow on the softener syphon and pull free. ( Figure 10 ) • Turn the drawer upside down and release the snaps by the aid of a screw driver.

  • Page 10: Detergent Dispenser

    25- THERMOSTAT KNOB o Remove top plate and control panel. o Pull out thermostat knob. 26- PROGRAM AND THERMOSTAT DISPLAYS o Remove top plate and control panel. o Release snaps inside the control panel which hold the displays. (When reassemblying place the displays in the snaps, turn it so that the recess behind and underneath the dislay look downwards.

  • Page 11: Push Buttons

    • Disconnect the cables from the programmer. Figure 12 30- THERMOSTAT o Remove top plate and control panel. Pull out the thermostat knob. o Remove the rear panel and the thermostat bulp./cable socket from the switch o Remove the two screws that attach thermostat/switch to the control panel support.
  • Page 12 34- MAINS CABLE AND THE TERMINAL • Disconnect mains cable from the power supply. • Terminal group cover is released from the snaps at both sides. ( figure 13 ) • Cable holder screw is loosened. • Remove the power supply cable earthing screw. •...

  • Page 13: Upper Counter Weight

    36- DOOR LOCK WIRE AND OPENING MECHANISM • Remove top plate and front panel. • Remove the clamp securing the door switch cable outer sleeve. • Pull downwards to release the outer sleeve of the wire. • Release wire and unhook inner wire from door switch. •...
